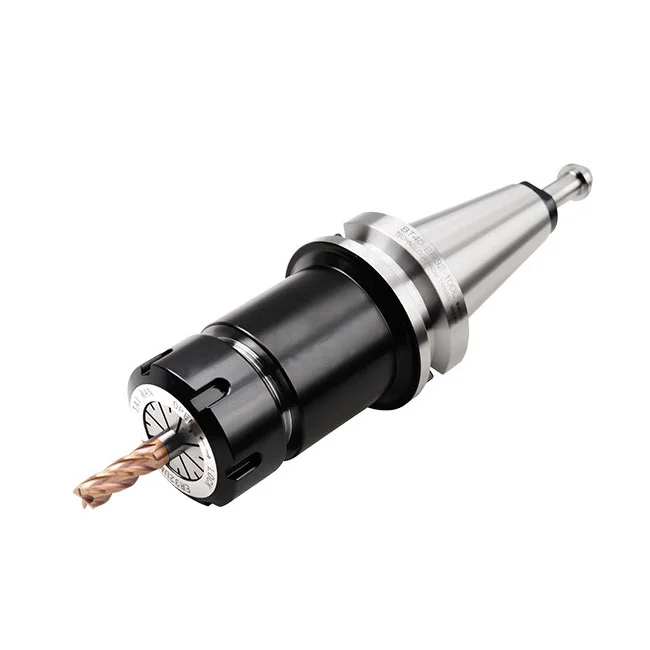

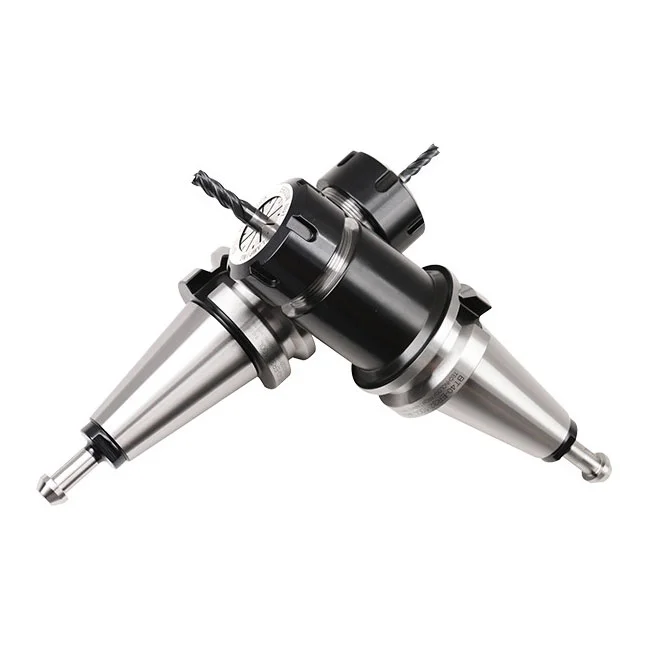

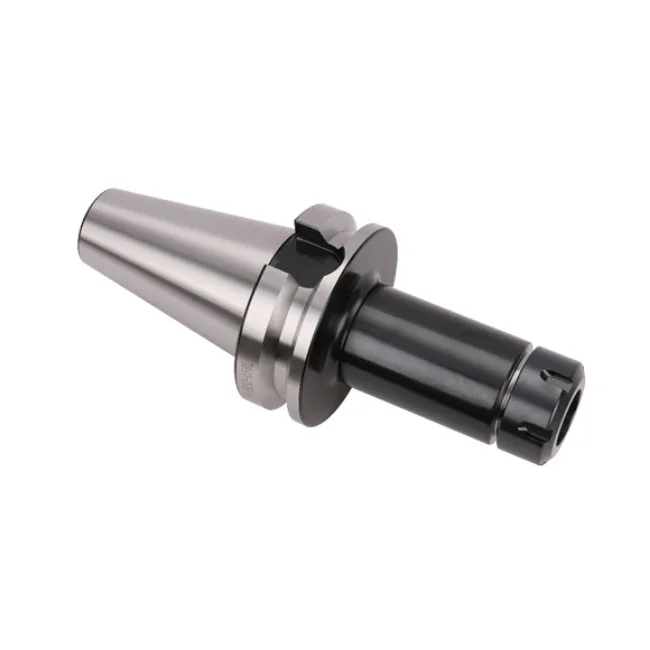

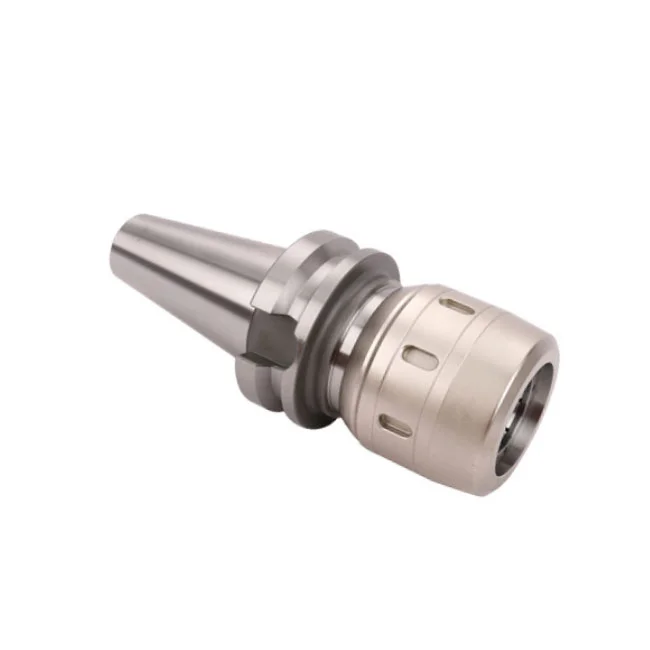

BT-C TOOL HOLDERS SYSTEM

HOT PRODUCT

PRODUCT SPECIFICATION

PRODUCT FEATURES

High speed, high accuracy, high durability C-STRAIGHT TOOL SERIES

1. Material:20CrMnTi/15CrMn;

2. Hardness:HRC58-60, Carbon depth > 0.8 ;

Tolerance class:≤AT3 ;

4. Inner hole of the shank divide into 6 troughs to prevent the insert remove, increase the grasp force;

5. Ball bearing cage is made of special material, improve the endurance, enhance the grasp force;

6. Grasp force strong, centering accuracy high, suit to heavy cutting;

7. Two kinds looks provide:polishing or chemical nickel-plating processing;

8. Inner hole grinding for many times, so as to reach Ra0.4, has a mirror effect;

9. End and the cylindrical are grinding for many times, can reach Ra0.4, has a mirror effect;

10. Surface "environmental protection", special coating surface treatment, improve the hardness and endurance of the surface, cleaness better, accuracy stable, surface more smooth, antirust, feel comfortable, appearance nice.

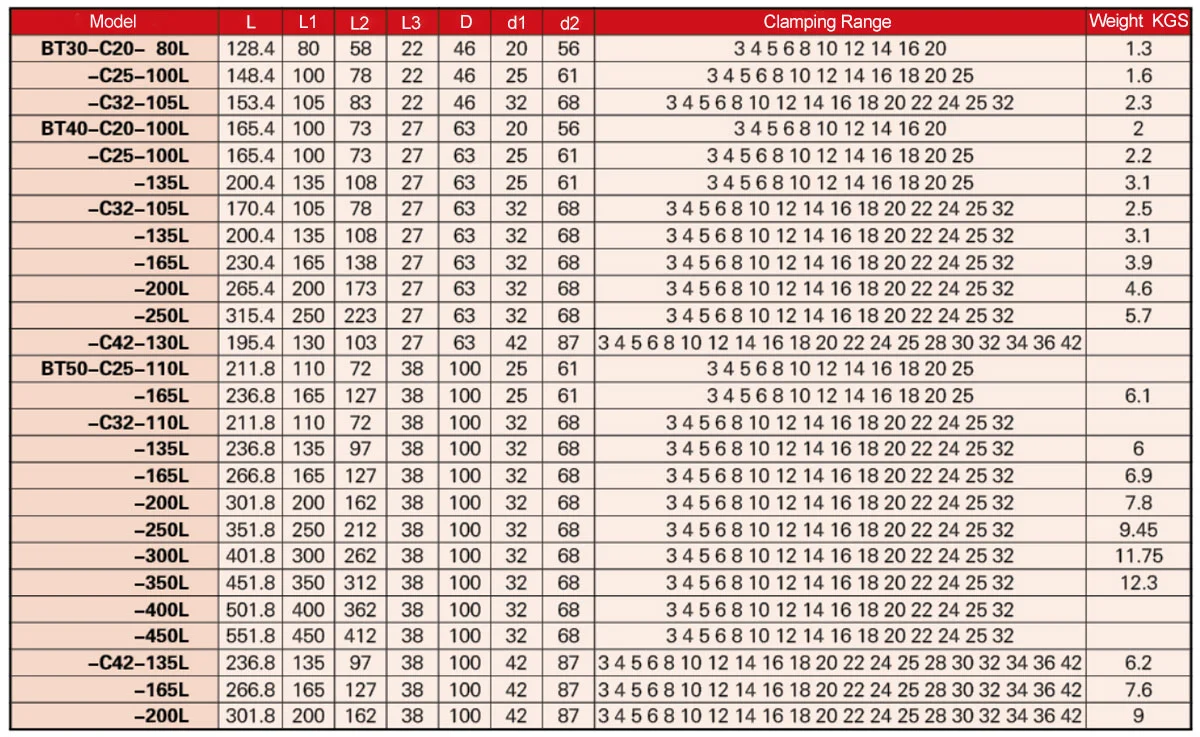

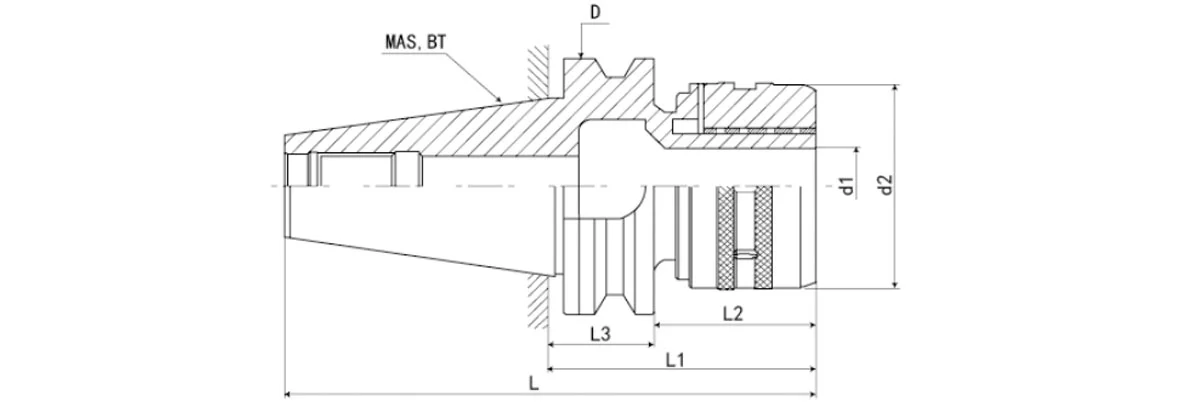

TECHNICAL PARAMETER
