CNC Machine Tool Accessories Safety Door Switch Guide

What is a safety door switch?

A CNC safety door switch (also known as a safety interlock switch) is a safety control component installed on the protective door of a CNC machine tool.

It detects whether the machine’s safety door is open or closed. When the door is not properly closed, the safety door switch interrupts the machine’s control circuit, preventing the CNC from running and avoiding risks such as contact with high-speed rotating tools, flying chips, or high-pressure coolant.

Think of it like a guard at the entrance—it makes sure the door is secured before allowing the machine to operate.

Working principle of a CNC safety door switch

To understand what is the purpose of a safety switch, it’s important to know how it works.

The safety lock switch is usually connected to the CNC control system and the electrical circuit. It detects the position of the machine door through mechanical contacts, magnetic sensors, or electronic signals:

Door closed → Signal ON → CNC system allows the machining program to run;

Door open → Signal OFF → Machine immediately stops the spindle and feed motion.

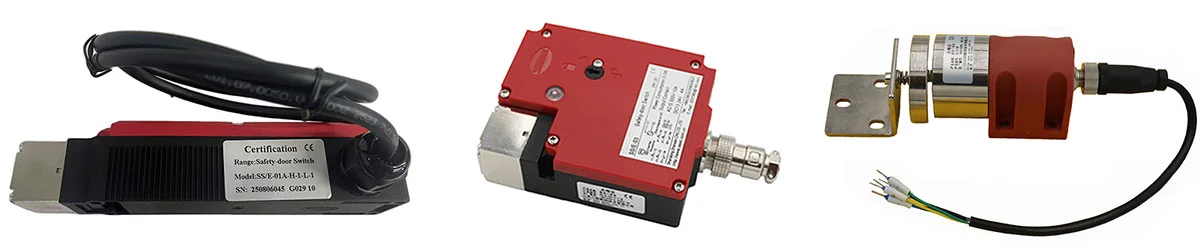

Common types of Safety Interlock Switches:

Mechanical safety lock switch ;Magnetic safety door switch ;Non-contact electronic safety switch.

How to choose the right safety door switch

When selecting a machine tool safety door switch, consider:

1.Protection level: Choose IP67 or higher for dustproof and waterproof performance;

2.Response speed: Ensure the machine stops immediately when the door opens;

3.Ease of installation: Convenient replacement and adjustment;

4.Compatibility: Works seamlessly with your CNC control system and electrical circuits.

Maintenance and care for a CNC safety lock switch

To keep your safety door switch (Safety Interlock Switch) operating reliably:

1.Check for any visible damage, loose mounting, or oil contamination;

2.Simulate door open/close to ensure the stop function works properly;

3.Inspect terminal connections for looseness or oxidation;

4.Replace periodically according to manufacturer recommendations.

The safety door switch may be small, but it plays the role of a “gatekeeper” in a CNC machine’s safety system.

Choosing a high-quality Safety Interlock Switch and performing regular maintenance not only ensures operator safety but also prolongs machine life.
