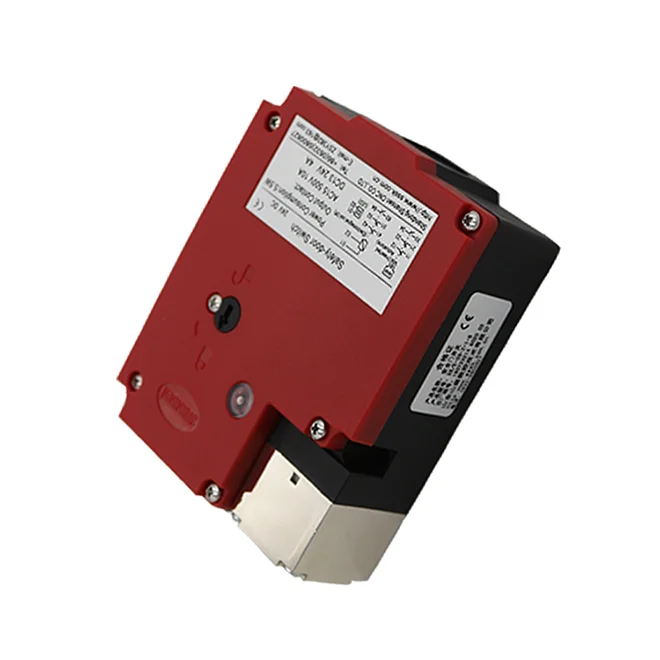

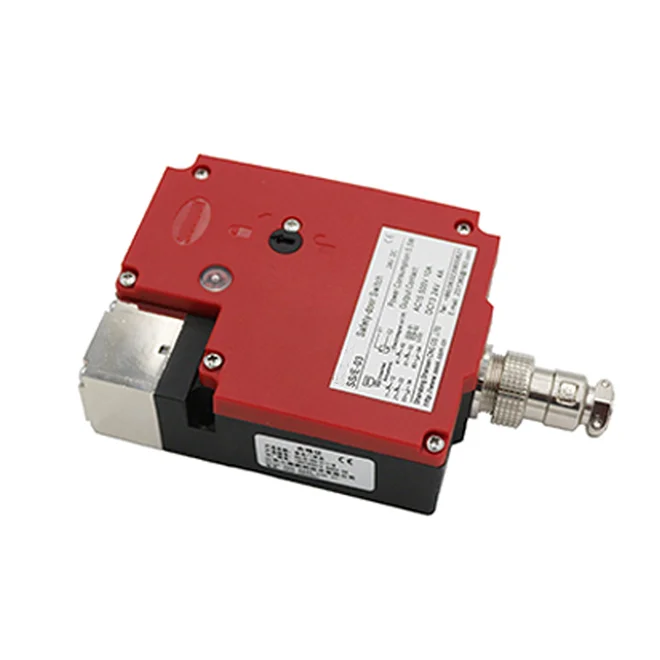

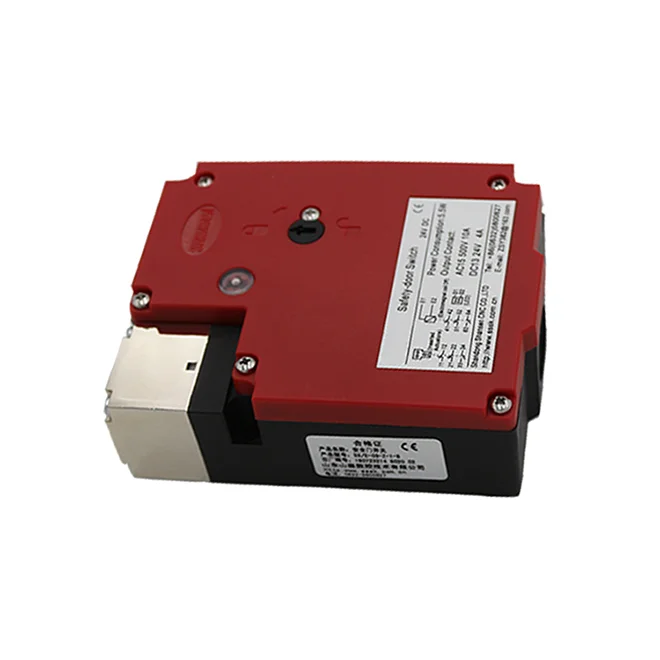

SS/E-03 SAFETY DOOR SWITCH
Product Model :SS/E-03
Functions: According to the international standard,it is a safety door switch with mechanical locking and solenoid unlocking. The door has to be closed to start the machine and the door cannot be opened when the machine is running.
Functions: According to the international standard,it is a safety door switch with mechanical locking and solenoid unlocking. The door has to be closed to start the machine and the door cannot be opened when the machine is running.
Product details
PRODUCT ADVANTAGE
▶ 1.Square housing

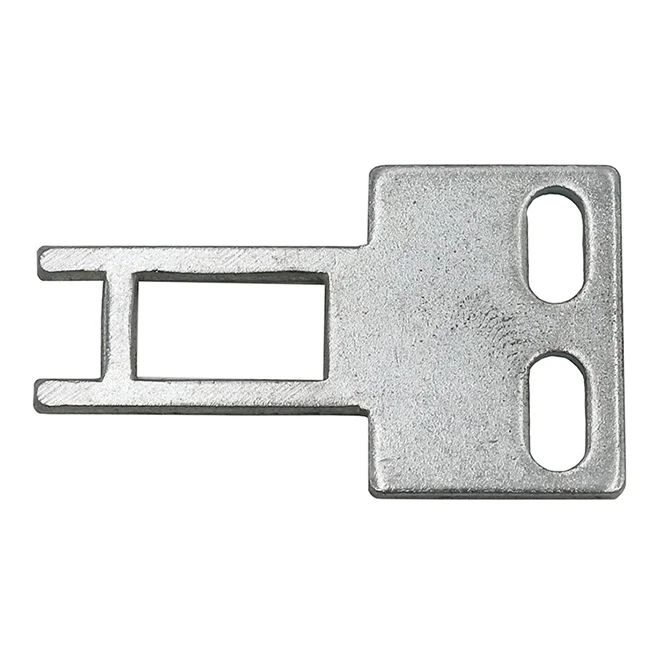

▶ 2.Metal head with 4 key insertion direction.
▶ 3.unlock through the solenoid
▶ 4.manual unlock structure
▶ 5.the indicator light of separate circuit can achieve many kinds of use.
▶ 6. six groups of signal contact can complete a variety of connection mode

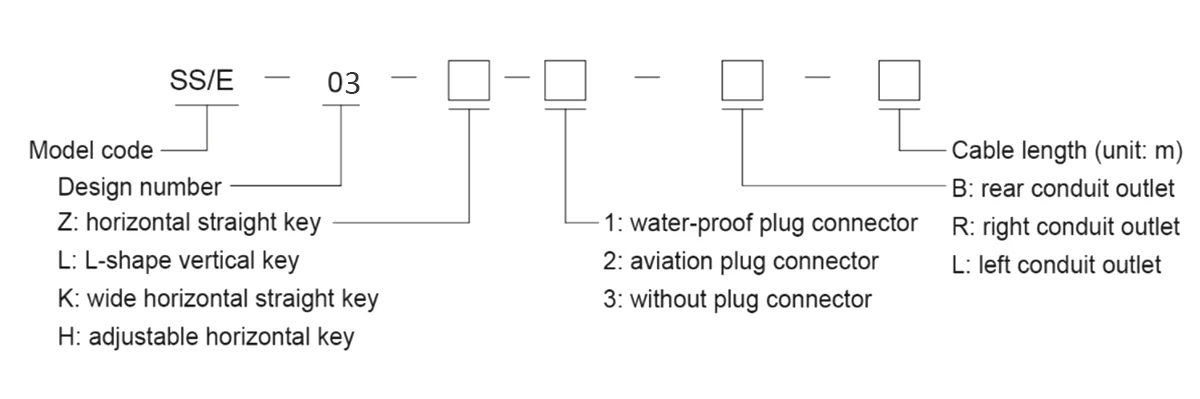

MODEL NUMBER

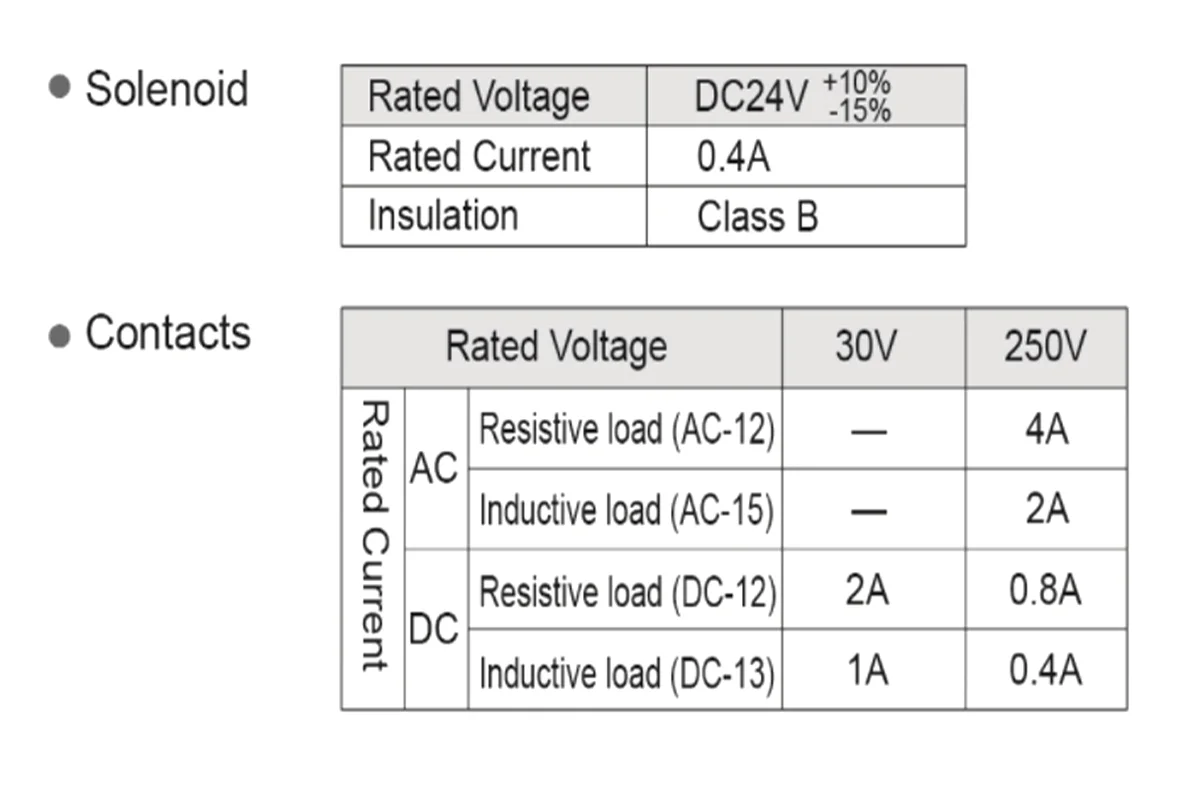

RATINGS

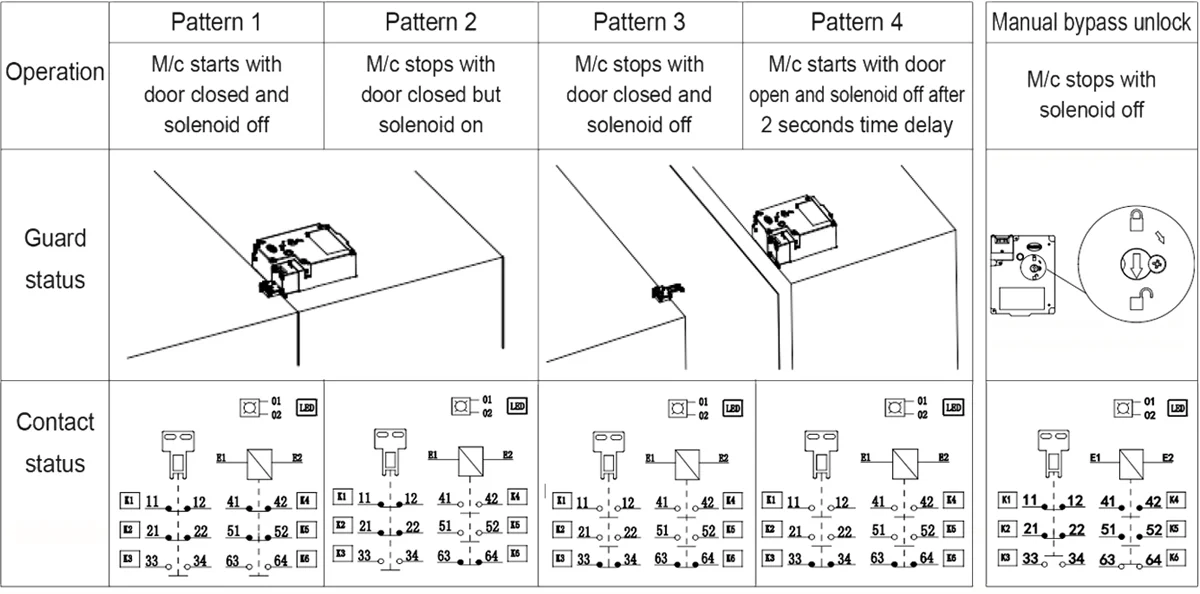

OPERATION PATTERNS

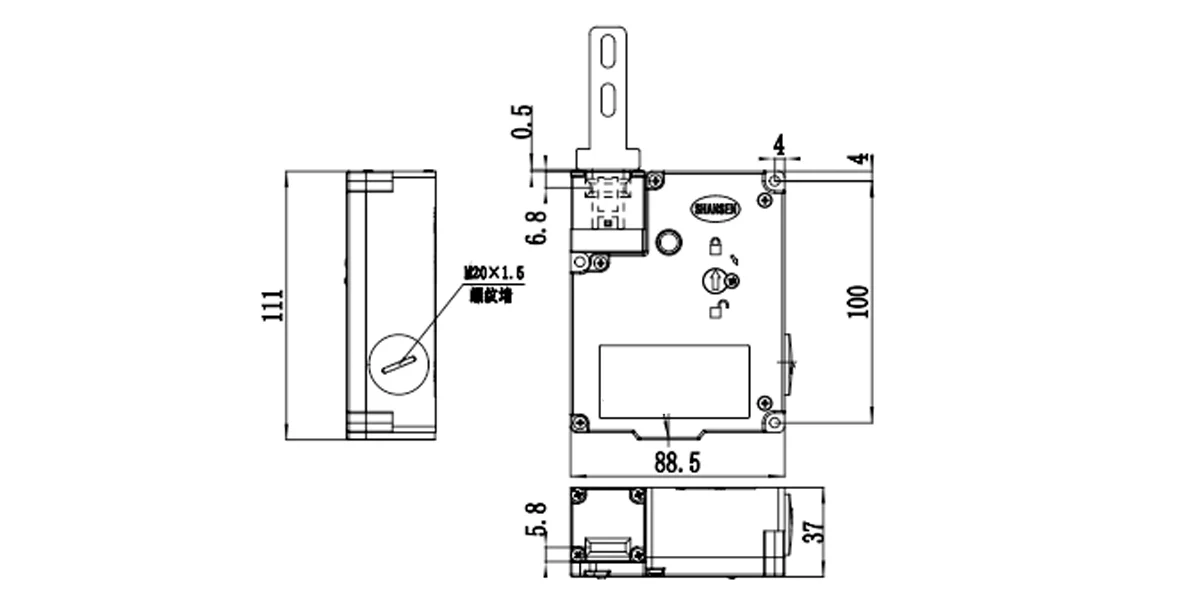

DIMENSION

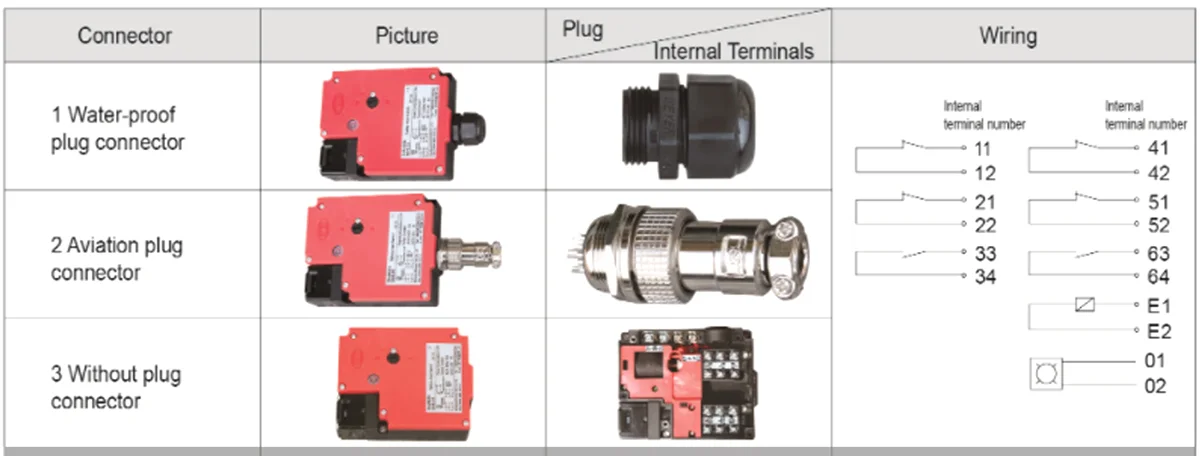

CONNECTORS

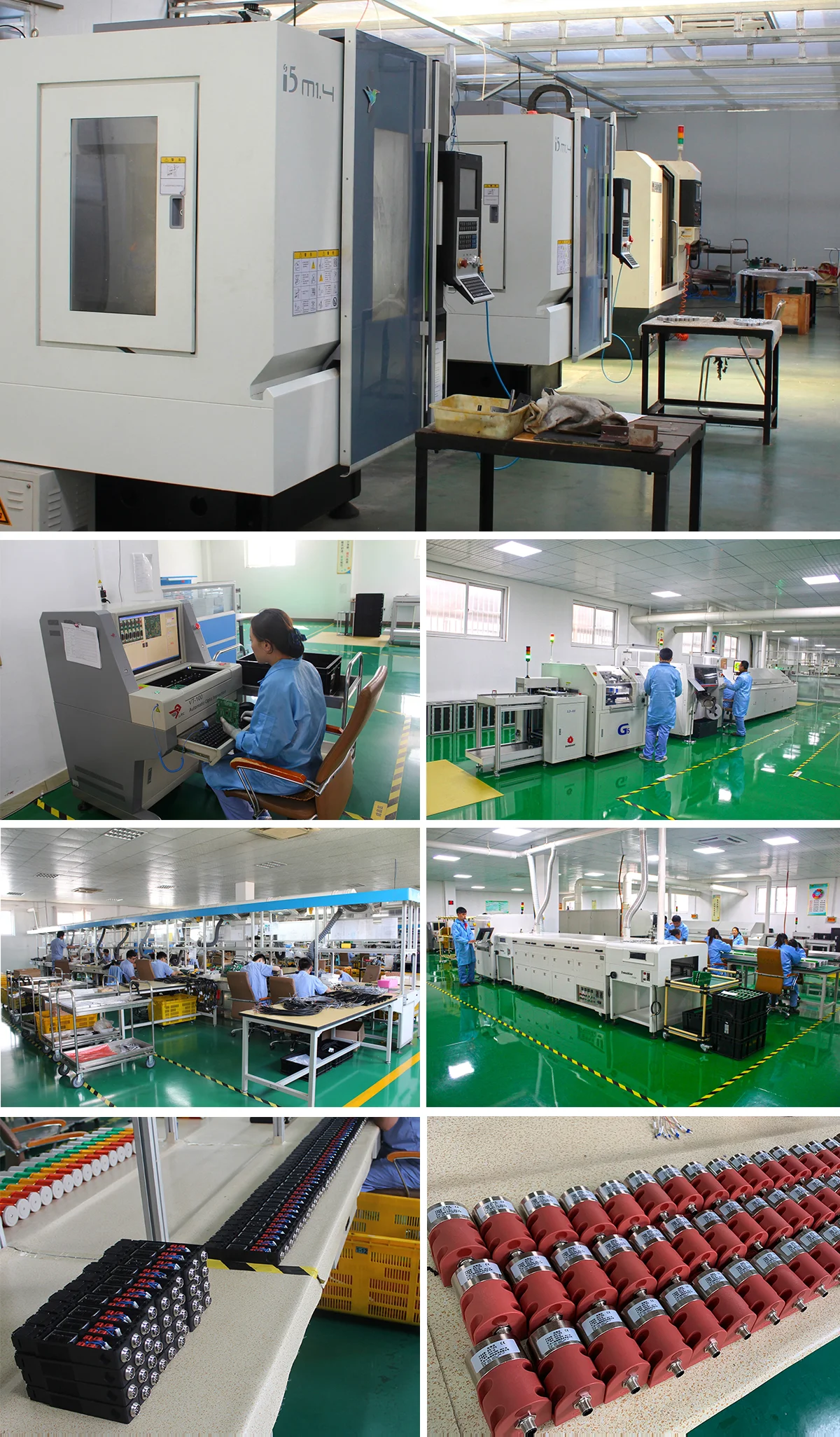

FACTORY SHOW
