What is a VDI Tool Holder?

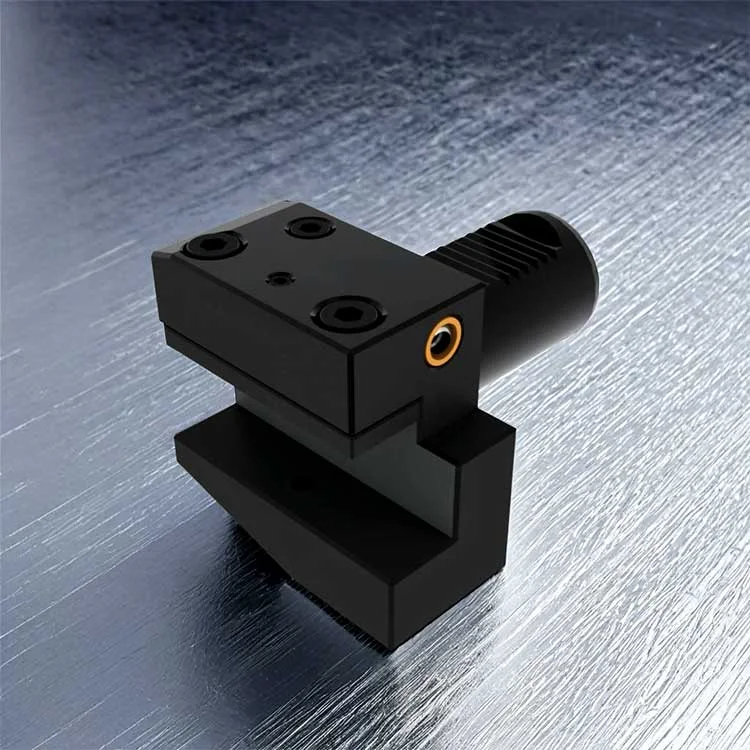

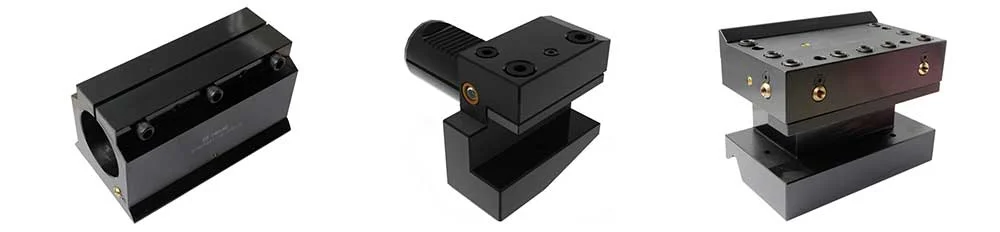

VDI tool holders originated in Germany and are designed with a standardized system specifically for CNC turning centers. The German DIN69880 tool system (VDI tool holders) is the most common German standard for CNC tool holders, available in two types: fixed tool holders and powered tool holders, with sizes such as VDI20, VDI30, VDI40, and VDI50 (matching the size of the turret). It has the advantages of lower cost, good clamping rigidity, and strong interchangeability, and is widely used in various CNC lathes and powered tool turrets.

DIN 69881 is a "quick-change tool interface system" developed based on DIN 69880 to achieve faster and more precise tool changes. It is also known as a "quick-change system" and is commonly used with PSC (Capto), KM, ABS, and other modular interfaces. It adopts a modular quick-change structure, where the tool holder and base are separated. It provides high precision and minimal repeat positioning error. This system is mainly used in high-efficiency, automated production lines.

VDI Tool Holder Features and Advantages

High Precision Clamping
VDI tool holders provide a high-precision tool clamping system, reducing tool vibration and deflection, ensuring high precision and high surface quality during the machining process. This is crucial for industries requiring tight tolerances and fine surface treatments, such as aerospace, automotive, and precision equipment manufacturing.

Quick Change and Adaptability
The standardized design of VDI tool holders makes tool changes fast and convenient, significantly reducing downtime. The quick-locking and loosening mechanisms allow operators to change tools in a shorter time, thereby improving the efficiency of production lines.

Compatibility and Flexibility
VDI tool holders are compatible with various CNC machines and tools, seamlessly integrating with different CNC systems. This allows manufacturers to freely choose different tool configurations according to production needs, adapting to different machining tasks and material requirements.

Durability and Stability
VDI tool holders are made from high-quality materials and precision processing techniques, offering excellent durability and impact resistance. Even under high-load machining conditions, VDI tool holders maintain stable performance, ensuring continuous production.

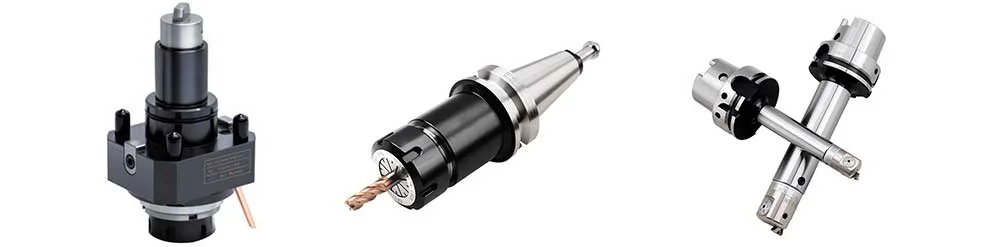

Types of CNC Tool Holders and Selection

In addition to VDI tool holders, there are various other types of CNC tool holders, each with its unique applications and advantages. Choosing the right tool holder based on the actual machining needs is key to improving production efficiency and machining quality.

BT Tool Holders
BT tool holders feature a unique tapered interface and are widely used in high-precision and high-speed machining, suitable for high-speed milling operations. The BT tool holder is the preferred choice for many precision machining industries due to its high rigidity and anti-vibration characteristics.

HSK Tool Holders
HSK tool holders are a high-precision tool holder system, particularly suited for high-speed cutting and high-speed milling. The design of HSK tool holders allows them to maintain good stability and precision even at high rotational speeds.

BMT Tool Holders

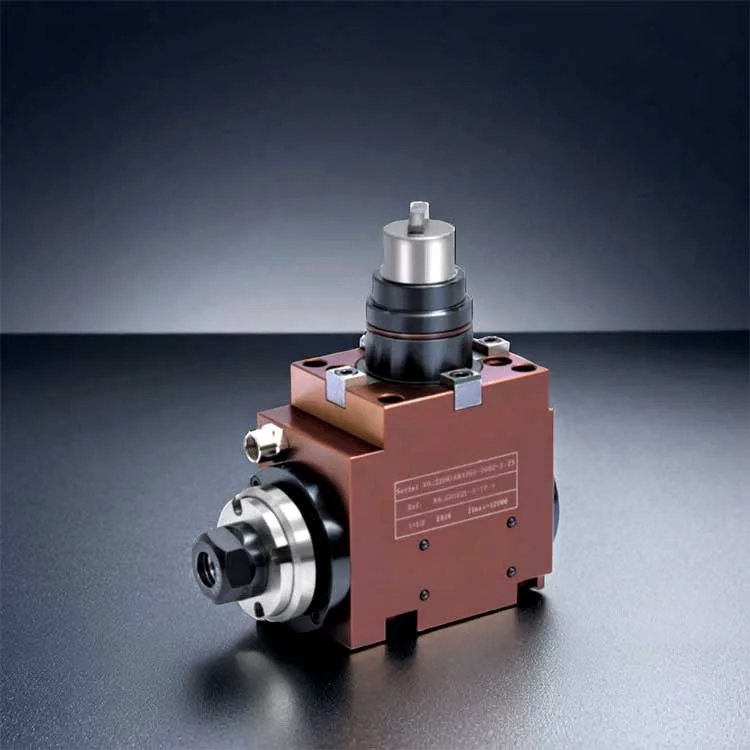

BMT tool holders is the latest technology in turning-milling combined machines and is considered to be the most rigid and stable solution. When the tool holder is installed on the turret, the turret mounting surface has keyways, and the operator simply places the tool holder in the keyway and locks four screws to complete the installation. The tool holder’s true straightness accuracy is determined by the precision of the turret keyway, so operators do not need to recalibrate the true straightness.

VDI vs BMT Tool Holders Comparison

VDI Tool Holder Advantages

1.Requires only one screw to lock the tool holder, allowing for faster calibration and installation of tools.

2.Lower investment cost, VDI tool holders are cheaper compared to BMT tool holders.

3.Operators can adjust the tool holder’s precision to the desired level.

BMT Tool Holder Advantages

1.Better rigidity, suitable for heavy cutting.

2.Operators do not need to recalibrate precision, as the tool holder's precision determines everything.

How to Choose the Right CNC Tool Holder

When selecting a CNC tool holder, it is essential to consider the machining process, machine model, tool type, and material being machined. The following key factors should be considered when choosing a tool holder:

1.Machining Accuracy Requirements
If your machining requires high precision, VDI tool holders or HSK tool holders may be more suitable. These tool holders provide higher precision and more stable machining conditions.

2.Tool Change Frequency
If frequent tool changes are required in production, VDI tool holders’ quick-change mechanism can save valuable time and improve production efficiency.

3.Machine Compatibility
Ensure the tool holder is fully compatible with the CNC machine being used to avoid machining issues caused by mismatched tool holders and machines.

4.Production Environment and Material
Consider the specific characteristics of the production environment when selecting the tool holder. For example, if machining harder materials, you may need a tool holder with better impact resistance and wear resistance.

CNC tool holders are core components in modern manufacturing, directly affecting machining accuracy and production efficiency. Understanding the characteristics and application scenarios of different types of tool holders is essential when selecting the right one. Whether it’s VDI tool holders, BT tool holders, HSK tool holders, or BMT tool holders, each has its own advantages and application fields. Choosing the right tool holder can significantly improve machining efficiency and ensure product quality.
