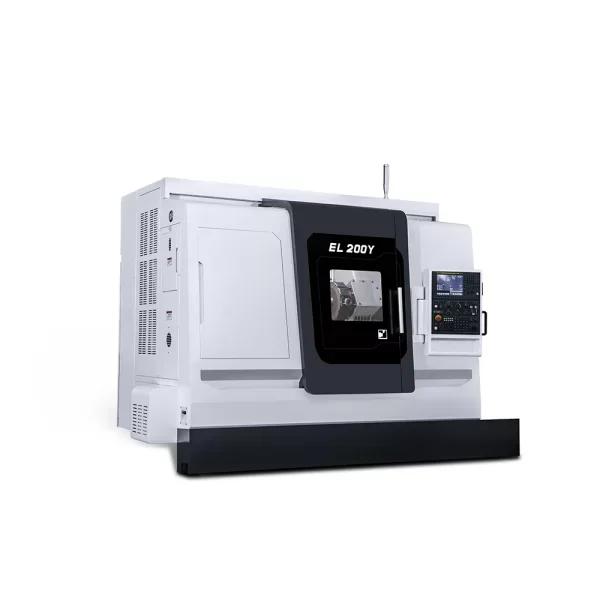

Advantages analysis of inclined bed CNC lathe in use

In the actual cutting process, the inclined bed CNC lathe has the optional power tool function and 8-station turret tool holder, so it can play an important role in the processing of different products, especially in a variety of products, small and medium batches It is relatively applicable in the processing of products; especially in complex and high-precision parts, it obviously has advantages that other products do not have.

1 Ability to process high-precision products

For the carriage drive screw of the CNC machine tool, it is basically a high-precision ball screw, and there is often a certain gap between the screw and the nut, so when the screw moves in one direction and then drives in the opposite direction, the Backlash will be generated and affect the final machining accuracy. The CNC machine tool with inclined bed will directly act on the axial direction of the screw under the action of gravity, and it is often difficult to generate backlash during transmission. For example, we can find a common nut and screw, turn the screw vertically upward, and then back it back in the opposite direction, we will find that the nut always presses the screw from one side, so that there is no backlash, if we let the nut Flat with the screw, it is difficult to produce such an effect.

2. The rigidity of the machine tool is good, and it is not easy to cause vibration during cutting

The tool of the CNC machine tool with inclined bed is often located on the oblique upper part of the workpiece when cutting, and the cutting force is consistent with the gravity formed by the spindle workpiece, so the spindle operation will be relatively stable, and it is difficult to cause cutting vibration. This is not the case with ordinary CNC lathes. When they are working, the tool and the workpiece generate upward cutting force, which produces an inconsistent gravity with the spindle workpiece, so it is easy to generate vibration, make loud noise, and eventually affect the machine tool. Rigidity and longevity.

3. Other advantages of CNC machine tools with inclined bed

According to our previous analysis, we found that CNC lathes with inclined bed are mainly used in the multi-variety, small and medium batch processing of various sophisticated and complex rotary parts. At the same time, we can also choose hydraulic chuck and tailstock to achieve automatic loading and unloading, and when the system and functional components are selected, one-time clamping can realize turning and milling functions. It can obtain certain advantages in the processing of inner circle, outer circle, step, conical surface, spherical surface, groove, various threads and complex curved surfaces. Various processing of casting and forging blanks of cast iron, cast steel and other materials. For castings, tempering should be performed first to eliminate internal stress. Linear guides are used for X and Z-axis guide rails. For the entire cutting process, straightness correction is also required to ensure the accuracy of machine tool movement and maintain cutting. Product accuracy.
