Basic knowledge of CNC lathe with inclined bed

The inclined bed CNC lathe is a high-precision and high-efficiency automatic machine tool. Equipped with a multi-station turret or a power turret, the machine tool has a wide range of technological performance, which can process linear cylinders, oblique cylinders, arcs and various threads, grooves, worms and other complex workpieces. Compensate various compensation functions, and play a good economical effect in the mass production of complex parts.

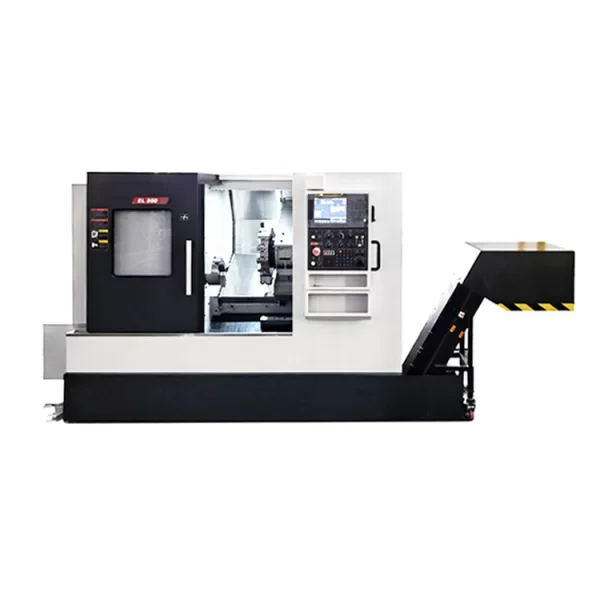

1. Introduction to CNC lathe with inclined bed

The plane of the two guide rails of the CNC lathe with inclined bed intersects with the ground plane to form an inclined plane with angles of 30°, 45°, 60°, and 75°. The bed of the inclined bed CNC lathe is a right triangle. Obviously, in the case of the same guide rail width, the X-direction carriage of the inclined bed is longer than that of the flat bed, and the practical significance of applying it to the lathe is that more tool positions can be arranged. The cross-sectional area of the CNC lathe with inclined bed is larger than that of the flat bed of the same specification, that is, the resistance to bending and torsion is stronger.

2. Advantages of CNC lathe with inclined bed

(1) Good stability

Machine tools with inclined bed or flat bed and inclined guide rail are generally used for oversized parts, because the corresponding parts of medium and large machine tools are also large, especially the turret part. The inclined guide rail is mainly used to overcome gravity and have better stability to improve The precision of the machine tool can reflect the superiority of the inclined machine tool in some harsh environments.

(2) Improve space utilization

The inclined machine tool can effectively utilize the space and greatly reduce the plane occupied by the machine tool.

(3) Easy to remove chips

The inclined guide rail also facilitates the concentration of iron chips on the chip conveyor for automatic chip removal. The iron scraps under cutting have high heat, and the accumulation on the guide rail will cause the guide rail to be deformed by heat, which will change the working accuracy, and will lead to batch scrapping of workpieces in the process of batch automatic processing.
