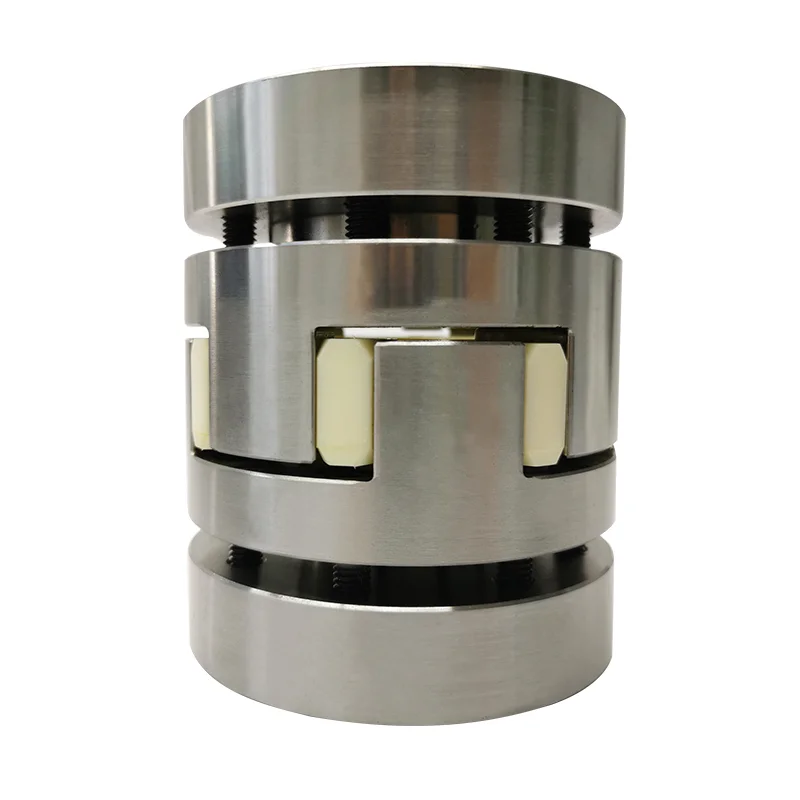

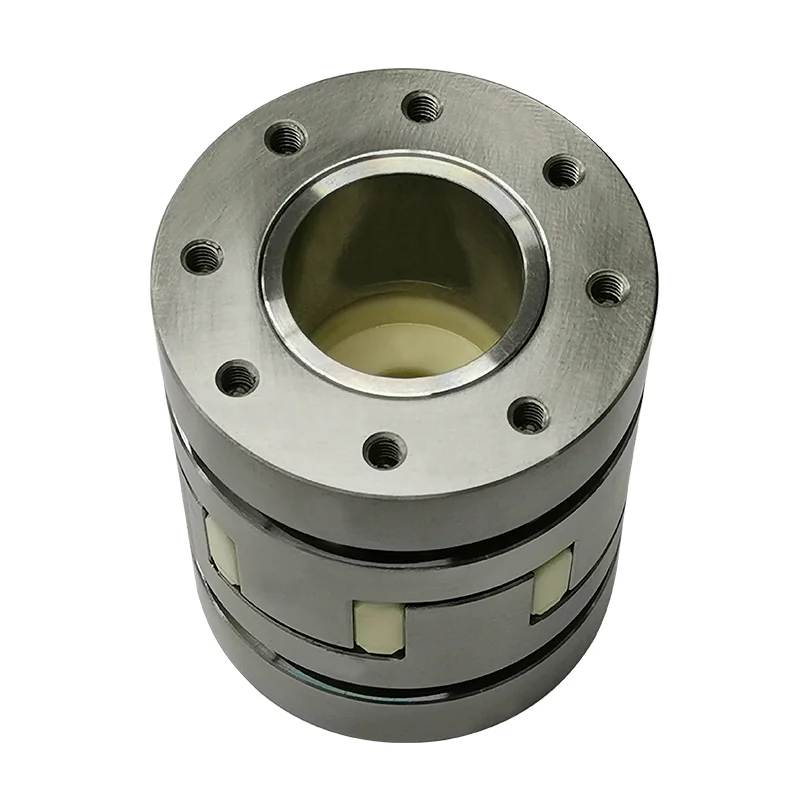

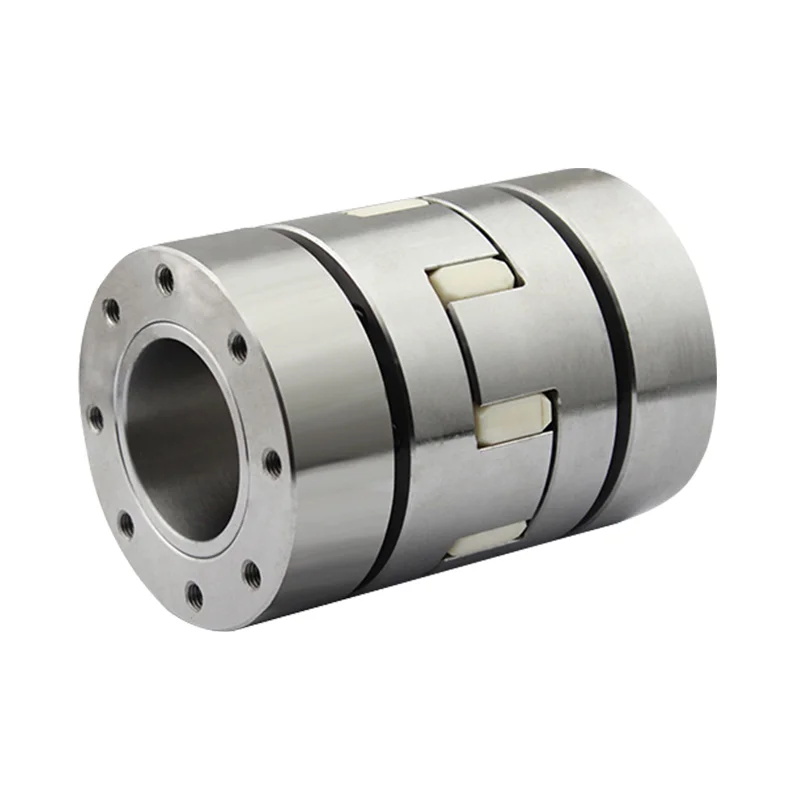

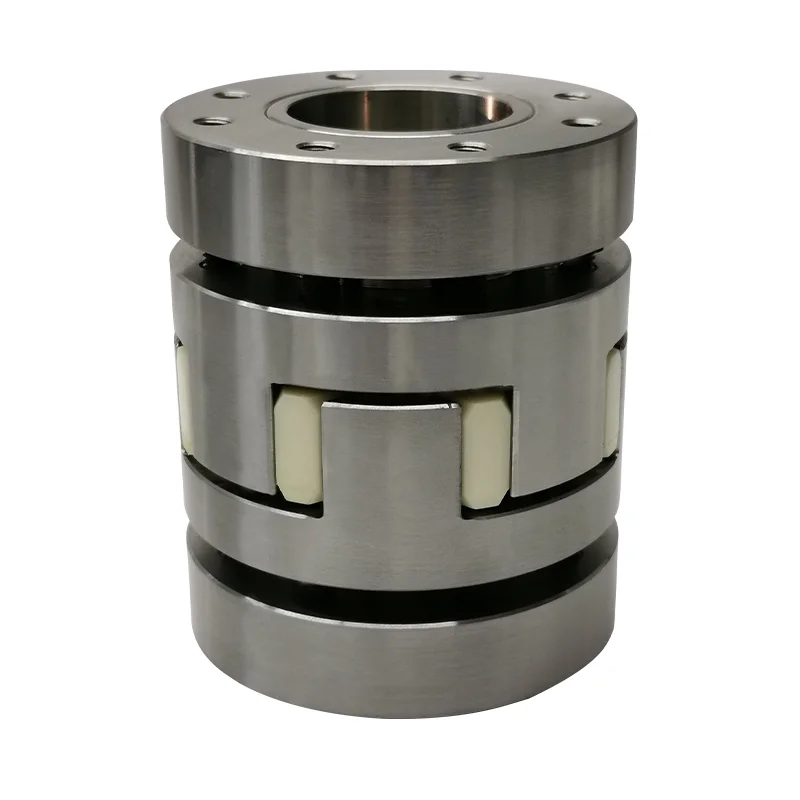

CURVED JAW-TYPE FLEXIBLE COUPLING

SG7-11-30-□□□□

30

50

18.5

13

M3(4)

1.2

SG7-11-40-□□□□

40

66

25

16

M4(6)

2.7

SG7-11-55-□□□□

55

78

30

18

M5(4)

6

SG7-11-65-□□□□

65

90

35

20

M5(6)

6

SG7-11-80-□□□□

80

114

45

24

M6(8)

10

SG7-11-95-□□□□

95

126

50

26

M8(4)

35

SG7-11-105-□□□□

105

140

56

28

M8(4)

35

SG7-11-30-□□□□

7.4N.m

14.8N.m

20000prm

8.7×10^-4kg.m²

510N.m/rad

1.0c

＋0.6mm

50

SG7-11-40-□□□□

9.5N.m

19N.m

15000prm

1.12×10^-3kg.m²

550N.m/rad

1.0c

＋0.8mm

120

SG7-11-55-□□□□

34N.m

68N.m

13000prm

4.5×10^-3kg.m²

1510N.m/rad

1.0c

＋0.8mm

280

SG7-11-65-□□□□

95N.m

190N.m

10500prm

9.1×10^-3kg.m²

2800N.m/rad

1.0c

＋0.8mm

450

SG7-11-80-□□□□

135N.m

270N.m

8600prm

1.9×10^-2kg.m²

3600N.m/rad

1.0c

＋1.0mm

960

SG7-11-95-□□□□

230N.m

460N.m

7500prm

2.2×10^-2kg.m²

4700N.m/rad

1.0c

＋1.0mm

2310

SG7-11-105-□□□□

380N.m

760N.m

6000prm

3.3×10^-2kg.m²

5800N.m/rad

1.0c

＋1.0mm

3090
