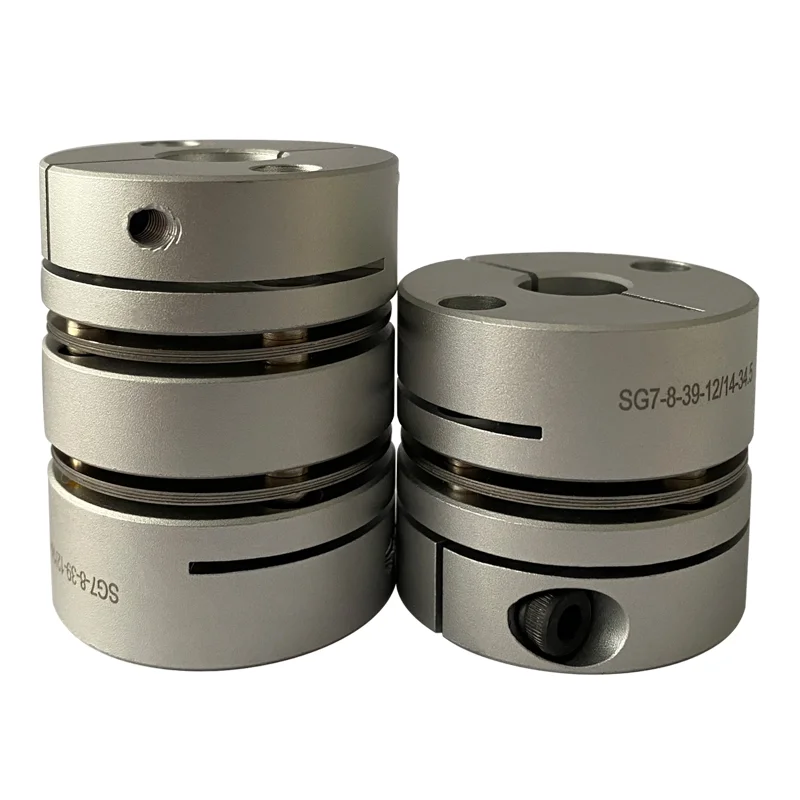

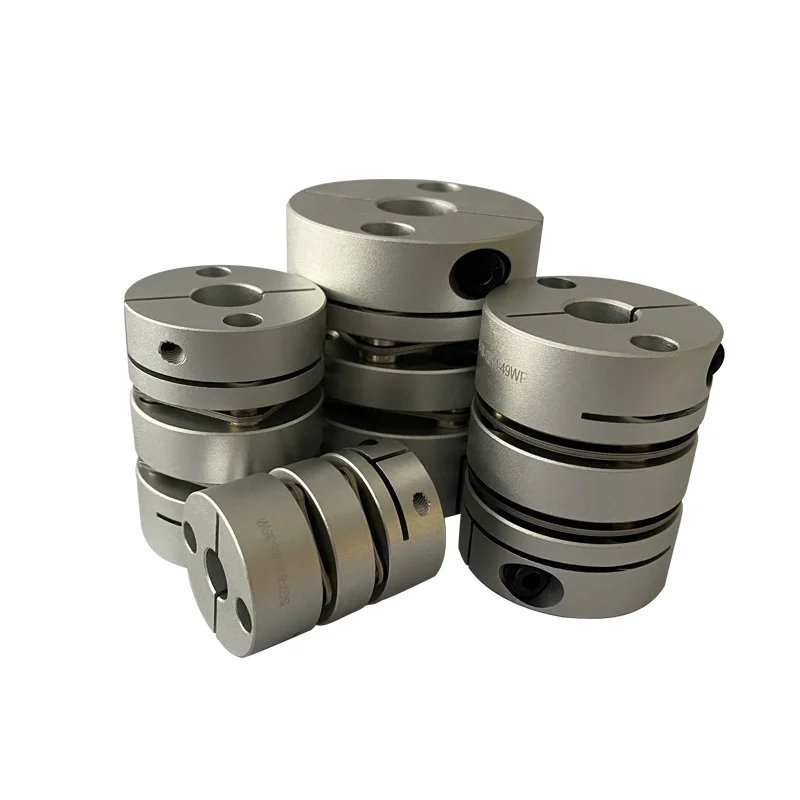

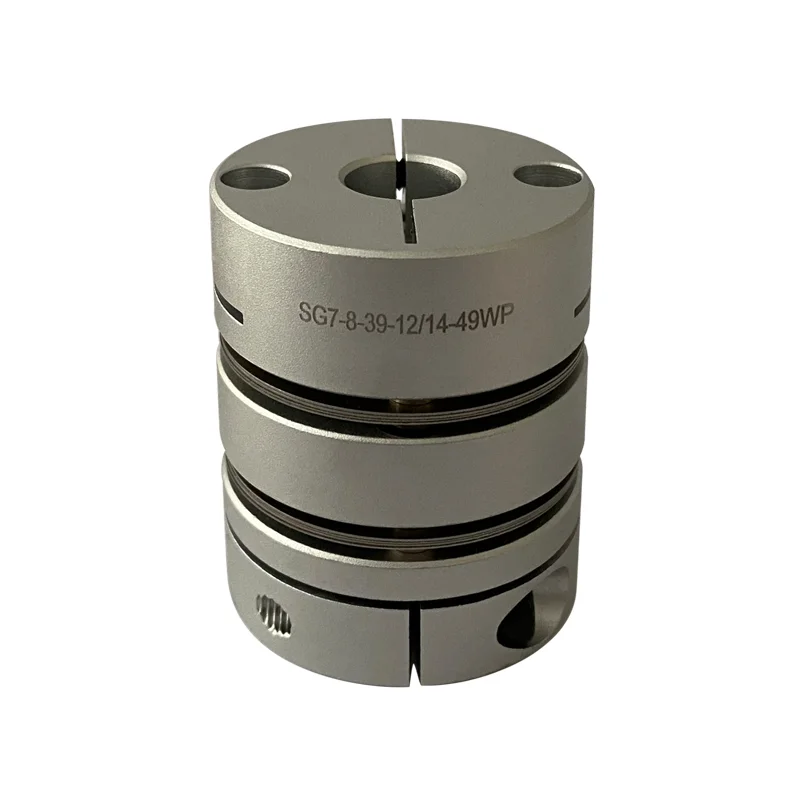

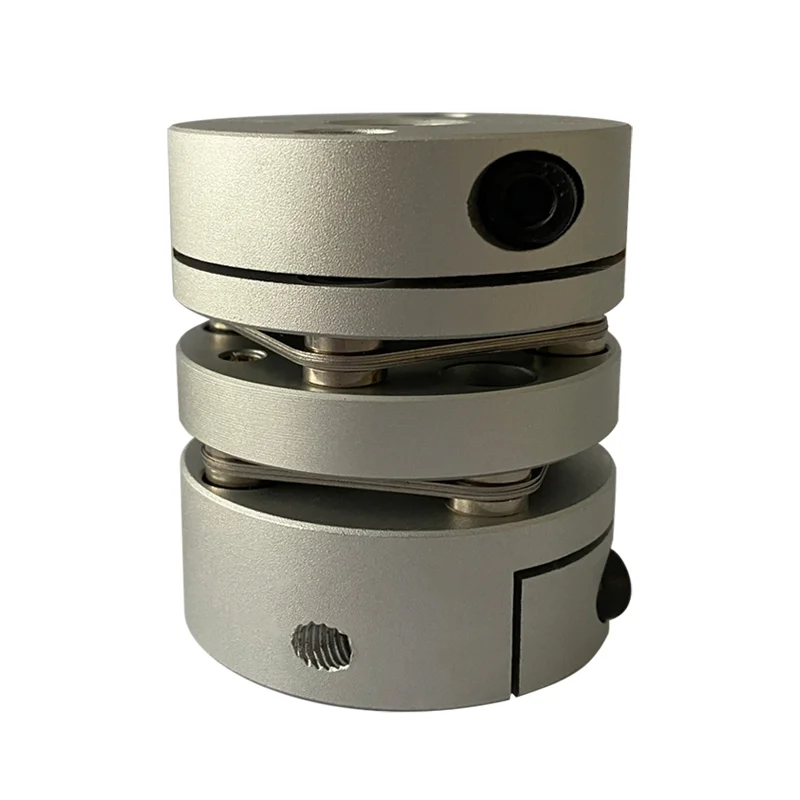

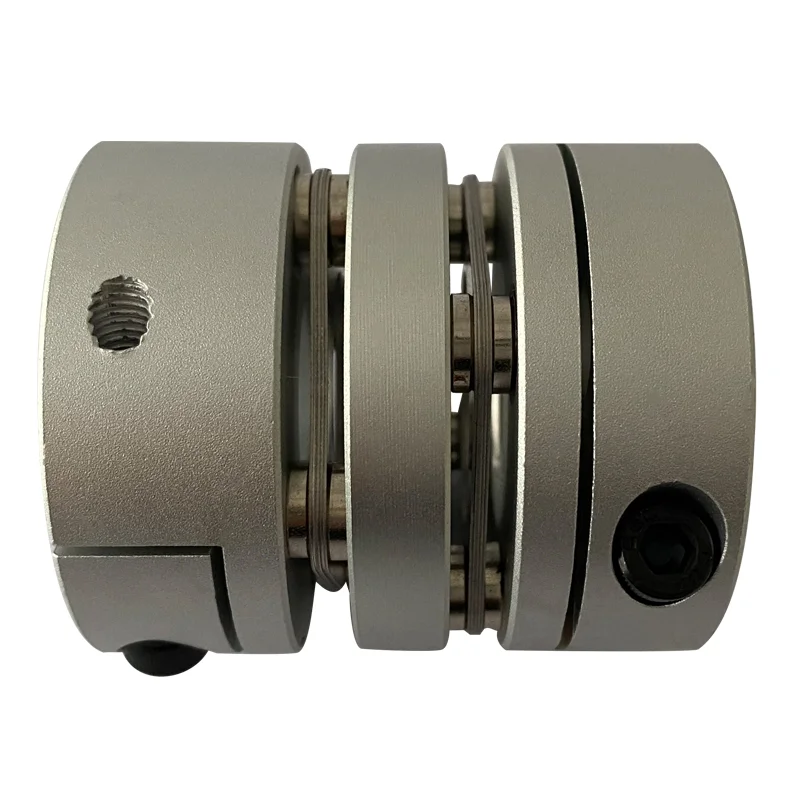

SG7-8-WP DOUBLE DISK FLEXIBLE COUPLING

SG7-8-C26-□□□□WP

26

35

2.8

11.4

6.7

M3

1.5-1.9

SG7-8-C30-□□□□WP

30

35

2.8

11.4

6.1

M4

1.5-1.9

SG7-8-C34S-□□□□WP

34

41

3.6

13.4

7

M4

3.4-4.1

SG7-8-C34-□□□□WP

34

45

3.6

14.5

8.8

M4

3.4-4.1

SG7-8-C39-□□□□WP

39

49

4.5

15

10

M4

3.4-4.1

SG7-8-C44-□□□□WP

44

50

4.8

15

10.4

M4

3.4-4.1

SG7-8-C50-□□□□WP

50

57

5.5

17.5

11

M5

7-8.5

SG7-8-C56-□□□□WP

56

63

5.5

20

12

M5

7-8.5

SG7-8-C62-□□□□WP

62

69.5

3

24

15.5

M6

14-15

SG7-8-C68-□□□□WP

68

74

6

24

14

M6

14-15

SG7-8-C82-□□□□WP

82

98

8

30

22

M8

27-30

SG7-8-C94-□□□□WP

94

98

8.5

30

21

M10

55-60

SG7-8-C104-□□□□WP

104

102

10

30

22

M10

55-60

SG7-8-C26-□□□□WP

2N.m

10000prm

3.5×10^-6kg.m²

1850N.m/rad

0.15mm

2c

±0.33mm

37

SG7-8-C30-□□□□WP

4N.m

10000prm

5.3×10^-6kg.m²

2800N.m/rad

0.16mm

2c

±0.38mm

44

SG7-8-C34S-□□□□WP

5N.m

10000prm

1.2×10^-5kg.m²

4000N.m/rad

0.18mm

2c

±0.4mm

66

SG7-8-C34-□□□□WP

5N.m

10000prm

1.2×10^-5kg.m²

4000N.m/rad

0.18mm

2c

±0.4mm

69

SG7-8-C39-□□□□WP

10N.m

10000prm

2.7×10^-5kg.m²

9000N.m/rad

0.24mm

2c

±0.5mm

122

SG7-8-C44-□□□□WP

12N.m

10000prm

4.6×10^-5kg.m²

10000N.m/rad

0.24mm

2c

±0.6mm

147

SG7-8-C50-□□□□WP

15N.m

10000prm

9.4×10^-5kg.m²

13000N.m/rad

0.26mm

2c

±0.7mm

218

SG7-8-C56-□□□□WP

25N.m

10000prm

1.4×10^-4kg.m²

16000N.m/rad

0.28mm

2c

±0.8mm

302

SG7-8-C62-□□□□WP

40N.m

10000prm

2.6×10^-4kg.m²

25000N.m/rad

0.31mm

2c

±0.84mm

422

SG7-8-C68-□□□□WP

60N.m

10000prm

3.8×10^-4kg.m²

35000N.m/rad

0.34mm

2c

±0.9mm

488

SG7-8-C82-□□□□WP

100N.m

10000prm

1×10^-3kg.m²

70000N.m/rad

0.52mm

2c

±1.1mm

1037

SG7-8-C94-□□□□WP

180N.m

10000prm

1.8×10^-3kg.m²

50000N.m/rad

0.52mm

2c

±1.3mm

1365

SG7-8-C104-□□□□WP

250N.m

10000prm

2.8×10^-3kg.m²

60000N.m/rad

0.52mm

2c

±1.5mm

1734
