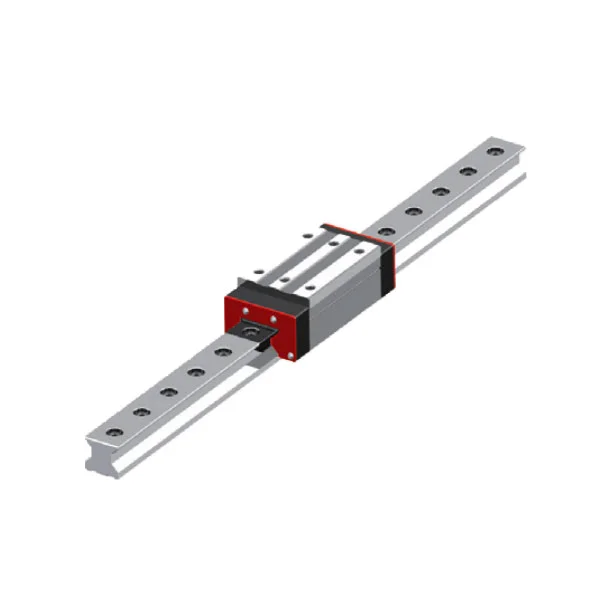

GZB BA/BAL HEAVY LOAD ROLLER LINEAR GUIDE

1、Line contact instead of traditional point contact and consequently greatly improved loading capacity with high rigidity of rollers.
2、Roller guide use V shape groove design and can bear more torque.
3、Optimize the structure of block with finite element analysis.

info@wxfagor.com

Message

GZB AA/AAL HEAVY LOAD ROLLER LINEAR GUIDE

GGB AA AAL BALL LINEAR GUIDE

Product details

Note

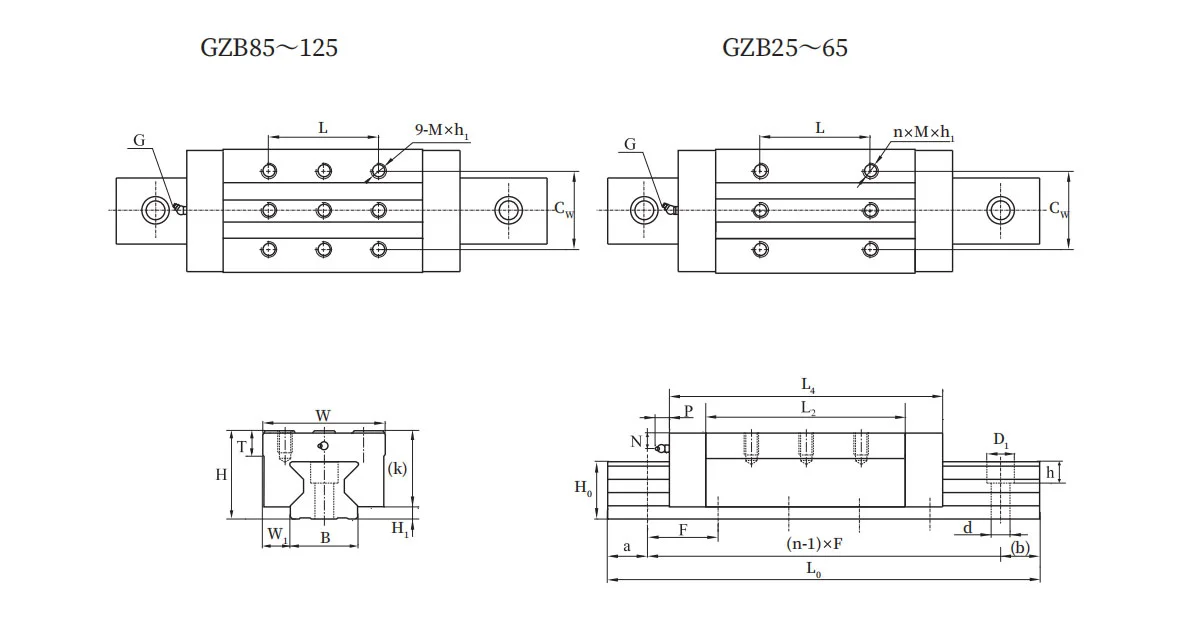

1)．L4 dimensions are based on standard seal type, details see seal type.

2)．AA/AAL blocks of GZB series are flange type and top mounting holes are thread holes, up-lock see dimension M, down-lock see dimension D.

3)．GZB85, GZB100, GZB125 blocks in the top L3, B3 directions are symmetrically distributed of three-row mounting holes, total 9 holes.

Dimension
