How much do you know about solid shaft encoders

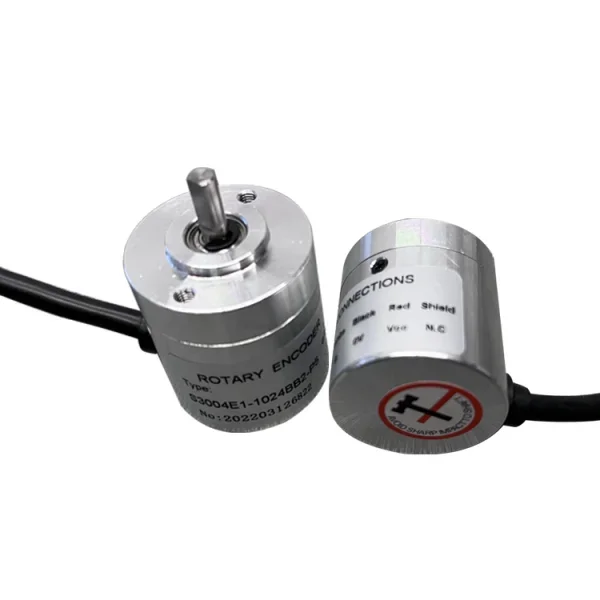

1. What is a solid shaft encoder?

A solid shaft encoder is a type of rotary encoder that uses a solid shaft to connect a code disc to a motor or other mechanical device. This type of connection is often used when high torque transmission is required, such as in gearboxes or servo motors.

2. How does the solid shaft encoder work?

Solid shaft encoders work by detecting the position of a rotating object. The device consists of sensors mounted on a rotating shaft. As the shaft rotates, the sensor generates an electrical signal proportional to the shaft position. This signal can be used to control the position of a CNC machine or other equipment.

3. What are the benefits of using a solid shaft encoder?

There are many benefits to using a solid shaft encoder over other types of encoders. Some benefits include:

(1) Improved accuracy - Solid shaft encoders have higher accuracy than other types of encoders because the sensing element is in direct contact with the shaft. This means there is no slip or play between the two components, resulting in a more accurate reading.

(2) Increased Durability - With no moving parts, solid shaft encoders are more durable than other types of encoders. This means they can withstand higher levels of vibration and shock, making them ideal for use in harsh industrial environments.

(3) Ease of installation - Solid shaft encoders can be easily mounted to the shaft without any special tools or fixtures. This makes them ideal for retrofitting existing machines.

(4) Cost Effective - Solid shaft encoders are usually more cost effective than other types of encoders due to their simplicity and no moving parts.

4. How to choose the right solid shaft encoder for your application

Selecting the right solid shaft encoder for your application depends on many factors. First, you need to determine the resolution and precision you need for your specific use case. Second, you need to consider the environmental conditions in which the encoder will be used. Third, you must consider the size and weight constraints of your application. Fourth, you must decide on the type of interface that best suits your needs. Fifth, the power requirements of the system should also be considered. Finally, you need to ensure that the encoder you choose is compatible with the rest of your system.
