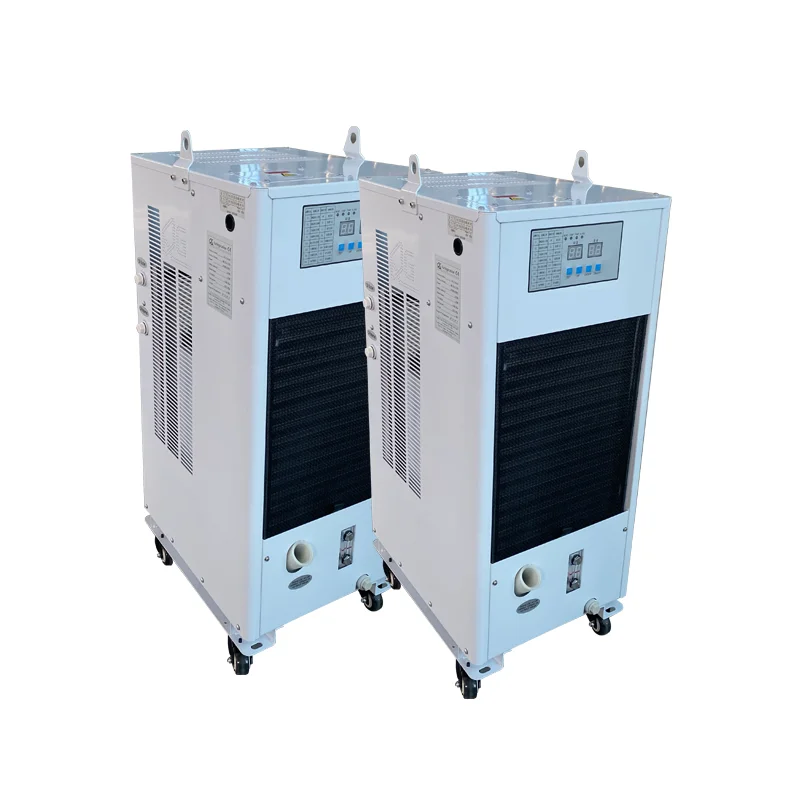

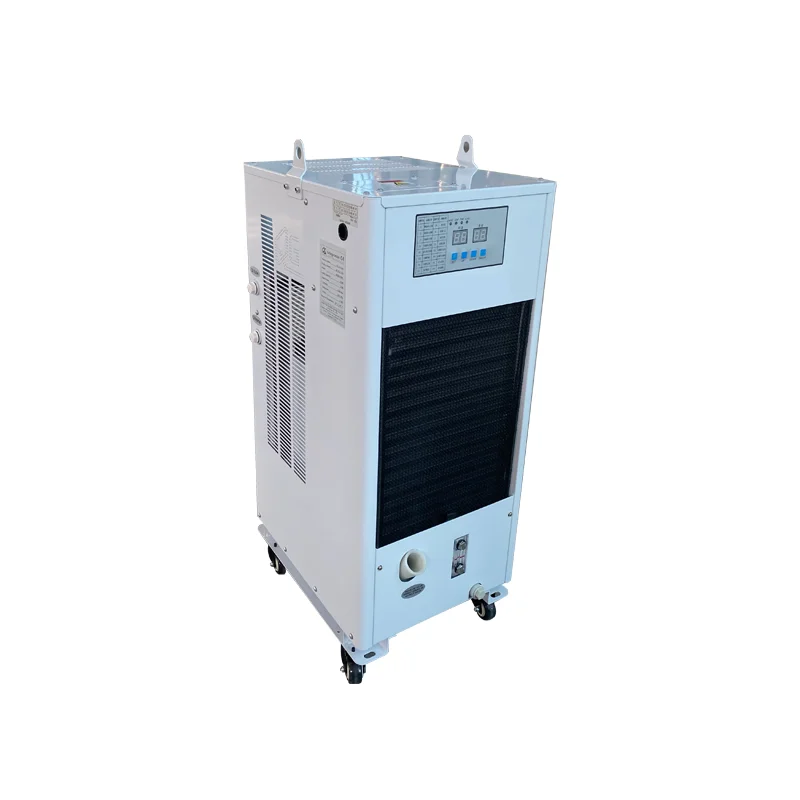

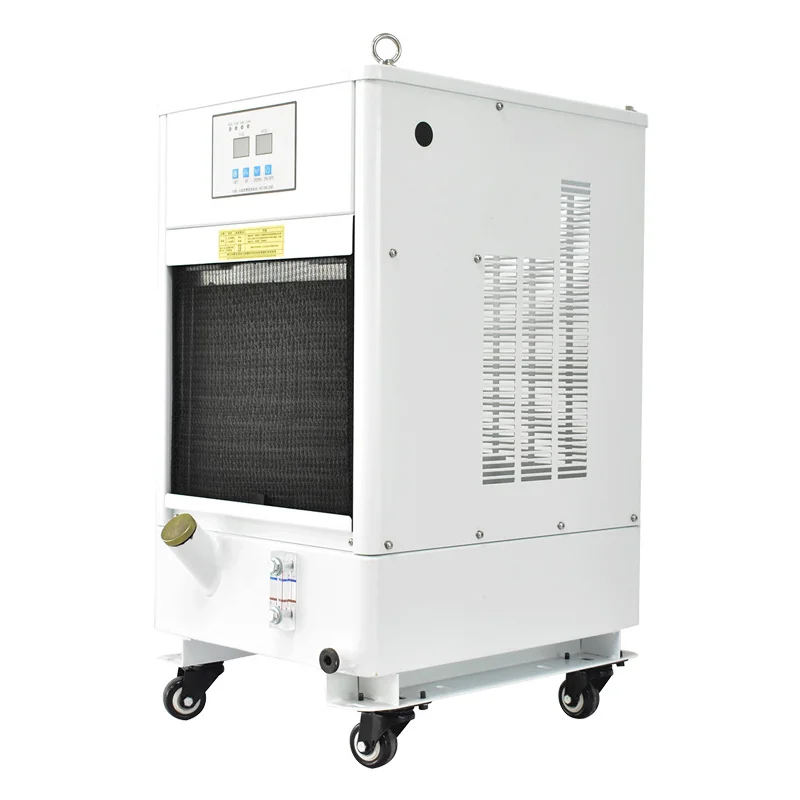

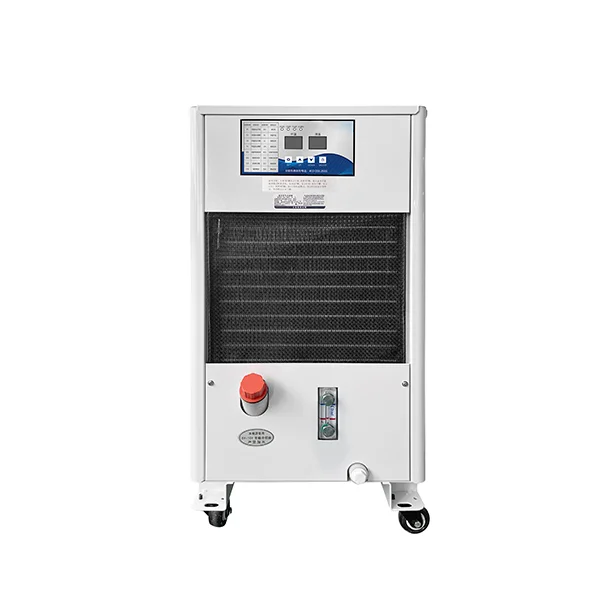

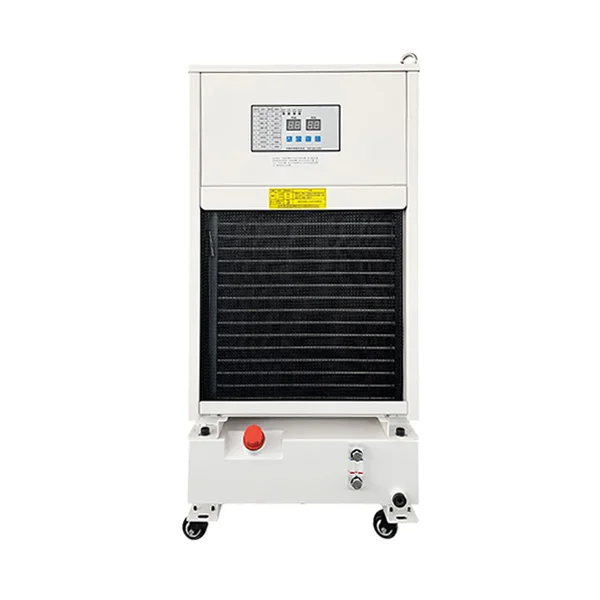

OIL CHILLER

MAIN FUNCTION

▶ 1. Suitable for cooling of mechanical spindle and electric spindle of CNC integrated machining center.

▶ 2. Used in cooling of various high precision lathes, broacher, hydraulic machinery and other hydraulic station.

▶ 3. Suitable for hydraulic oil of gear box, oil cooling of hydraulic station.

▶ 4. Oil cooling for mirror edM machine.

▶ 5. Stabilize oil temperature, improve machining accuracy of machine tool.

▶ 6. It can extend the service life of mechanical parts of hydraulic system.

FEATURES

▶ 1. The oil cold machine adopts a new generation of microcomputer controller.

RS485 communication interface is provided to directly display the working status on the machine screen for real-time monitoring. It improves the safety of machine tool control system.

▶ 2. Digital display provides two temperature control mode of room temperature coadjustment and constant temperature. It can be easily converted according to user requirements, and easy to operate.

▶ 3. The temperature control can be arbitrarily selected according to the actual demand of users, the temperature accuracy is ±0.5℃.

▶ 4. Equipped with a variety of protection functions, with automatic fault diagnosis function.The point of failure can be displayed directly on the screen and prompted for quick action.

▶ 5. We adopt compressors from Hitachi, Panasonic, Samsung and other famous brands to ensure strong, fast and efficient refrigeration.

▶ 6. With the function of power on, it is convenient for users to use.

▶ 7. With remote operation and control function.

▶ 8. High quality appearance, overall surface spraying treatment, reasonable structure, easy for daily maintenance.

TYPE SPECIFICATION

▶ 1. Cooling capacity code: (x100W)

>010: Cooling capacity=10x100W=1000W

▶ 2. Product series number

LY: oil cold machine series

▶ 3. Technical No. : When a major change in product structure.

P: Digital display    Z: In English

▶ 4. Special requirement code

B: Means no special requirements

▶ 5. Type of construction

A: Pump and box type (Closed system or spindle cooling)

C: Box-less type with pump (Circulating cooling in hydraulic station or open system)

D: Double pump with box type (Gearbox and closed or spindle cooled)

E: Without pump and box type (Hydraulic station cooling, hydraulic station needs a pump for continuous oil supply to refrigerant)

F: Double pump and box-less type (Hydraulic station cooling and gearbox cooling)

▶ 6. Electrical source

The first digit represents the phase number of the power supply, 3: represents the three-phase power.

The second and third digits represent the first two digits of voltage, 38: represents the voltage of 380V.

The fourth digit represents the power frequency, 5: represents 50Hz.
