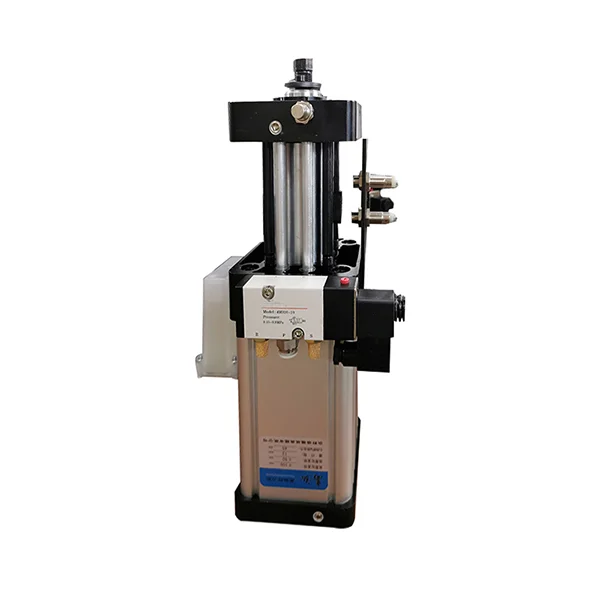

PUNCHING CYLINDER
Punching cylinder is mainly used for machining center machine tool, CNC milling machine tool which automatic or semi-automatic exchange mechanism in the spindle punching, but also can be a fixture and other mechanisms of the clamping device, gas-liquid conversion.
Product details

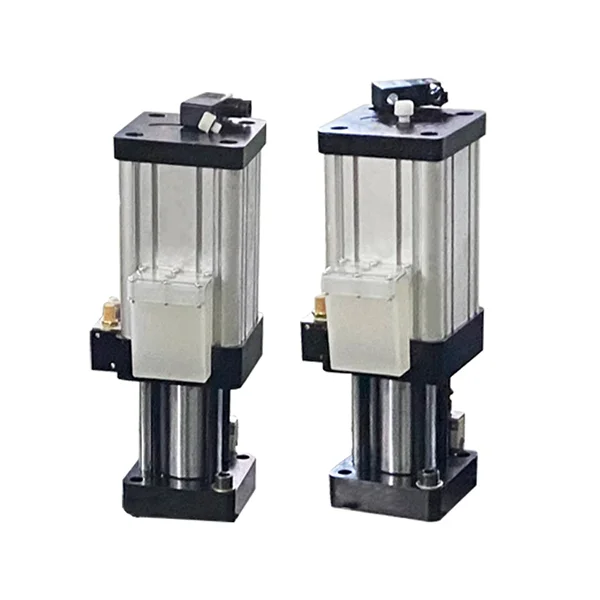

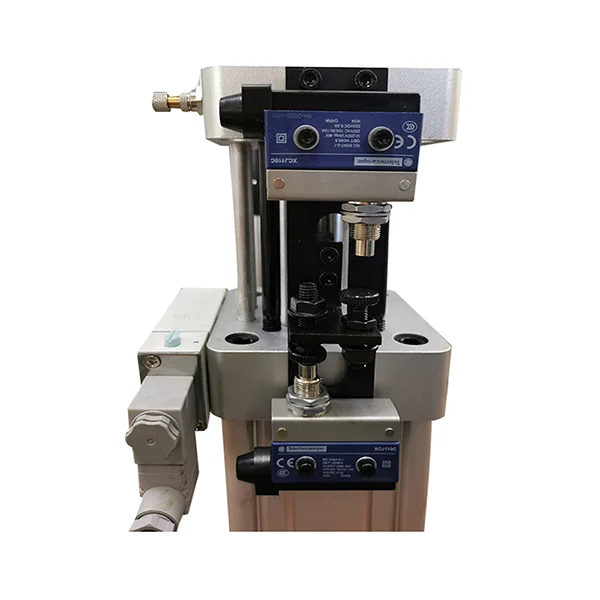

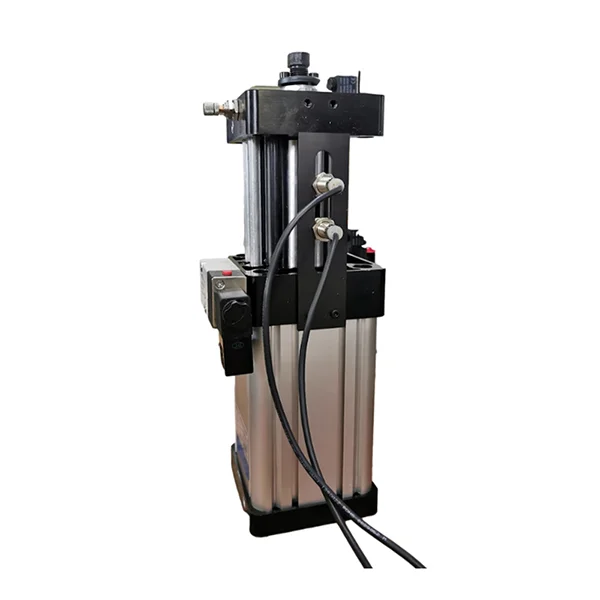

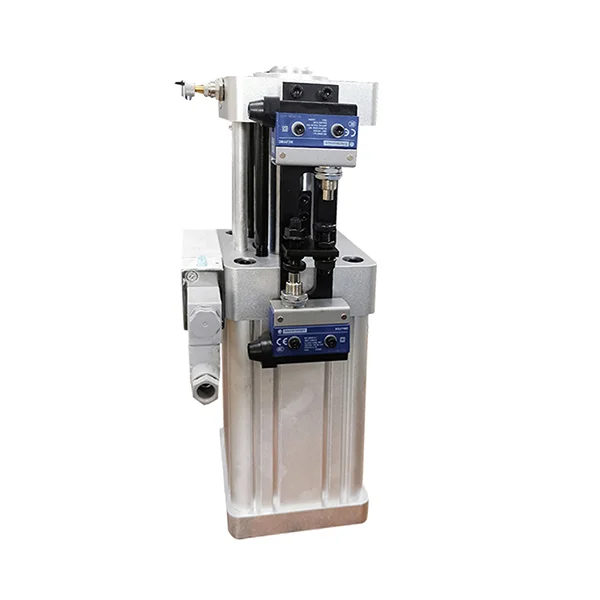

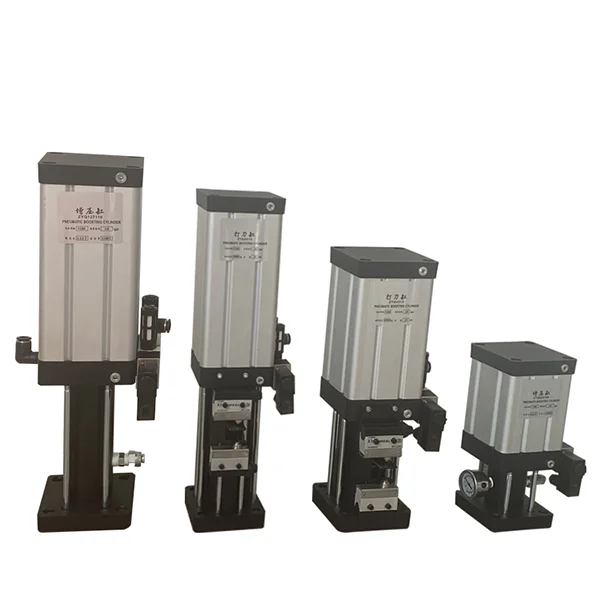

PUNCHING CYLINDER
▶ Punching cylinder is mainly used for machining center machine tool, CNC milling machine tool which automatic or semi-automatic exchange mechanism in the spindle punching, but also can be a fixture and other mechanisms of the clamping device, gas-liquid conversion.
PRODUCT FEATURES
PRODUCT FEATURES

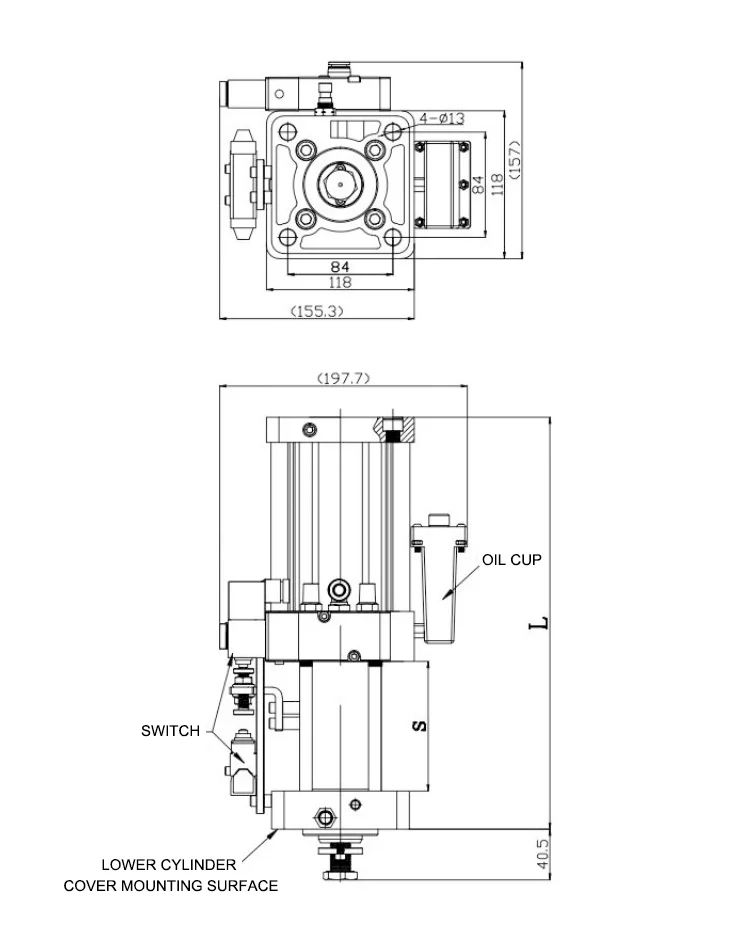

SPECIFICATION AND DIMENSION
MODEL | 3.5TX13 | 4.5TX13 | 6TX15 |
FORCE(kgf) | 3500 | 4500 | 6000 |
S(mm) | 103.5 | 103.5 | 167 |
L(mm) | 329 | 357 | 489.5 |
AIR PRESSURE | ≥0.6kgf/cm² | ||

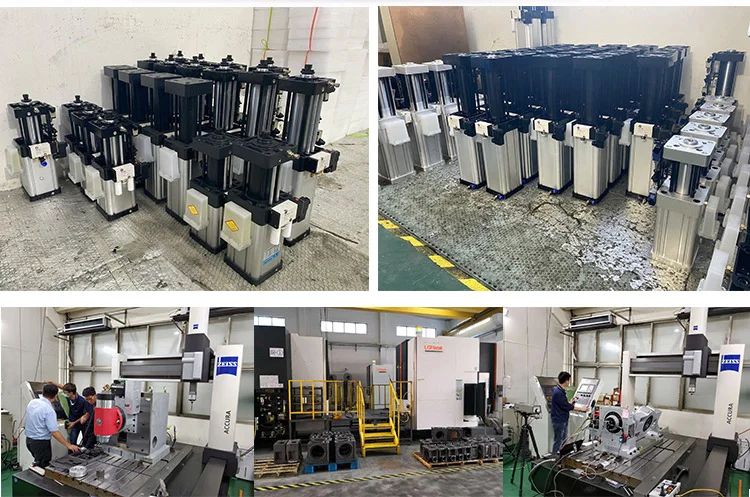

FACTORY SHOW
