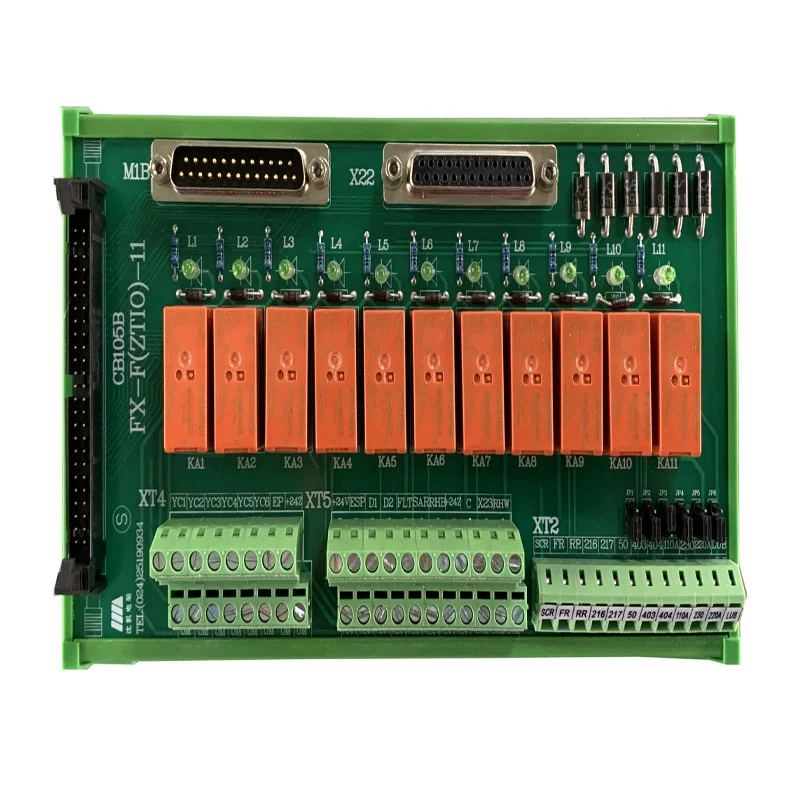

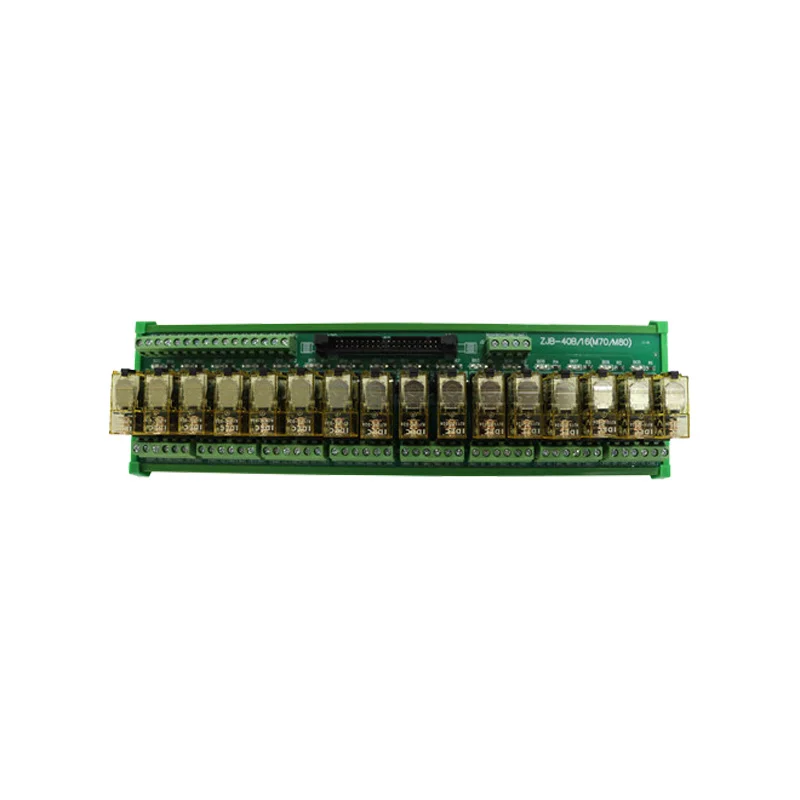

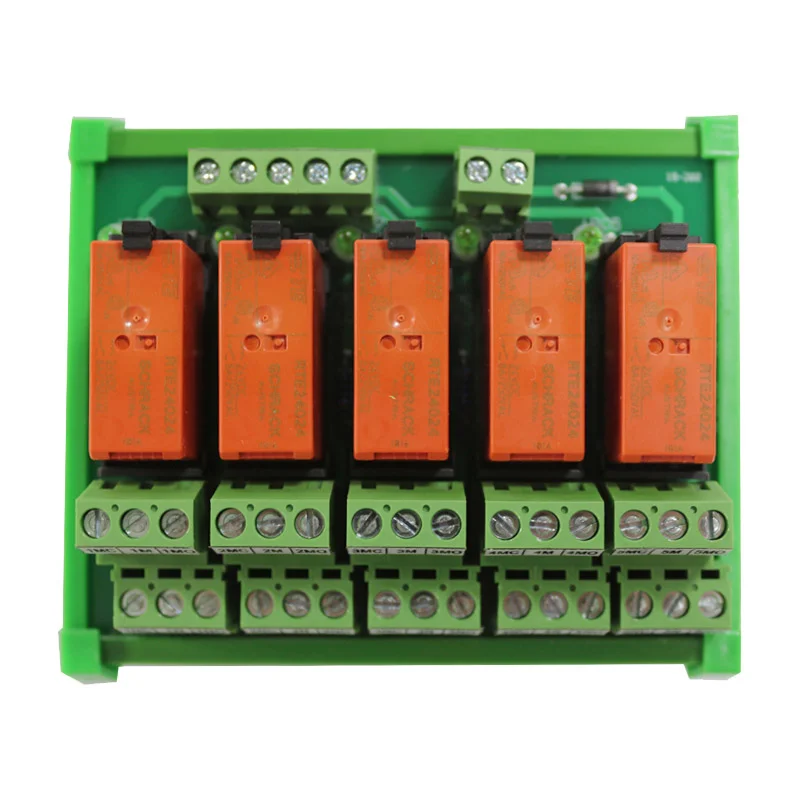

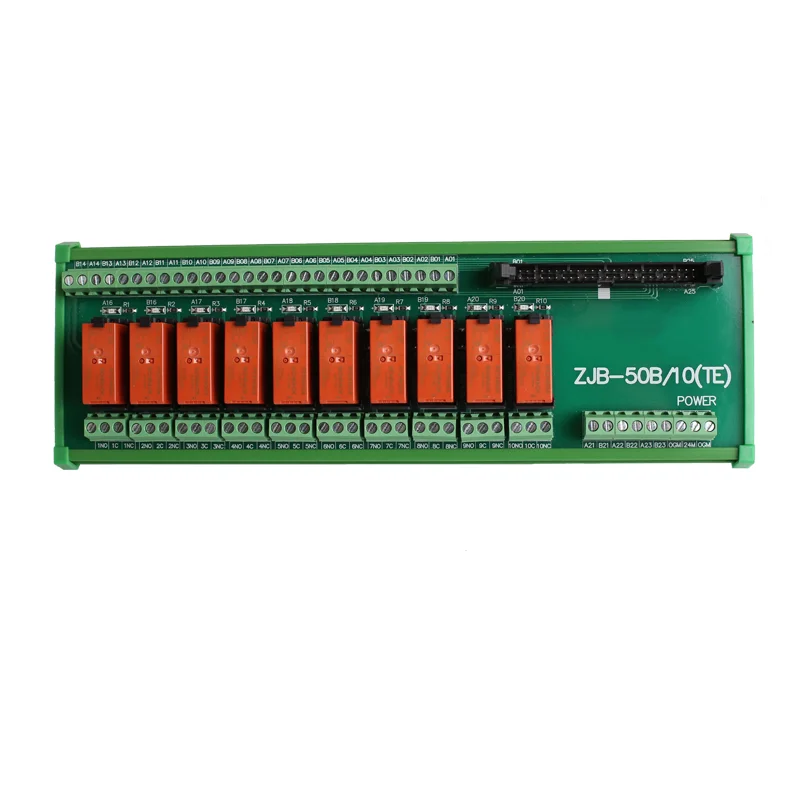

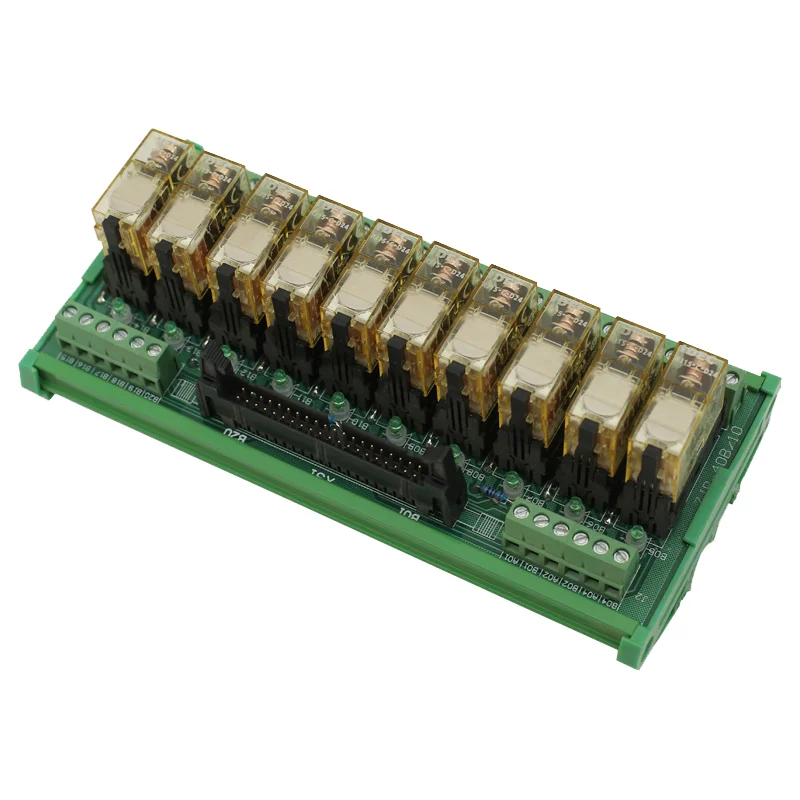

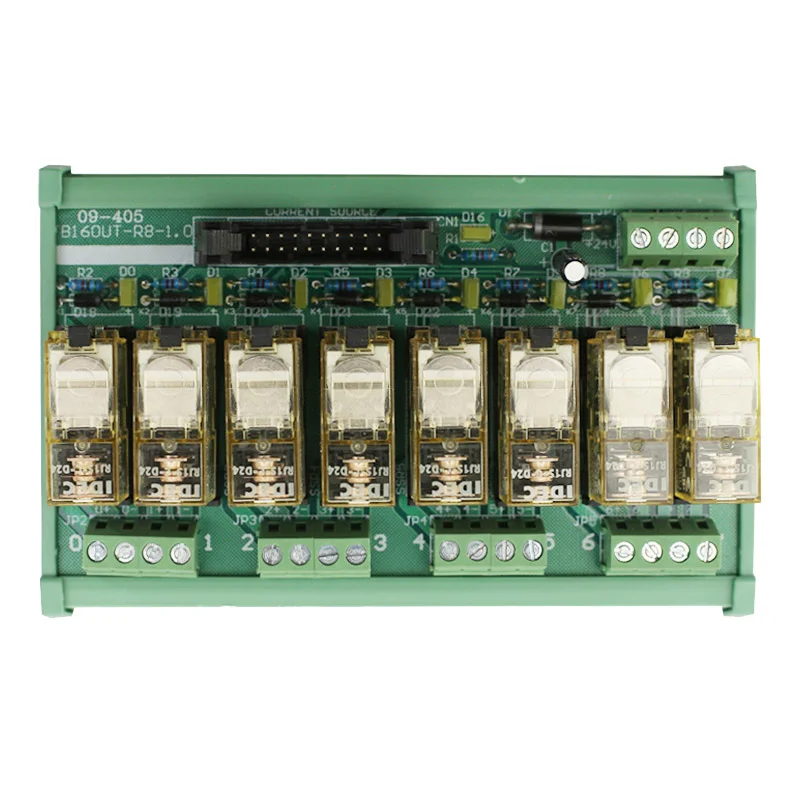

RELAY MODULE
The relay module is mainly used for amplification and isolation of CNC system outputs to control the spindles,ATC,coolant,etc.It is easy to install and has compact design and low cost.
Product details

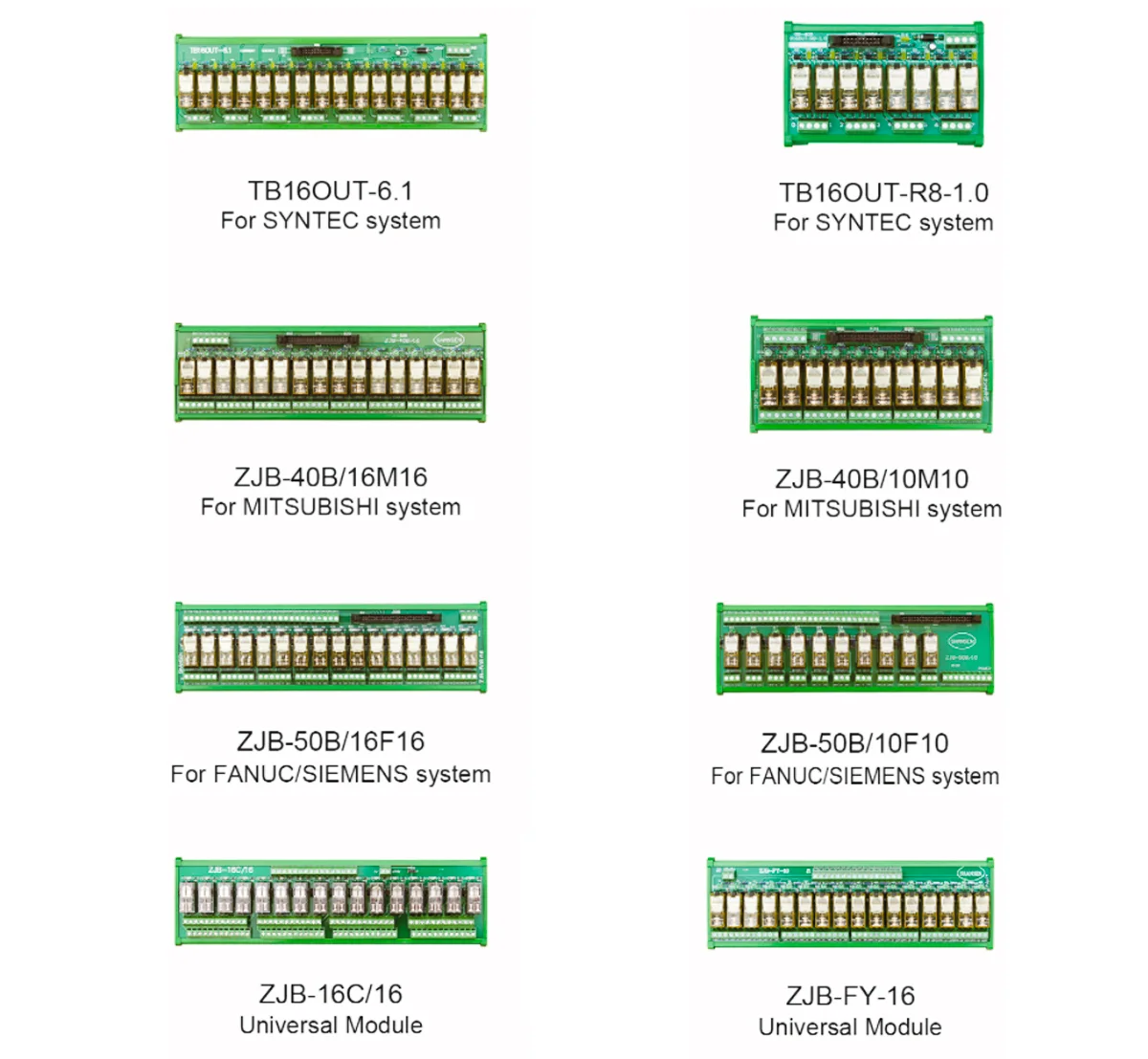

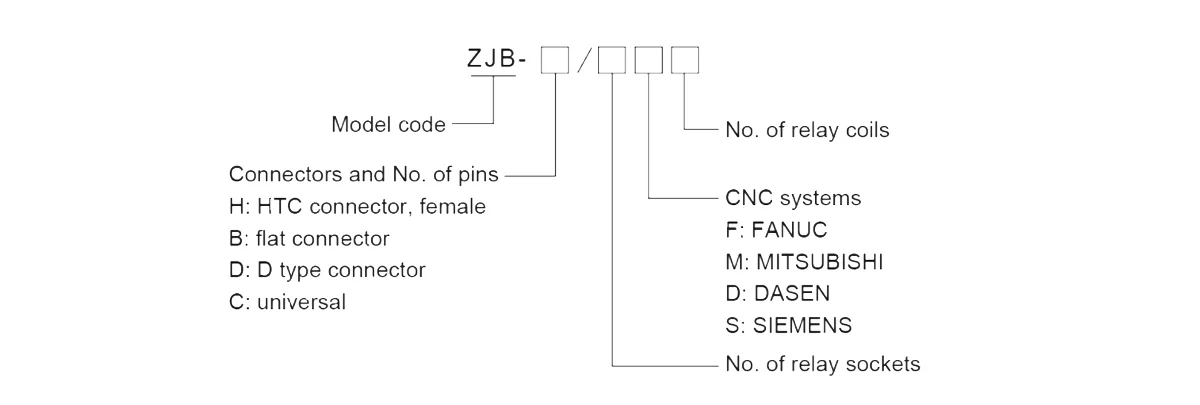

MODEL INSTRUCTION
TECHNOLOGY DATA
Item | Model | Number of pins | Max.output current | Max.Output voltage | Installation dimension |
Relay module | ZJB-50B/16F16 | 50 | 8A | 220AC/100VDC | 294×76 |
ZJB-50B/10F10 | 50 | 8A | 220AC/101VDC | 262×76 | |
ZJB-40B/16M16 | 40 | 8A | 220AC/102VDC | 270×76 | |
ZJB-40B/10M10 | 40 | 8A | 220AC/103VDC | 179×76 | |
JCB-01-16/22 | 50 | 5A | 220AC/104VDC | 275×76 | |

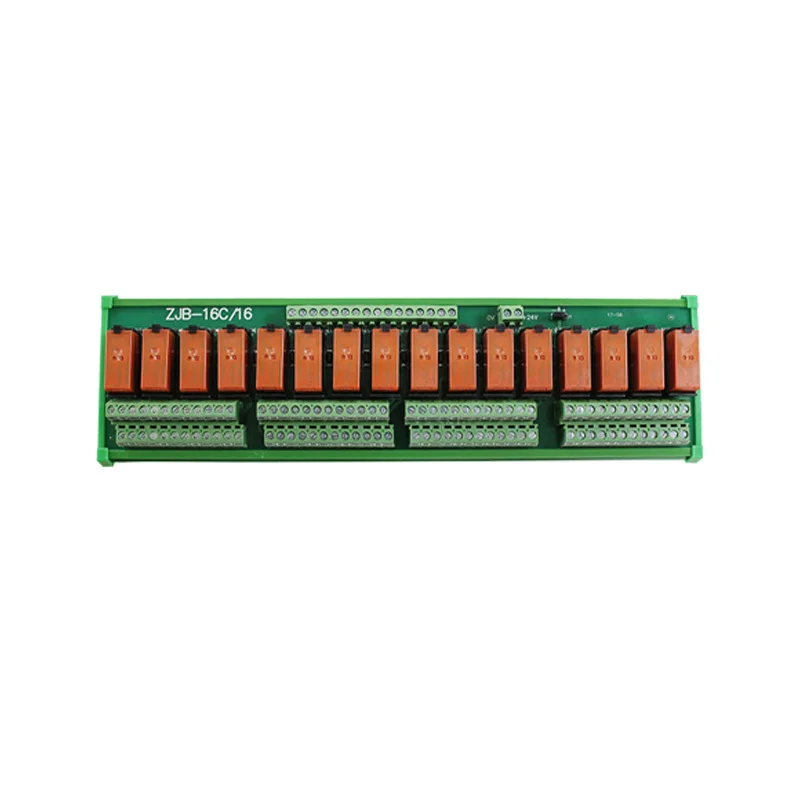

ZJB-16C/16 | - | 8A | 220AC/105VDC | 294×76 | |
Custom module | - | - | - | - |

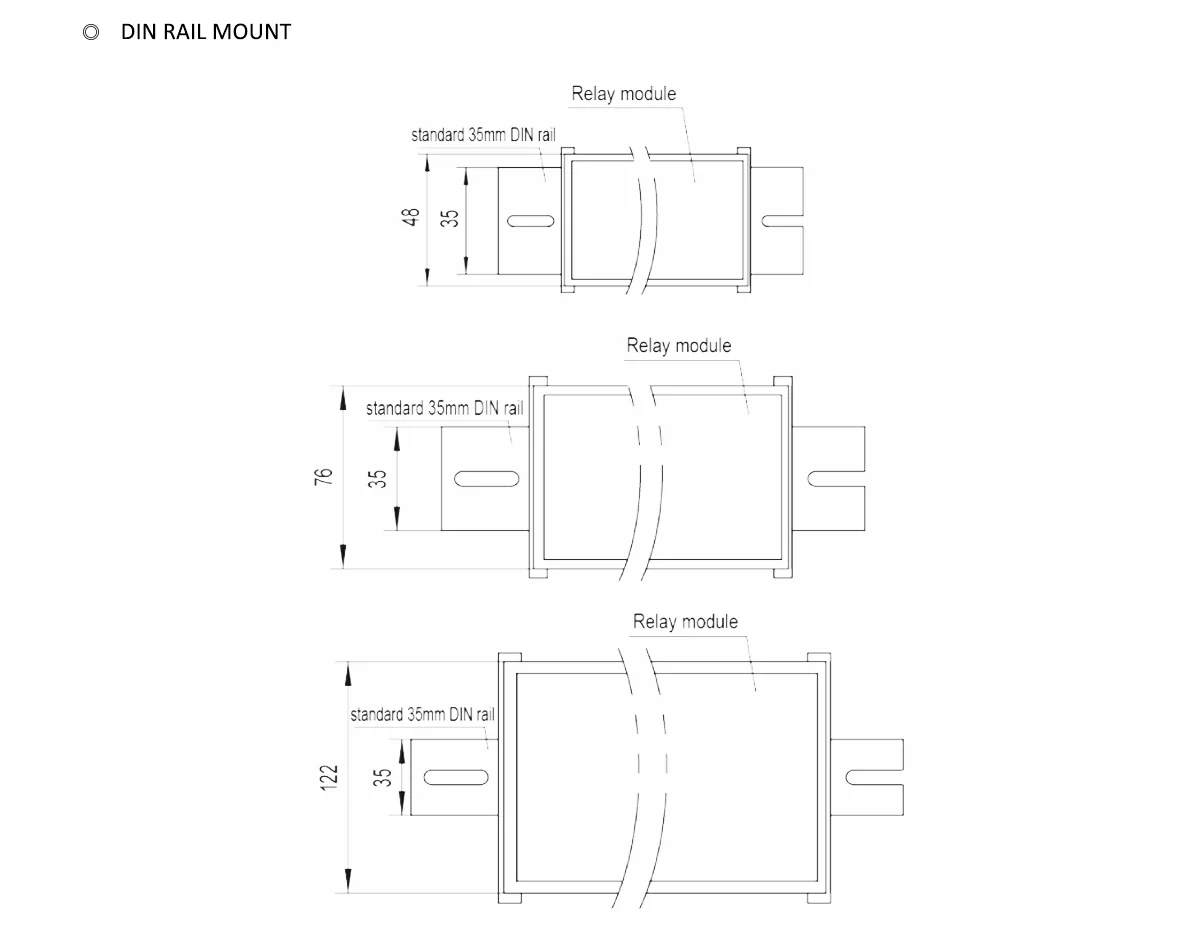

INSTALLATION
PRODUCT SHOW

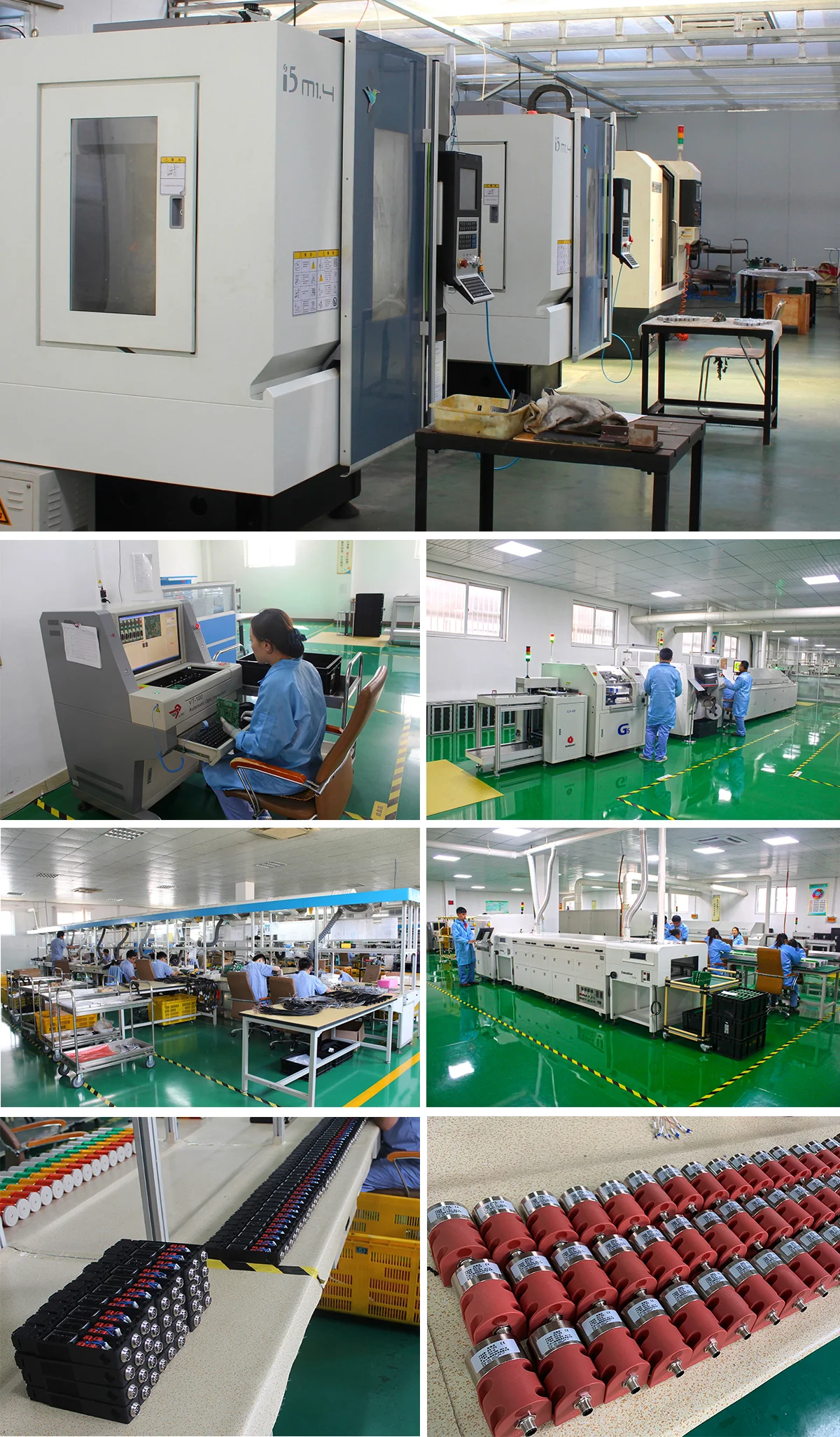

FACTORY SHOW
