SERVO TYPE VERTICAL DISC MAGAZINE
With unique electronic curve control, the actuator is possessed with excellent buffering effect,
which canbe eguipped with high-speed, direct spindle and built- in spindle to increase the
additional functionality of the machine.
which canbe eguipped with high-speed, direct spindle and built- in spindle to increase the
additional functionality of the machine.
Product details
Product Features
Control modes of the actuator are presented as follows:
1. Automatic and quick tool changing
2. Adjusting micro- inching mode
3. Broadsword mode
4. Automatic home position return that possessed by all ATC- driven modes
5. I/O communication is adopted to match with controllers of any brands
Product Specification
| SERVO TYPE VERTICAL DISC MAGAZINE | ||
| Tool shank spec | BT30/CAT30 | BT40/CAT40 |
| DIN30/HSK40 | DIN40/HSK63 | |
| Tool capacity | 20T/24T | 16T/20T/24T/30T/32T/36T |
| Tool change time | 0.8sec | 1.2sec |
| Max.tool weight | 5KG | 8KG |
| Max.tool dia.(fully loaded) | ø65mm | ø80mm/ø70mm |
| Max.tool dia.(no adjacent) | ø120mm | ø150mm/ø140mm |
| Max.tool length | 200mm | 300mm |
| Type magazine voltage | 220V/50HZ/60HZ | 220V/50HZ/60HZ |
| Type magazine air pressure | 0.5-0.7MPa | 0.5-0.7MPa |

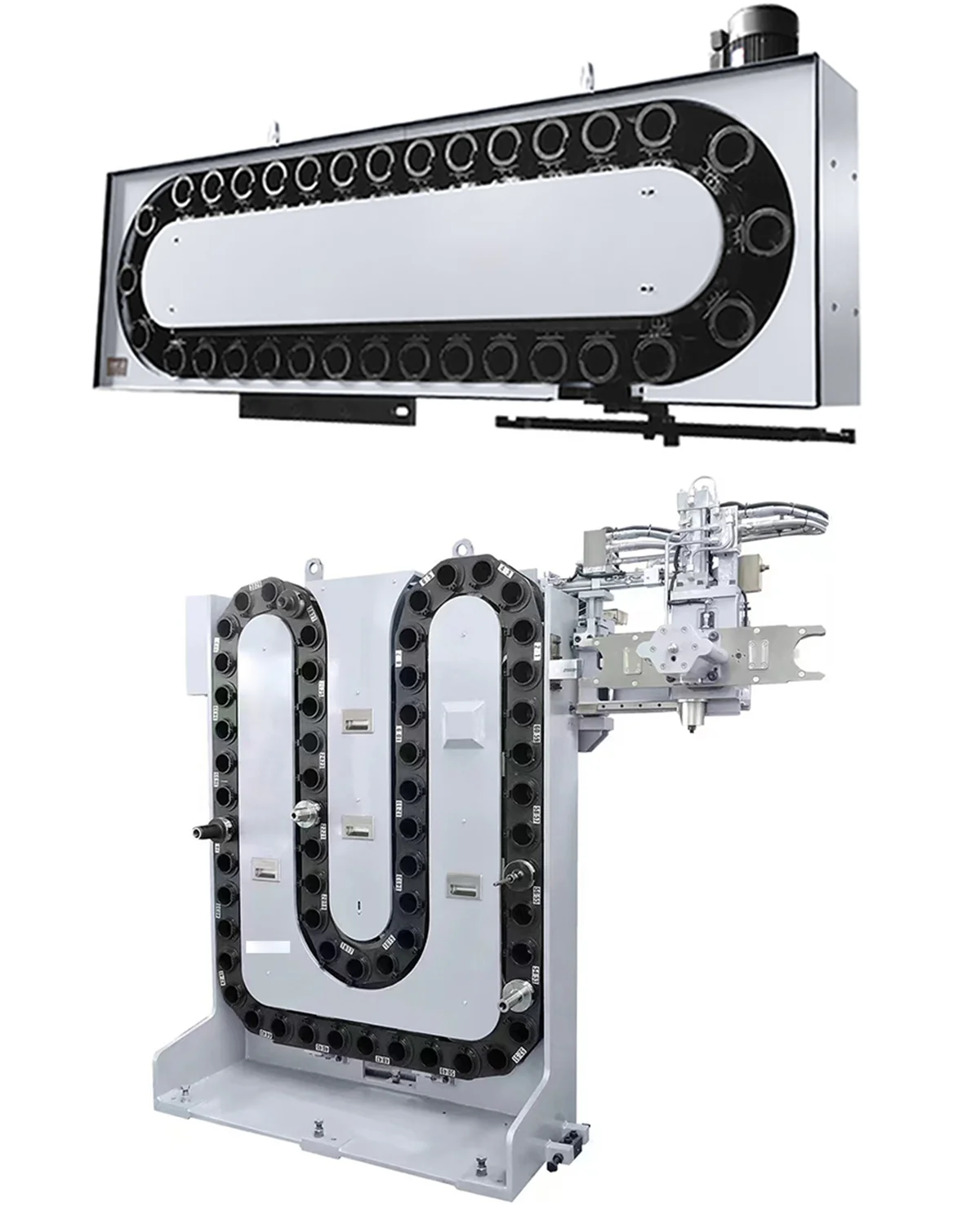

Product Show

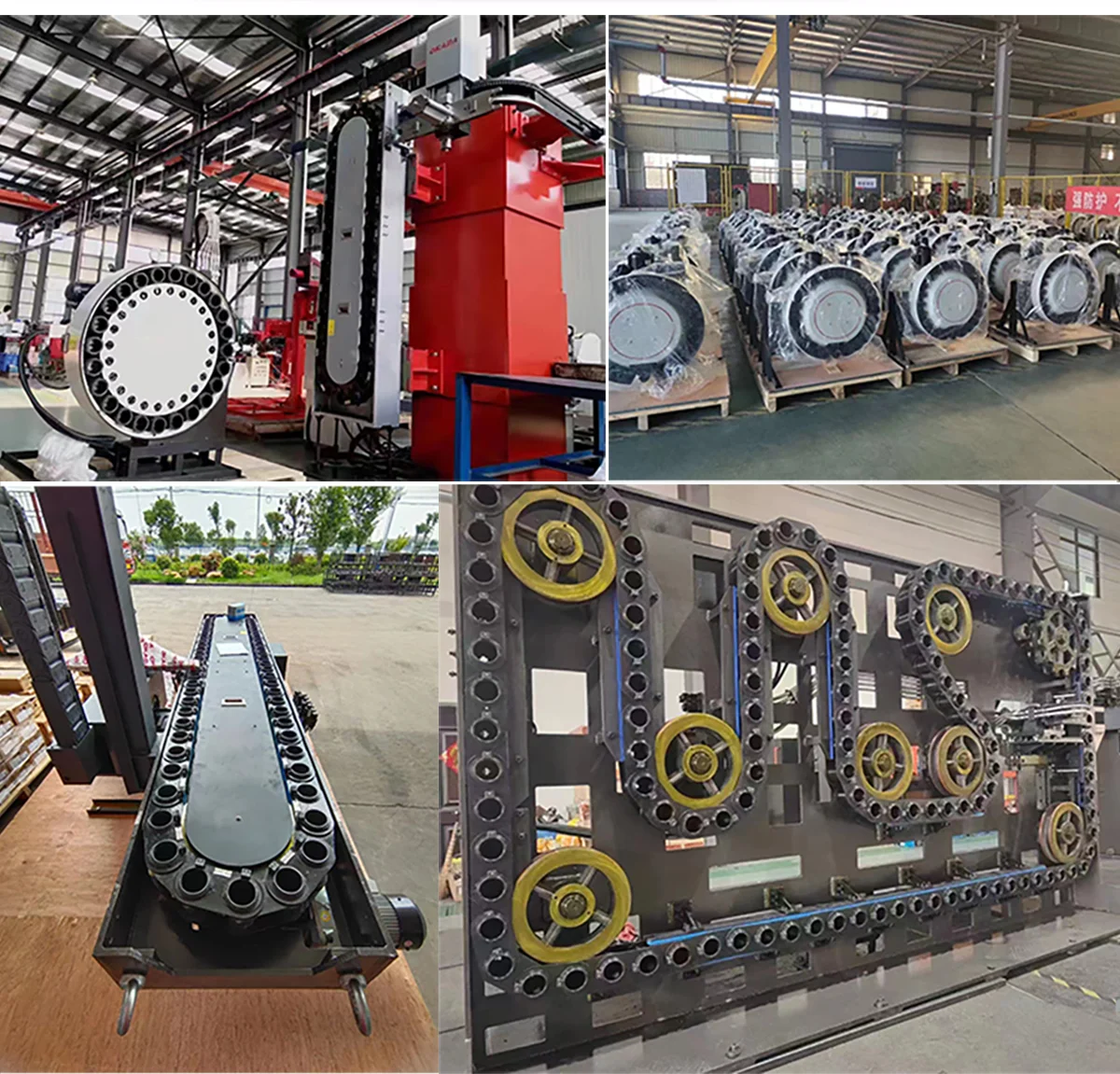

Factory Show
