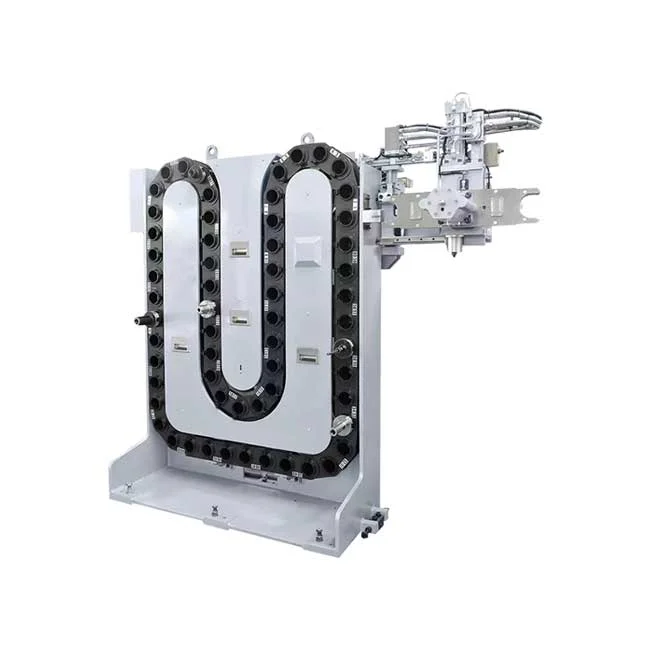

CNC CHAIN SWING MAGAZINE

Chain Swing Magazine is an advanced automatic tool changer (ATC) system designed for CNC machining centers that demand large tool capacity, high-speed operation, and long-term precision stability.
By combining a chain-driven tool storage system with a servo-controlled swing arm mechanism, it ensures fast, smooth, and precise tool changes, reducing non-cutting time and increasing machining productivity.
Each unit undergoes strict dynamic balancing and endurance testing to guarantee stable performance even under continuous heavy-duty operation.

Minimum：1

info@wxfagor.com

Message

CHAIN SLIDE TOOL MAGAZINE

SERVO TYPE VERTICAL DISC MAGAZINE

Product details

Product Features

1. Hydraulic ATC can catch a heavy and long knife

2. Closely linked with the machine,so does not occupy space

3. Structural strength and high stability

4. Non-standard (according to the requirements of the machine and shape)

Product Specification

Tool shank spec	BT50/CAT50/DIN50/HSK100
Tool capacity	32T/40T/60T/80T/100T/120T/180T
Tool change time	5.5sec
Max. tool weight	35KG
Max. tool dia.(fully loaded)	∅125mm
Max. tool dia.(no adjacent)	∅250mm
Max. tool length	500mm
Tool storage drive	Servo motor / Hydraulic / Standard motor

Technical Advantages

Fast tool change cycle time → increased spindle uptime
Precision servo control → consistent and accurate tool positioning
Heavy-duty design → long service life and high reliability
Dynamic balancing → smooth, vibration-free performance
Customizable interface → adaptable to various CNC configurations
