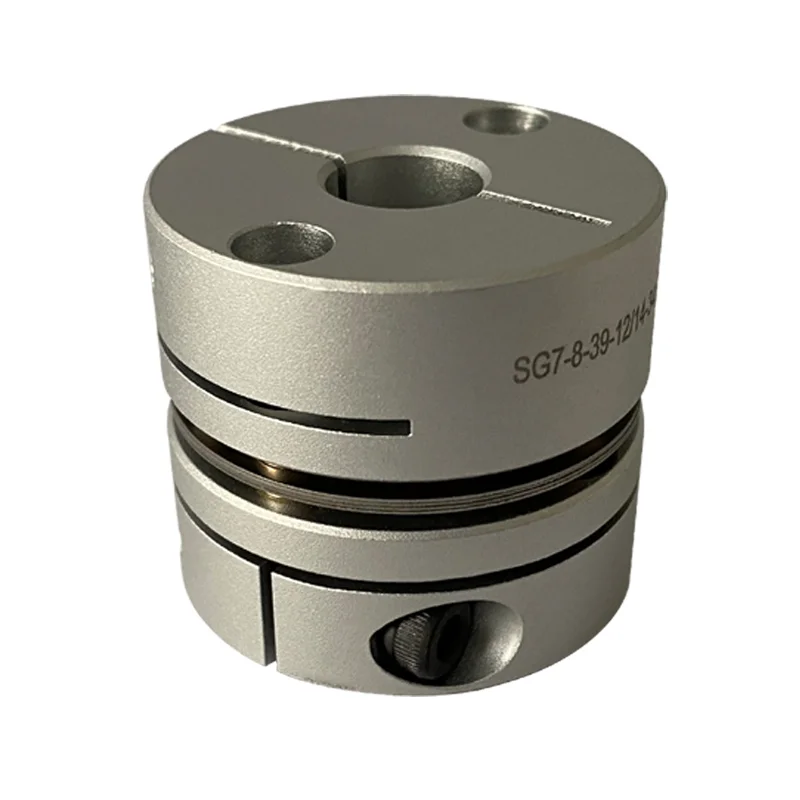

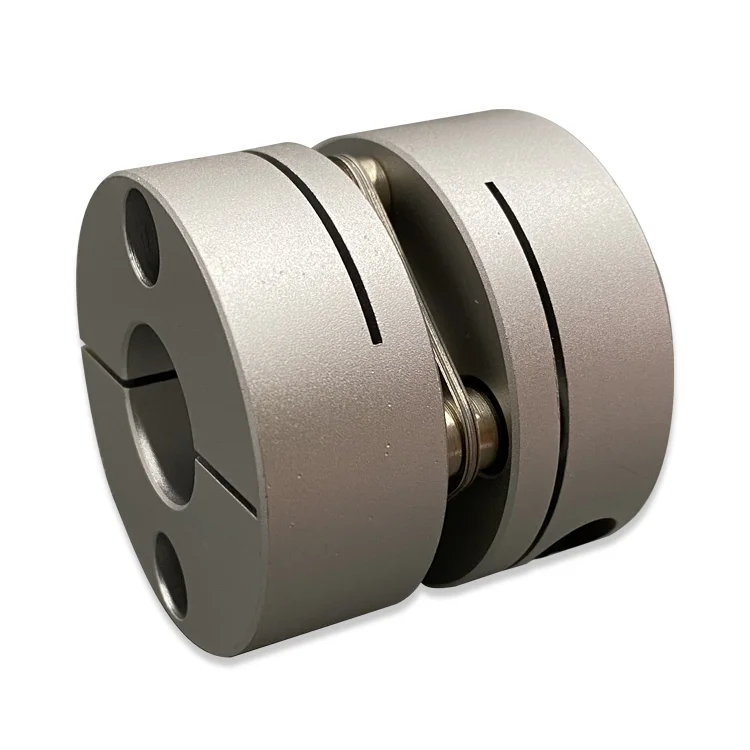

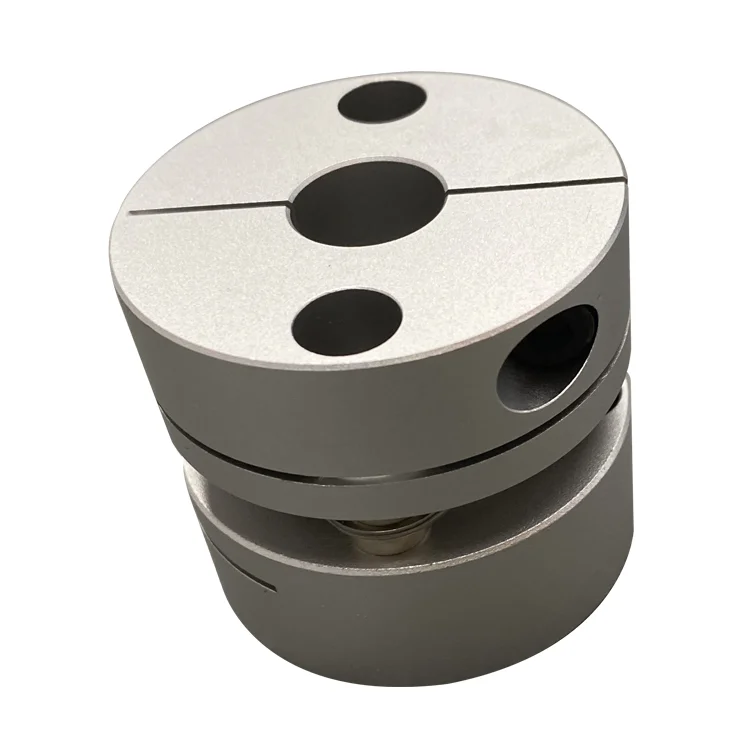

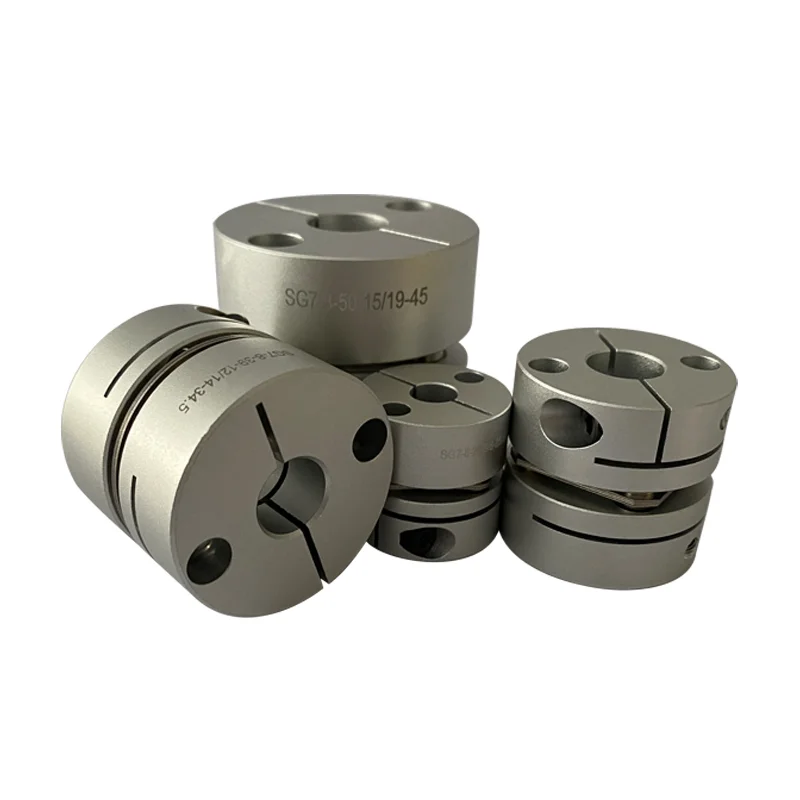

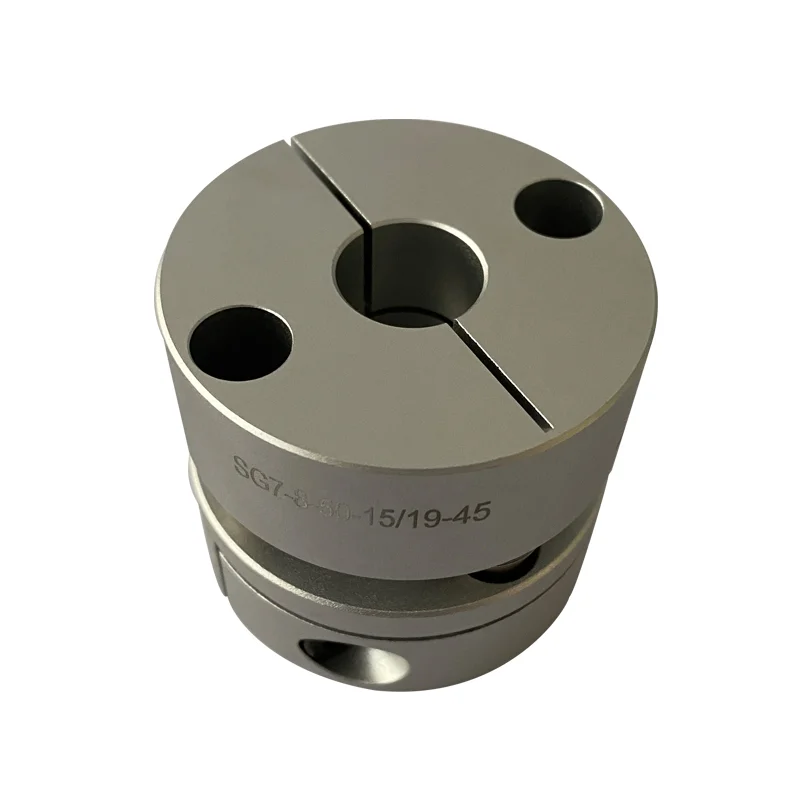

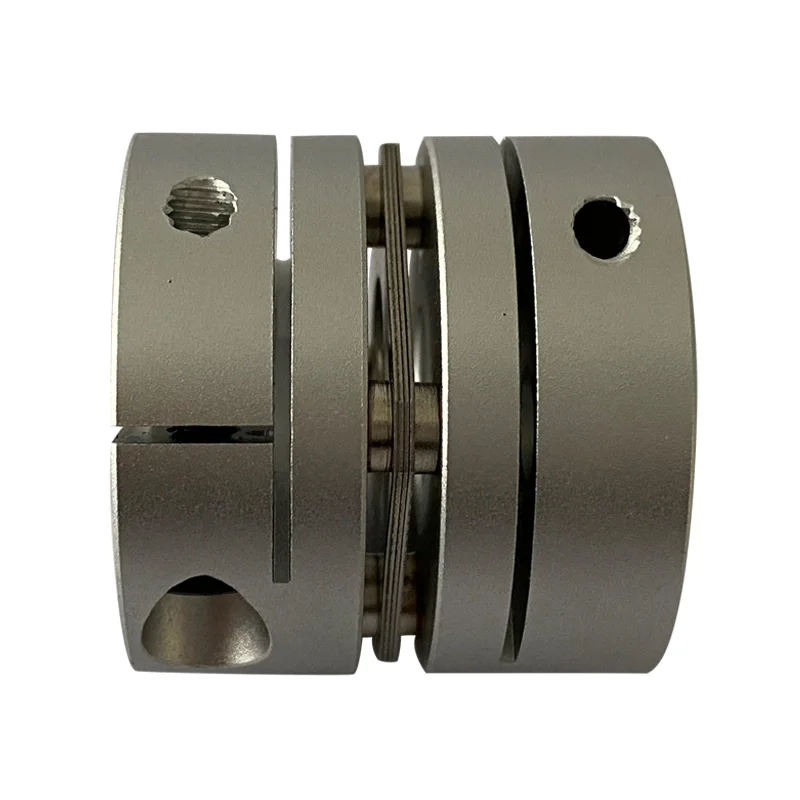

SG7-8 SINGLE DISK FLEXIBLE COUPLING

SG7-8-C19-□□□□

19.5

20

1.2

9.4

M2.5

1

SG7-8-C26-□□□□

26

25.5

2.5

11.5

M3

1.5

SG7-8-C34-□□□□

34

32.3

3.3

14.5

M4

1.5

SG7-8-C39-□□□□

39

34.1

4.1

15

M4

2.5

SG7-8-C44-□□□□

44

34.5

4.5

15

M4

2.5

SG7-8-C50-□□□□

50

40.5

4.5

18

M5

7

SG7-8-C56-□□□□

56

45

5

20

M5

7

SG7-8-C68-□□□□

68

54

6

24

M6

12

SG7-8-C82-□□□□

82

68

8

30

M8

16

SG7-8-C94-□□□□

94

68

8

30

M8

28

SG7-8-C104-□□□□

104

70

10

30

M8

28

SG7-8-C19-□□□□

1N.m

2N.m

10000prm

0.65×10^-6kg.m²

200N.m/rad

0.04mm

1c

±0.2mm

12

SG7-8-C26-□□□□

1.4N.m

2.8N.m

10000prm

1.8×10^-6kg.m²

690N.m/rad

0.04mm

1c

±0.2mm

31

SG7-8-C34-□□□□

2.8N.m

5.6N.m

10000prm

7.2×10^-6kg.m²

1650N.m/rad

0.04mm

1c

±0.2mm

64

SG7-8-C39-□□□□

5.8N.m

11.6N.m

10000prm

1.8×10^-5kg.m²

2500N.m/rad

0.04mm

1c

±0.2mm

97

SG7-8-C44-□□□□

8.7N.m

17.4N.m

10000prm

2.5×10^-5kg.m²

2900N.m/rad

0.04mm

1c

±0.2mm

113

SG7-8-C50-□□□□

15N.m

30N.m

10000prm

8.2×10^-5kg.m²

6700N.m/rad

0.04mm

1c

±0.2mm

195

SG7-8-C56-□□□□

25N.m

50N.m

10000prm

1×10^-4kg.m²

8400N.m/rad

0.04mm

1c

±0.2mm

263

SG7-8-C68-□□□□

55N.m

110N.m

10000prm

1.9×10^-4kg.m²

11500N.m/rad

0.04mm

1c

±0.2mm

445

SG7-8-C82-□□□□

80N.m

160N.m

10000prm

7×10^-4kg.m²

14550N.m/rad

0.04mm

1c

±0.2mm

892

SG7-8-C94-□□□□

185N.m

370N.m

10000prm

1.23×10^-3kg.m²

16900N.m/rad

0.04mm

1c

±0.2mm

950

SG7-8-C104-□□□□

255N.m

510N.m

10000prm

1.86×10^-3kg.m²

25100N.m/rad

0.04mm

1c

±0.2mm

1190
