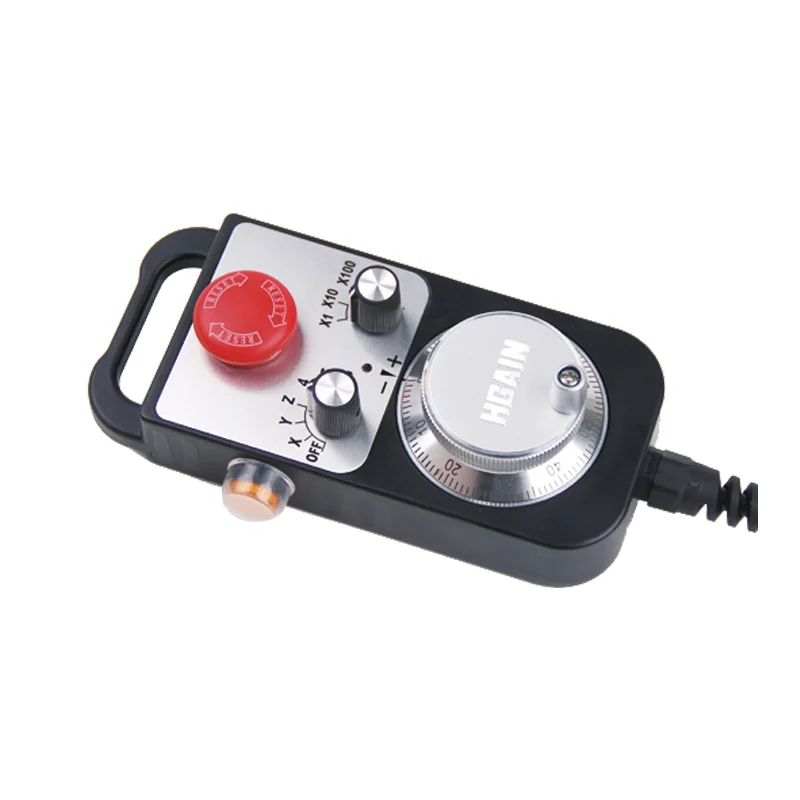

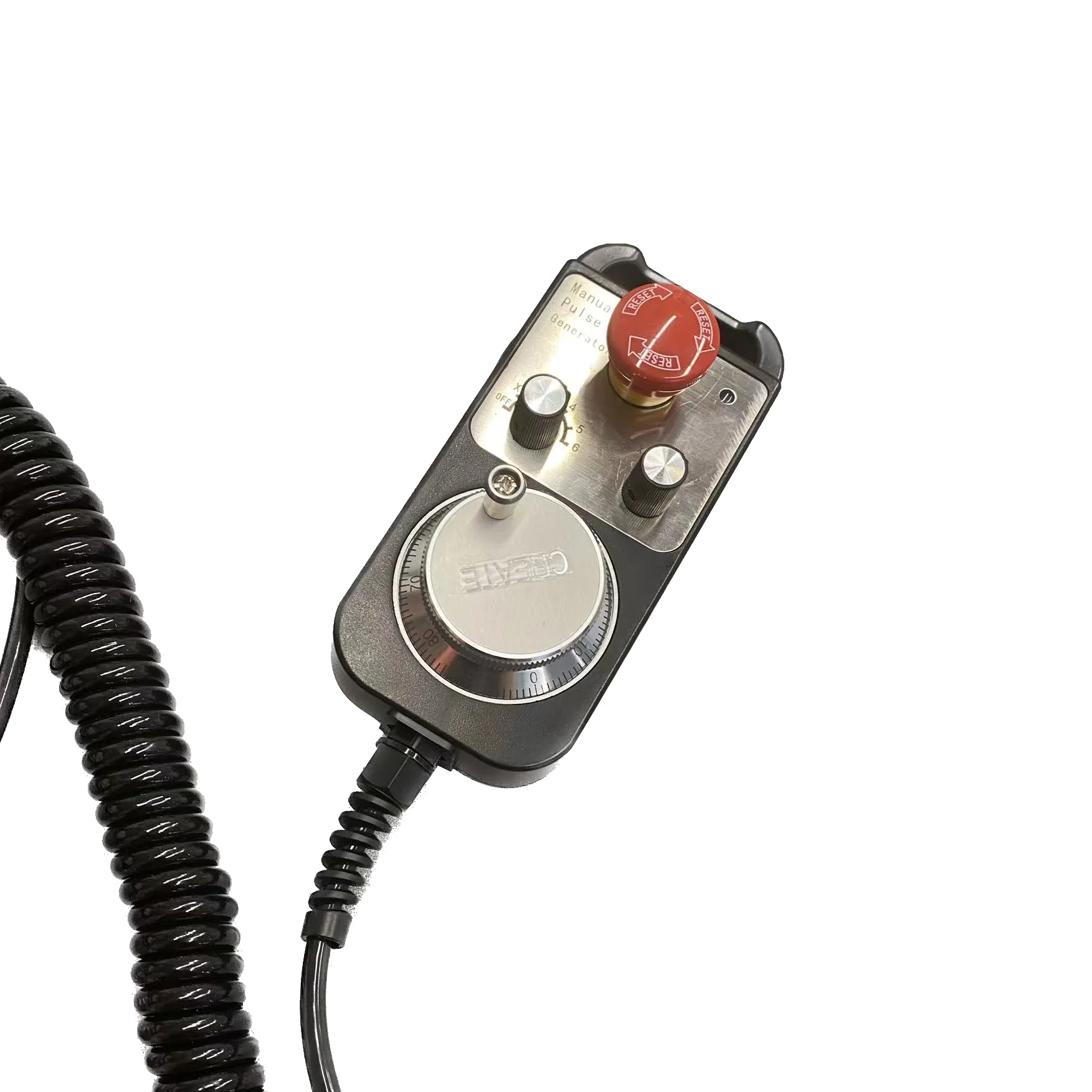

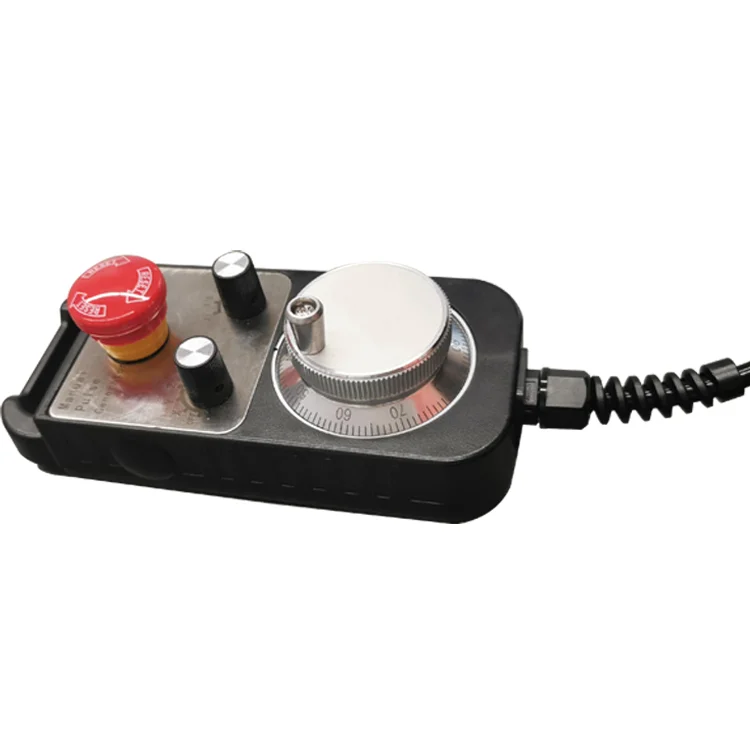

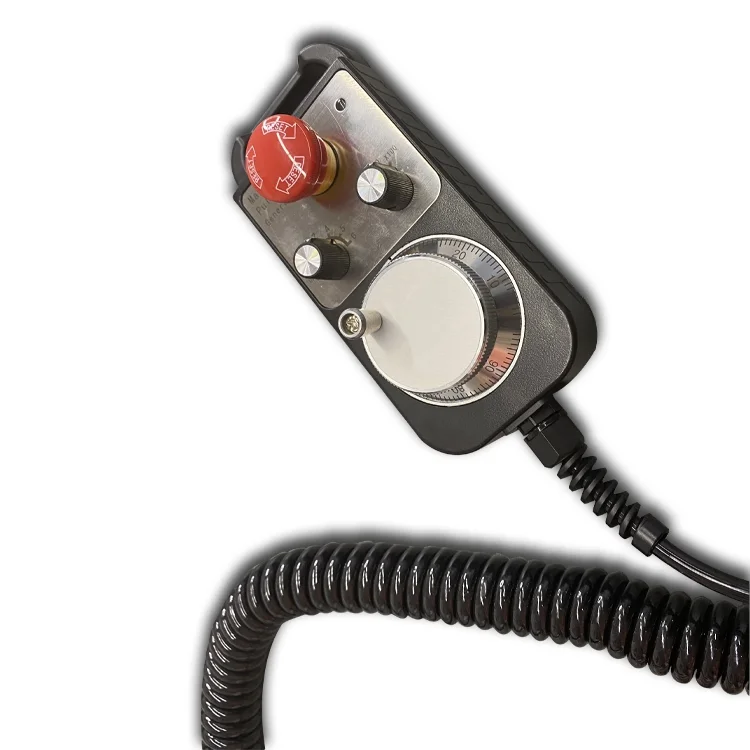

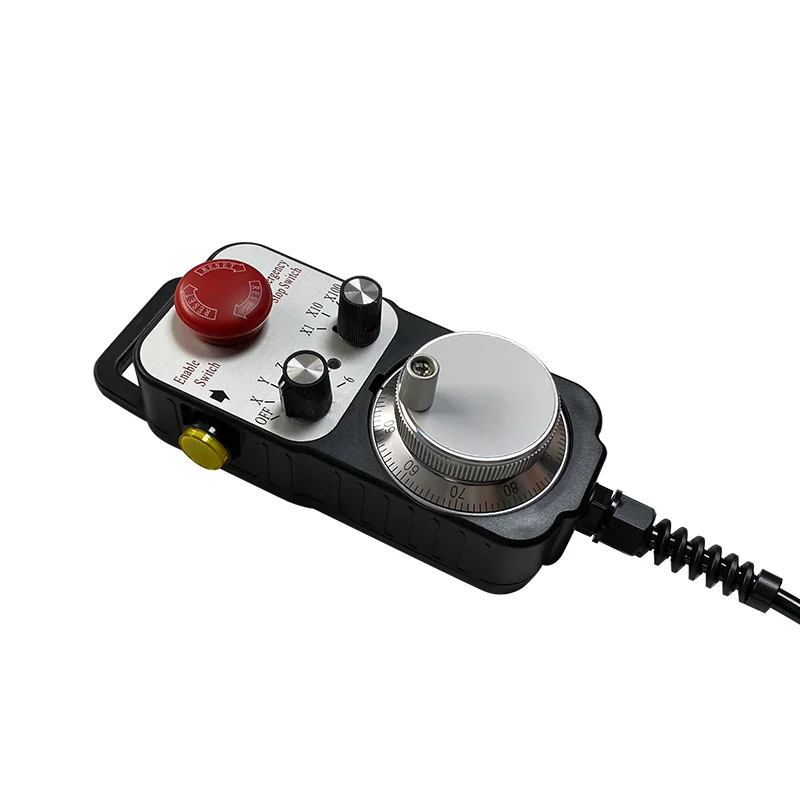

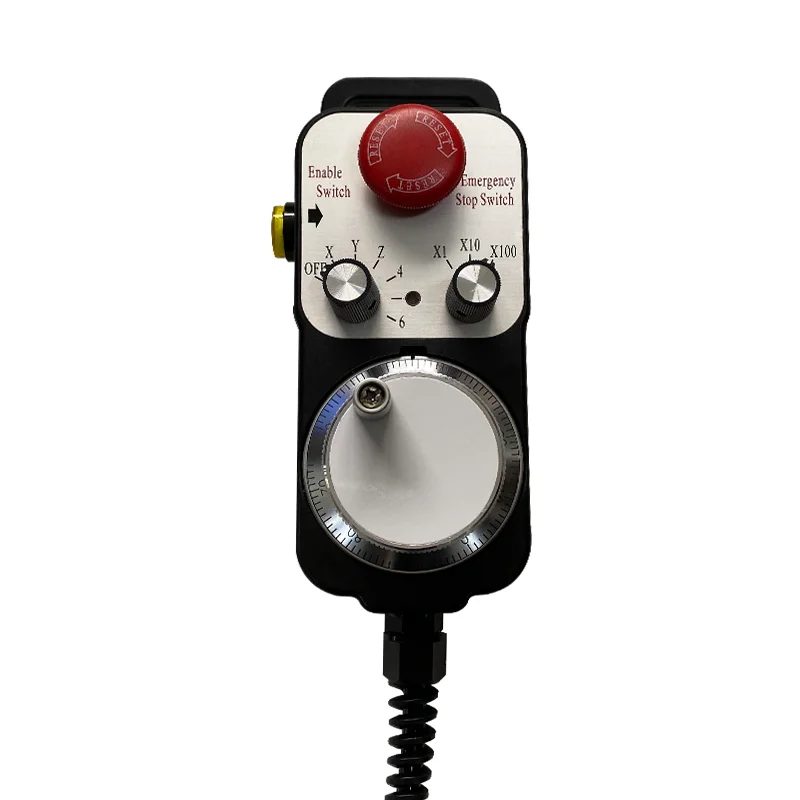

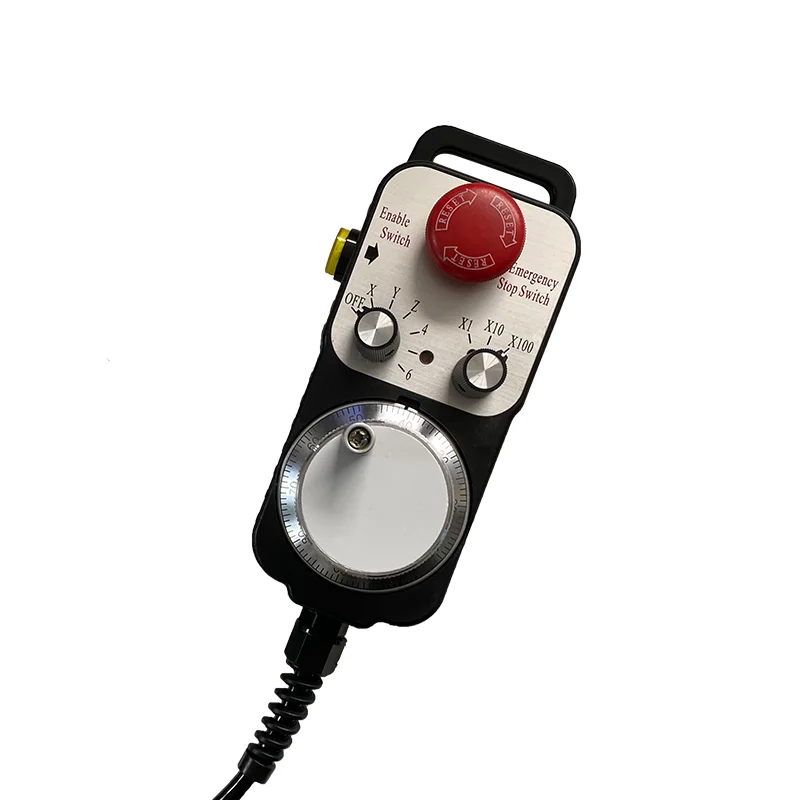

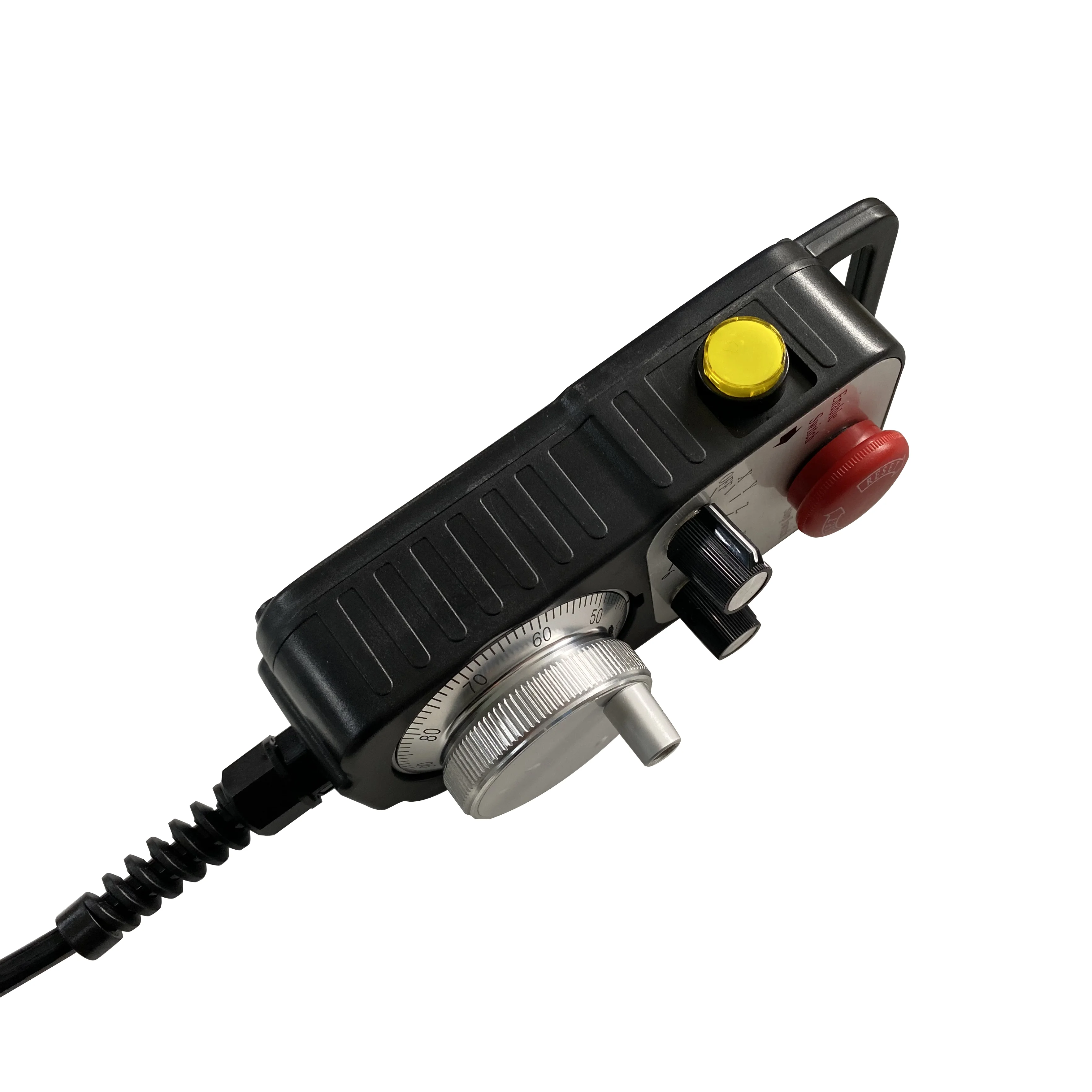

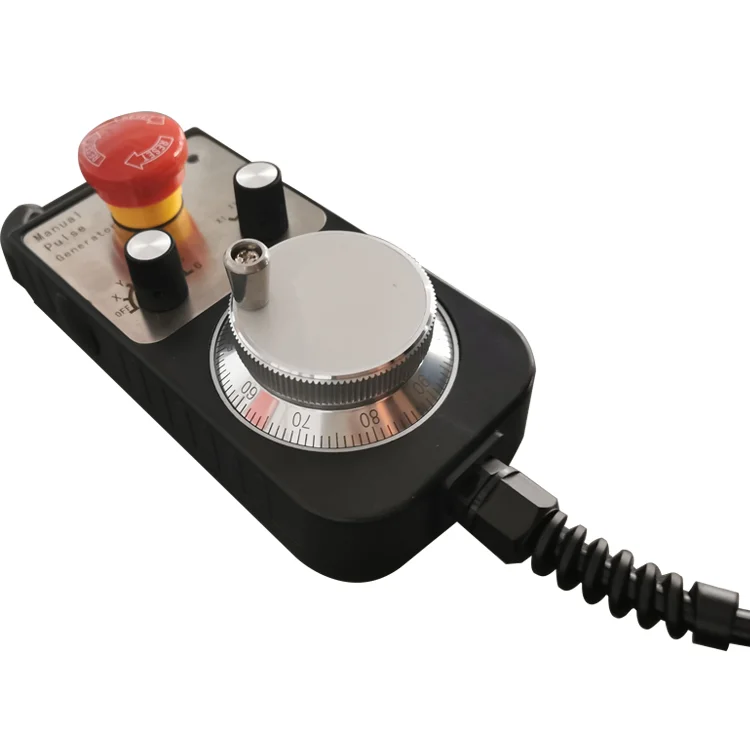

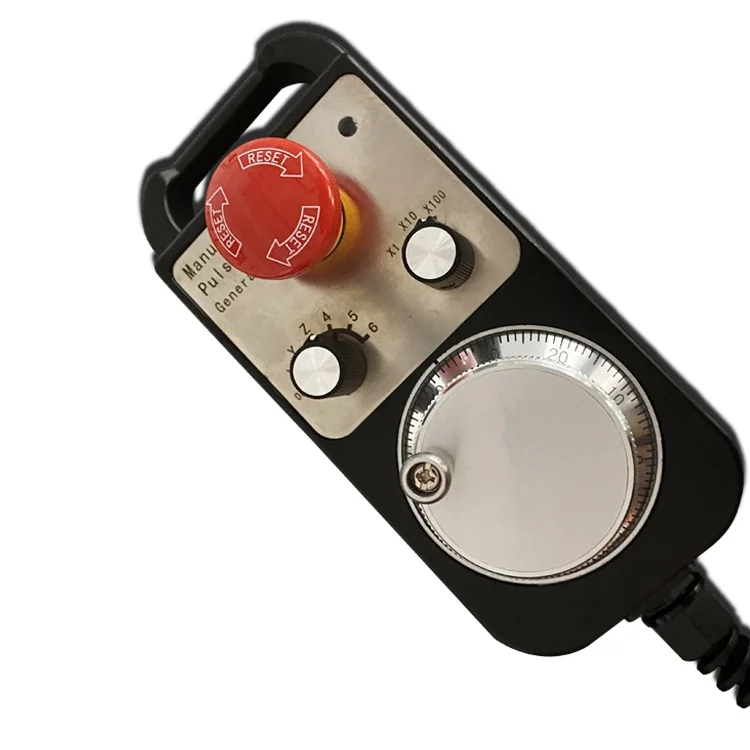

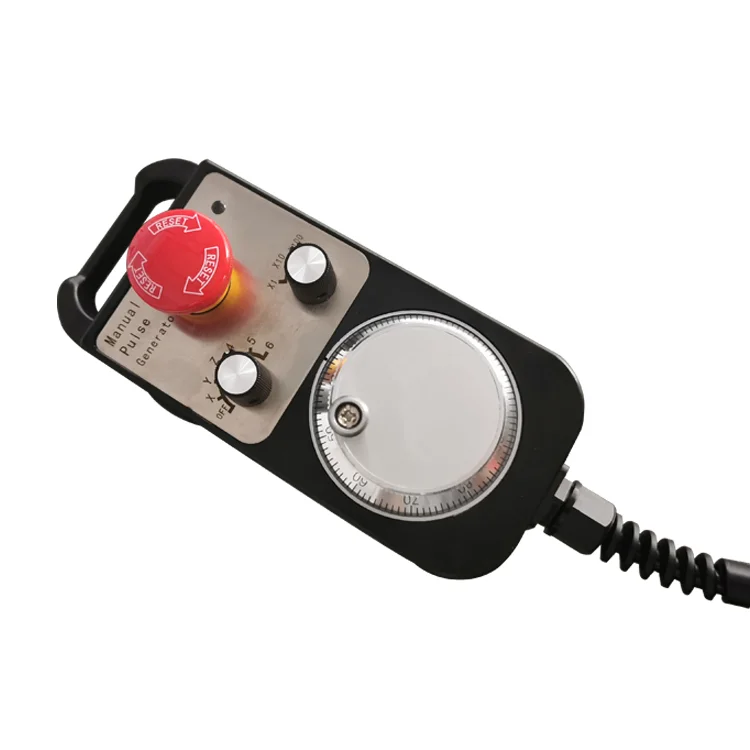

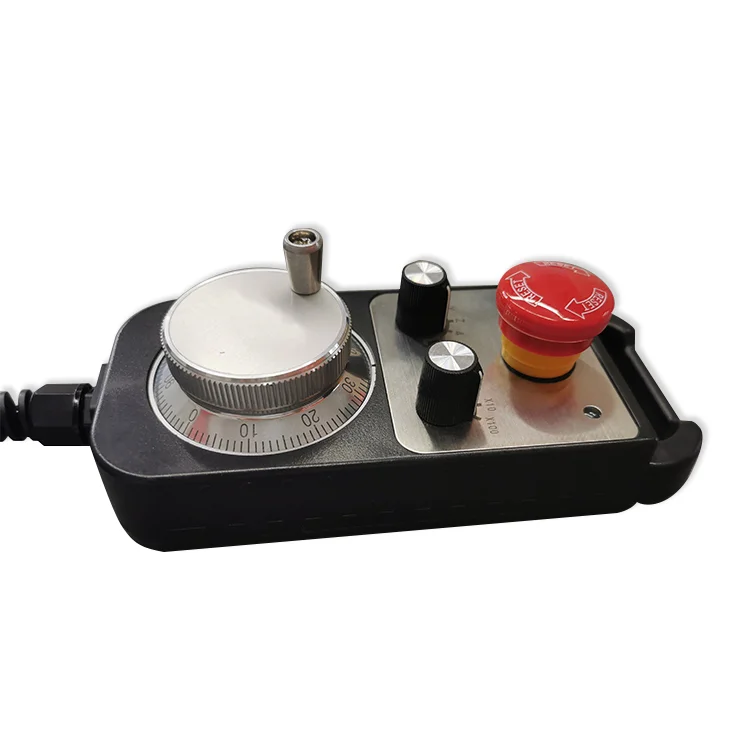

TM1474 MANUAL PULSE GENERATOR
▶ 1. Be widely used in various areas, such as CNC control machine, printing machine or signal dividing.
▶ 2. With 3 gears of X1, X10, X100 to achieve 4 or 6 shafts shifting.
▶ 3. Equipped with brake and enable button to ensure safety.
▶ 4.The cable length can be customized.

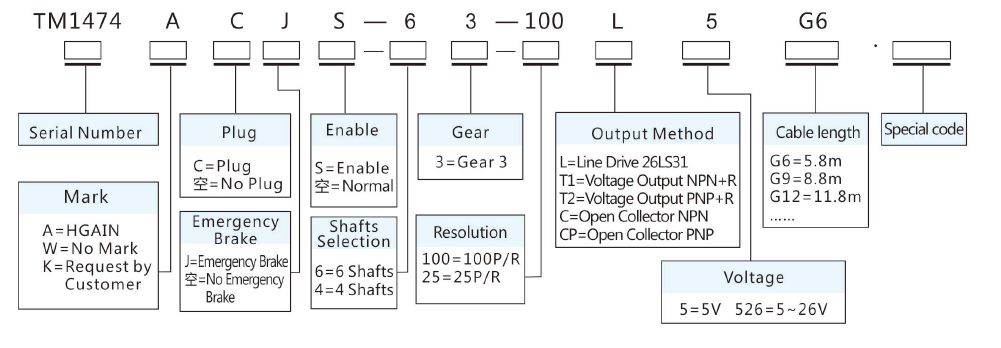

ORDERING GUIDE:

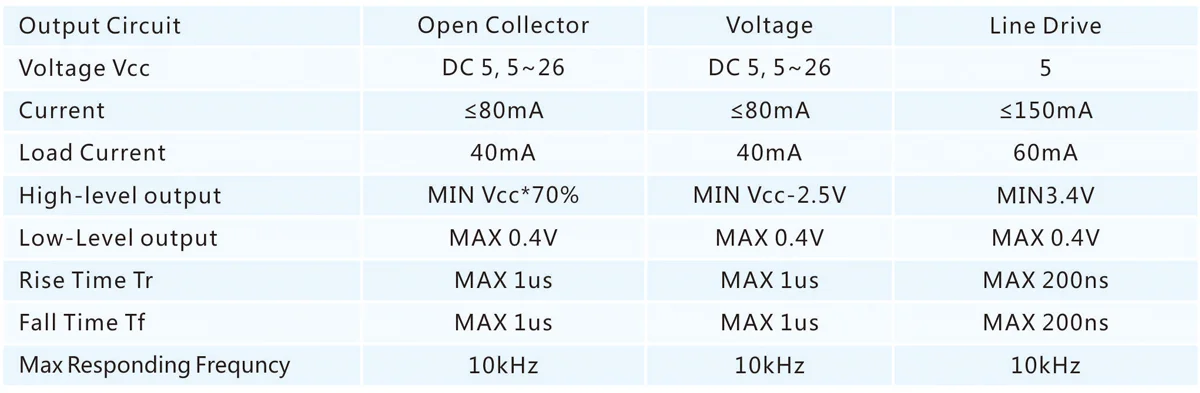

ELECTRICAL SPEC.
MECHANICAL SPEC.

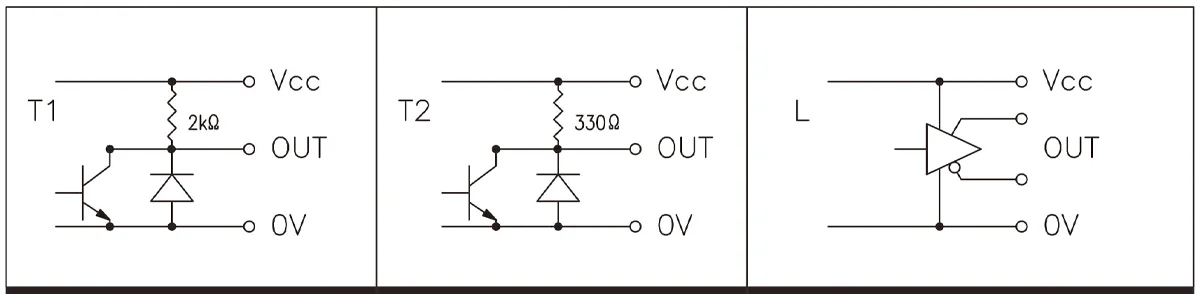

PHASE OUTPUT

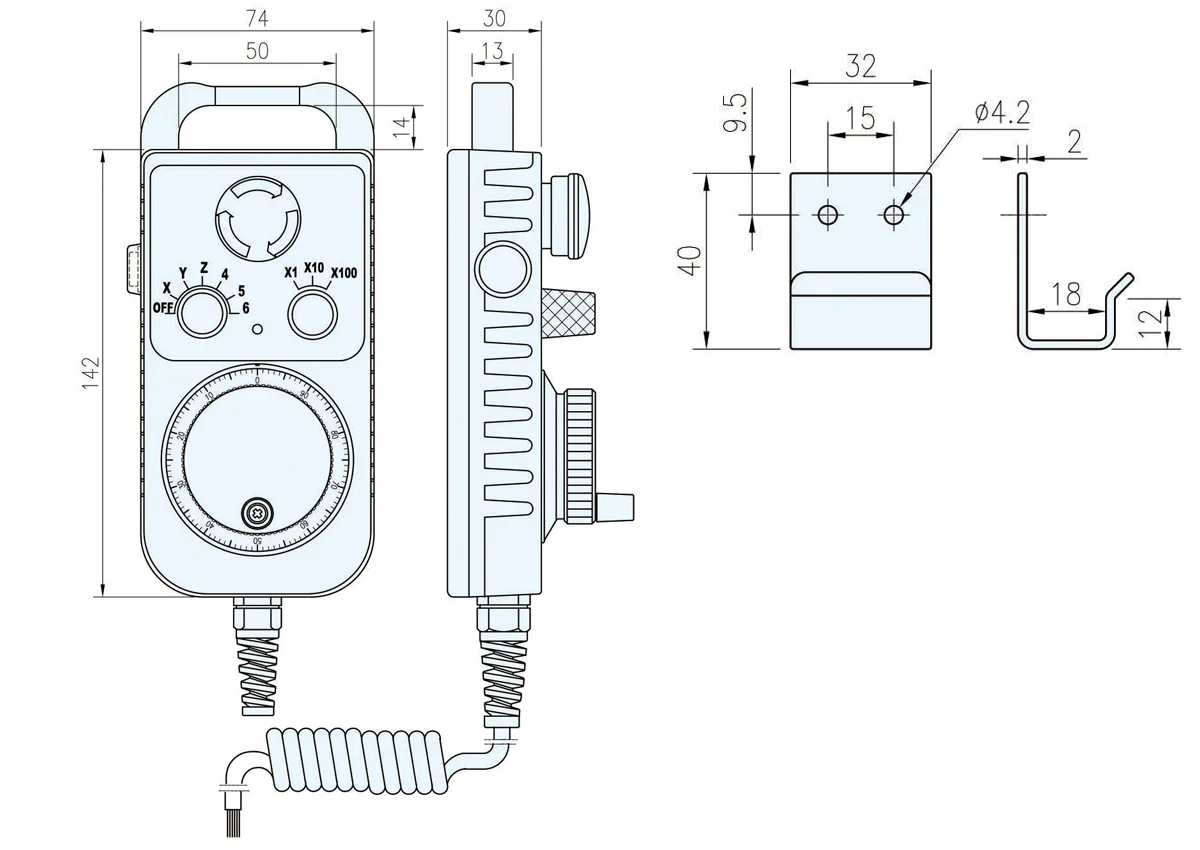

DIMENSION(MM)
WIRING TABLE
Project | Color | Signal |
Hand wheel pulse transmitter | Red | Vcc |
Black | Gnd | |
Green | A | |
White | B | |
Purple | A/ | |
Purple/ Black | B/ | |
Signal light | Green/ Black | + |
White/ Black | - | |
Coordinate axes | Yellow | X |
Yellow/ Black | Y | |
Brown | Z | |
Brown/ Black | 4 | |
Pink | 5 | |
Pink/ Black | 6 | |
Gear | Grey | X1 |
Grey/ Black | X10 | |
Orange | X100 | |
Brake | Blue | NC1 |
Blue/Black | NC2 | |
Enable Switch | Orange/Black | COM |

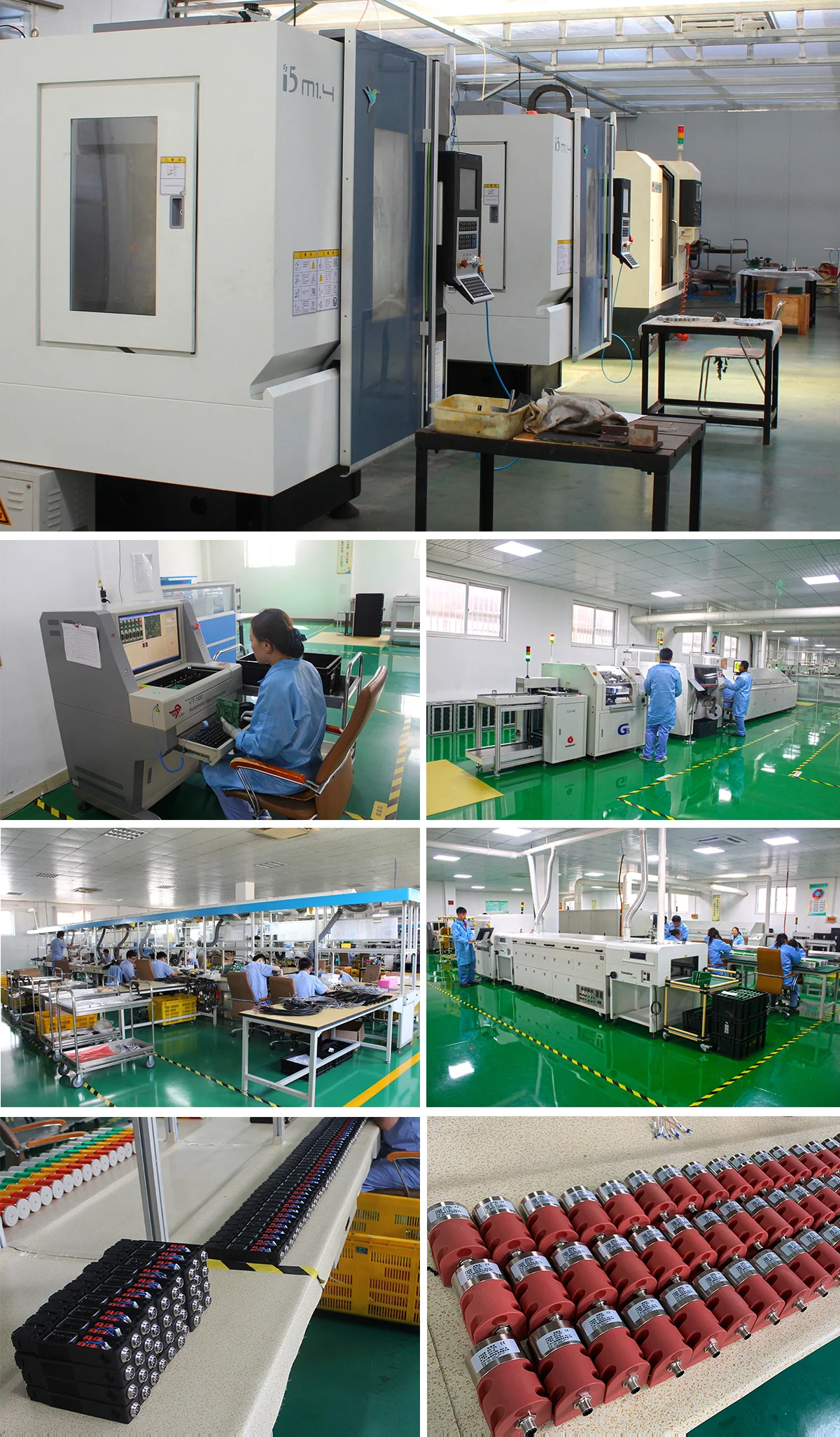

FACTORY SHOW
