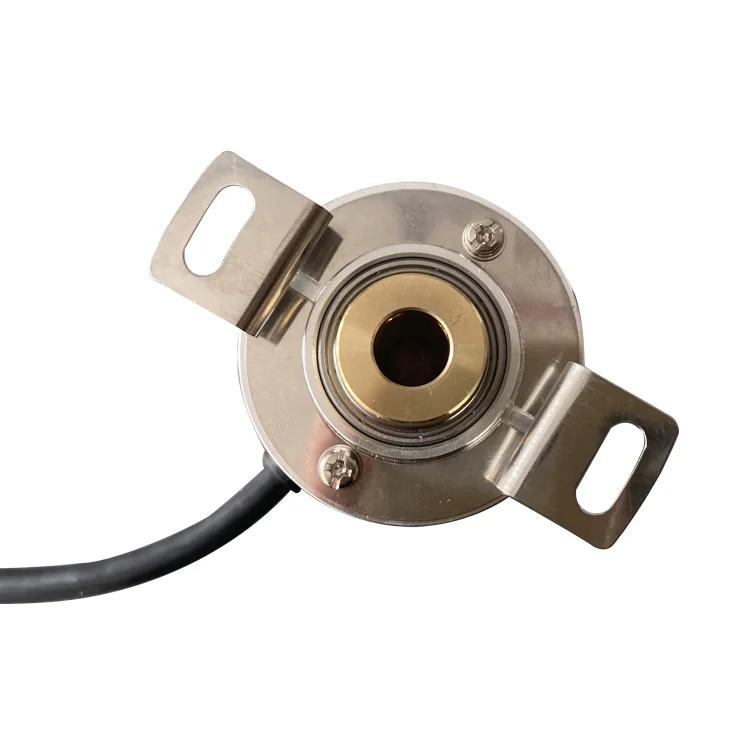

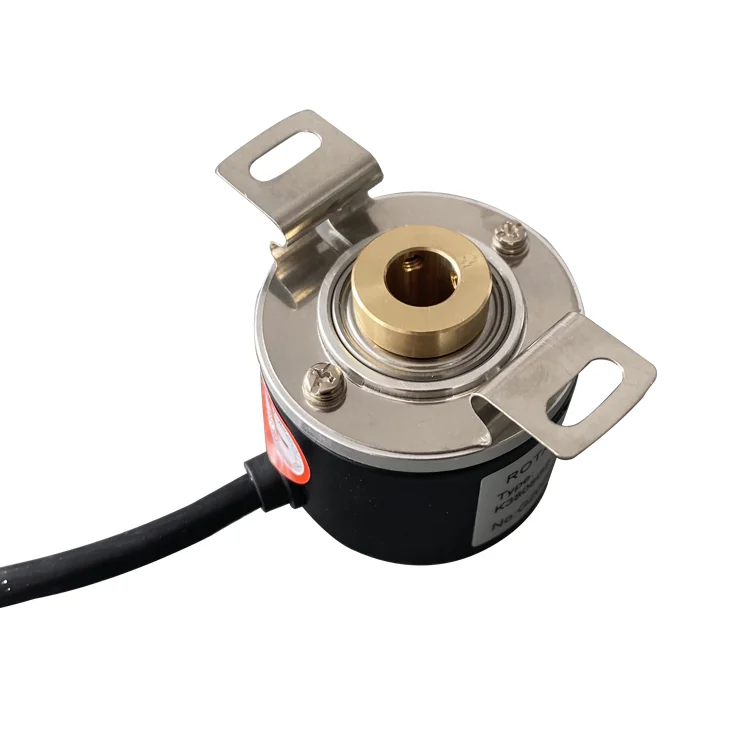

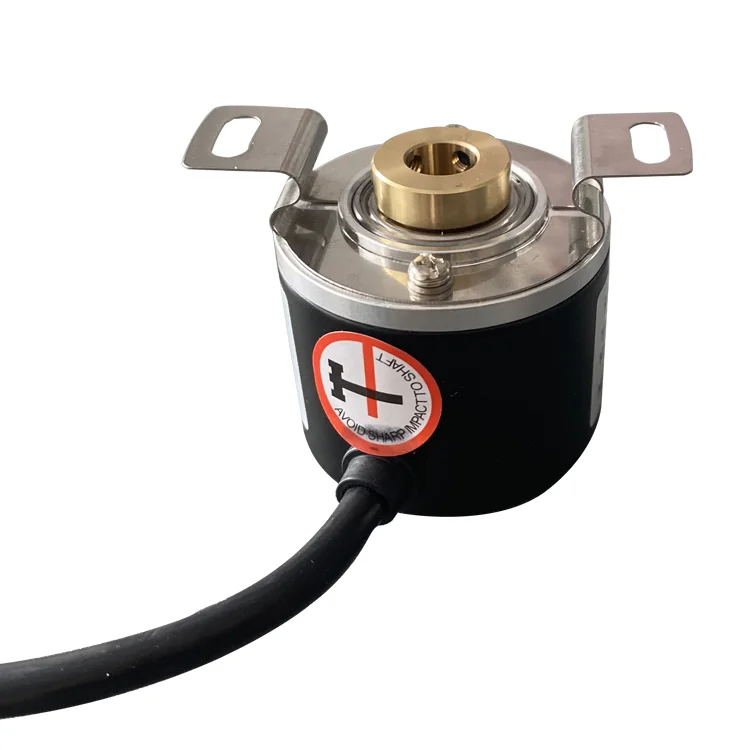

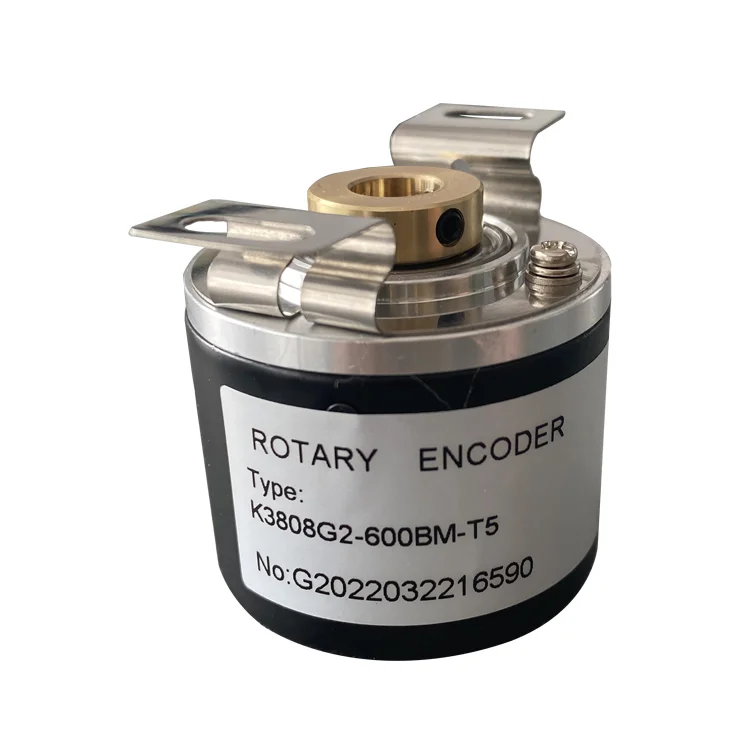

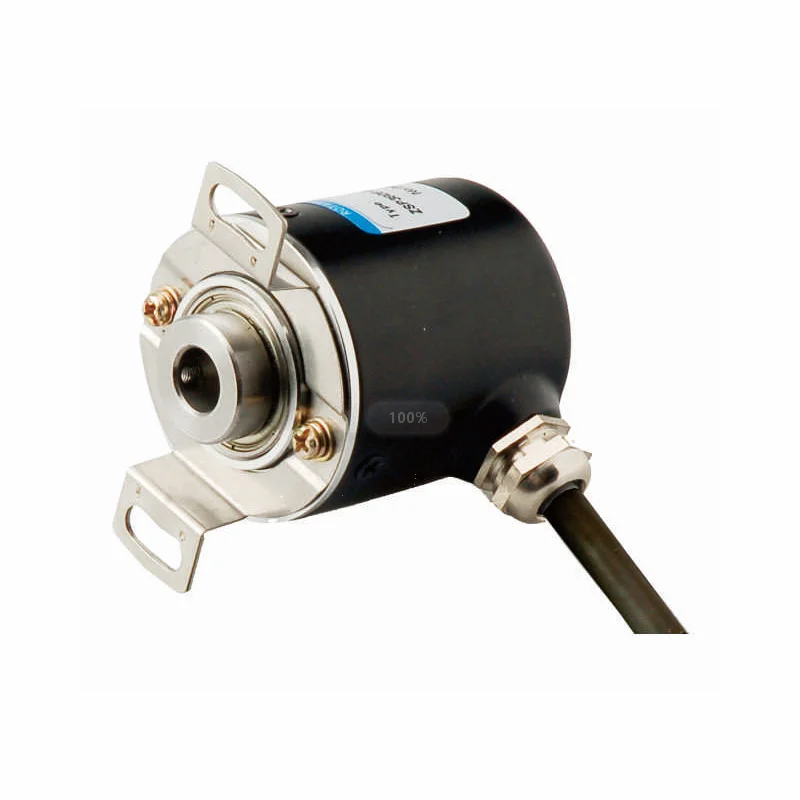

HOLLOW SHAFT ENCODER
Be used in areas of automatic control, measurements, robotic, X-Y labor, textile and printing machines.It is highly reliable, long life and has strong anti-interference ability. Wide range temperature adaption.
Product details
INTRODUCTION
▶ 1. Be used in areas of automatic control, measurements, robotic, X-Y labor, textile and printing machines.
▶ 2. It is highly reliable, long life and has strong anti-interference ability. Wide range temperature adaption.

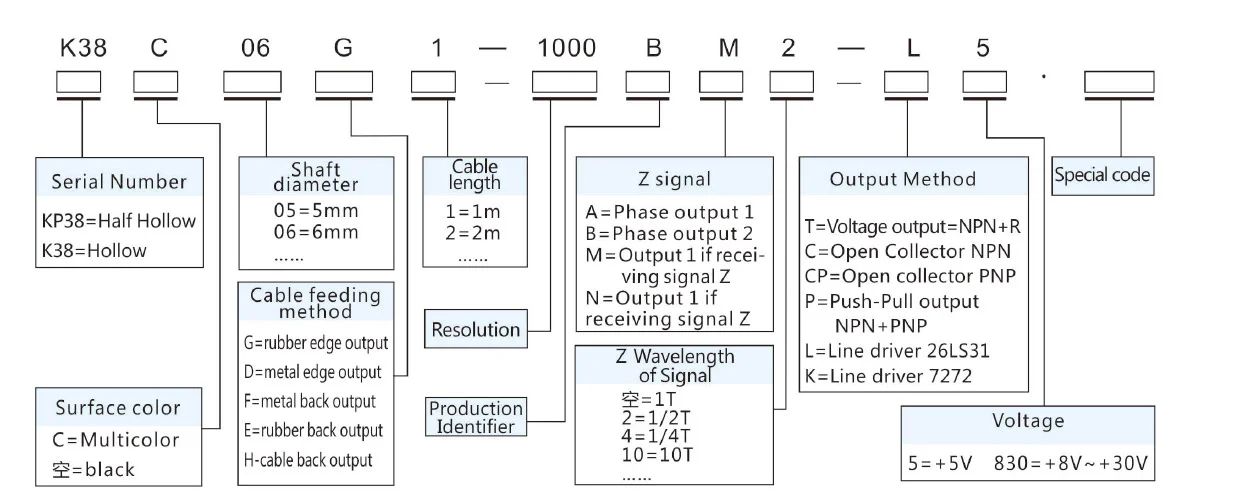

ORDERING GUILD
WIRING TABLE
Signal | A | B | Z | A | B | Z | Vcc | GND |
Color | Green | White | Yellow | Brown | Gray | Orange | Red | Black |
ELECTRICAL MECHANICAL SPEC
Voltage | DC 5, 8-30V | Working Temperature | -40°C~ ＋85°C |
Resolution | 2-3600 | Max Shaft Loading | Radial 50N/ Shaft 20N |
Output Method | Open collector/ Voltage/ Push-Pull/ DPCM | ||
Max Shaft Speed | 5000 r/min | Frequency | 150KHz |

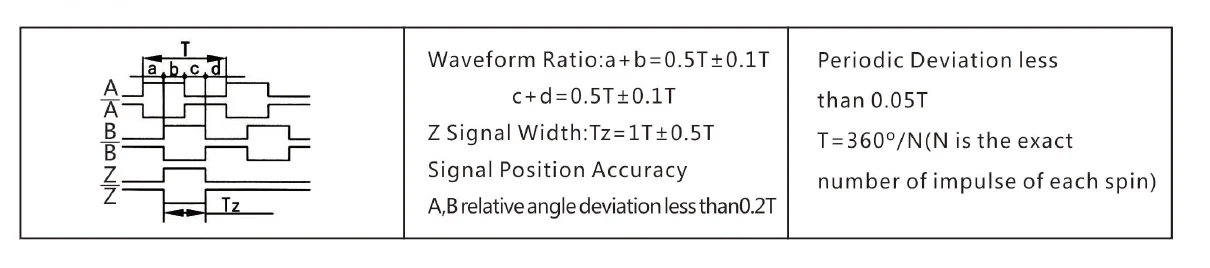

WAVEFORM RATIO

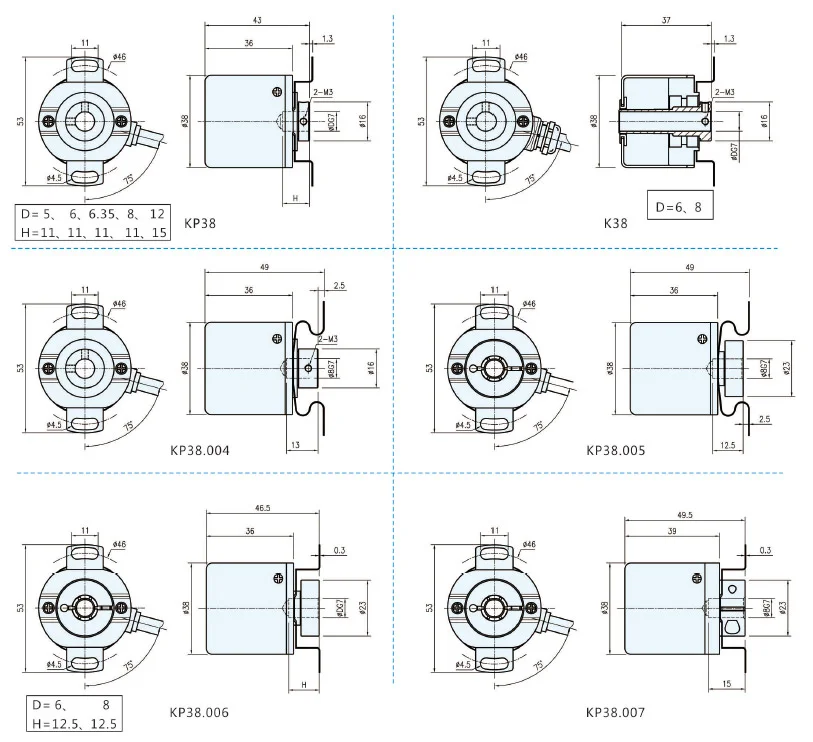

DIMENSION MM

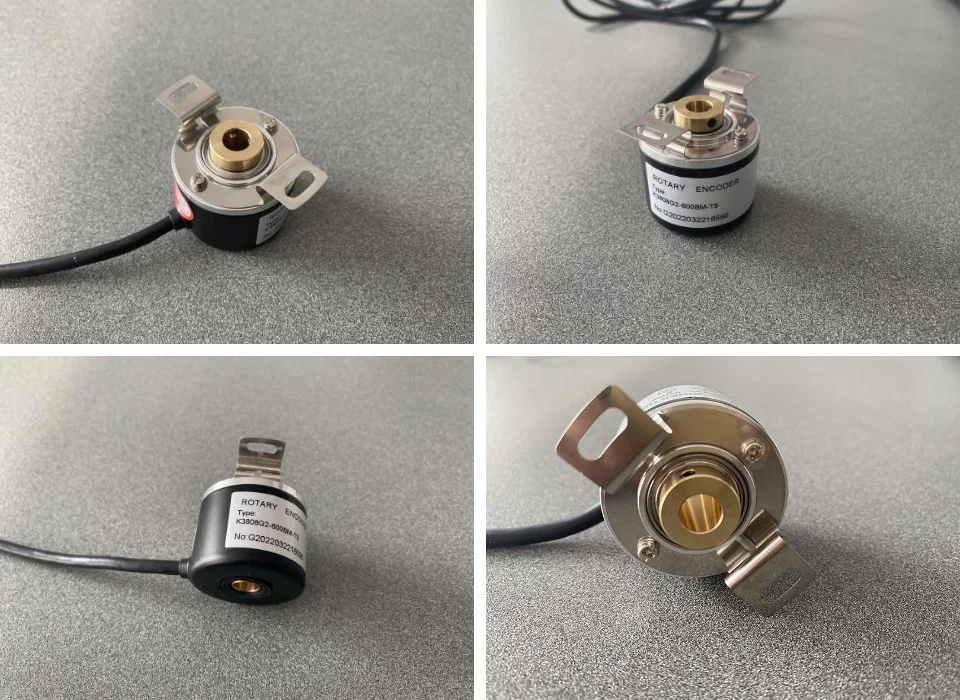

FACTORY PHOTO
