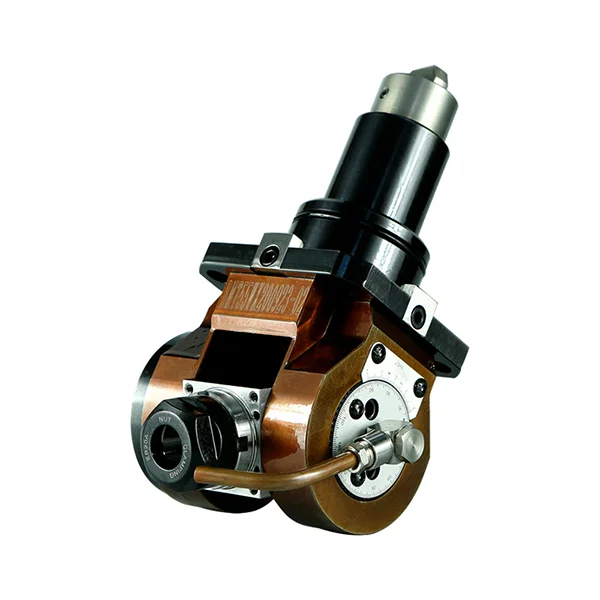

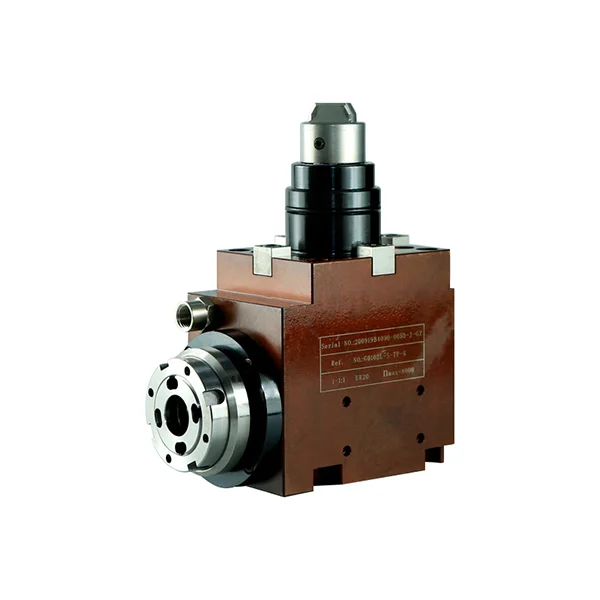

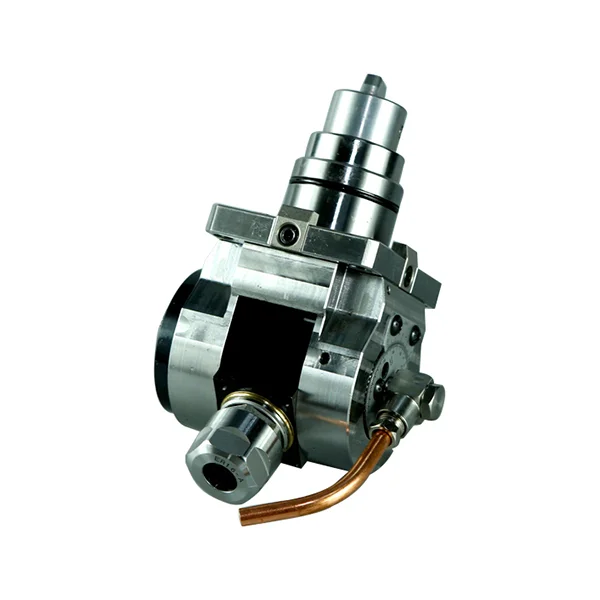

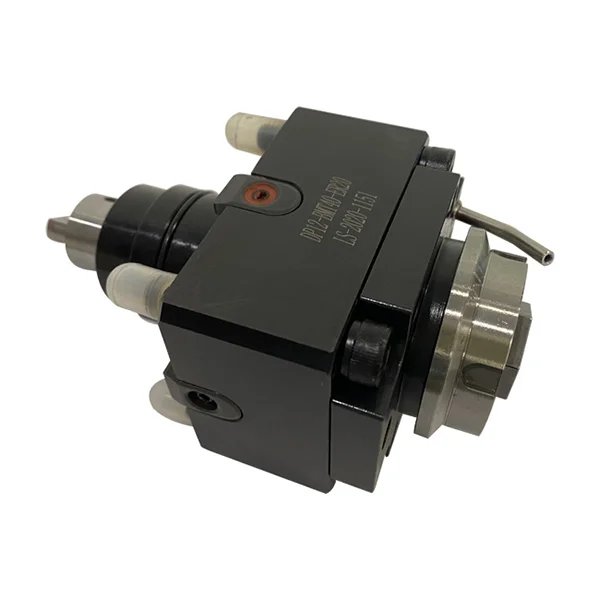

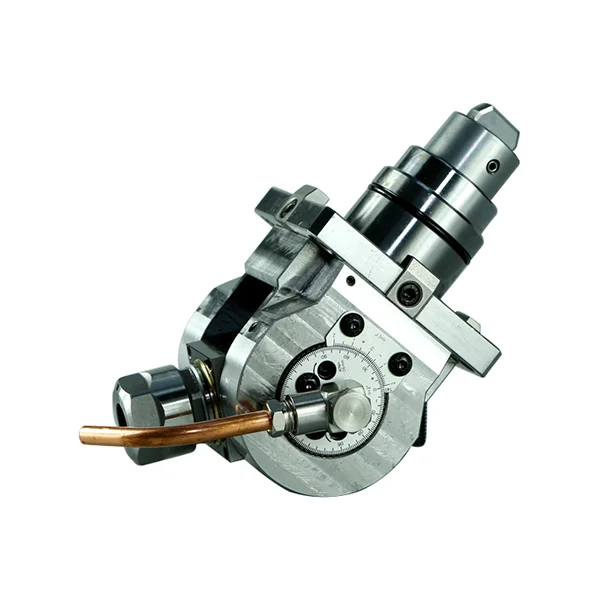

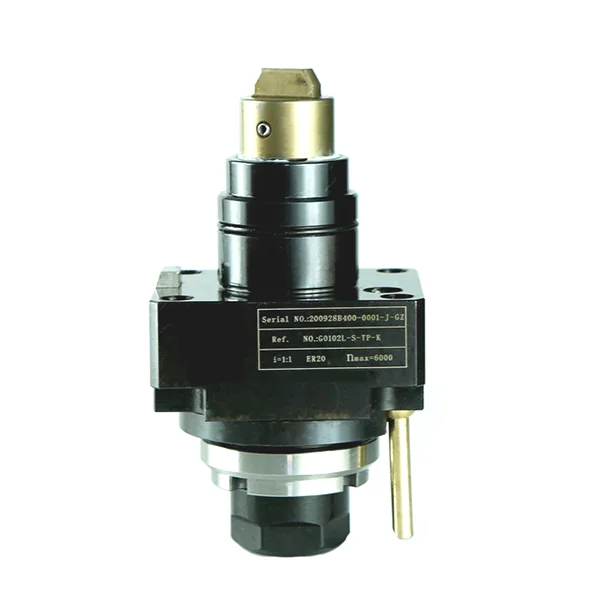

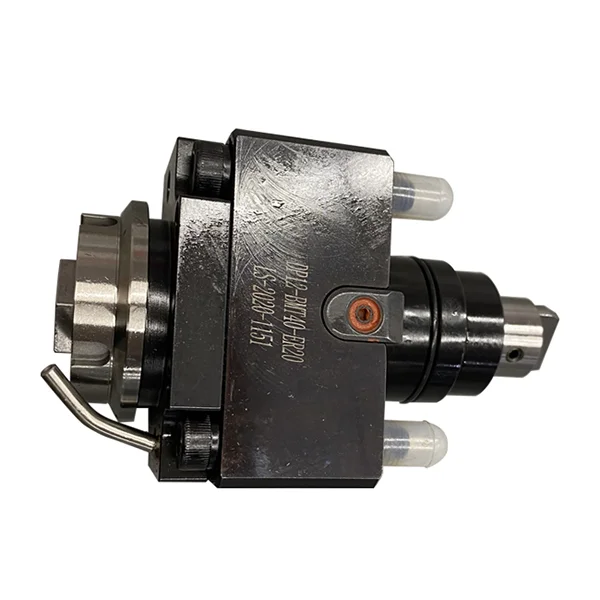

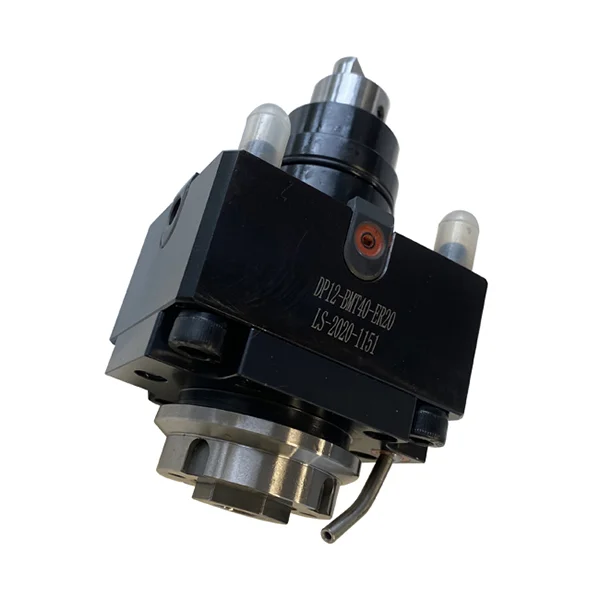

TURRET TOOL HOLDER
2. Apply to DOOSAN/DAEWOO/HWACHON
3. Output shaft collet conforms to DIN6499 specification.

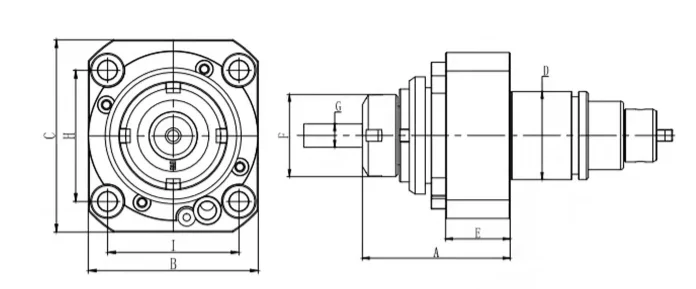

BMT 0 degree driven tool holder
▶ 1. Joint surfaces according to DIN1809
▶ 2. Apply to DOOSAN/DAEWOO/HWACHON
▶ 3. Output shaft collet conforms to DIN6499 specification.
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
N.M.(KG) |
|
58.5 |
63 |
75 |
40 |
33 |
45 |
ER20(1-13) |
60 |
50 |
1.5 |
|
59 |
75 |
85 |
45 |
33 |
48 |
ER25(1-16) |
58 |
58 |
2.4 |
|
63 |
85 |
97 |
55 |
34 |
60 |
ER32(2-20) |
64 |
64 |
3.3 |
|
79.5 |
94 |
94 |
65 |
37 |
63 |
ER40(3-26) |
70 |
73 |
4.2 |
|
84.5 |
112 |
112 |
75 |
42 |
63 |
ER40(3-26) |
90 |
90 |
5.1 |

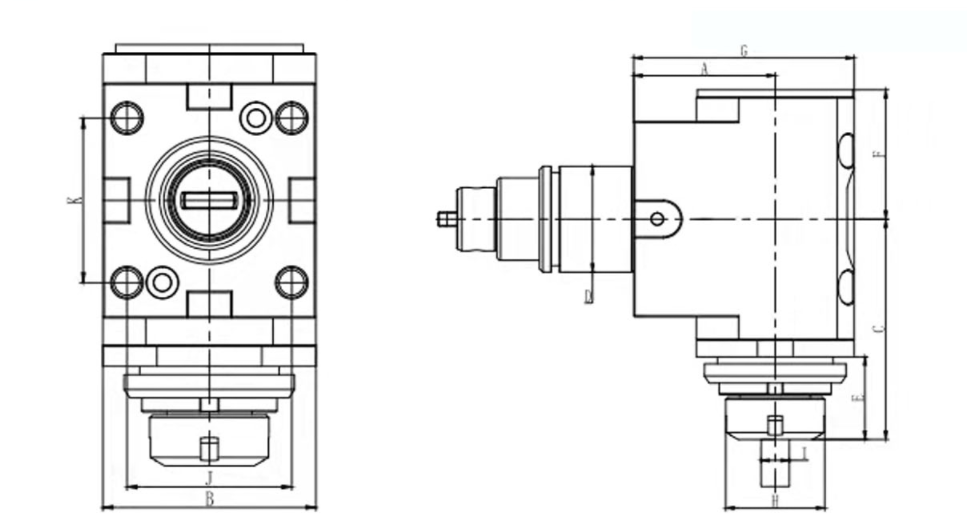

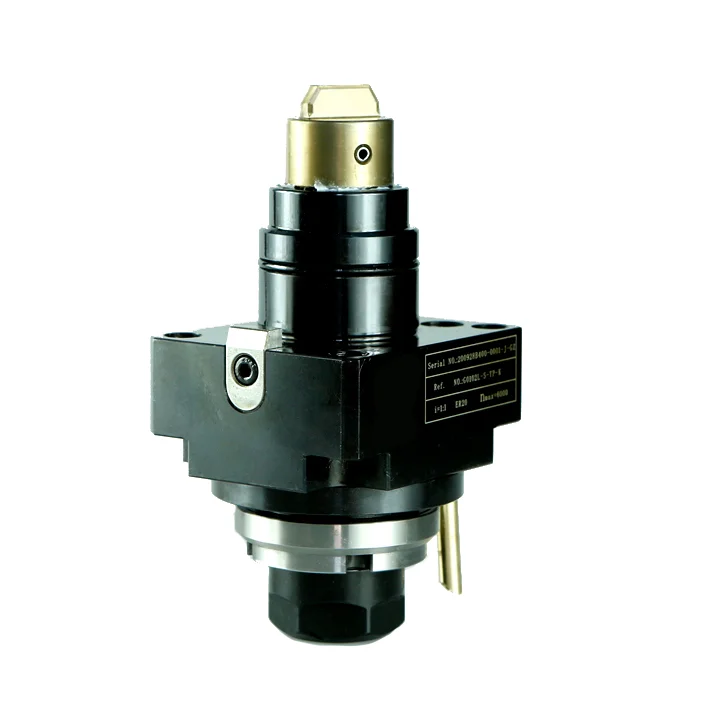

BMT 90 degree driven tool holder
▶ 1. Joint surfaces according to DIN1809
▶ 2. Apply to DOOSAN/DAEWOO/HWACHON
▶ 3. Output shaft collet conforms to DIN6499 specification.
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
N.M.(KG) |
|
60 |
63 |
75 |
40 |
18.5 |
46 |
91.5 |
45 |
ER20(1-13) |
50 |
60 |
3.5 |
|
60 |
75 |
77 |
45 |
18.5 |
55 |
93.5 |
48 |
ER25(1-16) |
58 |
58 |
5 |
|
60 |
85 |
84 |
55 |
21.5 |
56.5 |
96.5 |
60 |
ER32(2-20) |
64 |
64 |
6.5 |
|
85 |
85 |
84 |
55 |
21.5 |
56.5 |
121.5 |
60 |
ER32(2-20) |
64 |
64 |
7.6 |
|
72 |
94 |
95 |
65 |
35 |
59 |
112 |
63 |
ER40(3-26) |
73 |
70 |
8.4 |
|
100 |
94 |
95 |
65 |
35 |
59 |
140 |
63 |
ER40(3-26) |
73 |
70 |
9.5 |
|
90 |
112 |
104 |
75 |
41 |
65 |
135 |
63 |
ER40(3-26) |
90 |
90 |
10.5 |
|
125 |
112 |
104 |
75 |
41 |
65 |
170 |
63 |
ER40(3-26) |
90 |
90 |
11.8 |
