VICE
Feature:
1.Angle fixed design the semicircle can produce 30 degrees of downward force in the clamping process to ensure that the workpiece does not float up.
2.Jaw and lead screw are all quenched to maintain long wear resistance and precision.
3.The fixed jaws are fastened by four bolts to reduce dynamic deformation
4.Equivalent height can be used in parallel with multiple sets
5.The fixed end of the screw adopts thrust bearing, which reduces friction and has large clamping force
6.The material is HT250
FEATURE

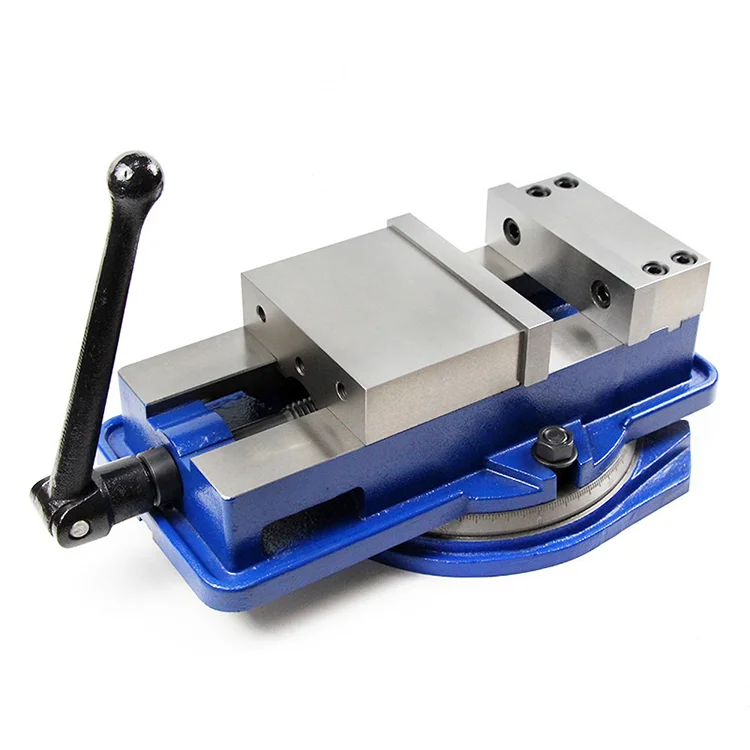

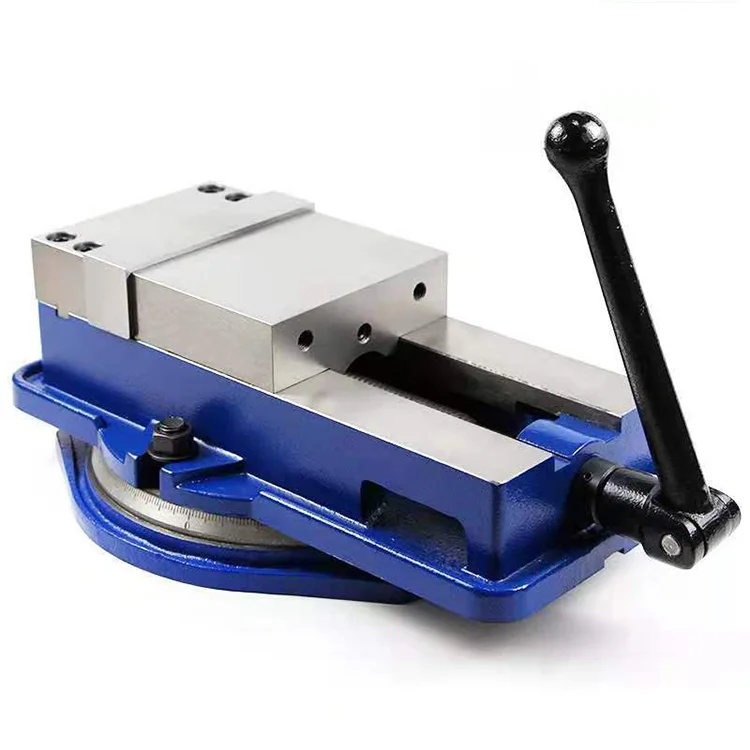

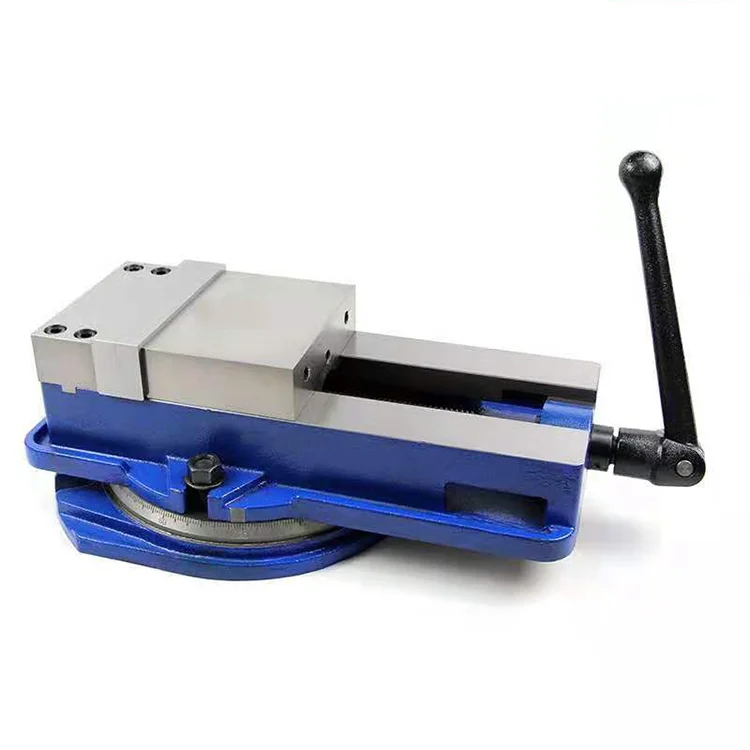

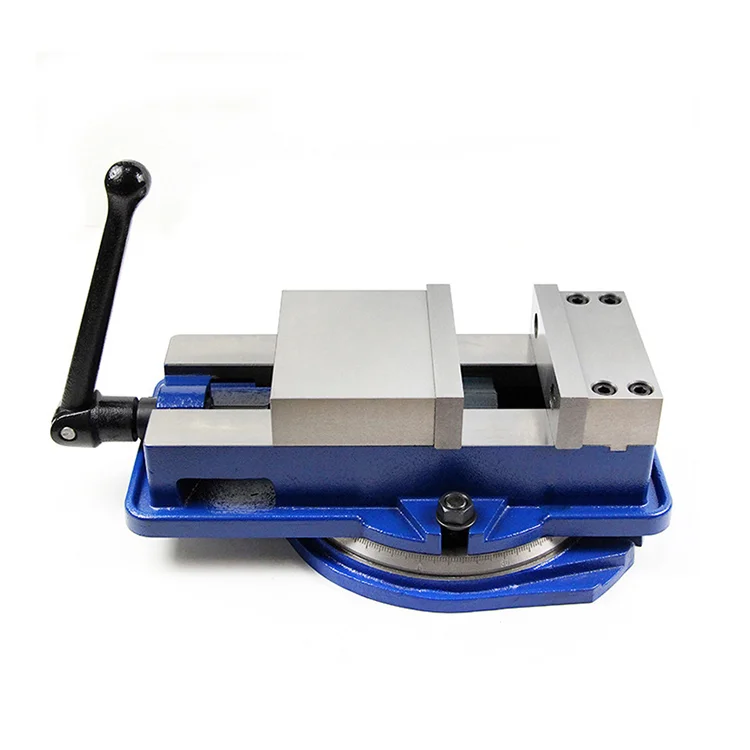

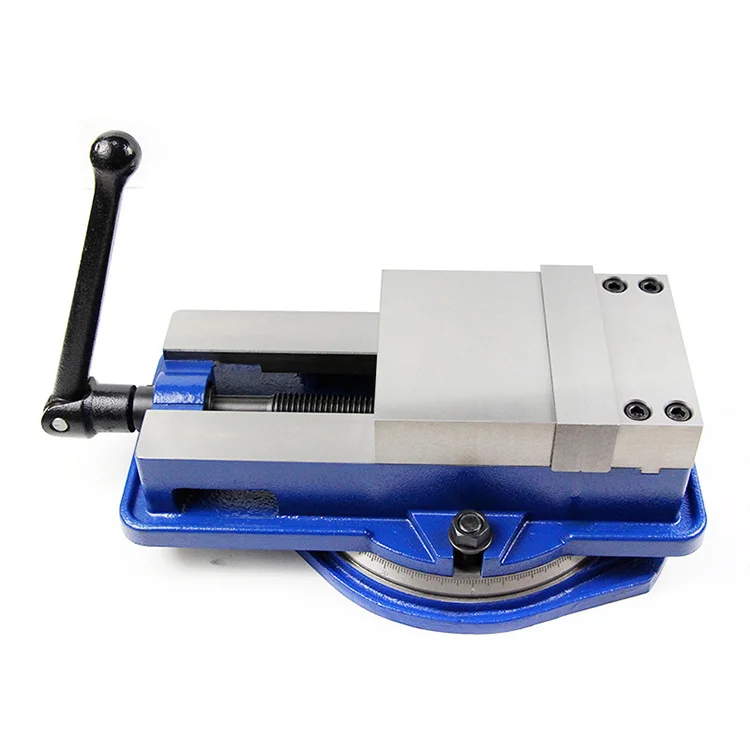

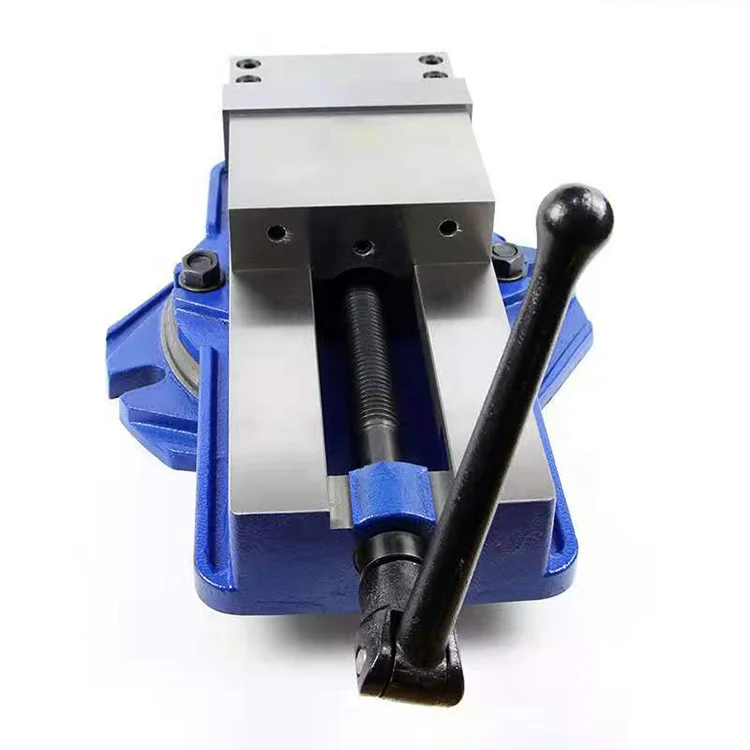

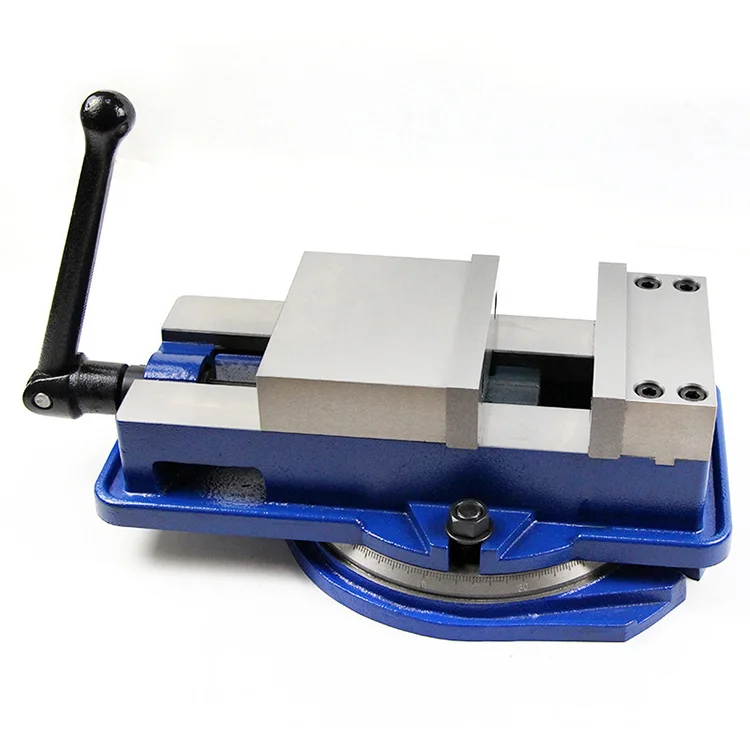

QM16 series machine vice with chassis can turn 360 degrees
FEATURE:
▶ 1.Angle fixed design the semicircle can produce 30 degrees of downward force in the clamping process to ensure that the workpiece does not float up.
▶ 2.Jaw and lead screw are all quenched to maintain long wear resistance and precision.
▶ 3.The fixed jaws are fastened by four bolts to reduce dynamic deformation
▶ 4.Equivalent height can be used in parallel with multiple sets
▶ 5.The fixed end of the screw adopts thrust bearing, which reduces friction and has large clamping force
▶ 6.The material is HT250
FIXED ACCURACY:
▶ The parallelism of the clamping body guide rail:0.02/100mm
▶ The verticality of the vice jaw:0.03mm
▶ The flatness of the clamping workpiece:0.02/100mm

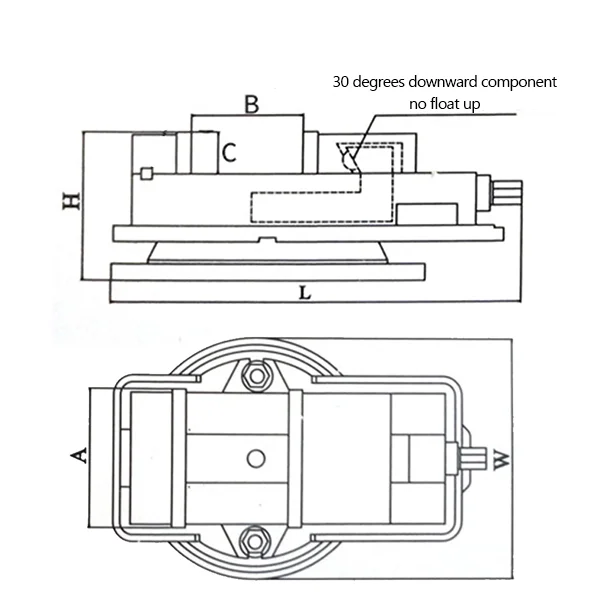

DIMENSION
MODEL | A | B | C | L | W | H | GROSS/NET |
QM1680L | 80 | 95 | 24 | 270 | 170 | 95 | 10/9 |
QM16100L | 100 | 140 | 32 | 345 | 225 | 120 | 19/18 |
QM16125L | 125 | 145 | 40 | 375 | 215 | 130 | 23/22 |
QM16160 | 160 | 160 | 45 | 440 | 278 | 153 | 39/38 |
QM16160L | 160 | 200 | 45 | 475 | 278 | 155 | 40/39 |
QM16200L | 200 | 235 | 50 | 565 | 325 | 169 | 60/58 |
