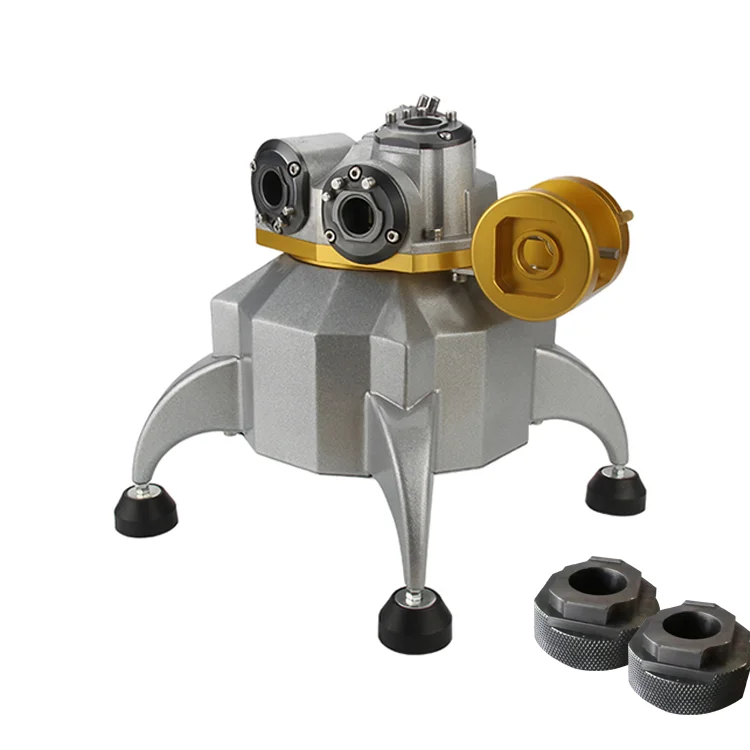

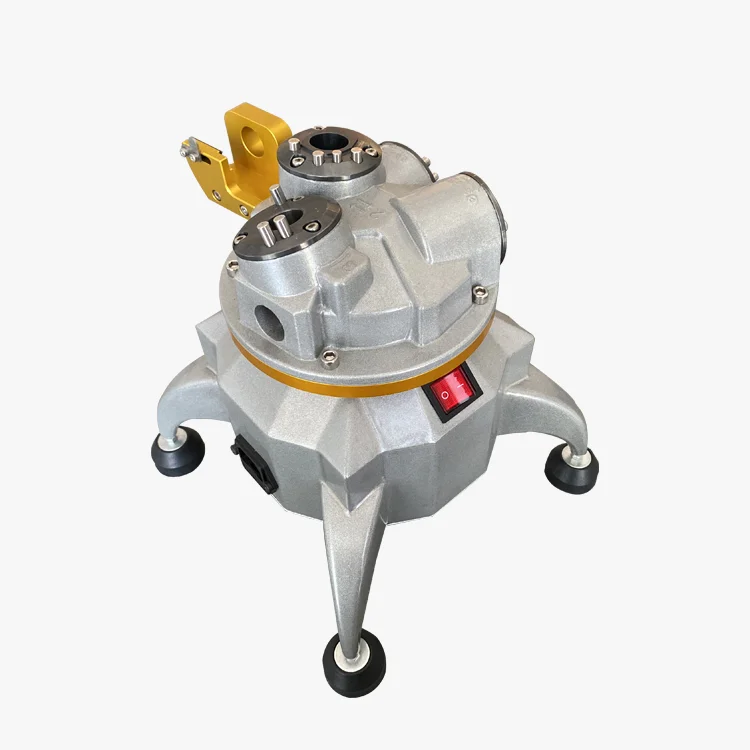

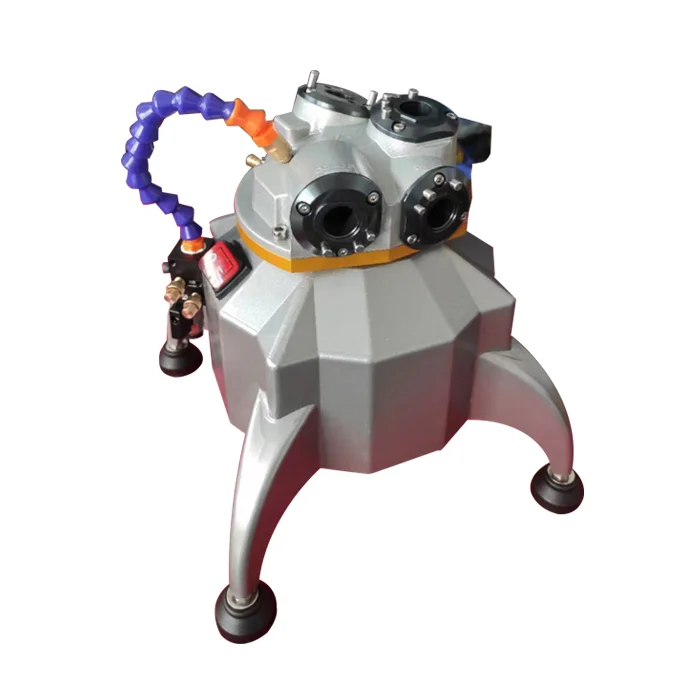

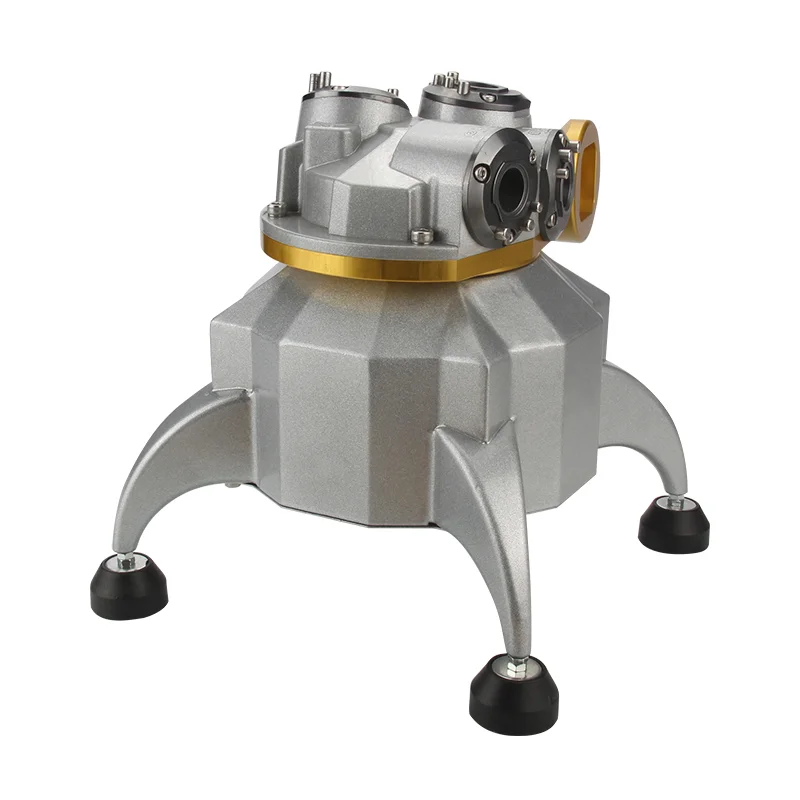

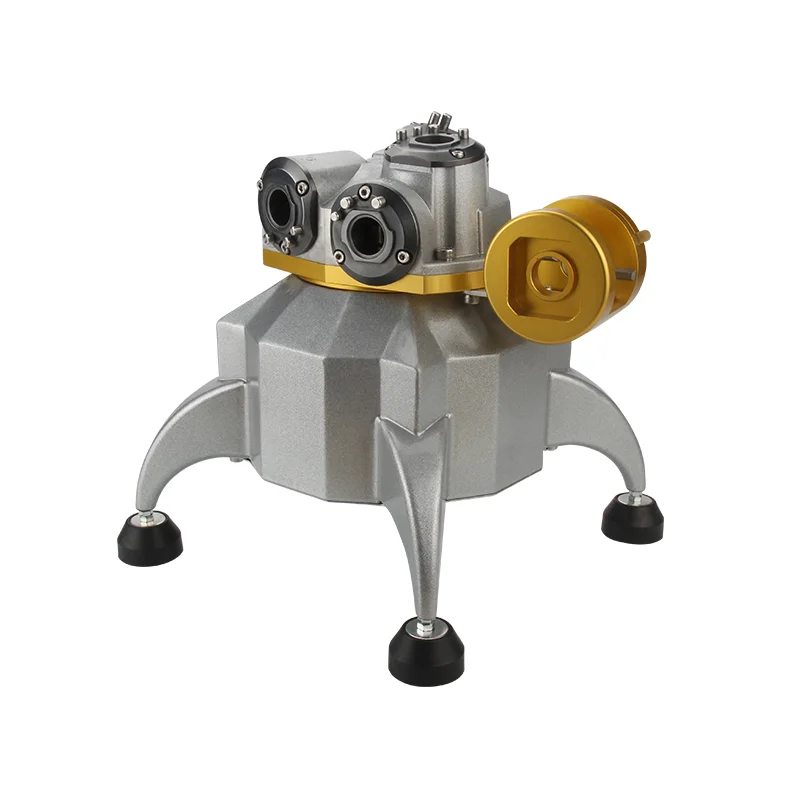

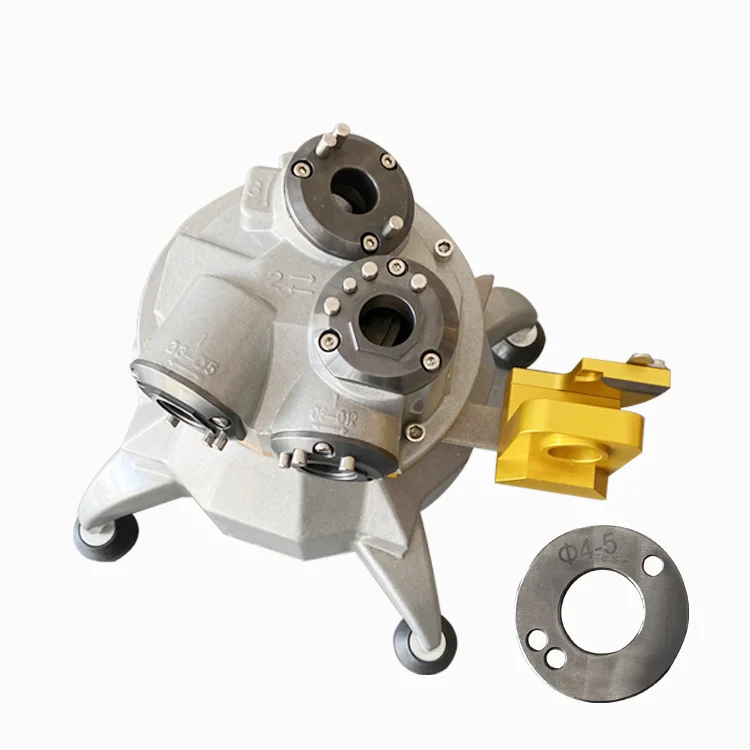

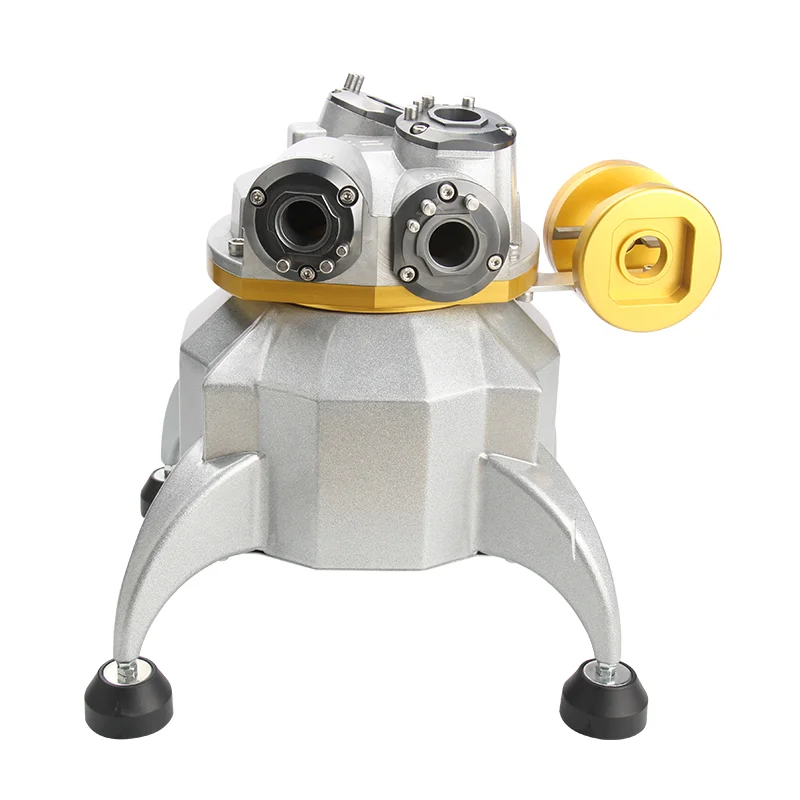

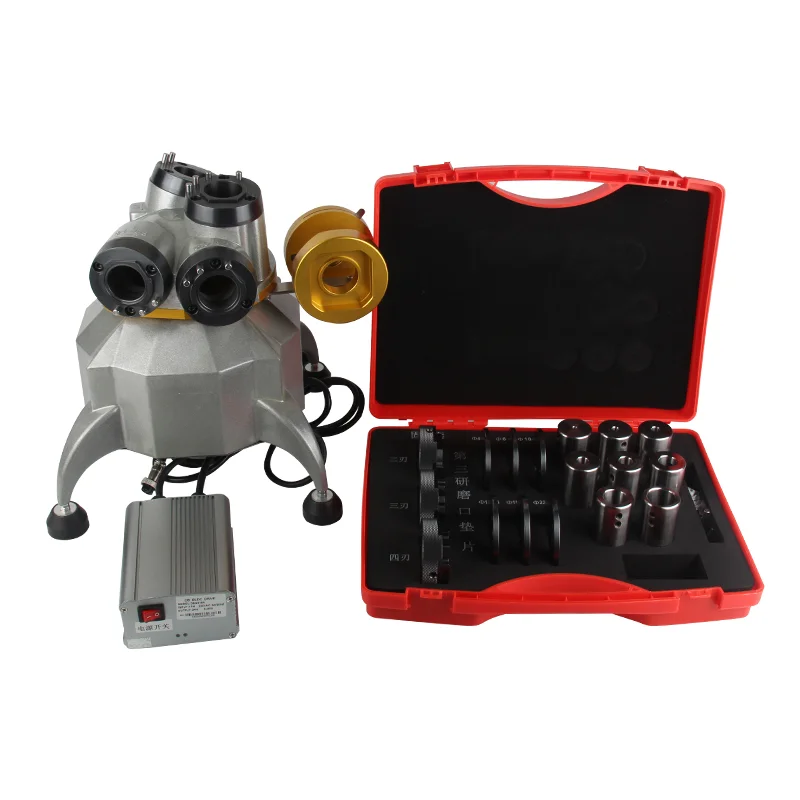

END MILL GRINDER MACHINE
PRODUCT INFORMATION
This machine applicable to 2/3/4-flute tungsten carbide and high-speed steel end mill.according to the diameter of end mill,we have EG-12,EG-16 and EG-25.

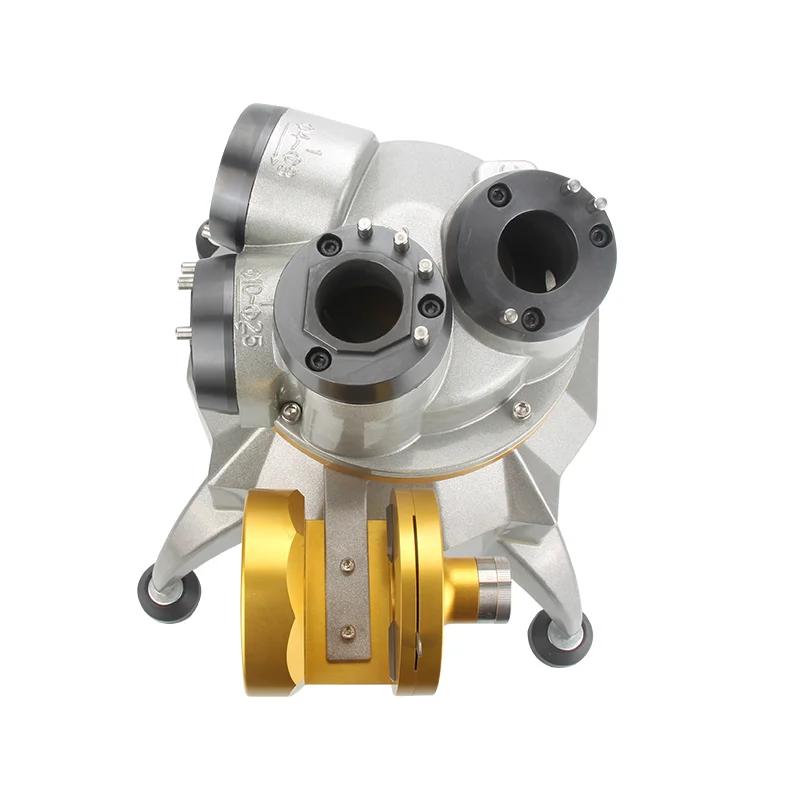

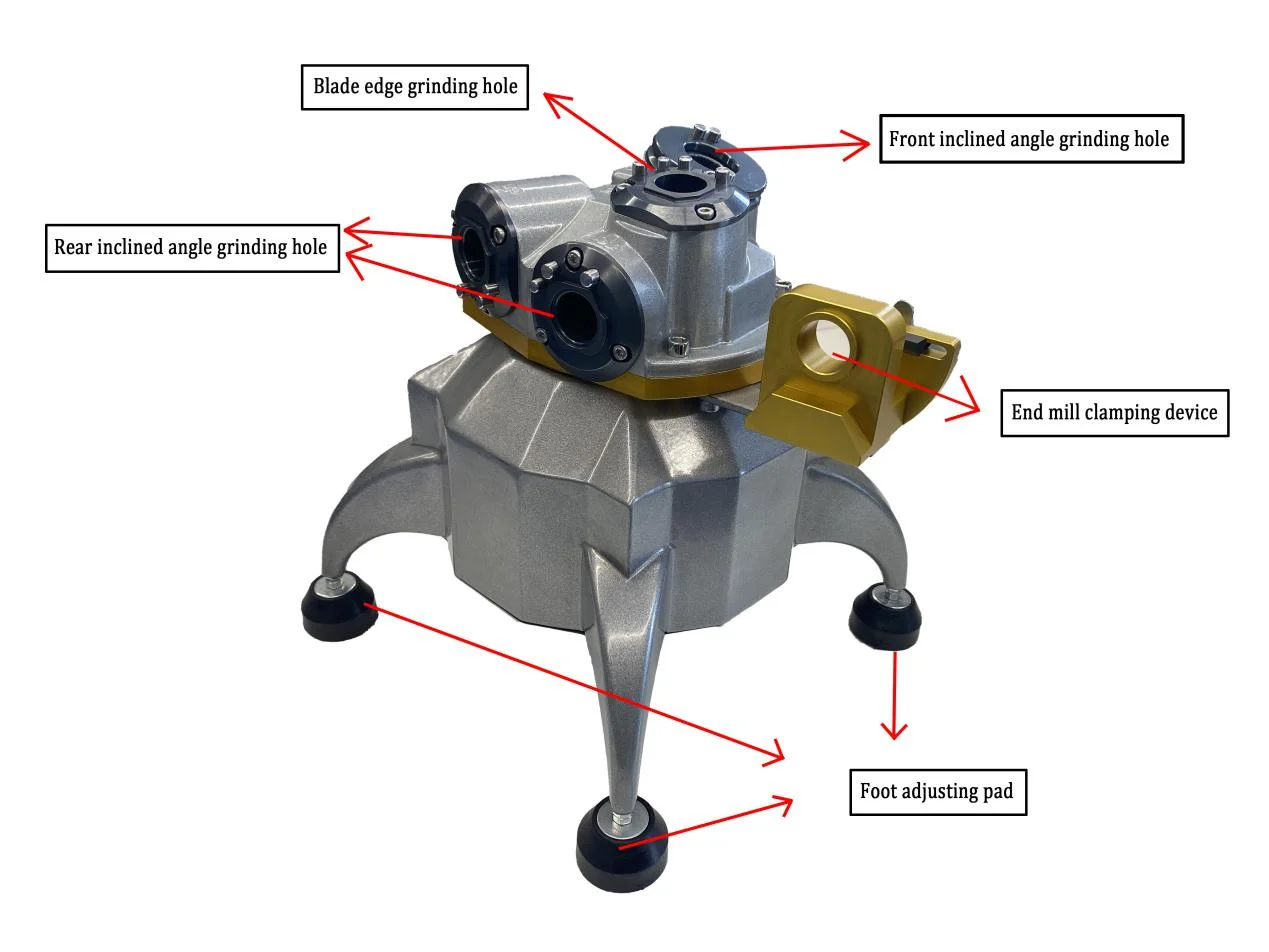

STRUCTURE
FIGURE 1
FEATURES
1.Easy to handle
2.High precision up to 0.01 mm
3.End mill edge can be adjusted suitable for materials to be processed.
4.Operating lifetime up to more than 20,000 hours
5.Import grinding wheel, the lifetime is more than 3 times longer than ordinary grinding wheel
6.High wear resistance,Wear parts with imported tool coating
PARAMETER
Model | EG-12/EG-16/EG-25 |
Applicable diameter | ø3~ø12/ø3~ø16/ø4~ø25 |
Applicable flutes | 2 flutes,3 flutes,4 flutes |
Axial angles | Secondary clearance angle 3°;Primary relief angle 20°;End gash angle 30° |

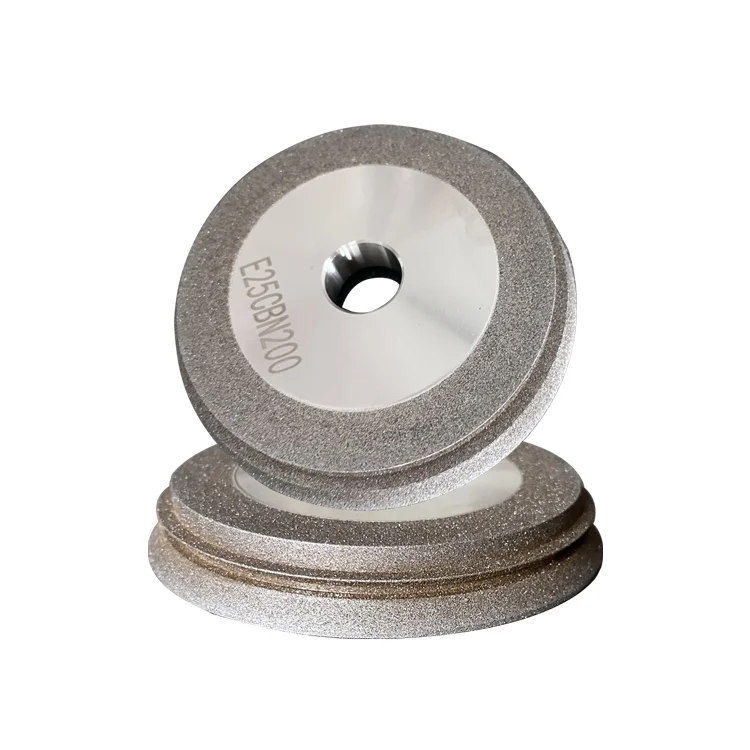

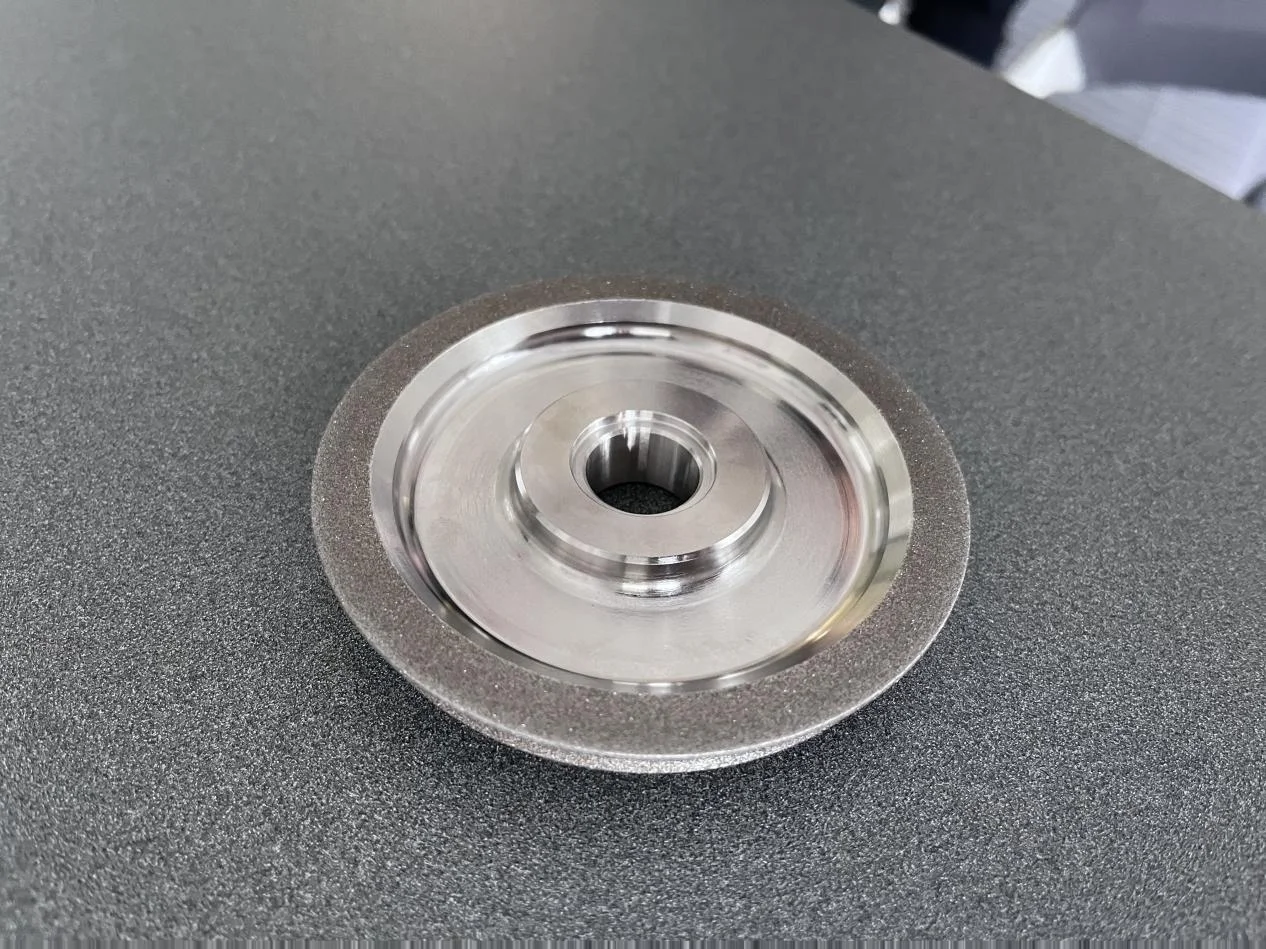

Grinding wheel | SDC,CBN |
Power | 220V+10％AC |
Rated speed | 6000rpm |
Power | 400W/400W/600W |
Dimension | 400*360*330mm |
Weight | 15kg |

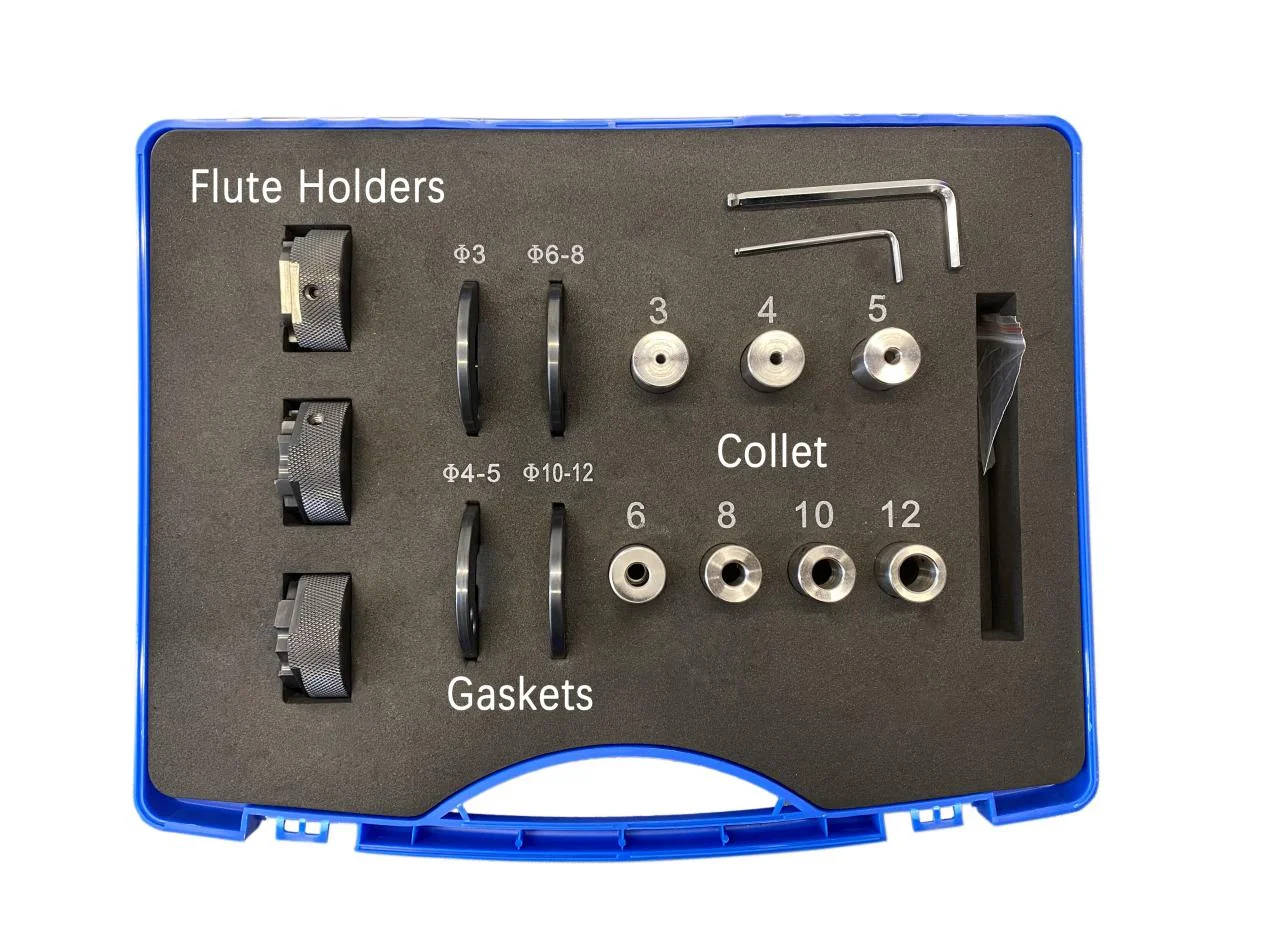

ACCESSORIES
Model | Accessories List | Notes |

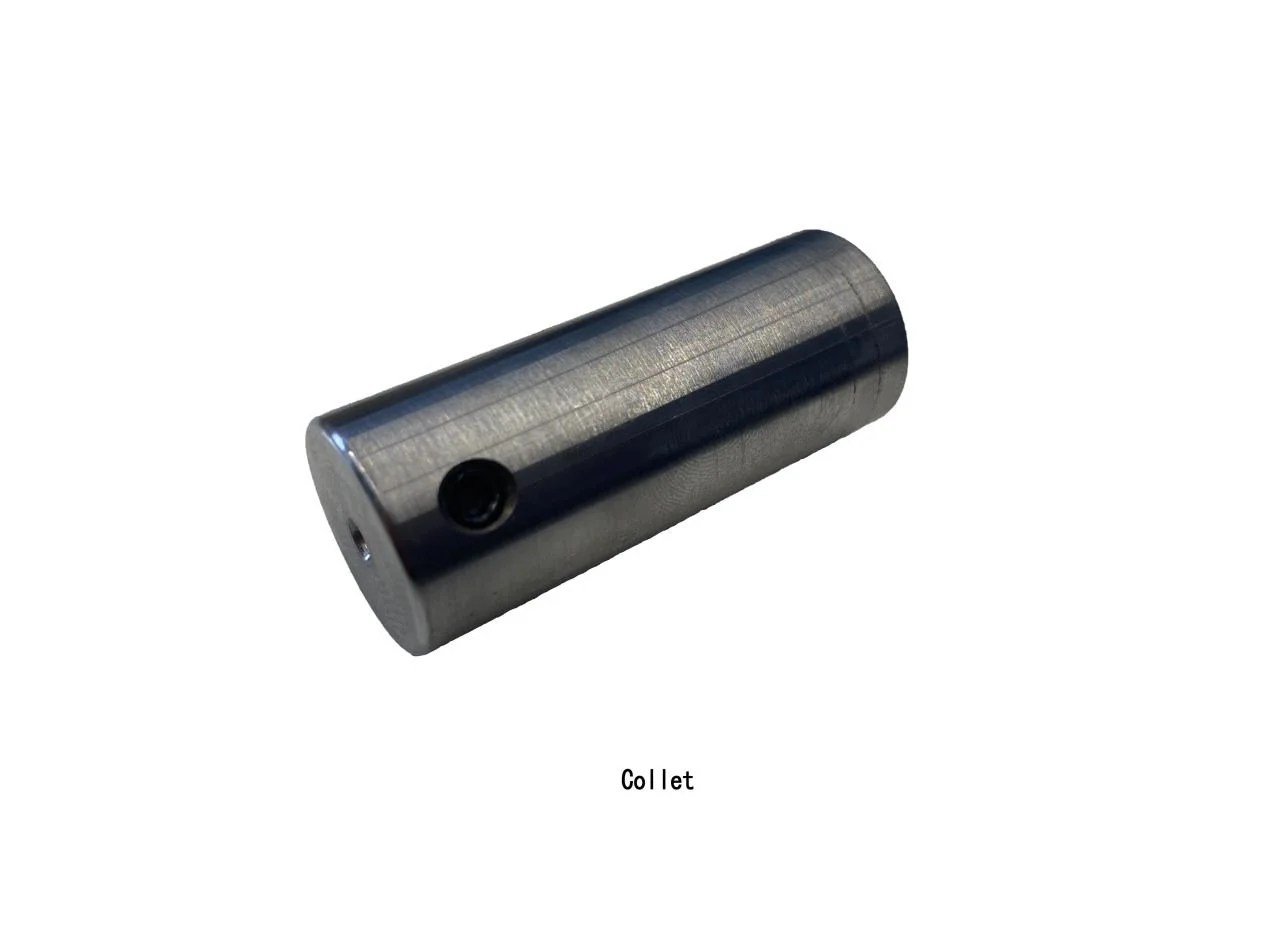

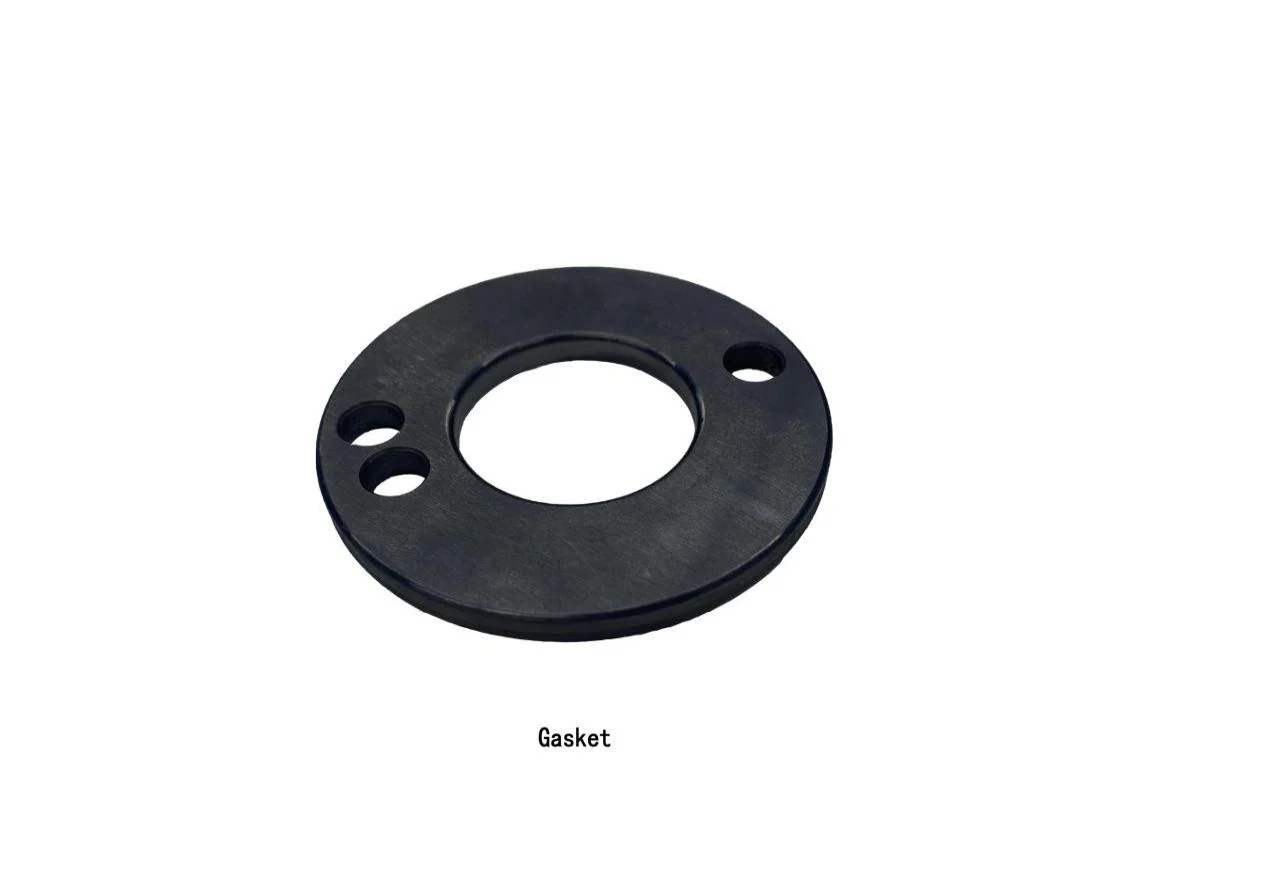

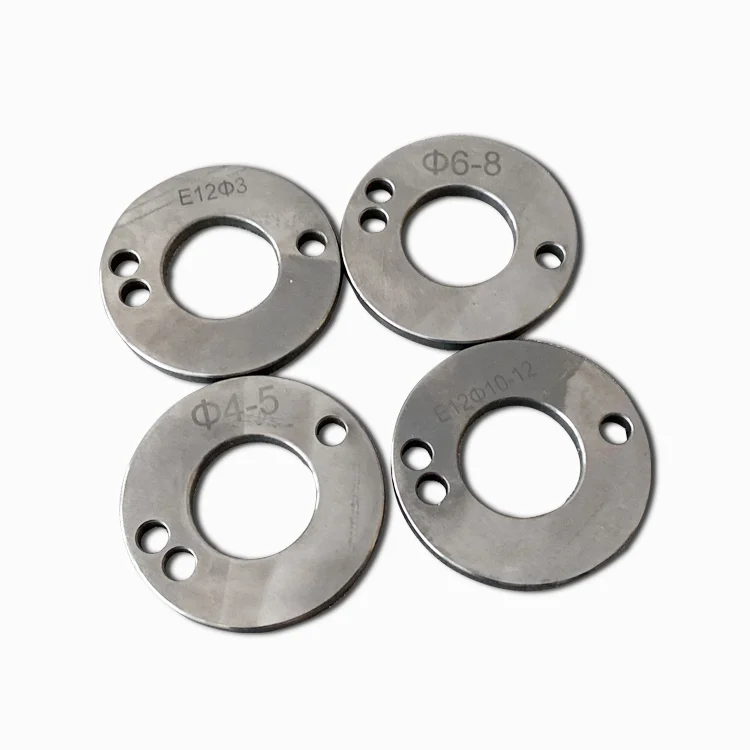

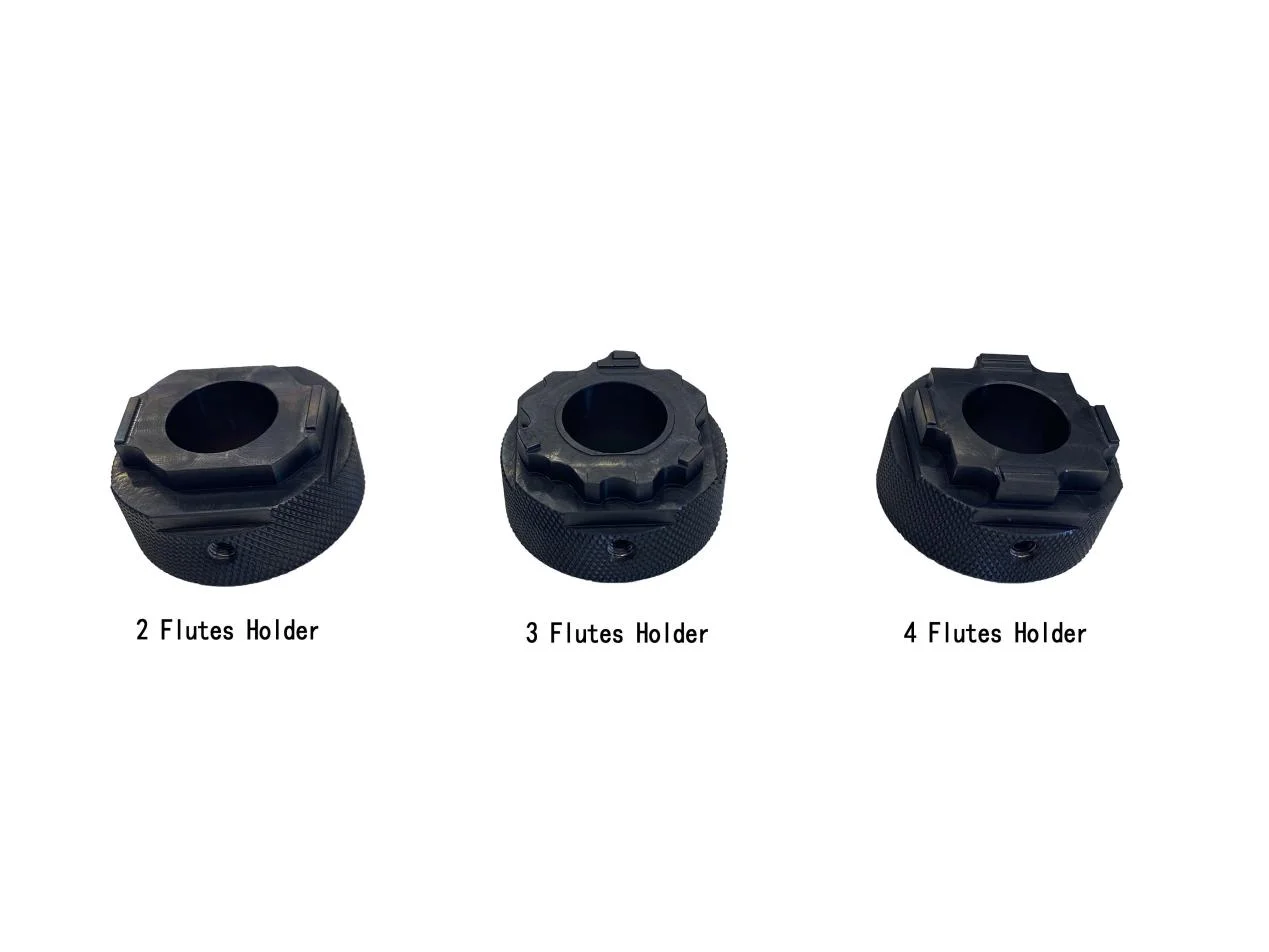

EG-12 | 1.complete machine*1pcs 2.Power driver*1pcs 3.2 flutes holder*1pcs,3 flutes holder*1pcs,4flutes holder*1pcs(Figure 3) 4.Ø3collet*1pcs,ø4collet*1pcs,ø5collet*1pcs,ø6collet*1pcs,ø8collet*1pcs, ø10collet*1pcs,ø12collet*1pcs(Figure 2) 5.Ø3gasket*1pcs,Ø4-5gasket*1pcs,Ø6-8gasket*1pcs,Ø10-12gasket*1pcs(Figure 4) | Grinding wheel: SDC wheels used for tungsten carbide tools; CBN wheels used for high-speed steel tools. |
EG-16 | 1.complete machine*1pcs 2.Power driver*1pcs 3.2 flutes holder*1pcs,3 flutes holder*1pcs,4flutes holder*1pcs(Figure 3) 4.Ø3collet*1pcs,ø4collet*1pcs,ø5collet*1pcs,ø6collet*1pcs,ø8collet*1pcs, ø10collet*1pcs,ø12collet*1pcs,ø16collet*1pcs(Figure 2) 5.Ø3gasket*1pcs,Ø4-5gasket*1pcs,Ø6-8gasket*1pcs,Ø10-12gasket*1pcs, Ø14-16gasket*1pcs(Figure 4) | Grinding wheel: SDC wheels used for tungsten carbide tools; CBN wheels used for high-speed steel tools. |
EG-25 | 1.complete machine*1pcs 2.Power driver*1pcs 3.2 flutes holder*1pcs,3 flutes holder*1pcs,4flutes holder*1pcs(Figure 3) 4.Ø3collet*1pcs,ø4collet*1pcs,ø5collet*1pcs,ø6collet*1pcs,ø8collet*1pcs,ø10collet*1pcs, ø12collet*1pcs,ø16collet*1pcs,ø20collet*1pcs,ø25collet*1pcs(Figure 2) 5.Ø3gasket*1pcs,Ø4-5gasket*1pcs,Ø6-8gasket*1pcs,Ø10-12gasket*1pcs, Ø14-16gasket*1pcs,Ø18-20gasket*1pcs,Ø22-25gasket*1pcs(Figure 4) | Grinding wheel: SDC wheels used for tungsten carbide tools; CBN wheels used for high-speed steel tools. |
