What Are The Different Types Of CNC BMT Tool Holders?

What Are BMT Tool Holders?

BMT tool holders are an integral part of modern CNC turning centers, designed to deliver exceptional rigidity and cutting precision. Unlike traditional clamping systems, BMT holders are mounted directly onto the flat surface of the turret. This design minimizes vibration, improves repeatability, and ensures precise tool alignment — all of which contribute to higher machining accuracy and extended tool life.

By offering a stable connection between the turret and the cutting tool, BMT tool holders have become a preferred choice for manufacturers pursuing high-speed, high-precision, and consistent machining performance.

Why BMT Tool Holders Are Popular in CNC Turning

In CNC turning operations, tool stability directly influences machining quality. The BMT interface was developed to solve common issues like vibration, tool misalignment, and slow tool changes that are often seen in older systems.

1. Exceptional Rigidity

The base-mount design provides a larger contact area between the holder and the turret, minimizing deflection during heavy cutting. This results in smoother operations and more accurate part dimensions.

2. Precise and Repeatable Tool Changes

With its precision locating system, a BMT holder can be installed or replaced quickly without compromising alignment. This reduces setup time and boosts productivity — especially in mass production environments.

3. Support for Static and Driven Tools

BMT holders can be either static or powered:

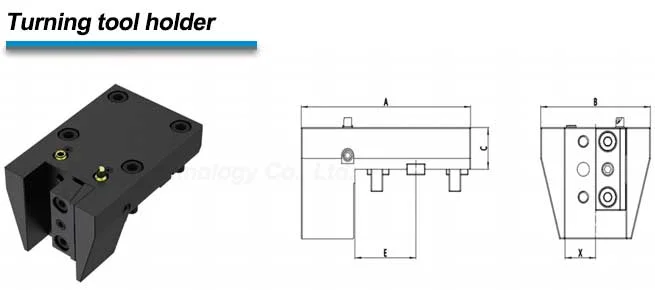

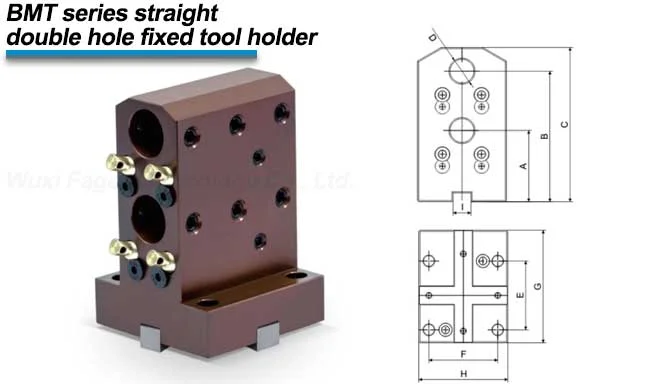

Static tool holders are used for turning, facing, and grooving operations.

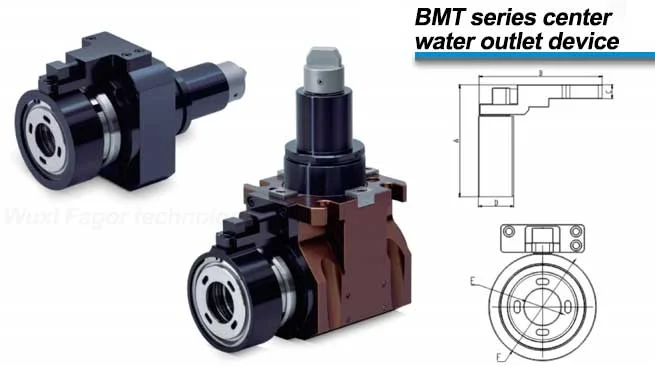

Driven tool holders allow for milling, drilling, and tapping directly on the lathe — saving time and eliminating the need for secondary machining setups.

4. Improved Efficiency and Surface Finish

The added stability of the BMT system allows for higher feed rates, longer tool life, and smoother surface finishes — key advantages in competitive machining environments.

Different Sizes of BMT Tool Holders

BMT holders are available in several standard sizes, and choosing the right one is essential for achieving optimal machine performance. The size defines the physical dimensions, mounting interface, and overall rigidity of the setup.

In general, smaller BMT sizes are suited to high-speed precision work, while larger ones handle more demanding operations. Matching your turret size (e.g., BMT55 or BMT65) ensures a proper fit and maintains cutting accuracy.

BMT vs. VDI Static Tool Holders — What’s the Difference?

When choosing a tooling system, many machine owners face a common question: Should I use BMT or VDI holders? Both are proven systems, but they differ in structure, performance, and long-term reliability.

Mounting Design

BMT tool holders are mounted directly to the turret face and secured with bolts. This creates a flat, rigid connection and better alignment.

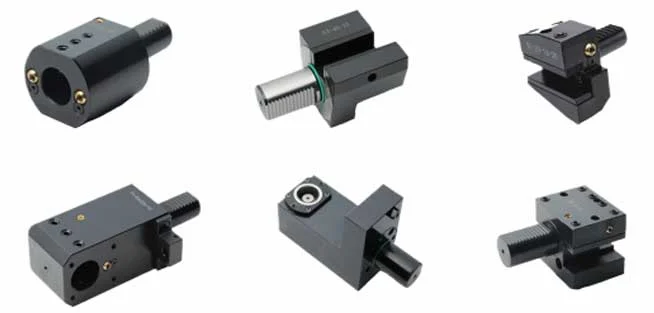

VDI tool holders use a round shank that slides into a turret socket and is clamped in place. While faster to change, it’s generally less rigid.

Rigidity and Stability

BMT systems excel in demanding machining conditions. The direct-mount interface minimizes vibration and ensures consistent precision — a major advantage over VDI systems, which can loosen slightly over time under heavy loads.

Accuracy and Repeatability

Because BMT holders are fixed to the turret face, they maintain alignment even after multiple tool changes. VDI systems, while convenient, can introduce minor deviations that affect repeatability over time.

Maintenance and Cost

VDI holders are less expensive initially and easier to replace, but BMT holders often offer a better long-term return through lower maintenance and improved accuracy.

In short:

Choose BMT for maximum rigidity, precision, and surface quality.

Choose VDI for flexibility and frequent tool changes in lighter applications.

How to Choose the Right BMT Tool Holder

Selecting the right tool holder isn’t just about size. Consider the following:

Turret Size – Match your holder to the correct BMT interface (45 / 55 / 65 / 75).

Machining Type – Static for turning; driven for milling or drilling.

Coolant Configuration – Check whether your process requires through-coolant capability.

Material and Build Quality – High-grade alloy steel with precision-ground surfaces ensures durability and accuracy.

Supplier Reliability – Always choose an experienced manufacturer with quality assurance and technical support.

Applications of BMT Tool Holders

BMT tool holders are widely used in:

CNC turning and turning-milling centers

Automotive and aerospace component production

Mold and die machining

Precision and heavy metal processing industries

Their combination of stability, accuracy, and flexibility makes them indispensable for modern CNC manufacturing.

Fagor Technology — Your Reliable Partner in CNC Tooling

At Fagor Technology, we specialize in the design and production of BMT tool holders, powered tool holders, and CNC turrets engineered for high precision and durability.

Our BMT holders feature:

Precision-ground surfaces and high concentricity

Excellent rigidity and thermal stability

Compatibility with BMT45, BMT55, BMT65, and BMT75 turrets

Custom design options for non-standard machines

We provide fast delivery, technical support, and after-sales service — ensuring that every customer receives dependable tooling solutions for continuous, accurate performance.

BMT tool holders have become the new industry benchmark for CNC turning centers. Compared with VDI systems, they offer superior rigidity, alignment, and long-term precision.

Choosing the right BMT size and configuration not only improves machining performance but also reduces downtime and tool wear.

For manufacturers seeking stability, accuracy, and long-term value — Fagor Technology’s BMT tool holders deliver the reliability that modern machining demands.
