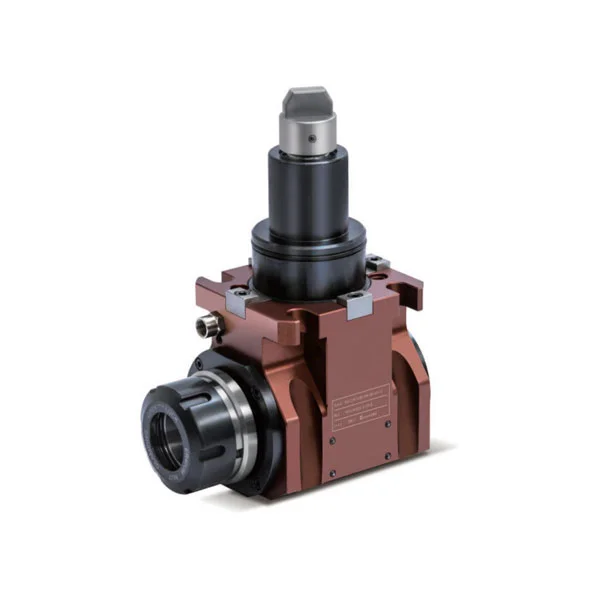

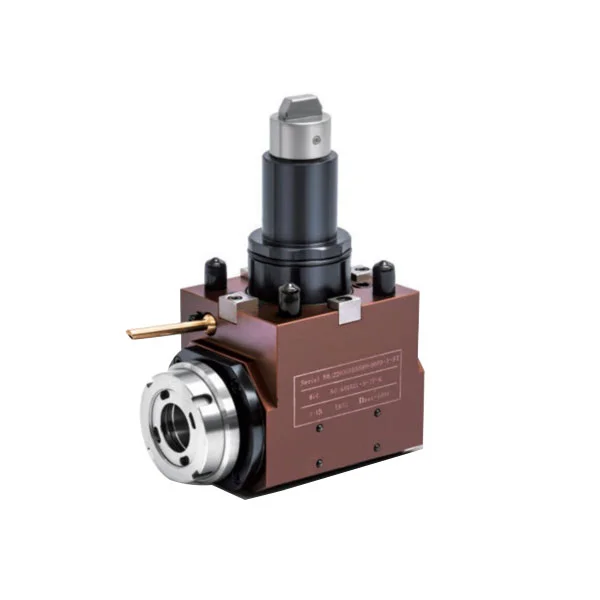

BMT SERIES 90 DEGREE DRIVEN TOOL HOLDER
Tool holder size ： BMT40/BMT45/BMT55/BMT65/BMT75
Chuck locking method ：Outside lock/Inside lock
Chuck size：BMT40:ER20/ER25
BMT45:ER25
BMT55:ER25/ER32
BMT65:ER32/ER40
BMT75:ER40
Height of center ： BMT40:60/85
BMT45:60/85
BMT55:60/85/100
BMT65:72/100/125
BMT75:90
Chuck locking method ：Outside lock/Inside lock
Chuck size：BMT40:ER20/ER25
BMT45:ER25
BMT55:ER25/ER32
BMT65:ER32/ER40
BMT75:ER40
Height of center ： BMT40:60/85
BMT45:60/85
BMT55:60/85/100
BMT65:72/100/125
BMT75:90
Product details
PRODUCT SPECIFICATION

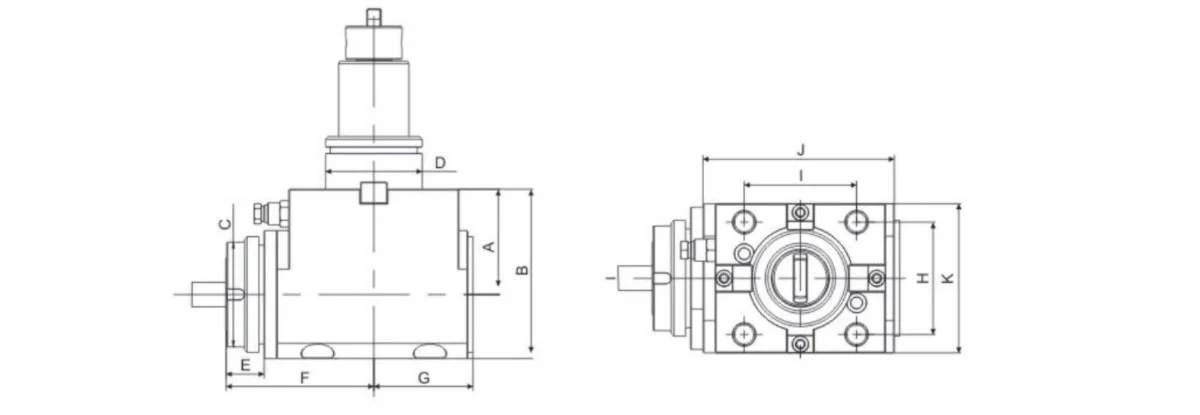

TECHNICAL PARAMETER
| Model | A | B | C | D | E | F | G | H | I | J | K | N.W.(KG) |
| BMT40-90-60-ER20 | 60 | 91.5 | ER20(1-13) | 40 | 35.2 | 84.8 | 46 | 50 | 60 | 92.6 | 63 | 3.5 |
| BMT40-90-60-N-ER20 | N-ER20(1-13) | 25.6 | 74.9 | |||||||||
| BMT40-90-60-ER25 | ER25(1-16) | 37.2 | 86.8 | |||||||||
| BMT40-90-85-ER20 | 85 | 116.5 | ER20(1-13) | 40 | 35.2 | 84.8 | 46 | 50 | 60 | 92.6 | 63 | 4.5 |
| BMT40-90-85-N-ER20 | N-ER20(1-13) | 25.6 | 74.9 | |||||||||
| BMT40-90-85-ER25 | ER25(1-16) | 37.2 | 86.8 | |||||||||
| BMT45-90-60-ER25 | 60 | 93.5 | ER25(1-16) | 45 | 37.2 | 88.7 | 55 | 58 | 58| | 103.5 | 75 | 5 |
| BMT45-90-60-N-ER25 | N-ER25(1-16) | 25.6 | 77.1 | |||||||||
| BMT45-90-85-ER25 | 85 | 118.5 | ER25(1-16) | 45 | 37.2 | 88.7 | 55 | 58 | 58 | 103.5 | 75 | 5.5 |
| BMT45-90-85-N-ER25 | N-ER25(1-16) | 25.6 | 77.1 | |||||||||
| BMT55-90-60-ER25 | 60 | 96.5 | ER25(1-16) | 55 | 37.2 | 92.7 | 56.5 | 64 | 64 | 109 | 85 | 6.5 |
| BMT55-90-60-ER32 | ER32(2-20) | 37.2 | 92.7 | |||||||||
| BMT55-90-60-N-ER32 | N-ER32(2-20) | 28.3 | 83.8 | |||||||||
| BMT55-90-85-ER25 | 85 | 121.5 | ER25(1-16) | 55 | 37.2 | 92.7 | 56.5 | 64 | 64 | 109 | 85 | 7.5 |
| BMT55-90-85-ER32 | ER32(2-20) | 37.2 | 92.7 | |||||||||
| BMT55-90-85-N-ER32 | N-ER32(2-20) | 28.3 | 83.8 | |||||||||
| BMT55-90-100-ER25 | 100 | 136.5 | ER25(1-16) | 55 | 37.2 | 92.7 | 56.5 | 64 | 64 | 109 | 85 | 8 |
| BMT55-90-100-ER32 | ER32(2-20) | 37.2 | 92.7 | |||||||||
| BMT55-90-100-N-ER32 | N-ER32(2-20) | 28.3 | 83.8 | |||||||||
| BMT65-90-72-N-ER32 | 72 | 112 | N-ER32(2-20) | 65 | 37.1 | 89.1 | 59 | 73 | 70 | 104 | 94 | 8.4 |
| BMT65-90-72-ER40 | ER40(3-26) | |||||||||||
| BMT65-90-100-N-ER32 | 100 | 140 | N-ER32(2-20) | 65 | 37.1 | 89.1 | 59 | 73 | 70 | 104 | 94 | 9.5 |
| BMT65-90-100-ER40 | ER40(3-26) | |||||||||||
| BMT65-90-125-N-ER32 | 125 | 165 | N-ER32(2-20) | 65 | 37.1 | 89.1 | 59 | 73 | 70 | 104 | 94 | 10.5 |
| BMT65-90-125-ER40 | ER40(3-26) | |||||||||||
| BMT75-90-90-ER40 | 90 | 130 | ER40(3-26) | 75 | 39.1 | 99.1 | 67 | 90 | 90 | 120 | 112 | 10.5 |
