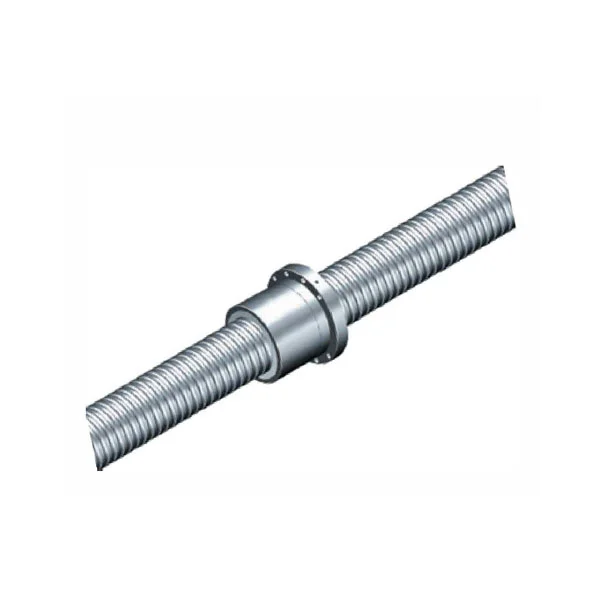

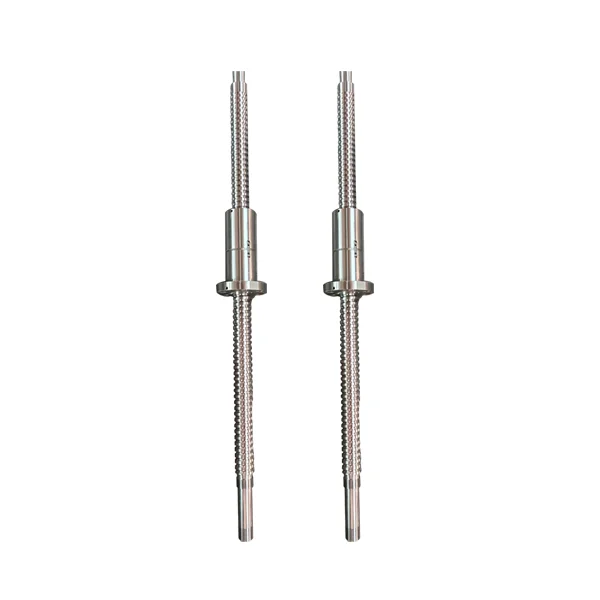

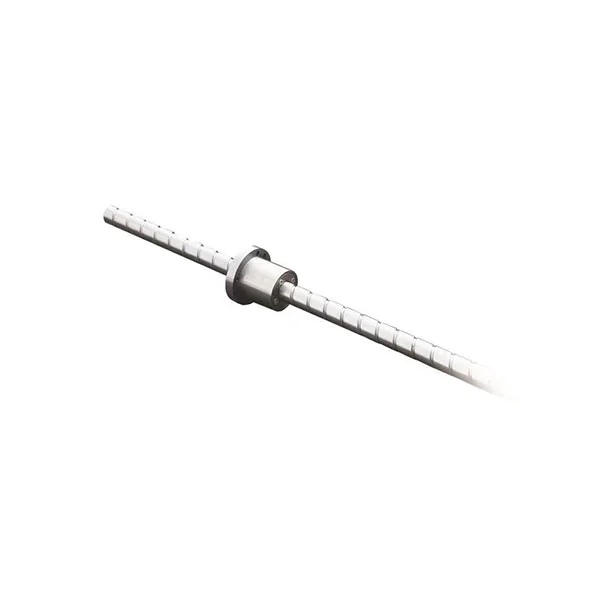

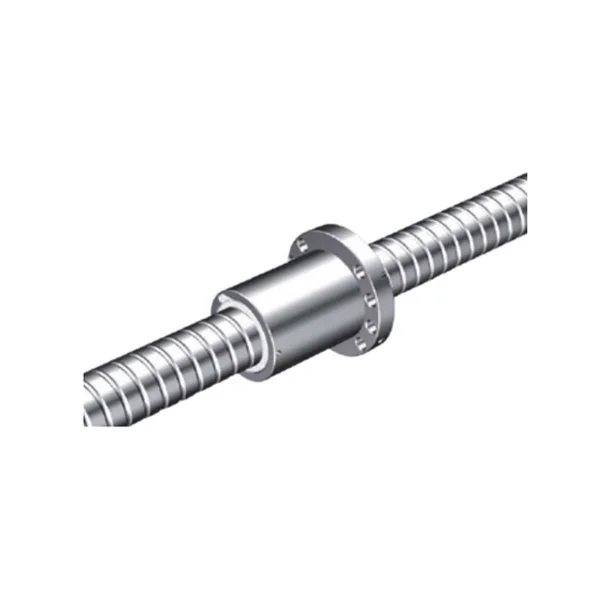

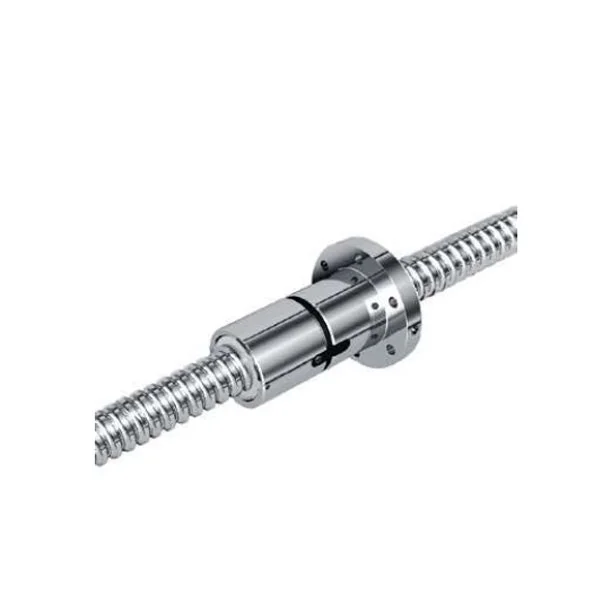

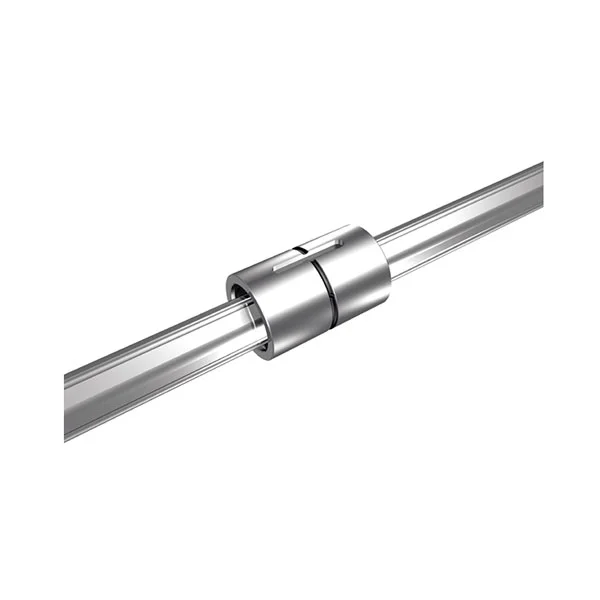

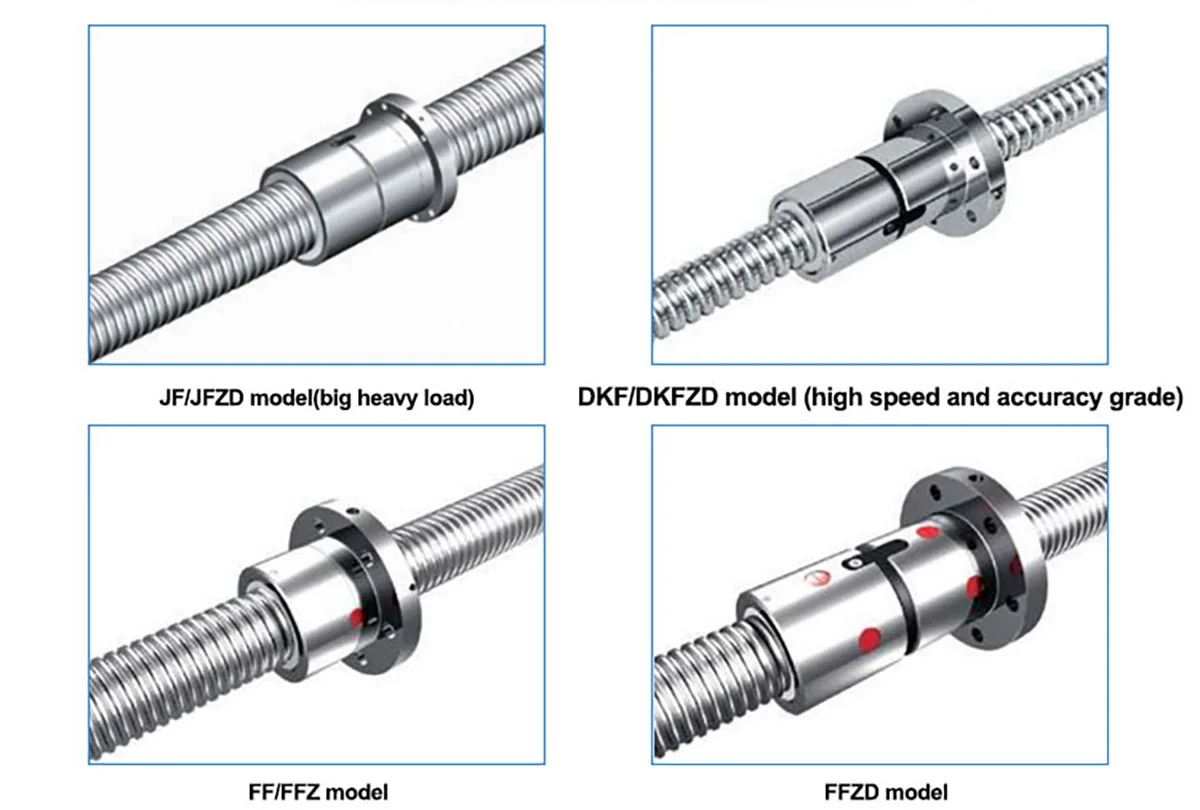

DKF COMPACT&HIGH SPEED BALL SCREW
Ball screw assembly is consisted of screw, nut and ball. The function is transfer the rotary motion into linear motion or transfer the linear motion into rotary motion. This is further extension and development of slide ball screw. The important significance of development is as same as change of bearing from rolling motion to sliding motion. Because of excellent friction function, ball screw is widely used for all kinds of industrial equipments and precision instrument.
Product details
Note
1) Kc is theoretical calculation value when preload Fp is 0.1Ca and axial load F is 0.3Ca.
2) When axial load F is not equal to 0.3Ca,
In formula:
K is stiffness value shown in the table
3) This ball screw is used for high speed;
4) Working temperature ± 80°C ;
5) If you have special request, please tell us

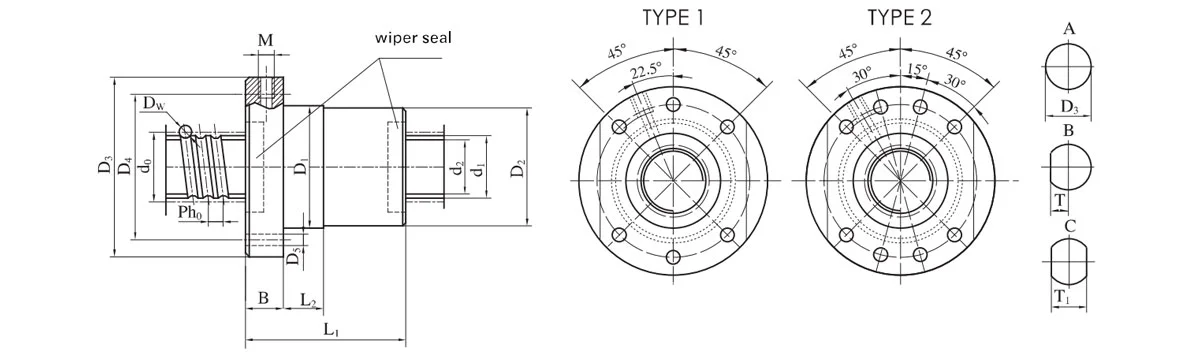

Dimension
Specifications
| Spec. | Nominal dia. d0 | Basic lead Ph0 | Outer dia. d1 | Bottom dia. d2 | Ball dia. Dw | Number of circles n | Basic rated load rating | Stiffness KC N/μm | |
| Dynamic load Ca kN | Static load Coa kN | ||||||||
| DKF3210-4-J | 32 | 10 | 32 | 26.9 | 6.35 | 4 | 44.7 | 112 | 663 |
| DKF3210-5-J | 32 | 10 | 32 | 26.9 | 6.35 | 5 | 54.8 | 141.9 | 824 |
| DKF3212-4-J | 32 | 12 | 32 | 26.9 | 6.35 | 4 | 44.6 | 111.8 | 670 |
| DKF3212-5-J | 32 | 12 | 32 | 26.9 | 6.35 | 5 | 54.6 | 141.7 | 832 |
| DKF3216-4-J | 32 | 16 | 32 | 26.9 | 6.35 | 4 | 44.3 | 111.3 | 675 |
| DKF4010-4-J | 40 | 10 | 40 | 34.9 | 6.35 | 4 | 50.3 | 142.4 | 781 |
| DKF4010-5-J | 40 | 10 | 40 | 34.9 | 6.35 | 5 | 61.6 | 180.3 | 970 |
| DKF4012-4-J | 40 | 12 | 40 | 34.9 | 6.35 | 4 | 50.2 | 142.2 | 793 |
| DKF4012-5-J | 40 | 12 | 40 | 34.9 | 6.35 | 5 | 61.5 | 180.1 | 985 |
| DKF4016-4-J | 40 | 16 | 40 | 34.9 | 6.35 | 4 | 50 | 141.7 | 806 |
| DKF4016-5-J | 40 | 16 | 40 | 34.9 | 6.35 | 5 | 61.2 | 179.5 | 1001 |
| DKF5010-4-J | 50 | 10 | 50 | 44.9 | 6.35 | 4 | 55.9 | 180.2 | 905 |
| DKF5010-5-J | 50 | 10 | 50 | 44.9 | 6.35 | 5 | 68.5 | 228.3 | 1125 |
| DKF5012-4-J | 50 | 12 | 50 | 44.9 | 6.35 | 4 | 55.8 | 180.1 | 925 |
| DKF5012-5-J | 50 | 12 | 50 | 44.9 | 6.35 | 5 | 68.4 | 228.1 | 1150 |
| DKF5016-4-J | 50 | 16 | 50 | 44.9 | 6.35 | 4 | 55.7 | 180 | 950 |
| DKF5016-5-J | 50 | 16 | 50 | 44.9 | 6.35 | 5 | 68.2 | 227.6 | 1180 |
