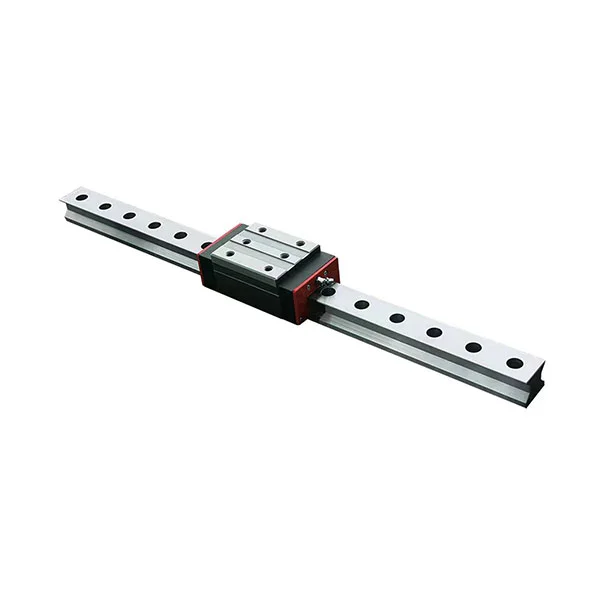

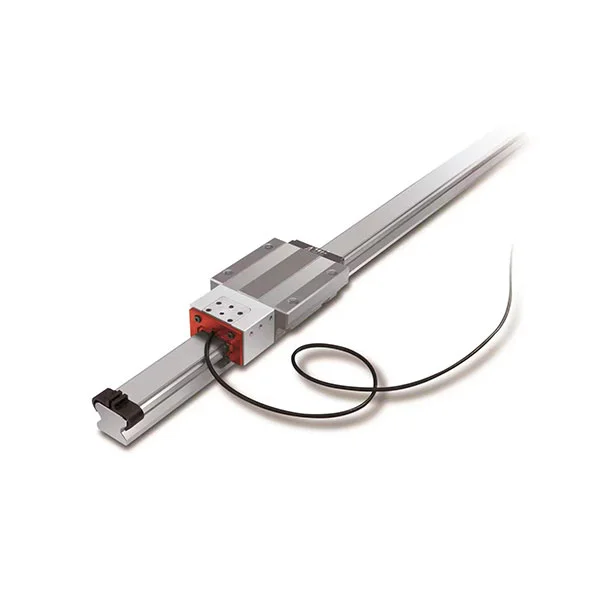

LINEAR RAIL SLIDER
GZV series roller cross guideway：It is composed of two V-shaped raceway guide rail, roller cage, cylindrical roller, etc., cross-arranged cylindrical rolling track surface reciprocating motion, can withstand the load in all directions, to achieve high precision, smooth linear motion.
Product details
Feature
1)．Low rolling friction resistance, good stability.
2)．Small starting friction, good follow-up performance.
3)．Large contact area, small elastic deformation, more effective movement, easy to achieve high rigidity, high load movement.
4). Flexible structure design, easy to install and use.

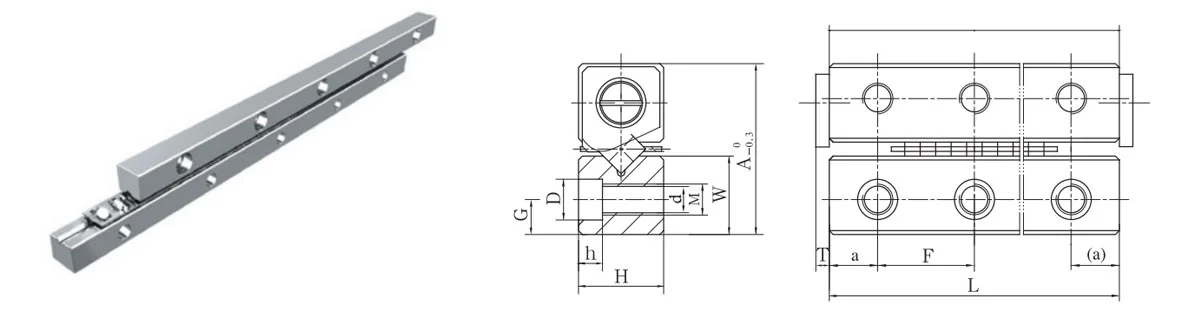

Dimension
Specifications
| Model | A | H | W | M | D | d | h | G | F | T | Maximum length of guide Lmax | Minimum end distance:a | Single weight kg/m |
| GZV3 | 18 | 8 | 8.1 | M4 | 6 | 3.3 | 3.1 | 3.5 | 25 | 2 | 300 | 12.5 | 0.45 |
| GZV4 | 22 | 11 | 10 | M5 | 7.5 | 4.3 | 4.1 | 4.5 | 40 | 3 | 500 | 15 | 0.75 |
| GZV6 | 31 | 15 | 14.2 | M6 | 9.5 | 5.2 | 5.2 | 6 | 50 | 3 | 500 | 15 | 1.47 |
| GZV9 | 44 | 22 | 20.2 | M8 | 10.5 | 6.8 | 6.2 | 9 | 50 | 3 | 1400 | 15 | 3.07 |
| GZV12 | 58 | 28 | 27 | M10 | 14 | 8.5 | 8.2 | 12 | 100 | 3.5 | 1400 | 20 | 5.32 |
| GZV15 | 71 | 36 | 33 | M12 | 17.5 | 10.5 | 10.2 | 14 | 100 | 3.5 | 1400 | 25 | 8.3 |
| GZV18 | 83 | 40 | 40 | M14 | 20 | 12.5 | 12.2 | 18 | 100 | 3.5 | 1400 | 25 | 10.5 |
