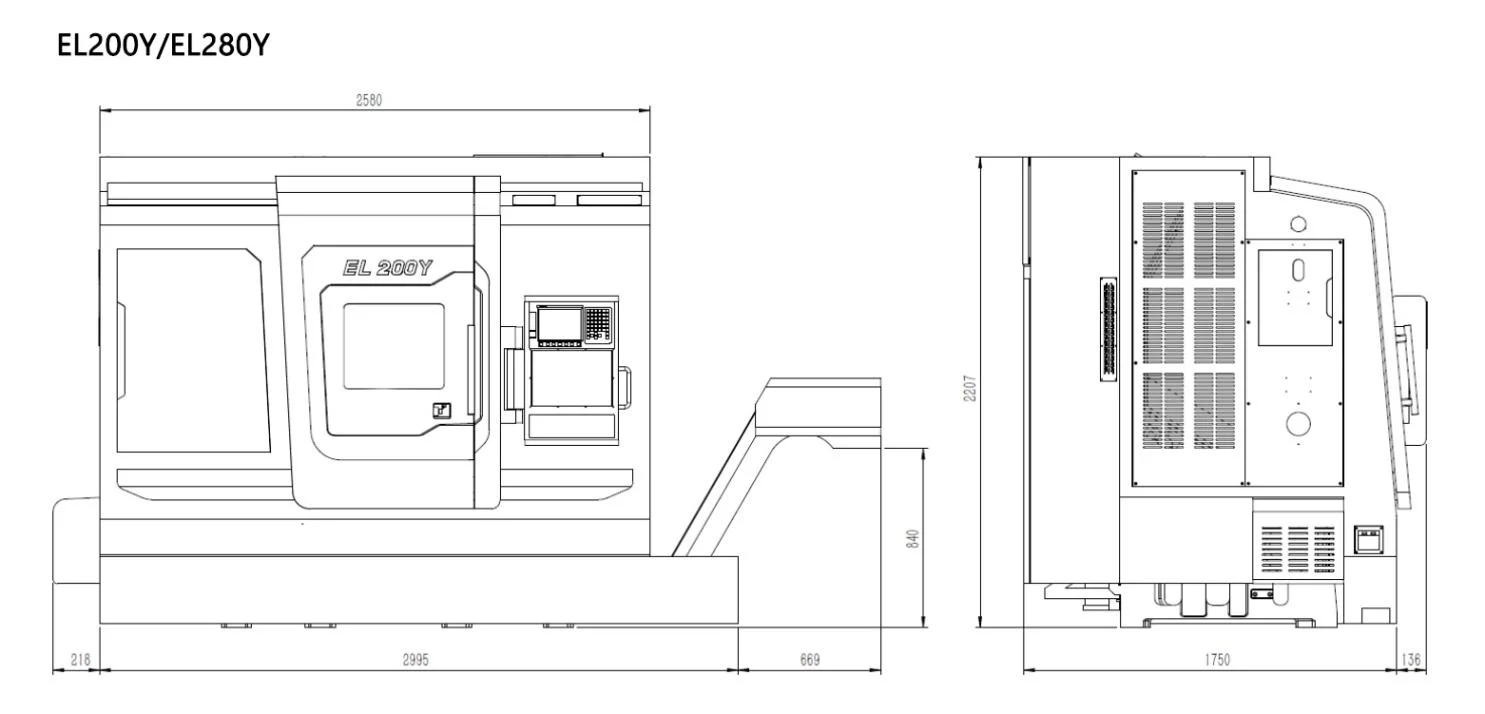

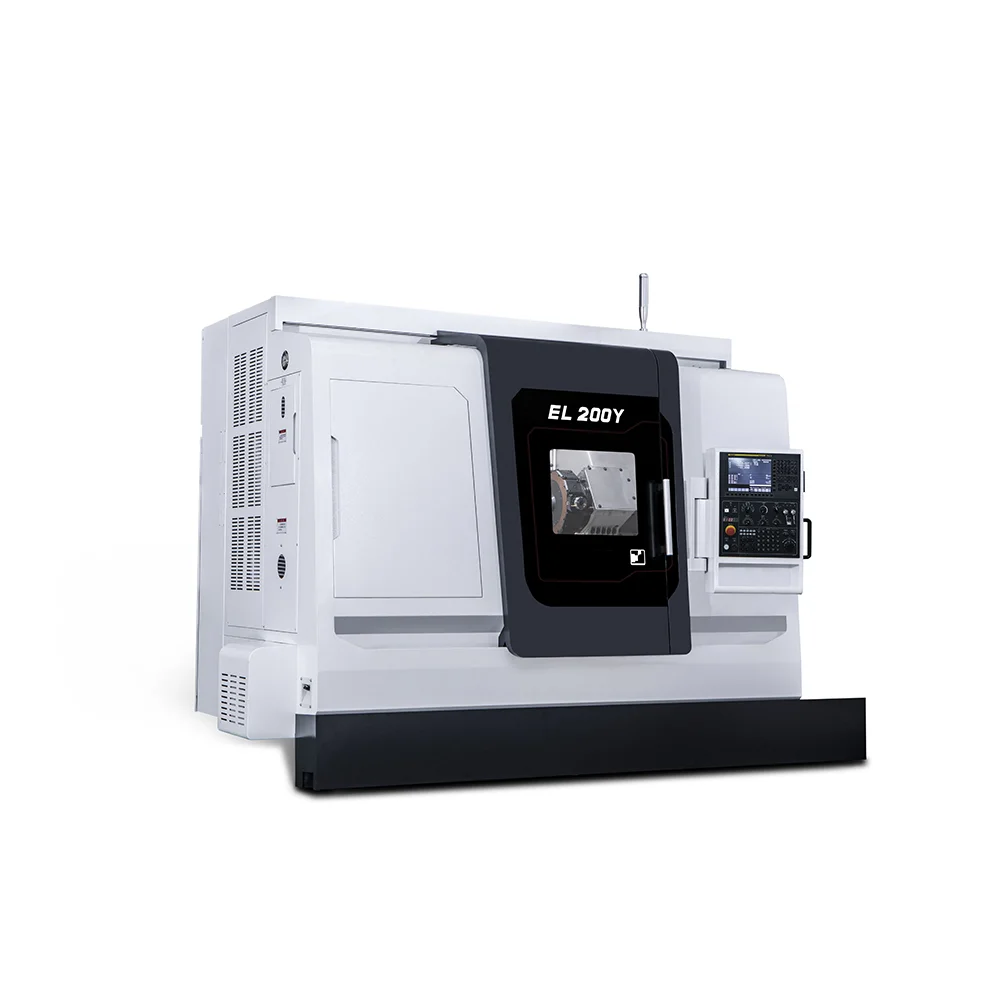

EL 200Y(LY)/EL280Y(LY) SLANT BED LATHE

Max. swing diameter

mm

Φ650

Φ650

Max. swing diameter of saddle

mm

Φ330

Φ330

Max. cutting diameter

mm

Φ350

Φ350

Max. cutting length

mm

500(650)

470(620)

Spindle

Spindle motor power(Continuous/30min)

kw

11/15

11/15

Max. spindle speed

rpm

4200

3500

Spindle nose

A2-6

A2-8

Diameter of spindle hole

mm

Φ76

Φ91

Max. bar diameter

mm

Φ65

Φ80

Chuck size

inch

8"

10"

Feed shaft

Max. X/Z/Y axis travel

mm

250/543(690)/100

250/543(690)/100

X/Z/Y axis motor power

kw

3.0/1.8/3.0

3.0/1.8/3.0

X/Z/Y axis fast moving speed

m/min

30/30/10

30/30/10

X/Z axis slideway type

Linear guide rail

Linear guide rail

C axis(Optional)

Min. spindle positional accuracy

±0.001°

±0.001°

Dynamic accuracy

±0.002°

±0.002°

Power turret

Turret capacity

12

12

Square tool

mm

25

25

Round tool

mm

Φ40

Φ40

Power turret motor power

kw

3.0

3.0

Power turret tool model

BMT55-ER32

BMT55-ER32

Power turret speed

rpm

4000

4000

Tailstock

Mandrel diameter

mm

Φ70

Φ70

Mandrel travel

mm

150

150

Tailstock travel

mm

460(610)

460(610)

Taper of tailstock sleeve

MT#5

MT#5

Mandrel/tailstock control programmable

YES/NO

YES/NO

Tailstock move way

Saddle drive

Saddle drive

Specification

Positional accuracy(X/Z)

mm

±0.005

±0.005

Repeated positioning accuracy(X/Z)

mm

±0.003

±0.003

CNC system

FANUC

FANUC

Chip conveyor

Side

Side

Dimension

mm

3211X1750X2207

3211X1750X2207

Weight

kg

4500/5000

4700/5200

Spindle type

Belt

●

●

Electrical spindle

C

C

Rigid tapping and multi-point positioning

●

●

Spindle brake

●

●

C axis

●

●

Vice spindle

C

C

WORKPIECE CLAMPING

Hydraulic three-jaw chuck and hydraulic cylinder

●

●

Hard jaw

-

-

Soft jaw

●

●

Collet

○

○

Special clamp

C

C

Spindle retaining function

○

○

Spindle bush

○

○

Foot switch

●

●

Programmable two-stage pressure function

○

○

TAILSTOCK

Hydraulic tailstock

●

●

Fixed thimble

○

○

Activity thimble

●

●

Retractable foot switch for tailstock mandrel

○

○

Programmable two-stage pressure function

○

○

TURRET

12 position servo turret

-

12 position power turret

●

●

Tool holder and sleeve

●

●

Power turret tool base

●

●

CUTTING FLUID SYSTEM

Cutting fluid pump

3 bar

●

●

5bar/10bar

○

○

Ultrahigh pressure cooling system

○

○

cooling water tank

●

●

Oil skimmer

○

○

Cutting fluid flow monitoring function

○

○

Cutting fluid level monitoring function

○

○

PERIPHERAL AUTOMATION EQUIPMENT

Automatic tool setting instrument

○

○

Bar feeder and interface

○

○

Truss manipulator system

○

○

Automatic door function

○

○

SAFTY

Fully protected sheet metal

●

●

Door interlocking function

●

●

Bulletproof security Windows

●

●

Low oil pressure detection

●

●

Soft limiting stroke limit function

●

●

Collet oil cylinder check function

●

●

Collet oil cylinder position detection

○

○

Tailstock extension limit detection

○

○

Spindle overload detection system

C

C

OTHER

3 color signal light

●

●

Working light

Internal

●

●

external

○

○

Electrical box cooling

Heat exchanger

●

●

Air conditioner

○

○

Hydraulic system

●

●

Auto-lubrication system

●

●

Basic maintenance tools

●

●

Emergency electrical element

●

●

Instruction

●

●

●: Standard   ○: Optical  -: Unfit   C: Consult
