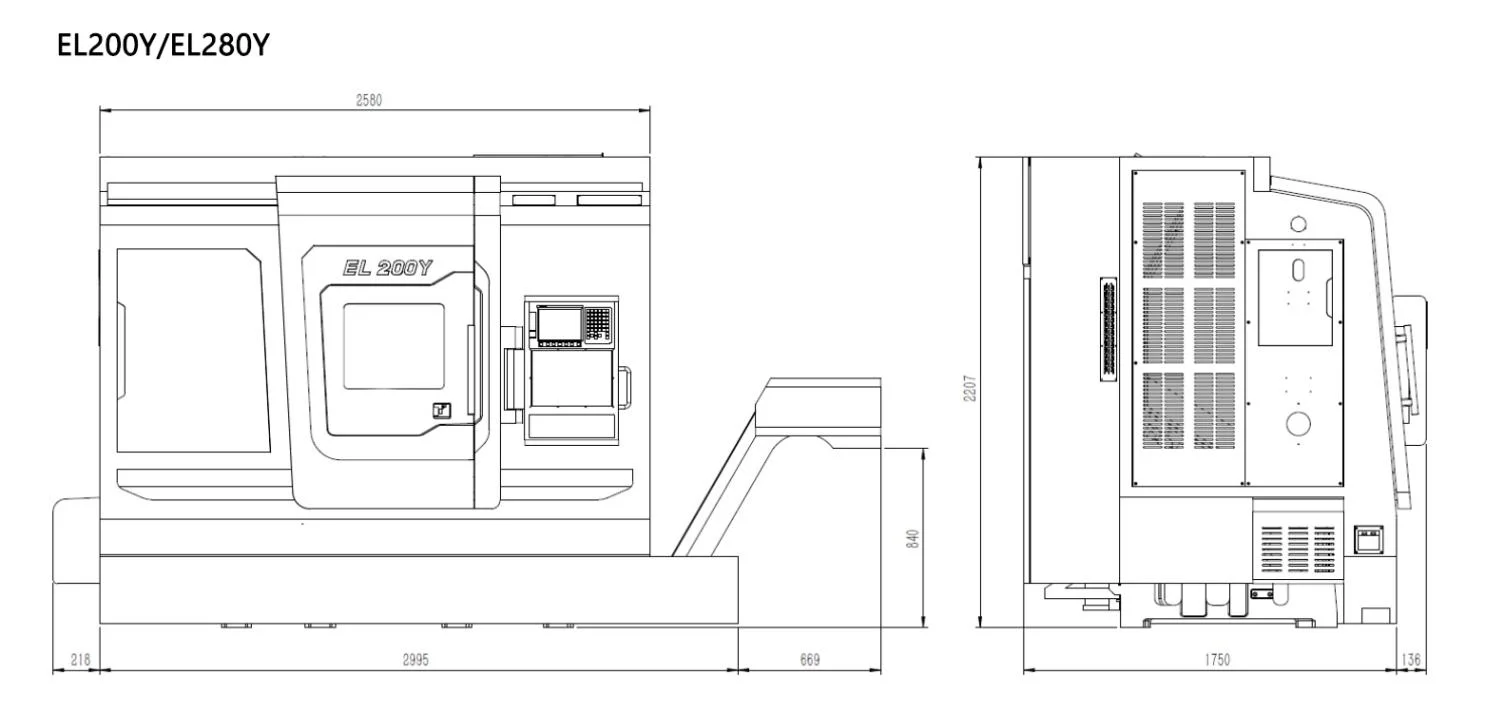

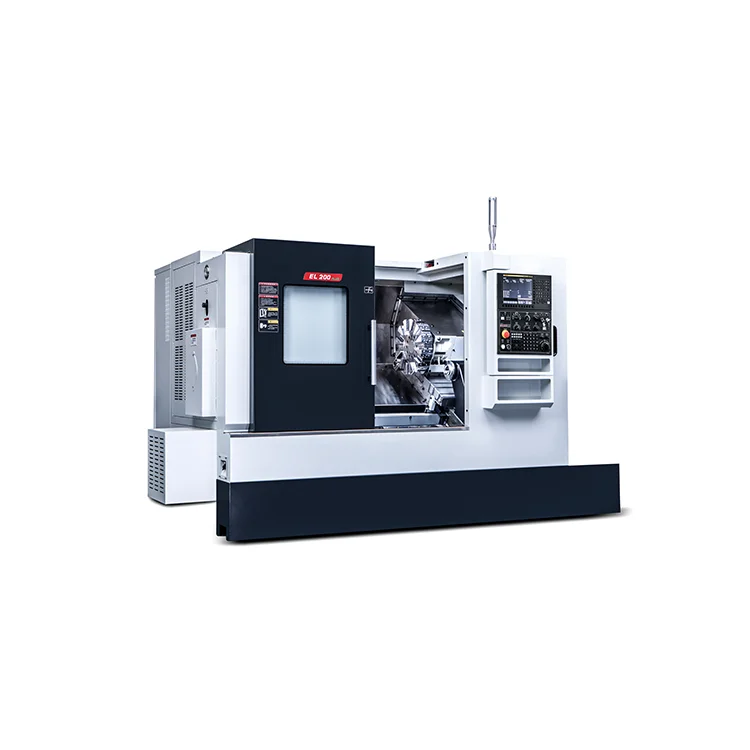

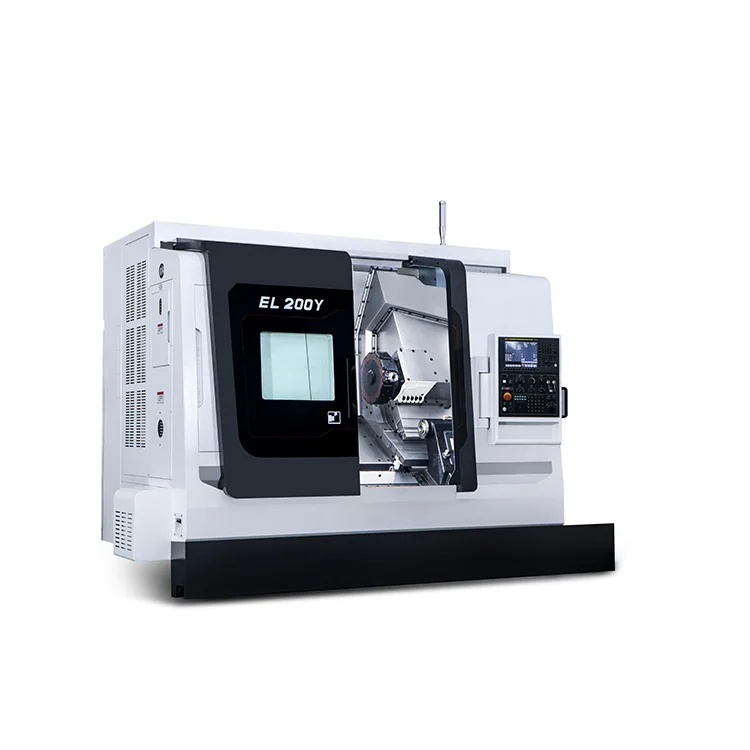

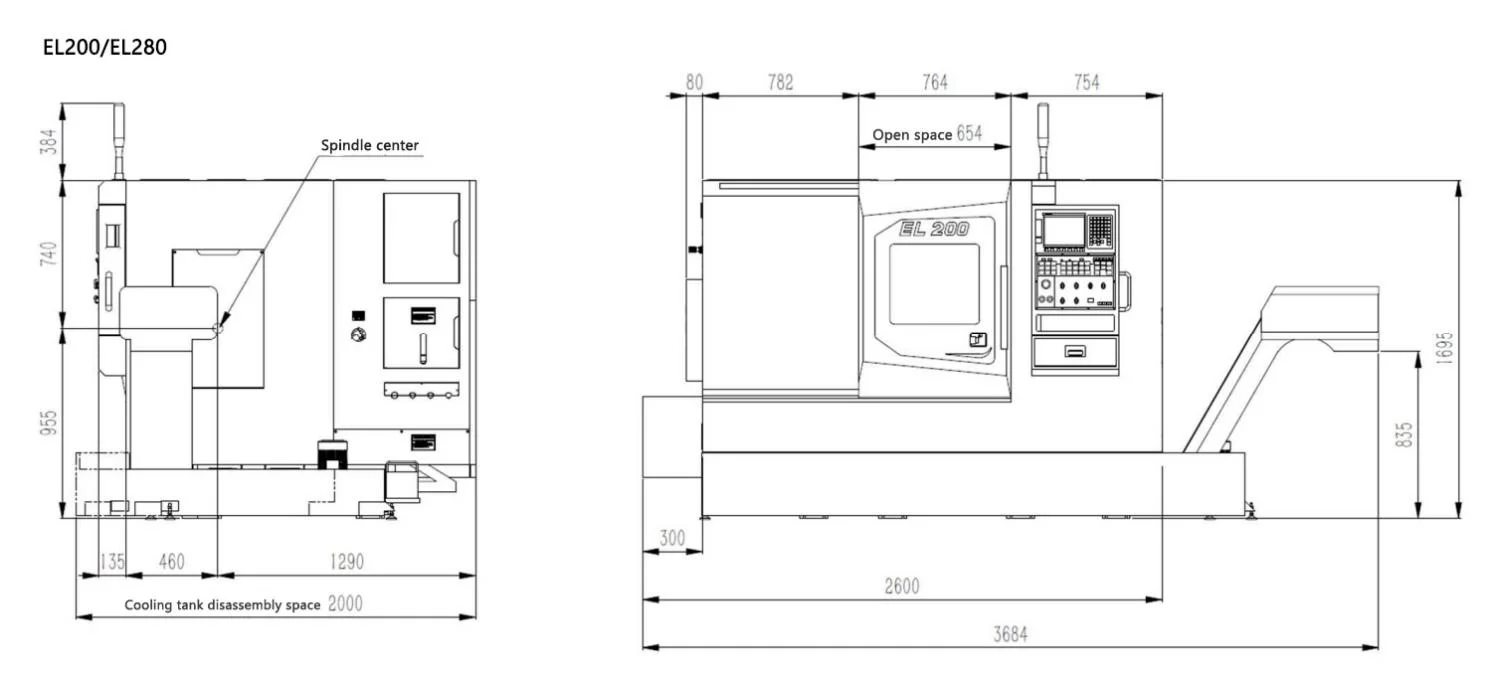

CNC LATHE MACHINE

OVERSTRENGTH STRUCTURE

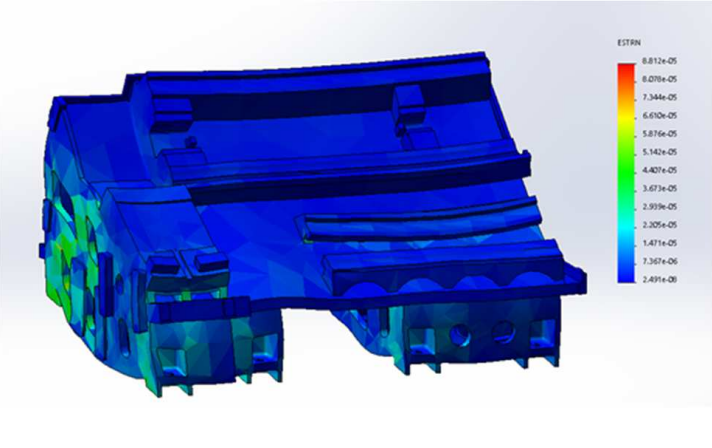

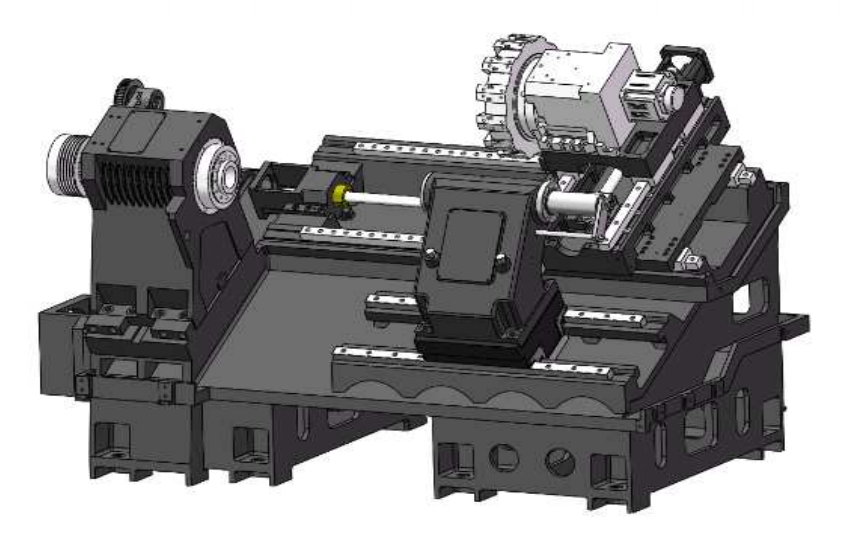

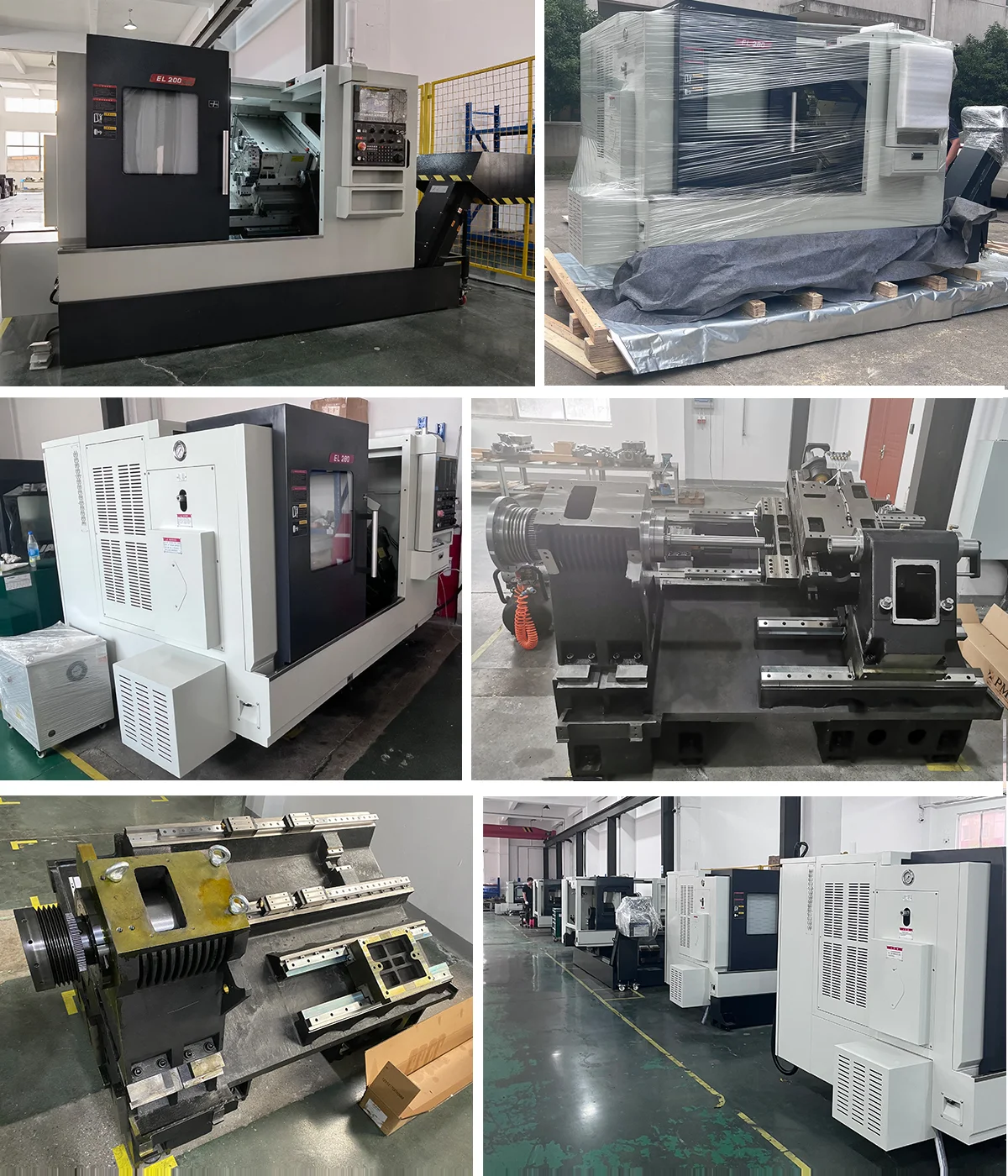

▶EL200PLUS standard machine body adopt a low gravity center 30° integral slant bed design and use Mehanna cast iron, high strength reinforcement of one casting molding. Finite element analysis (FEA) was used to optimize the casting structure of the bed, which ensured the minimization of vibration in the cutting process, improved the cutting stability and extended the service life of the tool.

▶And this series lathe has high rigidity struture to ensure that the bed structure has excellent vibration reduction so as to make the machine has outstanding performance. At the same time, this model has a very high cost performance.

▶Adopt PMI precise grinding C3 class ball screw, which is prestretched to effectively prevent deformation from temperature rise and ensure the highest positioning accuracy and durability.

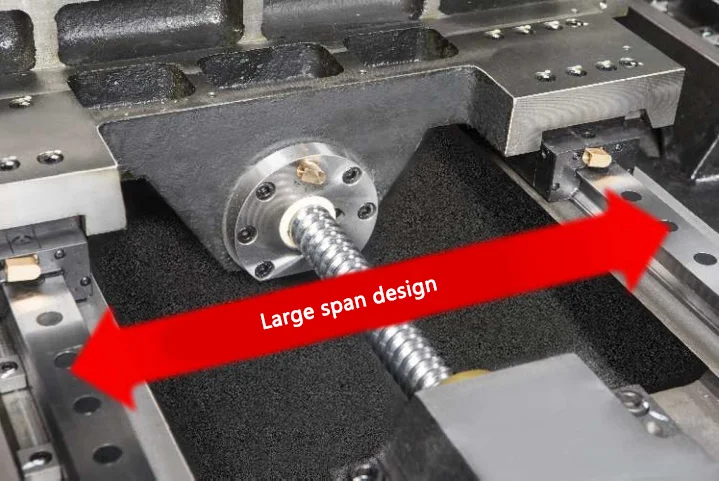

▶X axis and Z axis are using large span design and high performance and high precision PMI linear slide rail to ensure the machine has excellent performance such as high precision, high speed and low friction.

▶All spindle seats, bearing seats, tailstock and ball guide screw structures are hand-shovelled to achieve optimum assembly accuracy, structural rigidity and load balance.

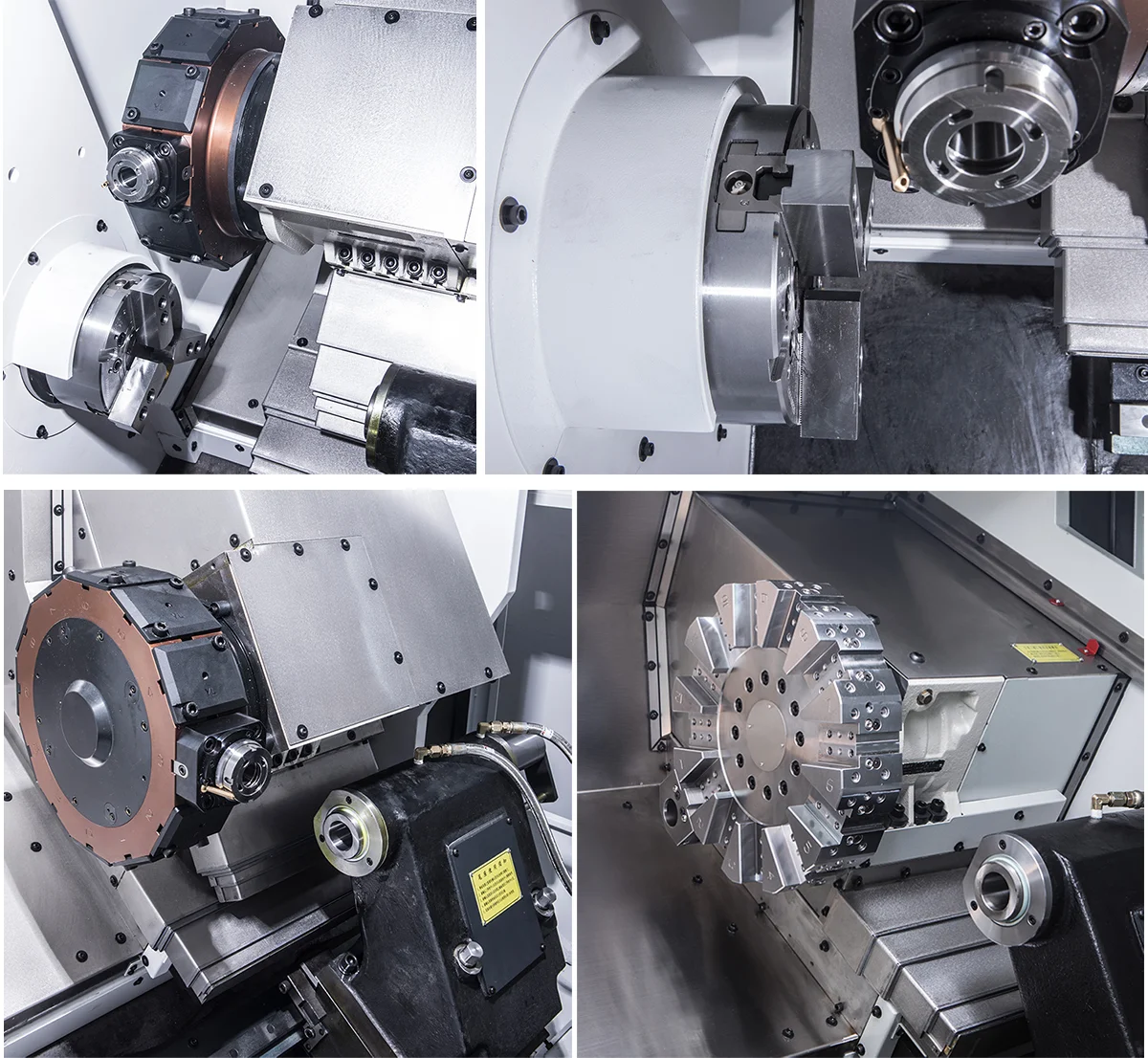

HIGH RIGIDITY SPINDLE

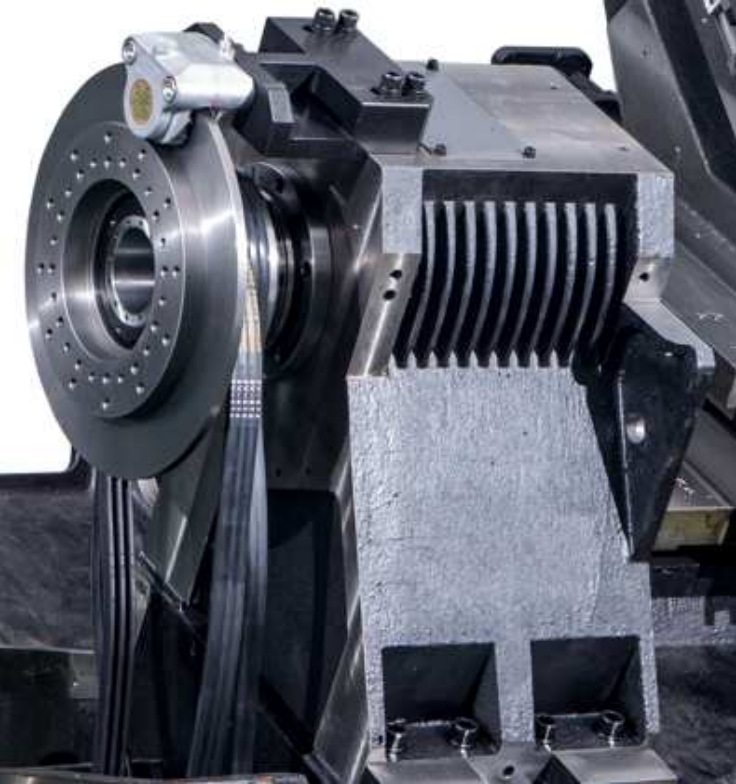

▶The spindle adopts imported P4 ultrahigh precision bearings directly installed in the spindle head to achieve precision requirements and ensure large load capacity, and the bearing arrangement with the optimal span two-point support design, can meet the needs of stable heavy cutting and long time precision machining.

▶The casting of spindle seat is made of high rigidity and large reinforcing rib, and the design is combined with the large area of the base, so that the rigidity of the head is greatly improved, and thus the vibration is effectively suppressed and the machining accuracy is improved.

▶The design of enlarged bearing ensures the accuracy of the spindle and maximizes the rigidity of the spindle. The diameter of the bar is raised from 52mm to 65m.

HIGH RIGIDITY TAILSTOCK

▶The Z-saddle can be manually connected to the tailstock body and driven to the desired position by the bed saddle.

▶The mandrel is retractable and programmable, and the thimble is easily and accurately pressed against the center of the workpiece.

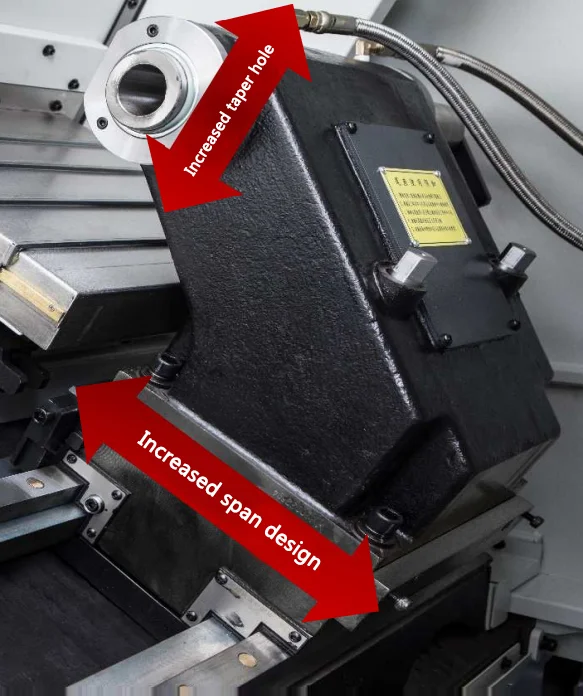

▶Tailstock track adopts high rigidity hard rail design, which not only ensures the rigidity of tailstock, but also ensures the accuracy of movement, improves the wear resistance and increases the service life.

EASY MAINTENANCE AND CHIP REMOVAL

▶The new integrated design for sheet metal make it easy to disassemble and easy to maintain.

▶The new integrated design for sheet metal make it easy to disassemble and easy to maintain.

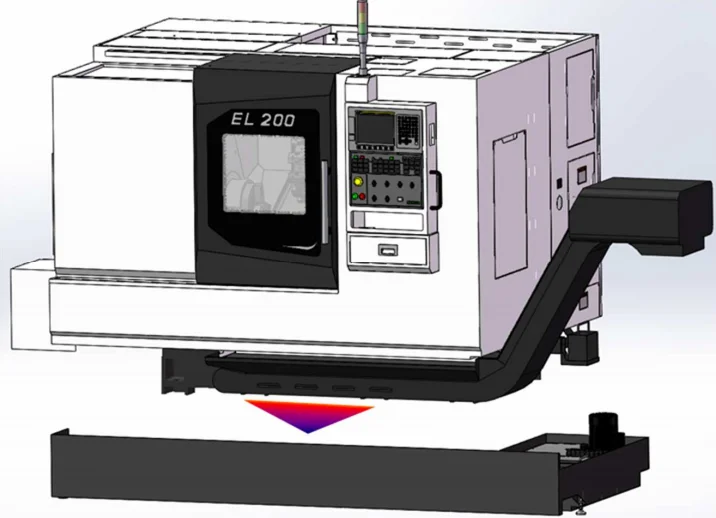

▶The standard side chip discharging machine is equipped with adjustable timer, which can adjust the working time according to the actual cutting situation to reduce the consumption of coolant.

▶Integrated water tank design can not only ensure enough water storage, but also effectively prevent machine tool rapid cutting water leakage.

OPTIMIZE TANK FILTRATION SYSTEM

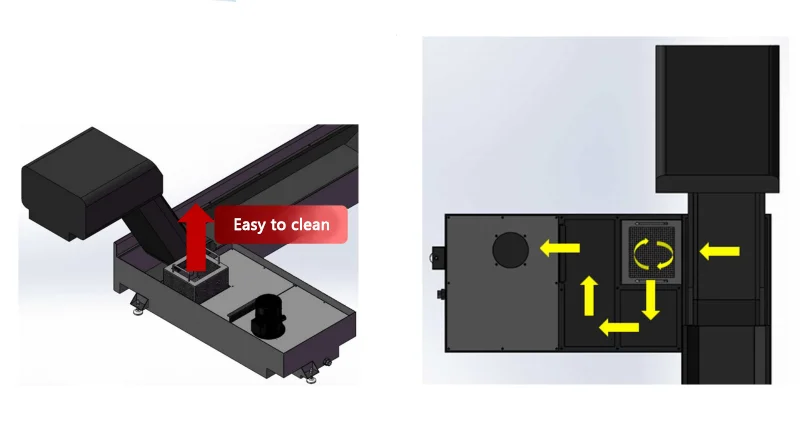

▶Optimized cutting fluid tank filtration system which has patents make it efficient fast reflux, fast cooling to thus improving the cutting performance of machine tools, extend tool life.

▶The design of external suction chip collecting filter box can quickly clean iron filings and improve the tank filtration function, reduce the cleaning times to the greatest extent.
