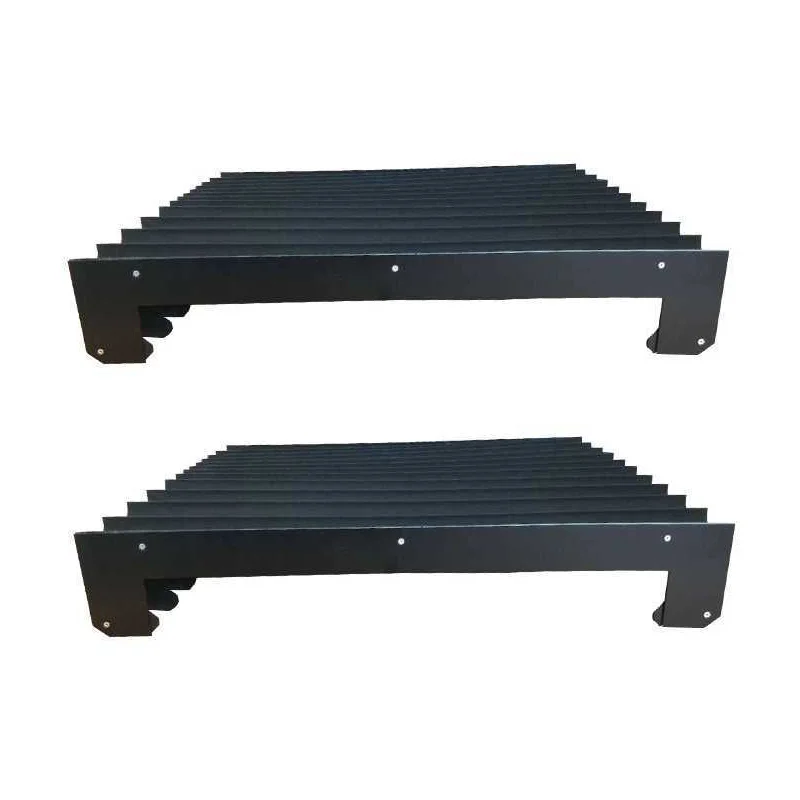

FLEXIBLE EOLIAN MACHINE

MACHINE SHIELD

▶ Series: Flexible Eolian Machine Shield

▶ Shaped Machine Shield

▶ Armor Type Machine Shield

▶ Steel Plate For Machine Shield

▶ Shutter type shields/Aluminium

▶ Protecting Curtain

PRODUCT ADVANTAGE

▶ 1.Organ style protective cover with waterproof, dustproof, oil,acid and alkali function,but also any combination.Its raw materials, shape, processing methods and size can be customized according to the actual situation.

▶ 2.All organ-type enclosures can be used horizontally, vertically,or horizontally. In order to ensure that this model is running smoothly and no noise, in the shield and guide the location of the installation of special materials. By using a raw material with a small thickness, it can be compressed to meet the requirements of modern mechanical small working spaces.

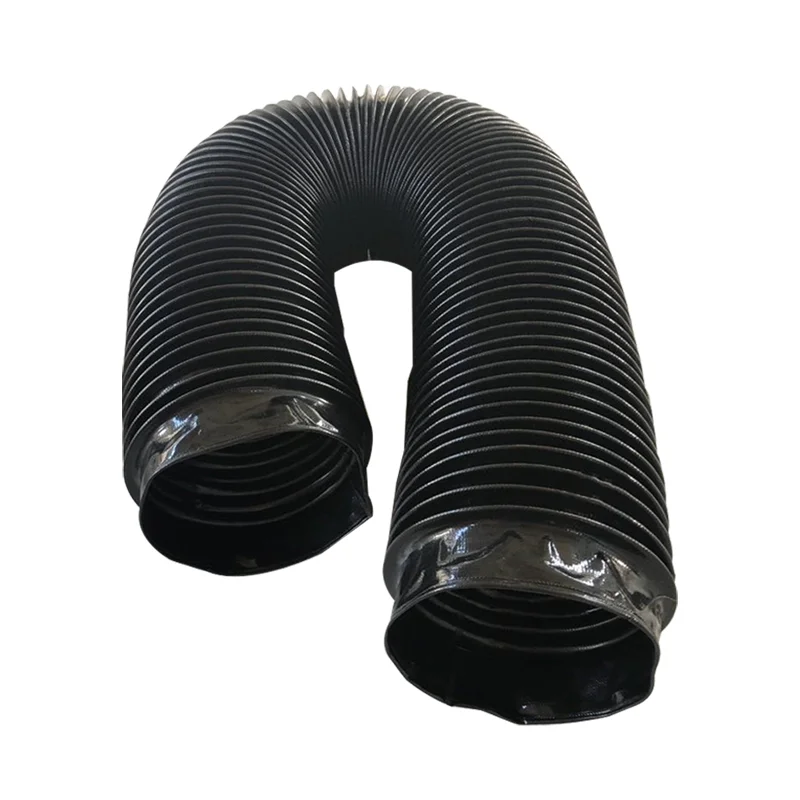

▶ 3.Rubber nylon and PVC steel rings are used in fabricating the round-shaped protecting covers, which is dust resistant, water proof, oil resistant and corrosion proof.This product can work properly the temperature range of 110℃~ -40℃.The length of the travel range can be set according to the customer’s request.

PARAMETERS

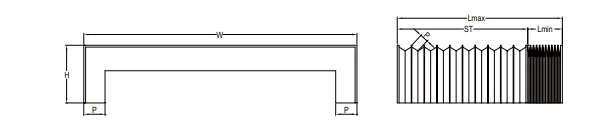

▶ 1. Bellows cover

H: Outside Height       P: Fold Height           Lmax: Open Length

W: Outside Width       ST: Travel Length      Lmin: Closed Length

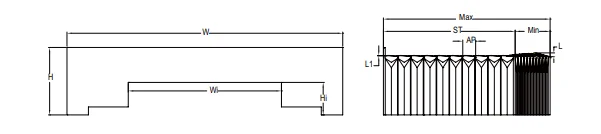

▶ 2.Finned Bellow Cover

MAX=Open Length                   H=Outside Height

L1= Single Armor Thickness

MIN=Closed Length                  W=Outside  Width

L=Gross Thickness Of Armor    ST=Travel Length

P= Fold Height

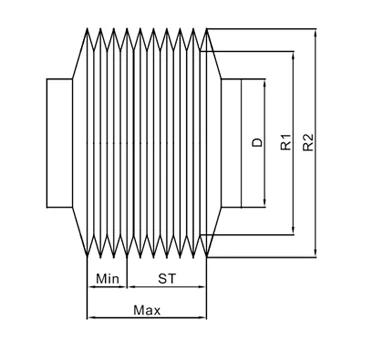

▶ 3. Round Bellows Cover

MAX= Open Length       MIN=Closed Length     ST=Travel length

R1=Inside Diameter of Cylinder

R2=Outside Diameter of cylinder    D= Diameter of lnstall Point

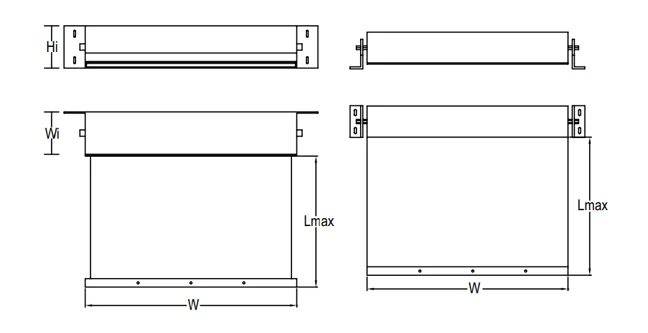

▶ 4.Roller Cover

MAX=Open Length          MIN=Closed Length          ST=Travel Length

R1=Inside Diameter of Cylinder         R2=Outside Diameter of Cylinder

D=Diameter of Install Point

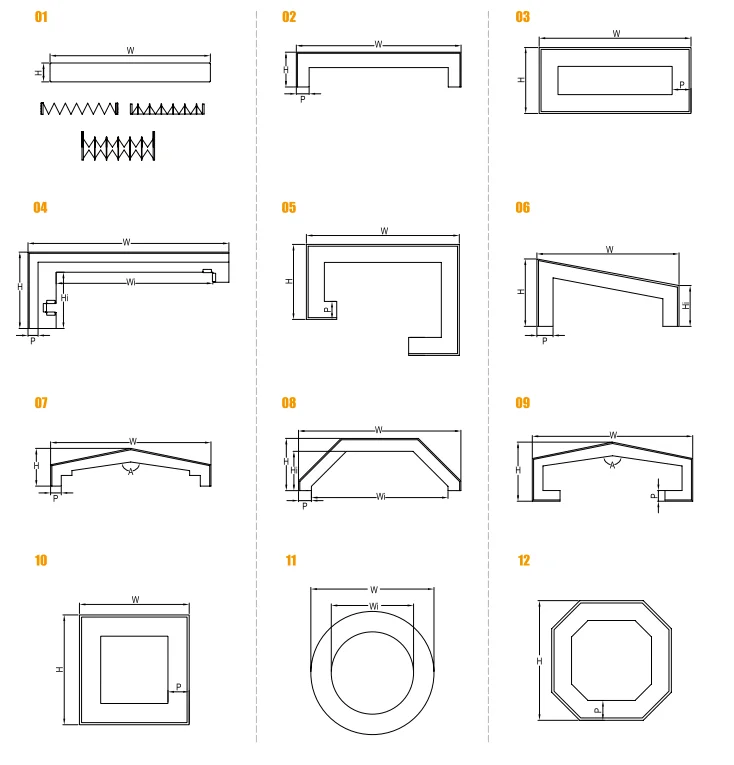

BASIC SHAPES

PRODUCT SHOW
