PRODUCT
RELATED PRODUCT
INTERFACE MODULE

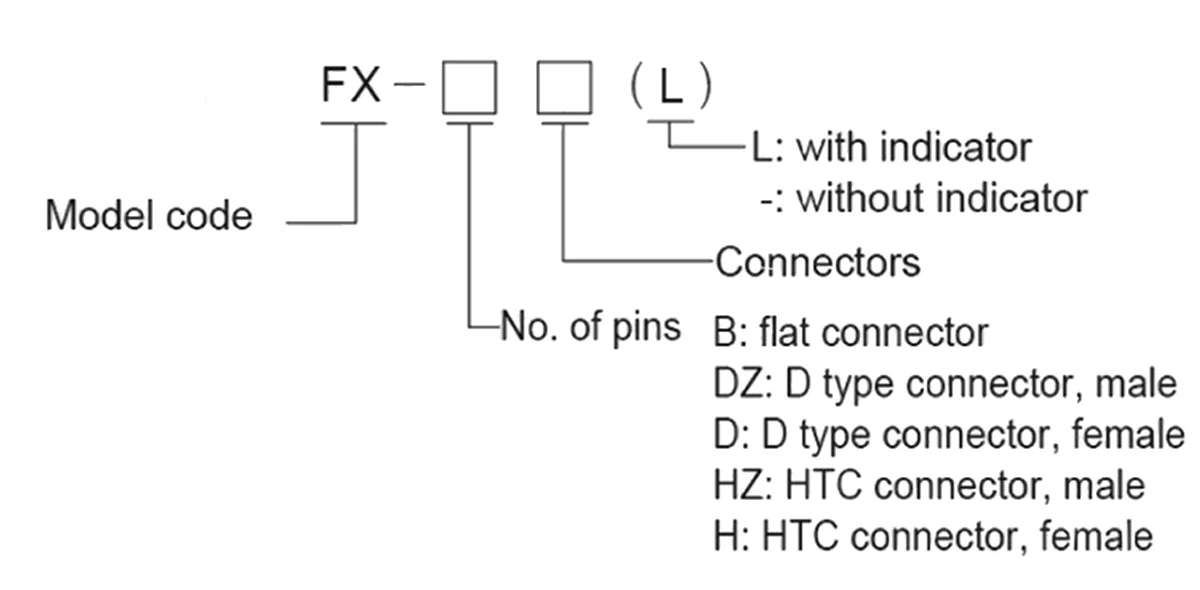

MODEL INSTRUCTION
TECHNOLOGY DATA
Item | Model | Number of pins | Max.output current | Max.Output voltage | Installation dimension |
Interface module | FX-20B | 20 | 100mA | 50AC/30VDC | 60×76 |
FX-25D | 25 | 100mA | 50AC/30VDC | 60×76 110×76 | |
FX-40B FX-40BL | 40 | 100mA | 50AC/30VDC | 115×76 | |

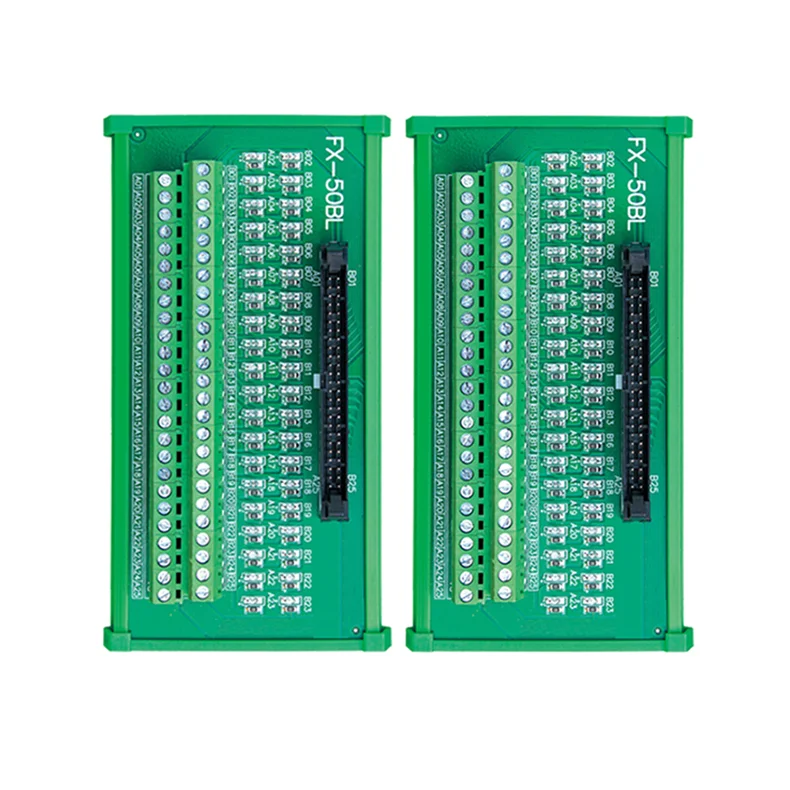

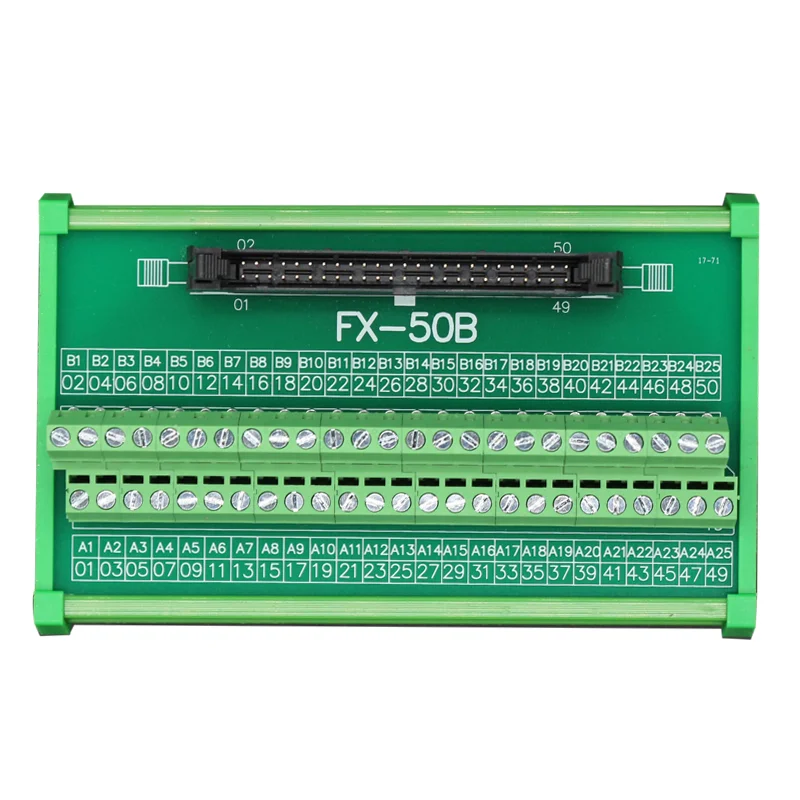

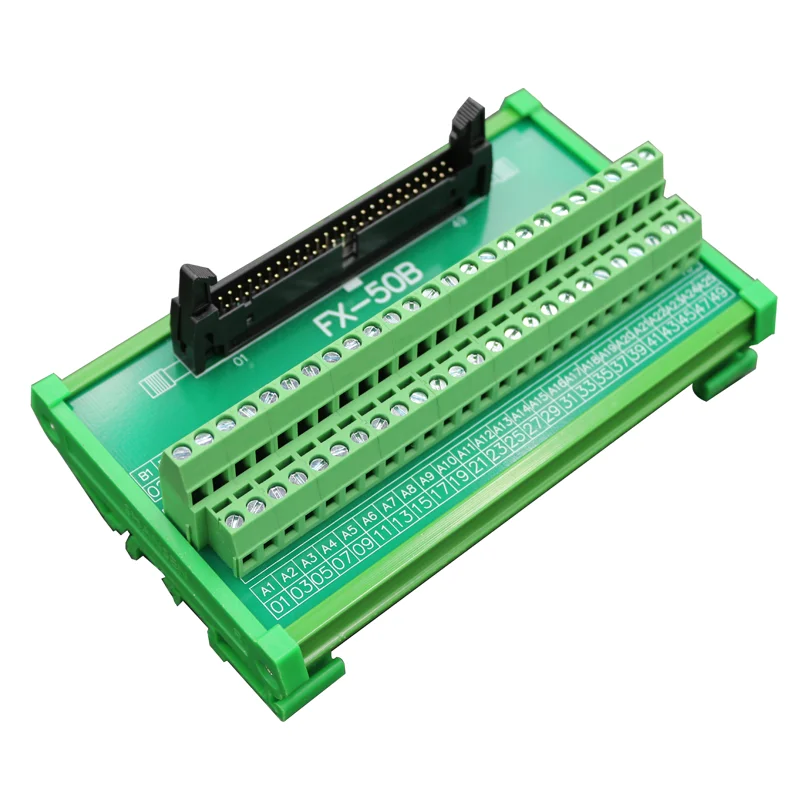

FX-50B FX-50H | 50 | 100mA | 50AC/30VDC | 162×76 | |
FX-50BZ | 50 | 100mA | 50AC/30VDC | 140×48 |

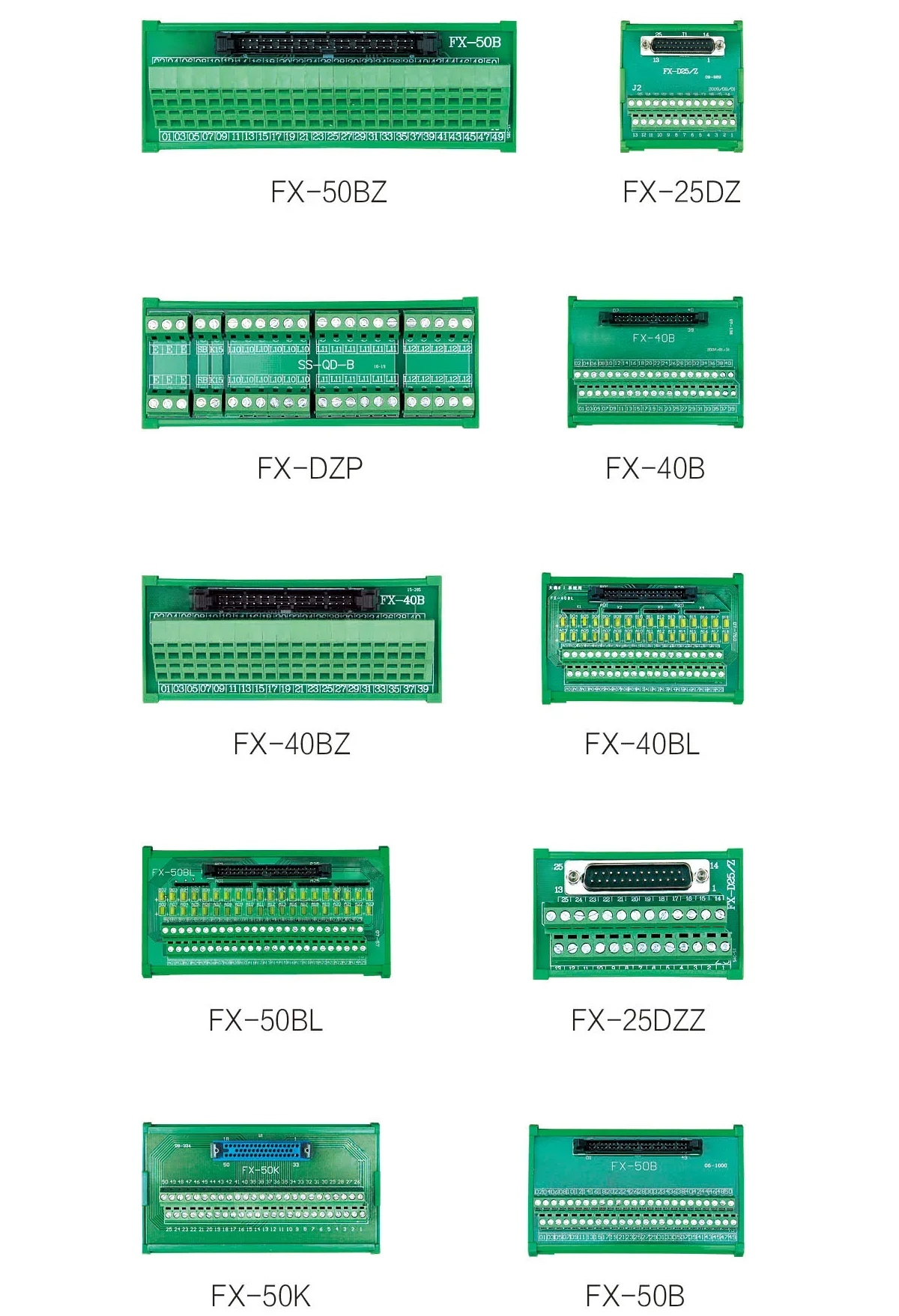

PRODUCT SHOW
RELATED PRODUCTS

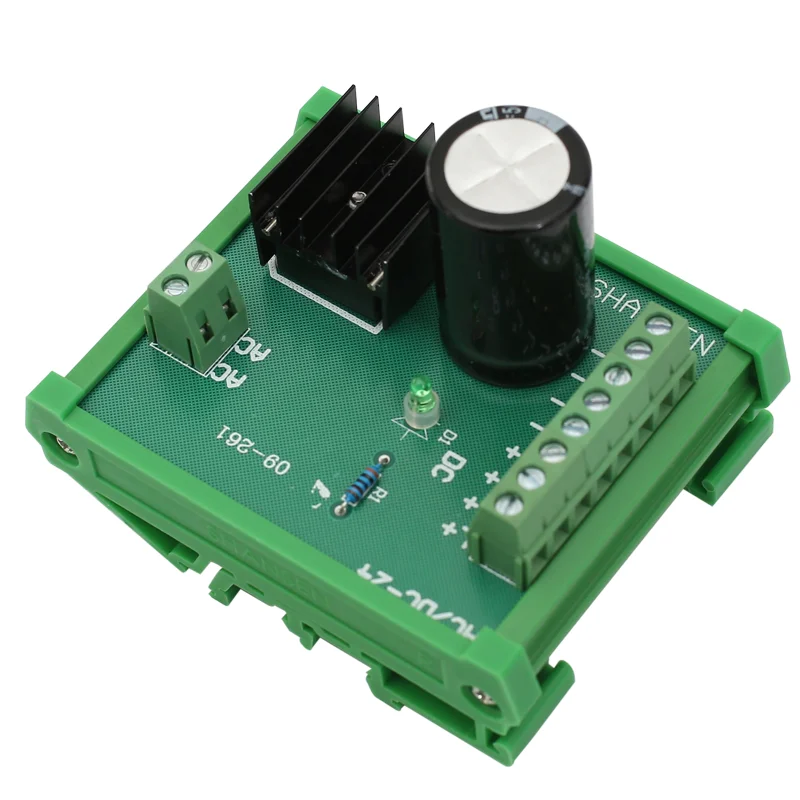

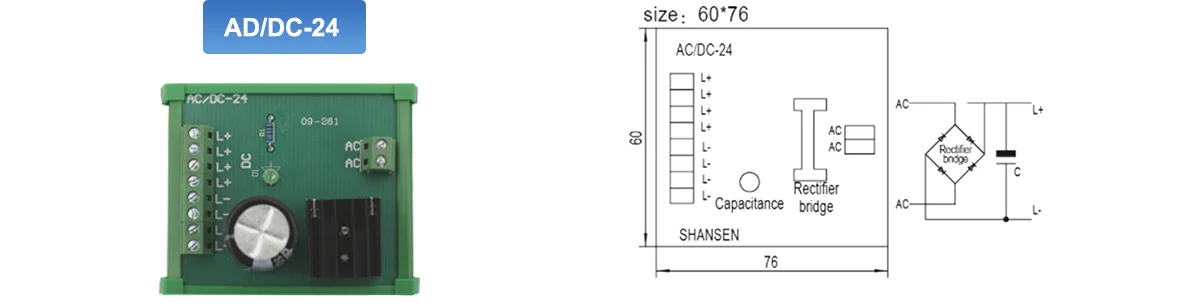

▶ AC/DC-24V power module is to be mounted on standard 35mm DIN rails for easy routing.It is used as the power module on various machines.

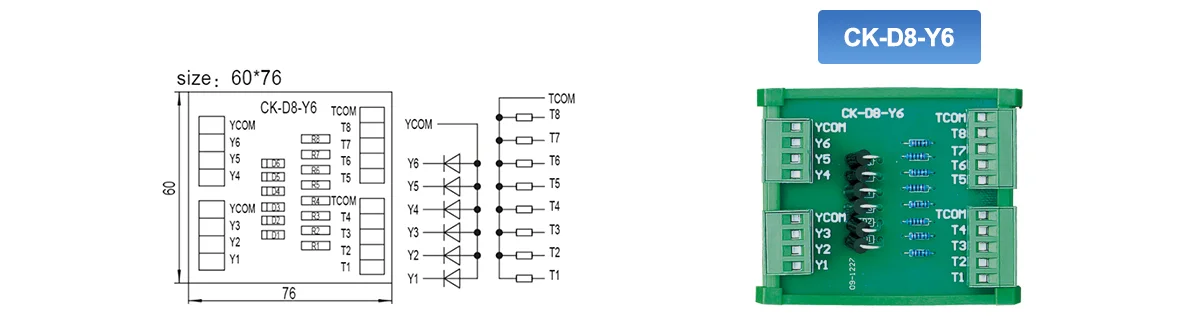

▶ CK-D8-Y6 pull-up resistor and reverse voltage module can be used as the pull-up resistor for tool position signal on CNC machines. The diodes are used for release of reverse voltage in solenoid values and other devices on machines. It is to be mounted on standard 35mm DIN rails.

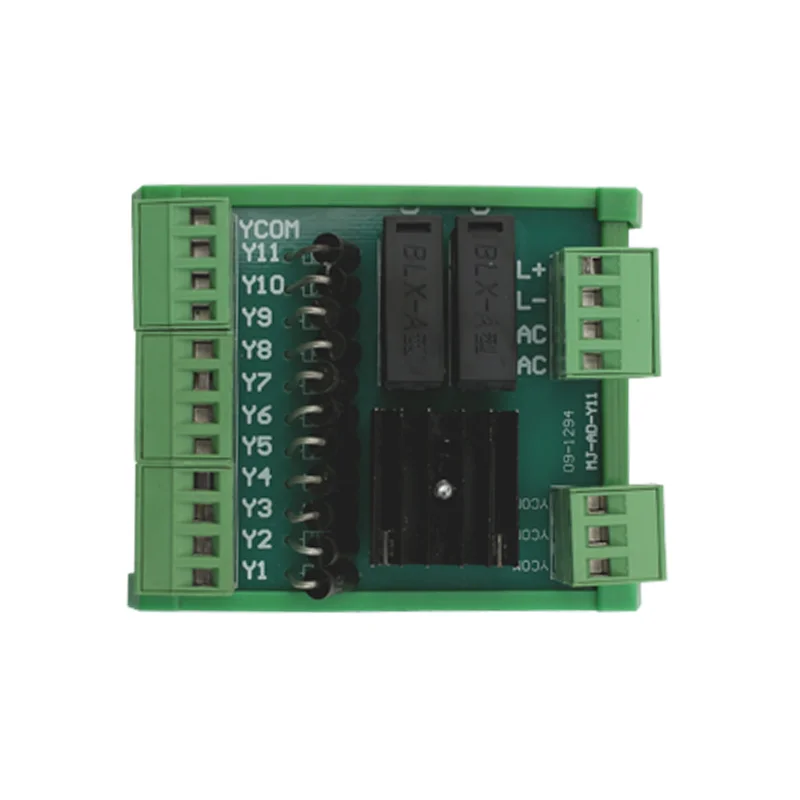

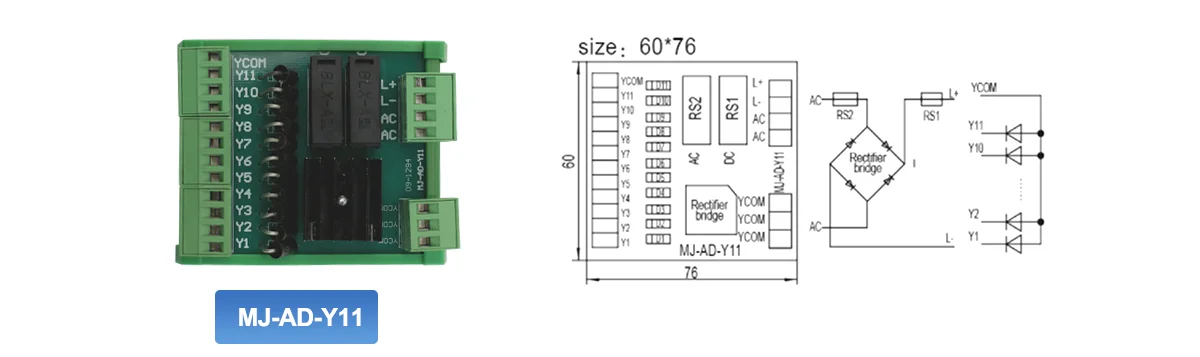

▶ MJ-AD-Y11 power and reverse voltage module is to be mounted on standard 35mm DIN rails. The DC 24V power provides 5A power to CNC machines. The diodes are used for release of reverse voltage in solenoid valves and other devices on machines.

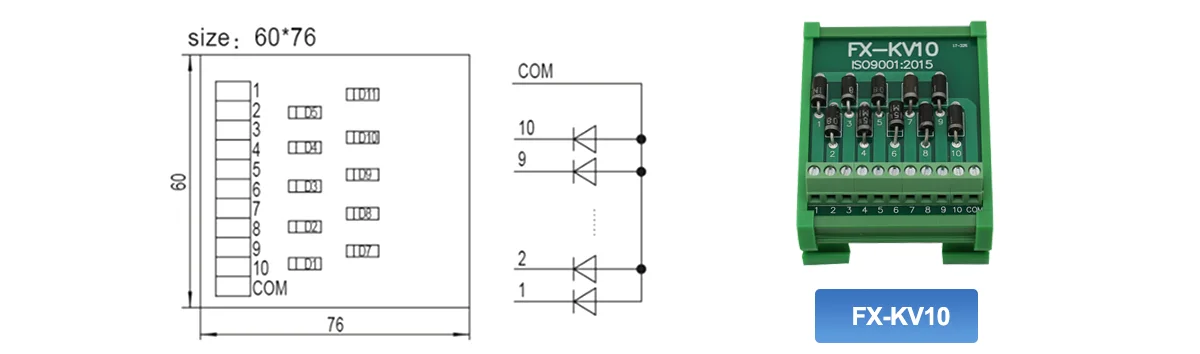

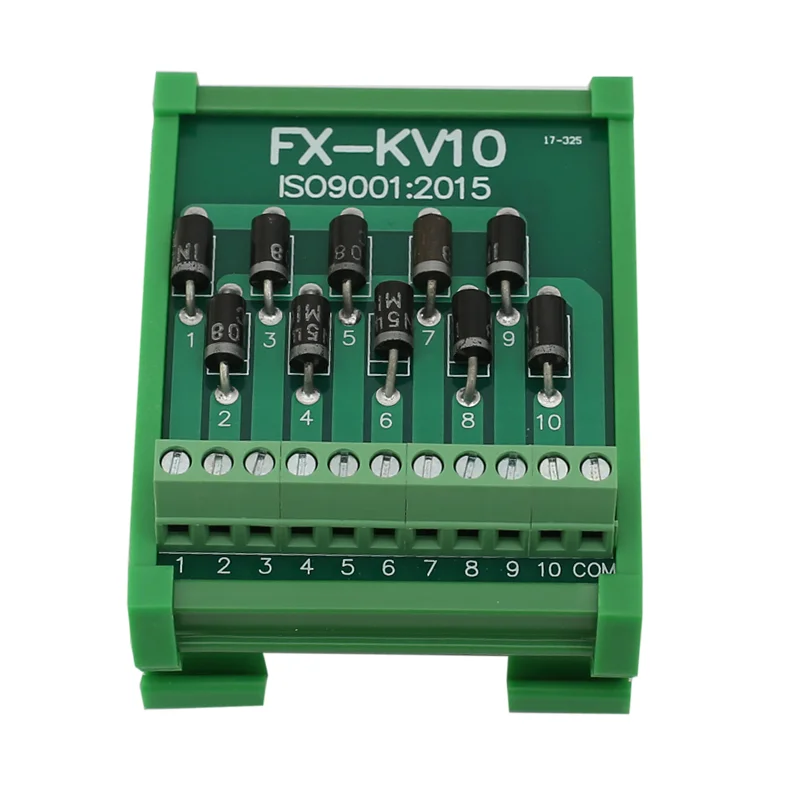

▶ FX-KV10 reverse voltage module is used for release of reverse voltage in solenoid valves and other devices on machines. It is to be mounted on standard 35mm DIN rails.
▶ CK-D8-Y6 pull-up resistor and reverse voltage module can be used as the pull-up resistor for tool position signal on CNC machines. The diodes are used for release of reverse voltage in solenoid values and other devices on machines. It is to be mounted on standard 35mm DIN rails.
▶ FX-KV10 reverse voltage module is used for release of reverse voltage in solenoid valves and other devices on machines. It is to be mounted on standard 35mm DIN rails.

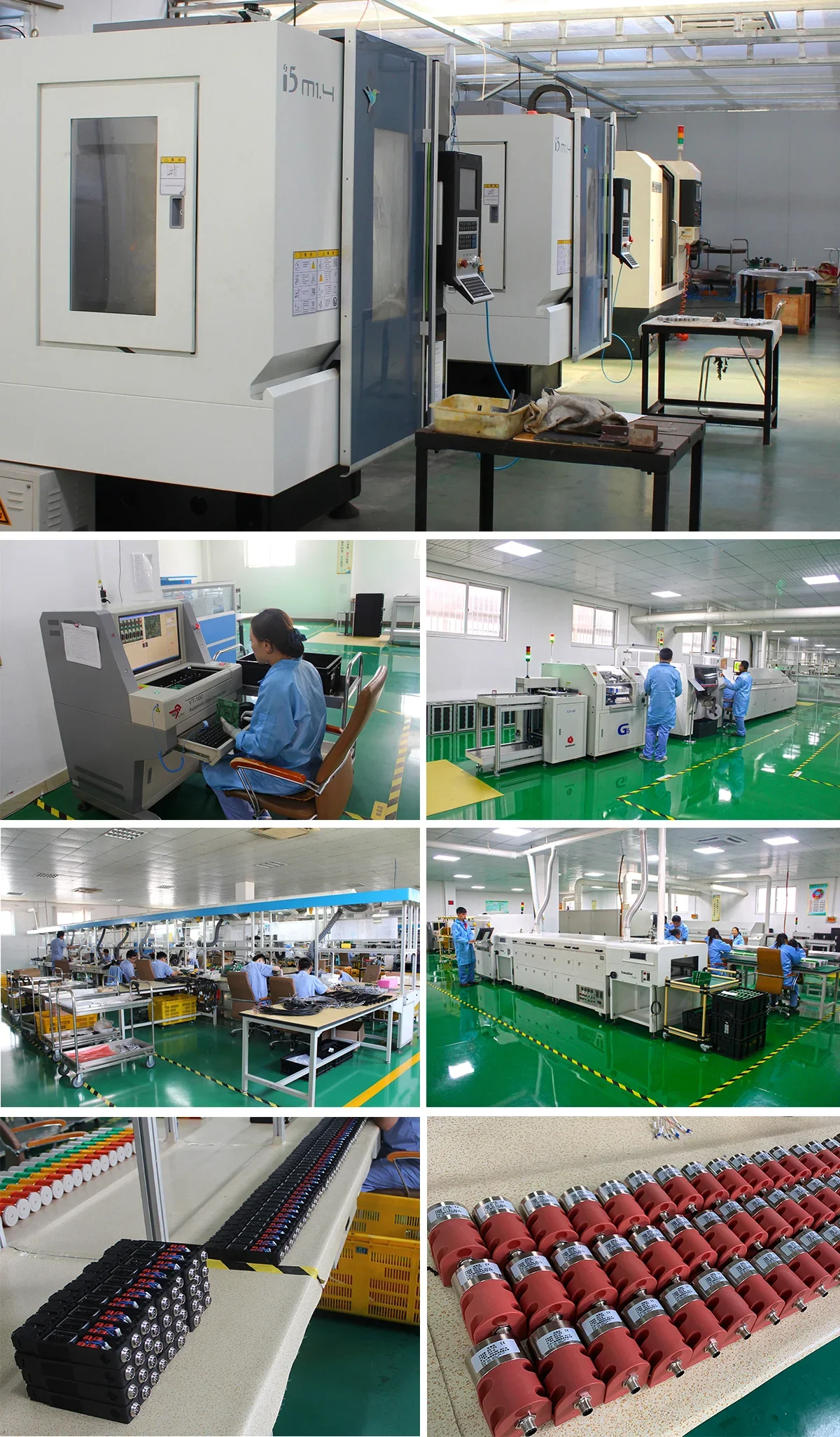

Factory Show
