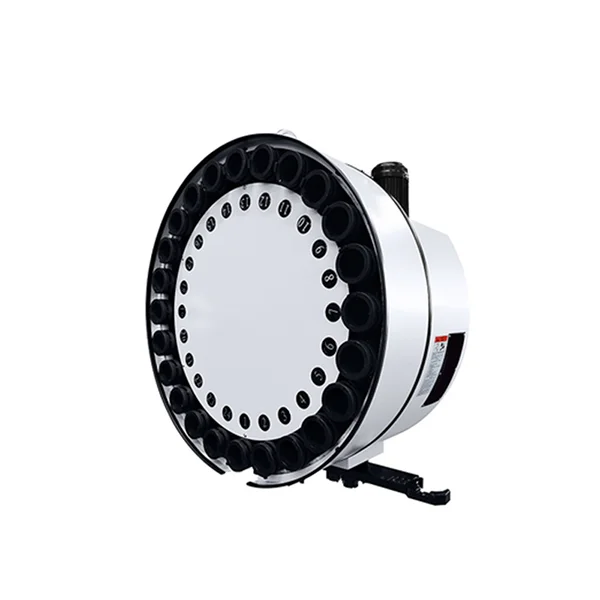

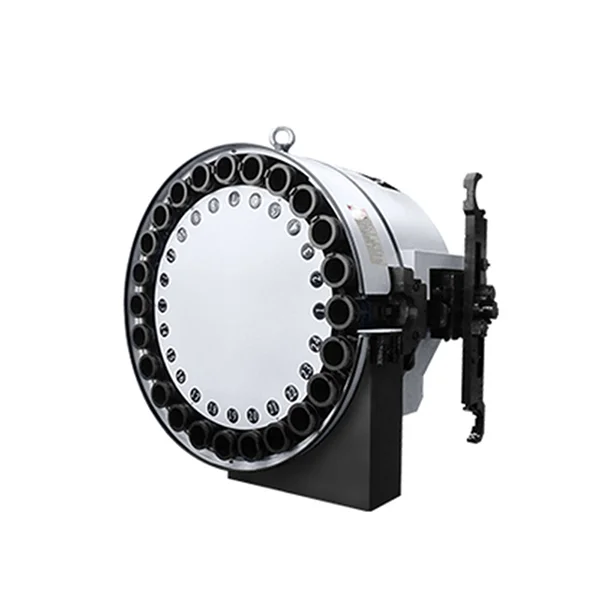

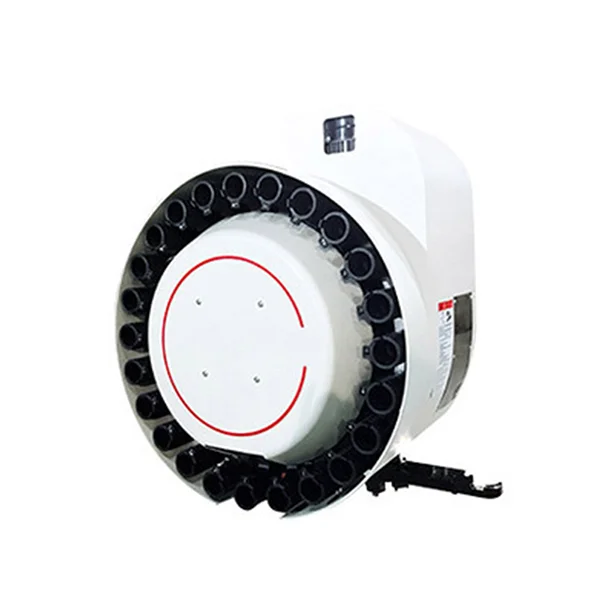

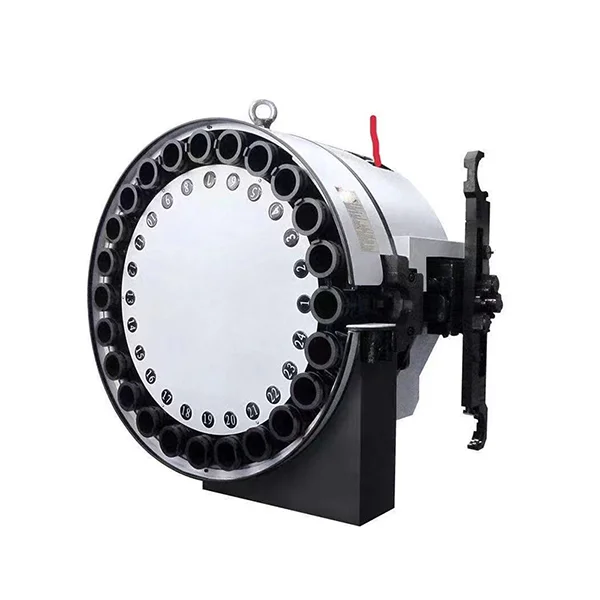

HORIZONTAL DISC TYPE MAGAZINE
Cylindncal cam indexing mechanism features high, indexing accuracy and
minimum trouble.Long service life, the structure is simple, easy maintenance.
minimum trouble.Long service life, the structure is simple, easy maintenance.
Product details
Product Features
1. The whole importing engineering plastic knife set, light weight, high strength, is not easy to damage.
2. Double bearing separate knife arm, maze &sealed ring, the noise is small.
3. Electronic switch all series uses the import original, quality assurance.
| HORIZONTAL DISC TYPE MAGAZINE | ||
| Tool shank spec | BT40/CAT40/DIN40/HSK63 | BT50/CAT50/DIN50/HSK100 |
| Tool capacity | 24T/32T/36T | 24T/30T |
| Tool change time | 2.3sec/60Hz | 4.01sec/60Hz |
| Max.tool weight | 8KG | 18KG |
| Max.tool dia.(fully loaded) | ø80mm/ø70mm | ø112mm |
| Max.tool dia.(no adjacent) | ø150mm/ø140mm | ø200mm |
| Max.tool length | 300mm | 400mm |
| Type magazine voltage | 220V/380V,50Hz/60Hz | 220V/380V,50Hz/60Hz |
| Type magazine air pressure | 0.5-0.7MPa | 0.5-0.7MPa |

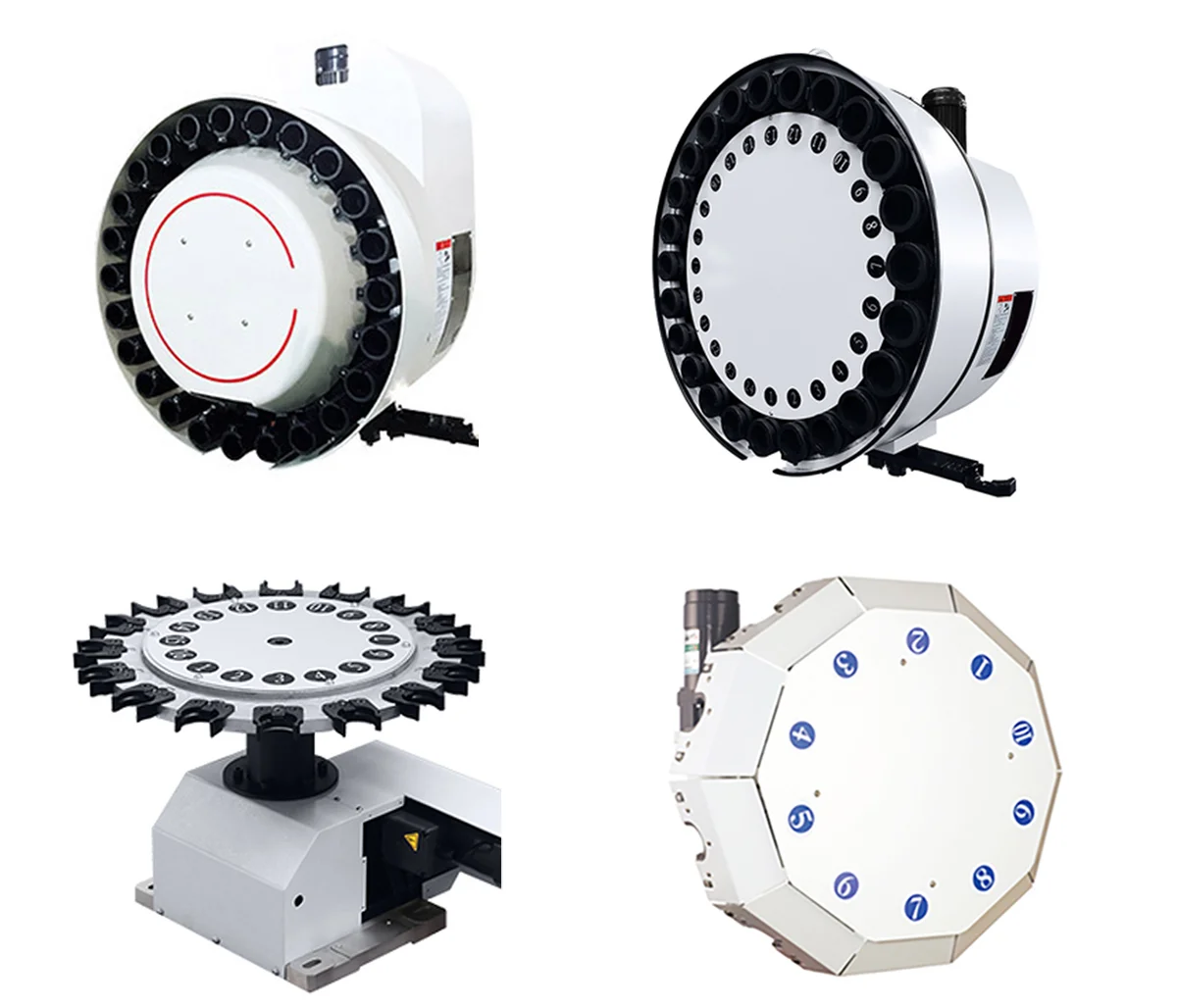

Product Show

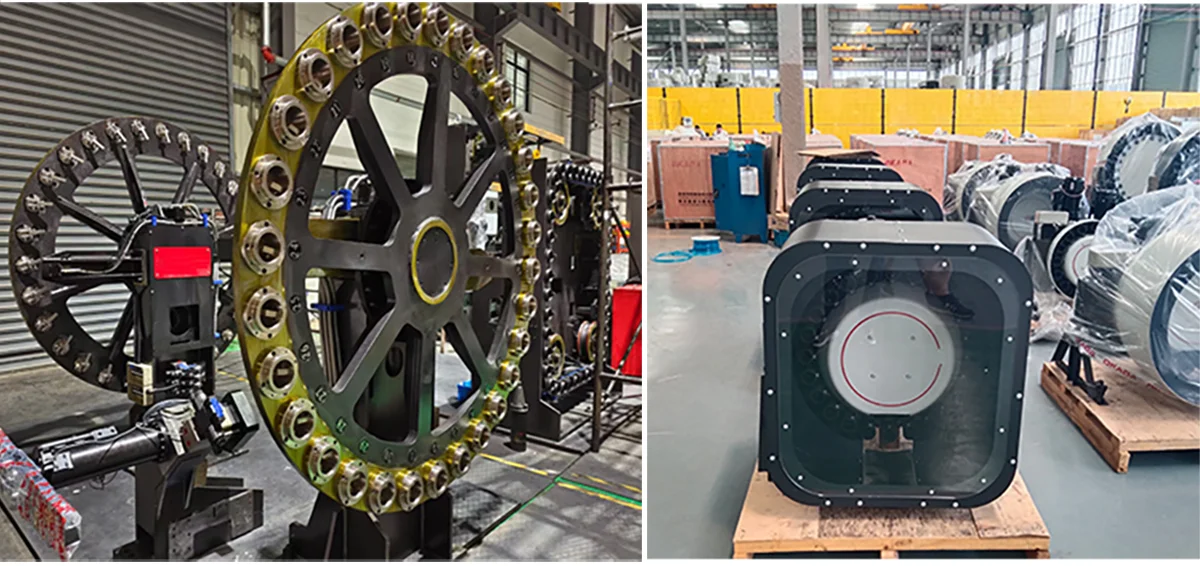

Factory Show
