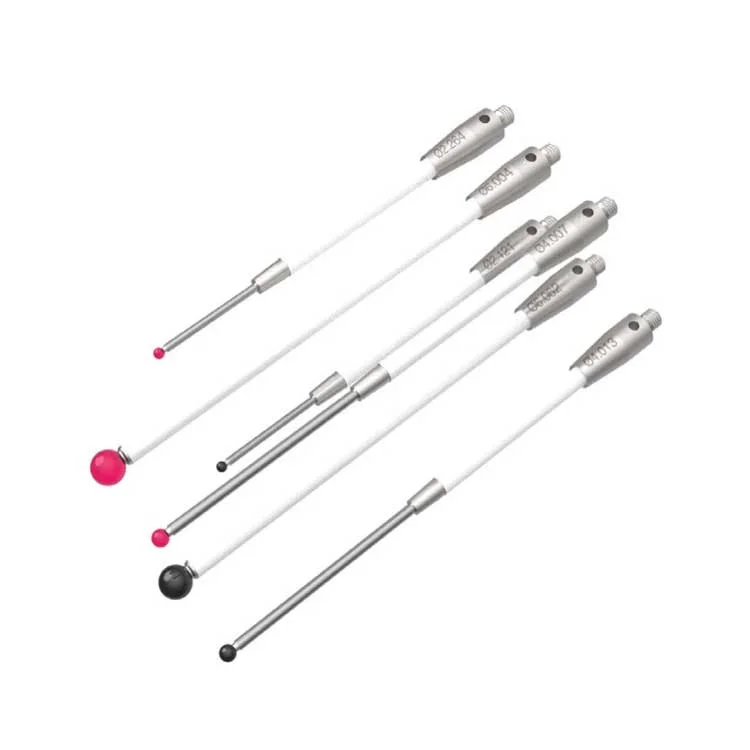

PRECISION RENISHAW STYLI PROBE AND ACCESSORIES

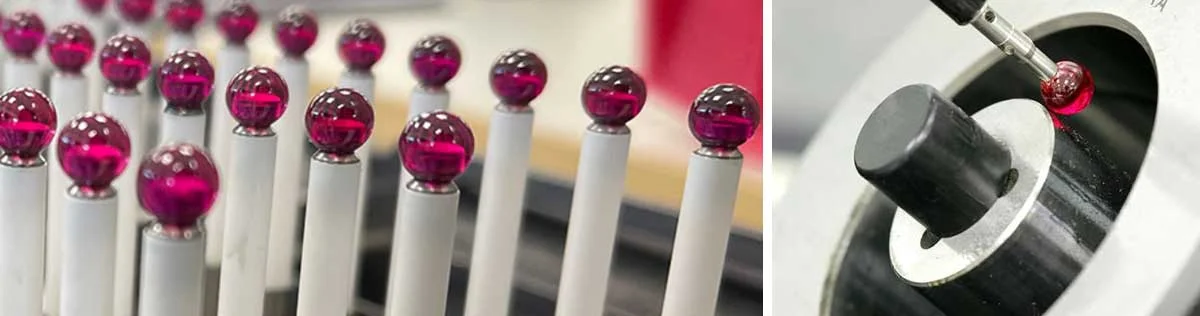

The stylus is the part of the measuring system that touches the surface of the component. When contact is made, it causes a small displacement in the probe mechanism, generating a signal that allows for accurate measurement. It plays a key role in ensuring precision during inspection.
Product details
KEY FEATURES AND BENEFITS
A standard range of over 500 parts and over 15,000 custom variants.
Top precision balls. Grade 5 (0.13 microns sphericity) as standard, grade 3 (0.08 microns sphericity) on request.
A wide range of material combinations

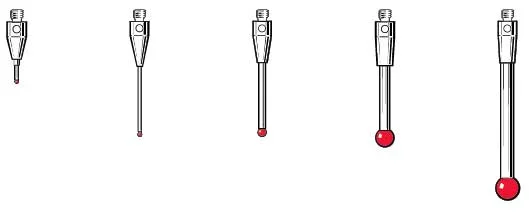

M2 Threaded Stylus Range

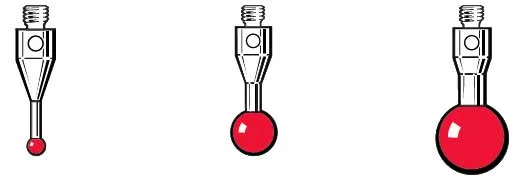

Ruby ball styli
| (stainless steel) | ||
| A-5000-7802 | A-5000-4154 | A-5000-4156 |
| A 1.5 (0.06) | A 4.0 (0.16) | A 6.0 (0.24) |
| B 10.0 (0.40) | B 10.0 (0.40) | B 10.0 (0.40) |
| (tungsten carbide) | ||||
| A-5000-7805 | A-5003-0577 | A-5003-0034 | A-5003-0938 | A-5003-0043 |
| A 0.5 (0.020) | A 0.7 (0.028) | A 1.5 (0.06) | A 3.0 (0.12) | A 4.0 (0.16) |
| B 10.0 (0.40) | B 20.0 (0.79) | B 20.0 (0.79) | B 20.0 (0.79) | B 30.0 (1.19) |
M4 Threaded Stylus Range

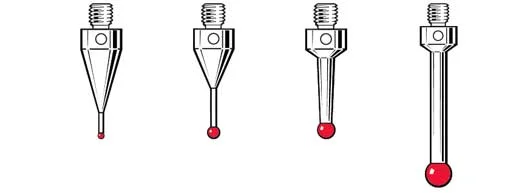

| Ruby ball styli(stainless steel) | |||
| A-5000-7545 | A-5000-7547 | A-5000-7549 | A-5000-6352 |
| A 1.0 (0.04) | A 2.0 (0.08) | A 3.0 (0.12) | A 5.0 (0.20) |
| B 19.5 (0.77) | B 19.0 (0.75) | B 18.5 (0.73) | B 30.0 (1.19) |

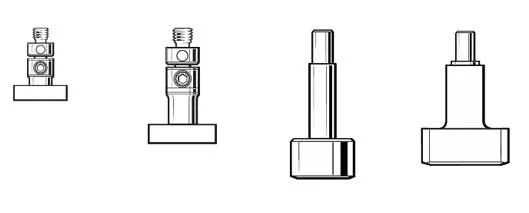

| Tool setting styli | |||
| (tungsten carbide) (ceramic) | |||
| A-2197-0157 | A-2197-0158 | A-2008-0382 | A-2008-0384 |
| B 14.2 (0.56) | B 19.57(0.77) | B 23.0 (0.91) | B 22.0 (0.87) |

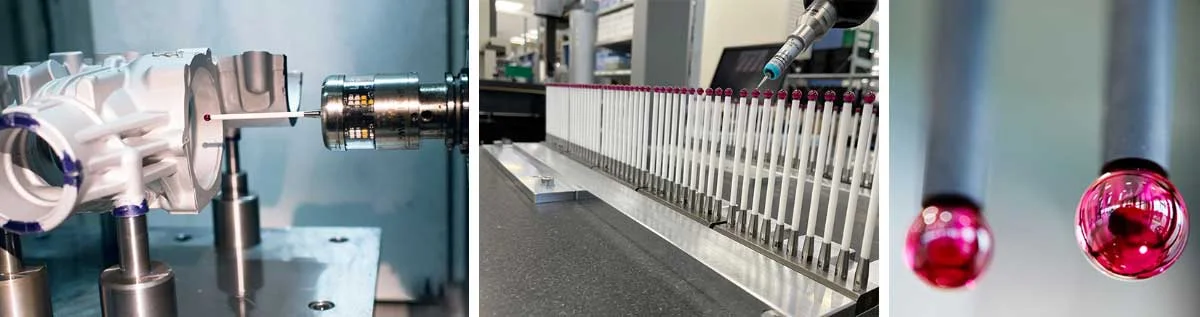

Product Show
