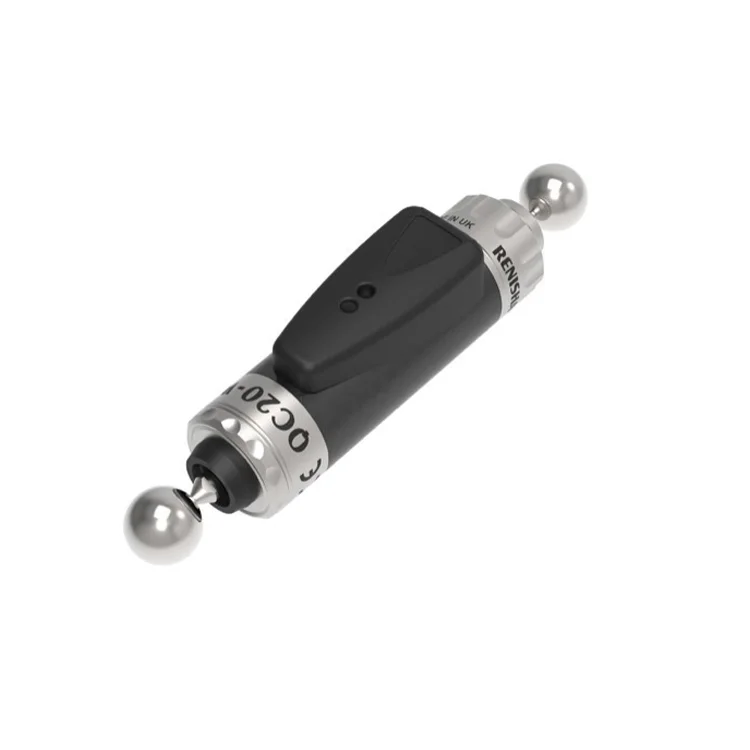

QC20-W BALLBAR SYSTEM

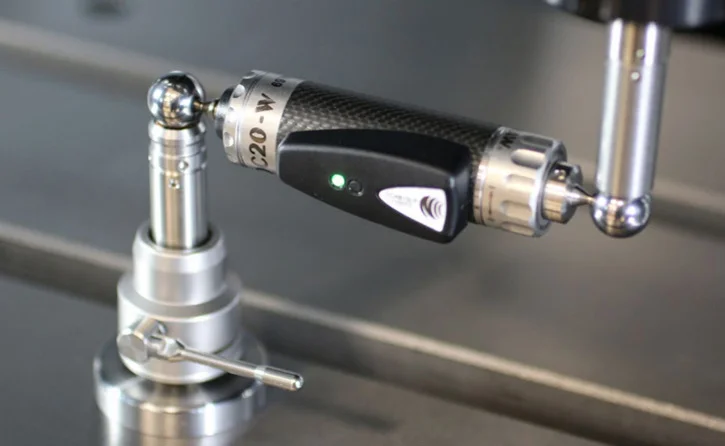

The QC20-W ballbar is capable of performing tests across all three orthogonal planes without needing to reposition the center pivot. It executes a limited arc (220°) in two of the planes and a full 360° rotation in the third.
The Ballbar 20 software provides a rapid and detailed diagnosis of the machine’s performance. The generated diagnostic report ranks each detected error based on its impact on overall machine performance, along with the corresponding error value.
The Ballbar 20 software provides a rapid and detailed diagnosis of the machine’s performance. The generated diagnostic report ranks each detected error based on its impact on overall machine performance, along with the corresponding error value.
Product details
KEY FEATURES AND BENEFITS
Wireless technology for flexible operation
Indicates overall machine accuracy with contributing errors clearly displayed
Software allows repeat testing and tracking of performance trends over time
Increases the knowledge of your machine/manufacturing capabilities, potentially reducing scrap and rework
QC20-W SPECIFICATION
| Measurement | |
| Accuracy | ± (0.7 + 0.3% L) μm |
| Range | ±1 .0 mm |
| Maximum sample rate | 1000 Hz |
| Data transmission range | 10 m typical |
L = length over which error is measured
