RMP60
The RMP60 combines Renishaw’s traditional kinematic resistive probe mechanism with a secure and unique frequency hopping transmission protocol; ideal for the modern machine shop and harsh environments where line-of-sight between probe and interface is not always possible.
KEY FEATURES AND BENEFITS
Proven kinematic design
Secure frequency hopping spread spectrum (FHSS)
Globally recognised 2.4 GHz waveband – compliant with radio regulations in all major markets
Compact design
Various activation options and adjustable trigger force
1.00 µm 2σ repeatability

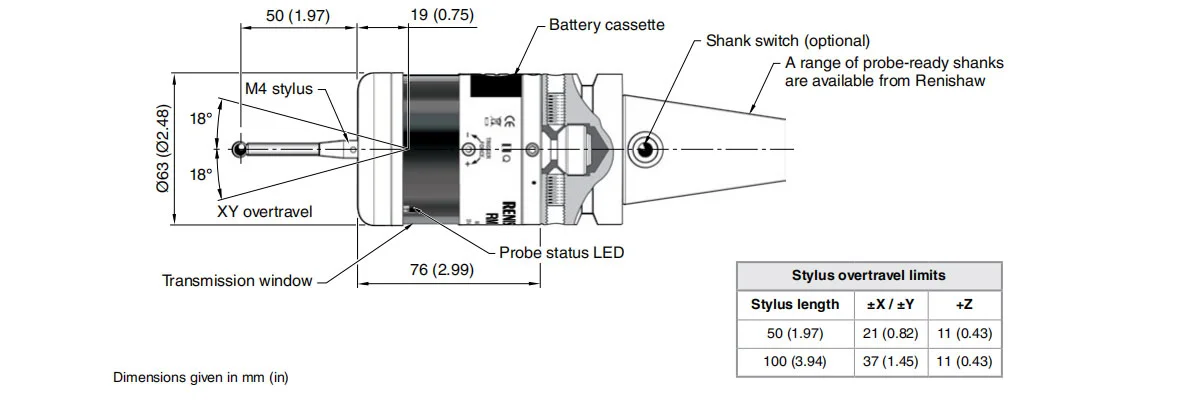

DIMENSIONS
RMP60 SPECIFICATION
| Principal application | Workpiece inspection and job set-up on multi-tasking machines, machining centres and gantry machining centres. | |
| Transmission type | Frequency hopping spread spectrum (FHSS) radio Radio frequency 2400 MHz to 2483.5 MHz | |
| Radio approval regions | China, Europe (all countries within the European Union), Japan and USA. For details about other regions, contact Renishaw. | |
| compatible interfaces | RMl and RMl-Q | |
| perating range | Up to 15m (49.2ft) | |
| Recommended styli | Ceramic, lengths 50 mm (1.97 in) to 150 mm (5.91 in) | |
| Weight without shank (including batteries) | 901g(31.79 oz) | |
| Switch-on/switch-off options | Radio on → Radio off or timer off Spin on → Spin off or timer off Shank switch on → Shank switch off | |
| Battery life (2 × AA 3.6 V Lithium-thionyl chloride) | Standby life | 890 days maximum, dependent on switch-on/switch-off option. |
| Continuous use | 1710 hours maximum, dependent on switch-on/switch-off option. | |
| Sense directions | ±X, ±Y, +Z | |
| Unidirectional repeatability | 1.00 µm (40 µin)2s (see note 1) | |
| Stylus trigger force(see notes 2 and 3) XY low force XY high force +Z direction | 0.75 N,76 gf(2.70 ozf) 1.40 N,143 gf (5.04 ozf) 5.30 N,540 gf (19.06 ozf) | |
| Sealing | IPX8(EN/IEC 60529) | |
| Operating temperature | +5°Cto +55°C(+41°F to+131°F) | |
Note 1 Performance specification is tested at a standard test velocity of 480 mm/min (18.9 in/min) with a 50 mm stylus. Significantly higher velocity is possible depending on application requirements.
Note 2 Trigger force, which is critical in some applications, is the force exerted on the component by the stylus when the probe triggers. The maximum force applied will occur after the trigger point (overtravel). The force value depends on related variables including measuring speed and machine deceleration.
Note 3 These are the factory settings; manual adjustment is possible. For more details, refer to the RMP60 installation guide.

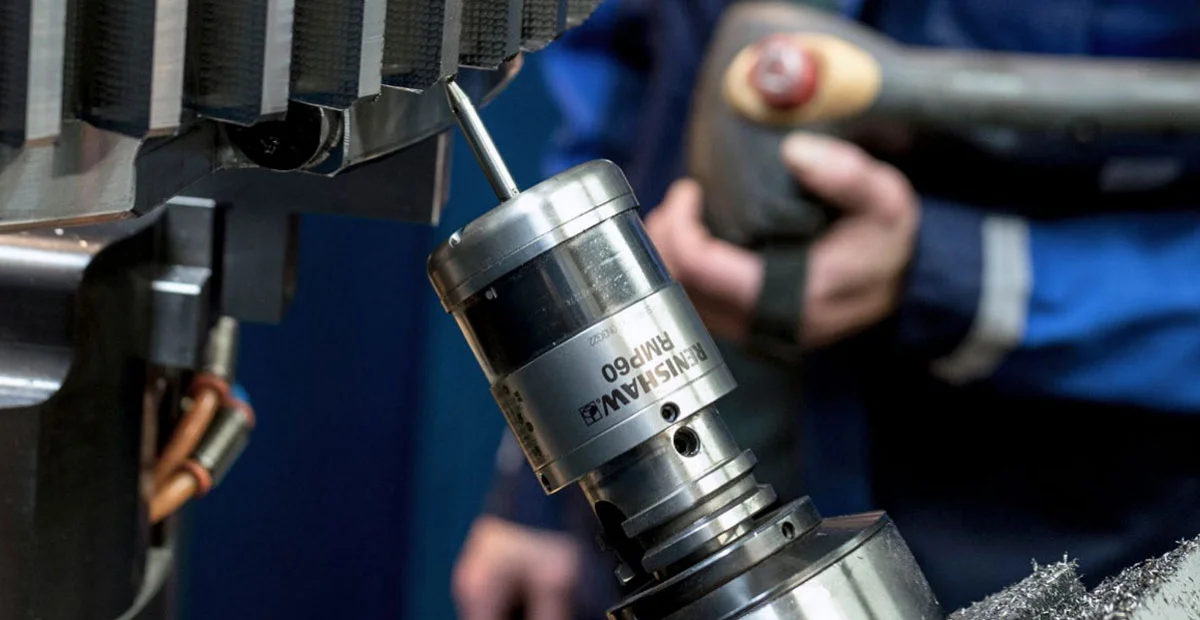

PRODUCT SHOW
