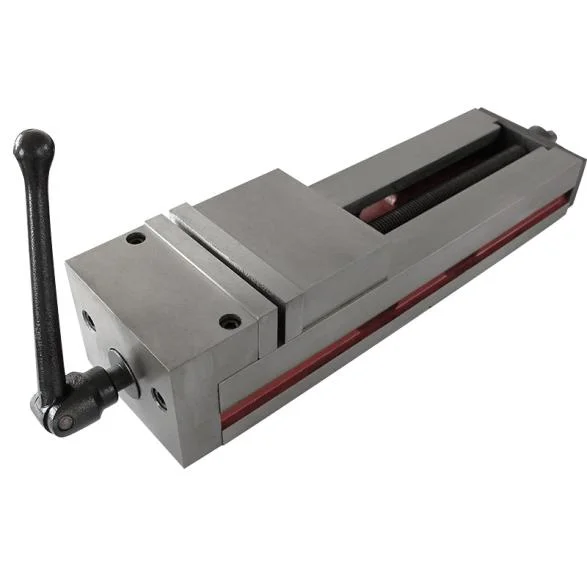

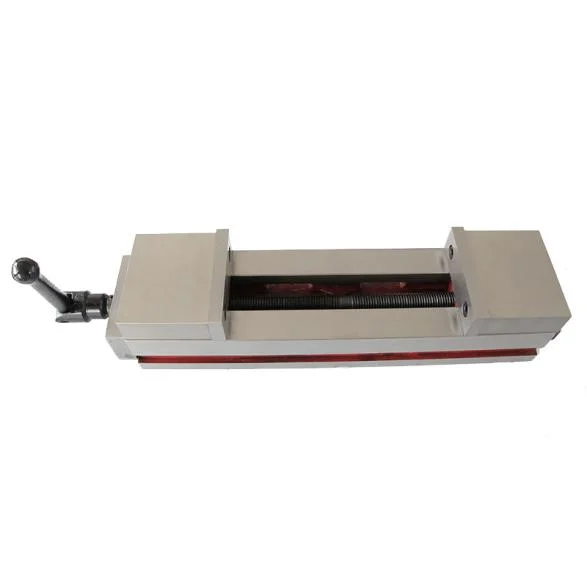

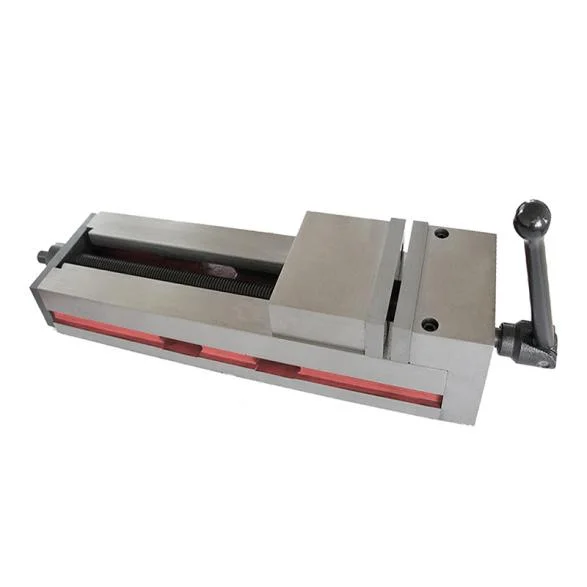

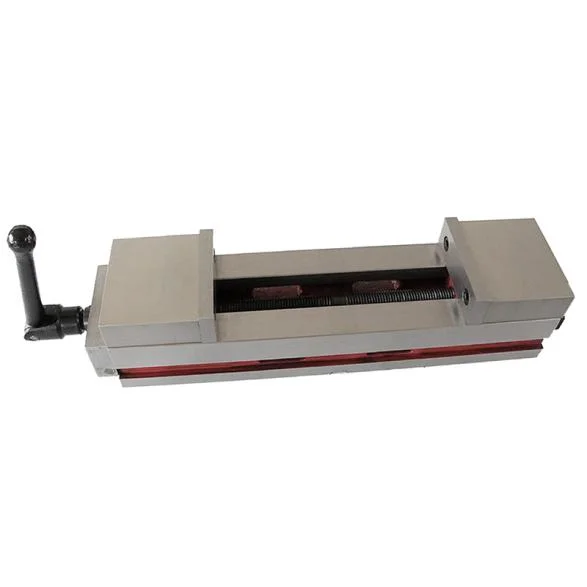

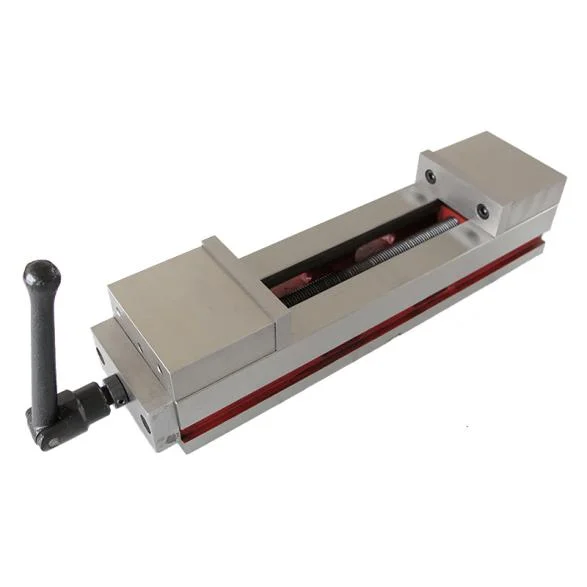

QM16N VISE

FEATURES

▶ QM16N series machine vice is suitable for vertical machining center, grinding machine, material is ductile iron, guide rail surface are quenched. It has high precision, can stand wear and stand sideways , it’s not easy to deform. Equivalent height can be used in parallel with multiple sets. And can produce 30 degrees of downward force in the clamping process to ensure that the workpiece does not float up.

FEATURE:

▶ 1.The fixed jaws are fastened by four bolts to reduce dynamic deformation

The fixed end of the screw adopts thrust bearing, which reduces friction and has large clamping force

▶ 2.Fixed accuracy:

The parallelism of the clamping body guide rail:0.085/100mm

The verticality of the vice jaw:0.03mm

The flatness of the clamping workpiece:0.02/100mm

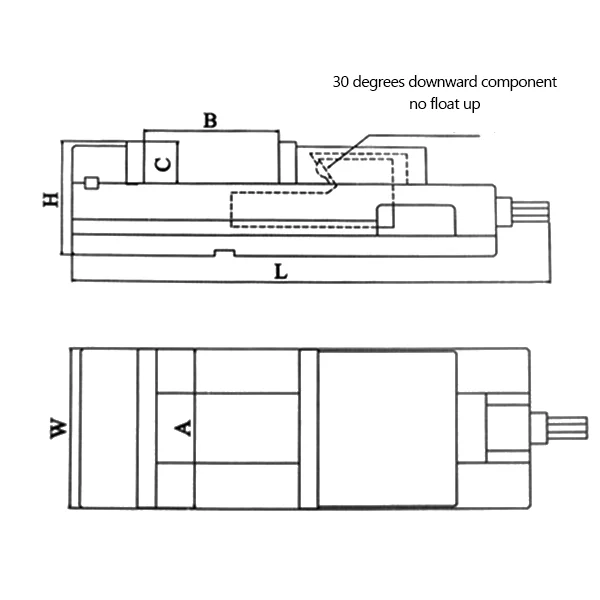

DIMENSION
