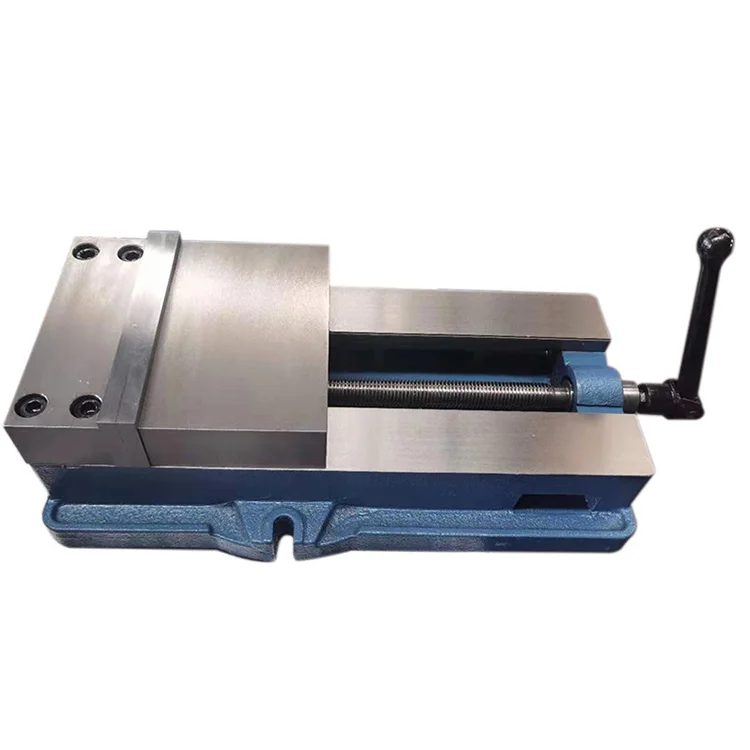

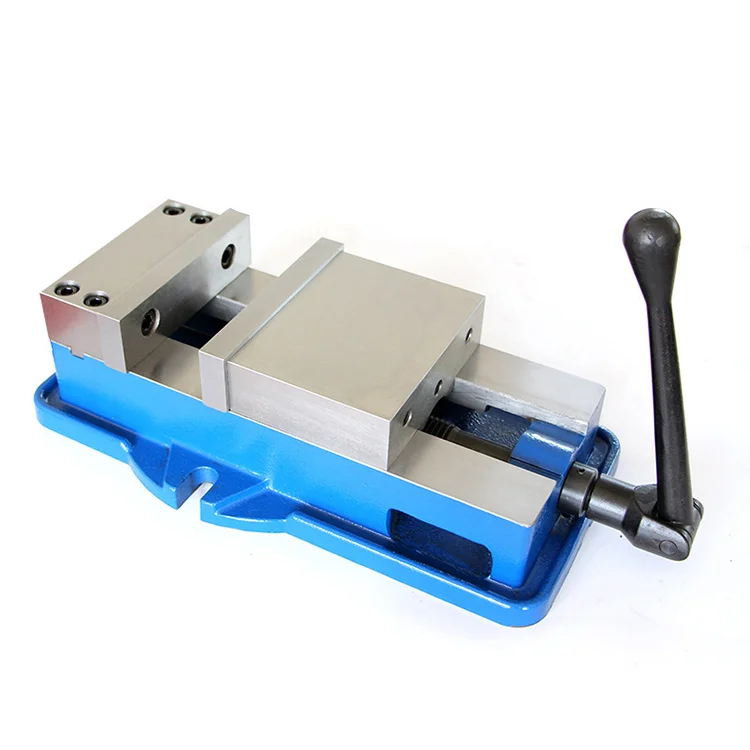

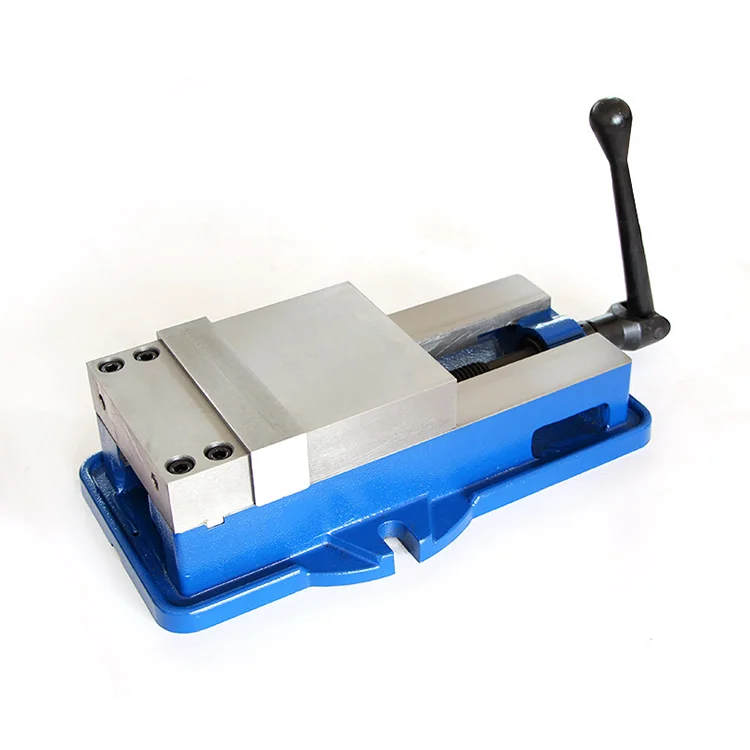

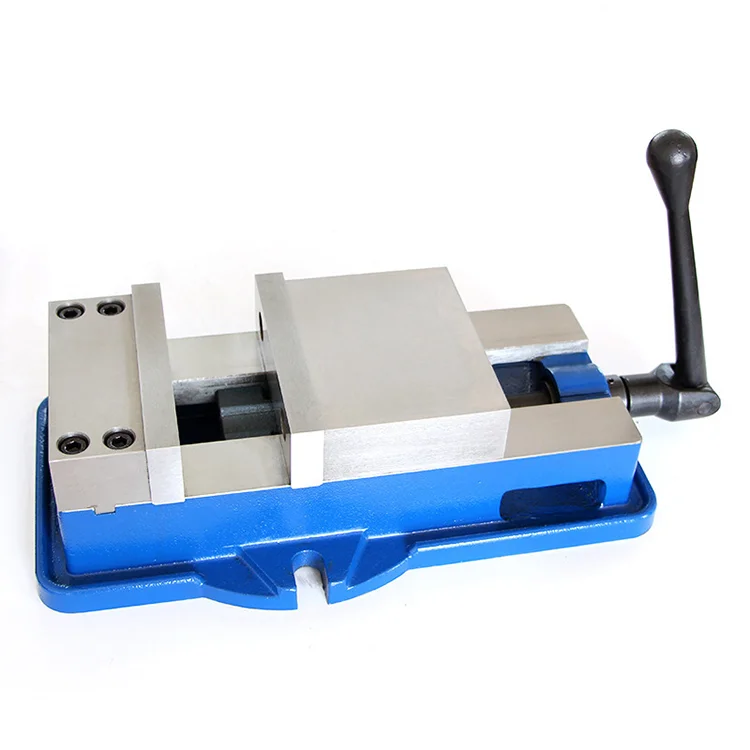

QM16 SERIES MACHINE VISE WITHOUT BASE

PRODUCT INFORMATION

▶ QM16 series undecided machine vice is suitable for vertical machining center and milling machine.

FEATURE:

▶ 1.Angle fixed design the semicircle can produce 30 degrees of downward force in the clamping process to ensure that the workpiece does not float up.

▶ 2.Jaw and lead screw are all quenched to maintain long wear resistance and precision.

▶ 3.The fixed jaws are fastened by four bolts to reduce dynamic deformation

▶ 4.Equivalent height can be used in parallel with multiple sets

▶ 5.The fixed end of the screw adopts thrust bearing, which reduces friction and has large clamping force

▶ 6.The material is HT250

FIXED ACCURACY:

▶ The parallelism of the clamping body guide rail:0.01/100mm

▶ The verticality of the vice jaw:0.02mm

▶ The flatness of the clamping workpiece:0.02/100mm

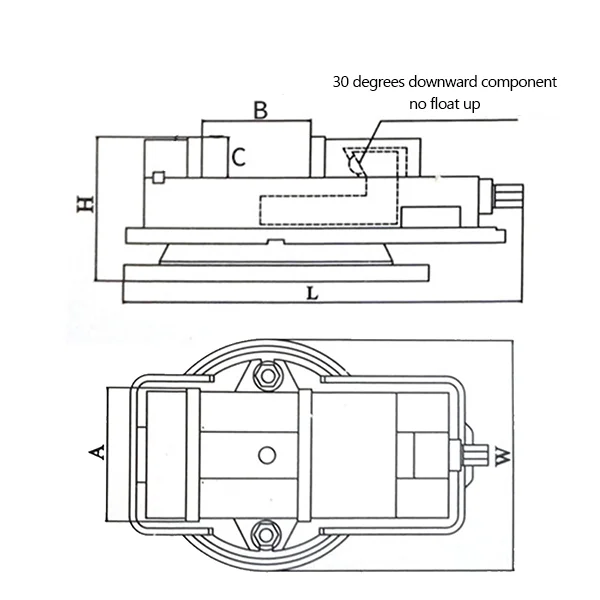

DIMENSION
