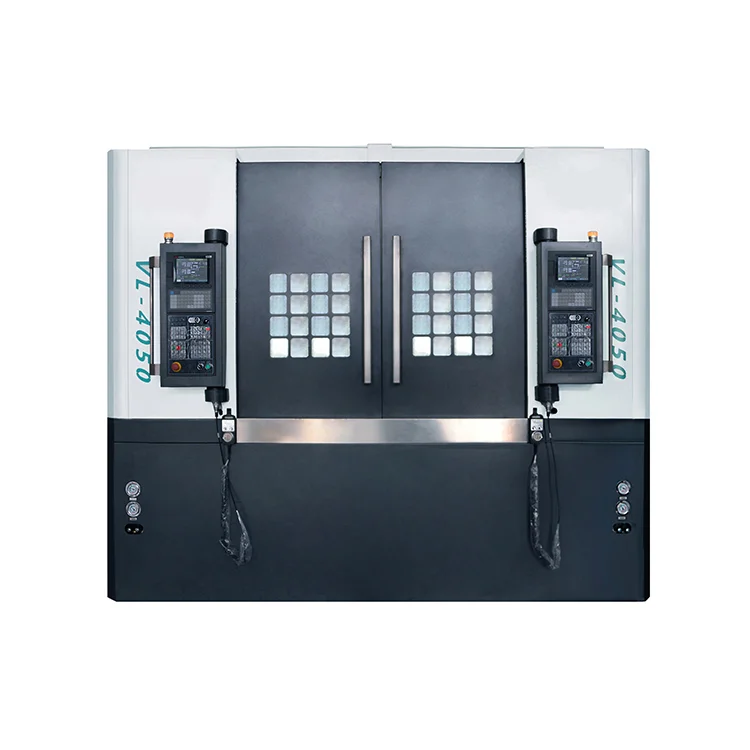

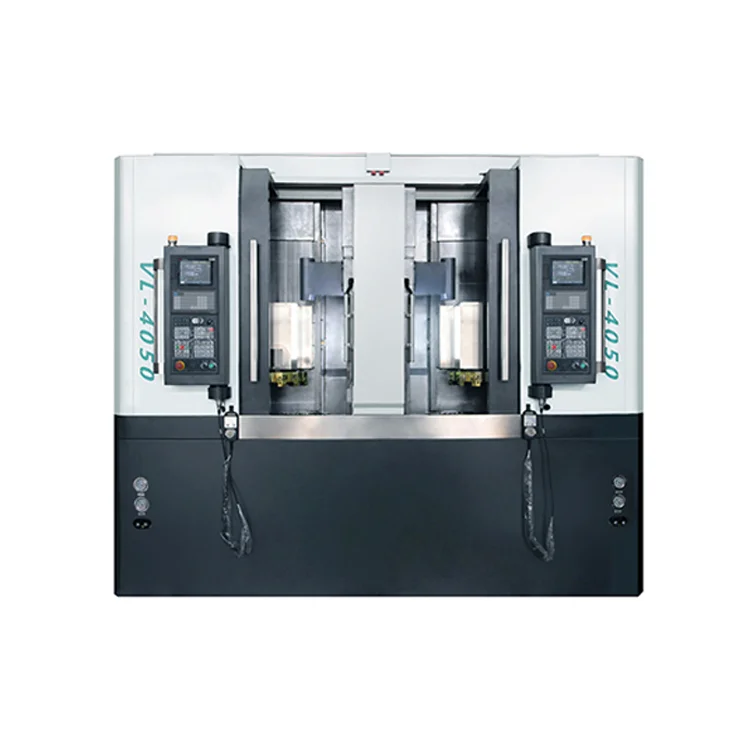

RD-VL SERIES DOUBLE SPINDLE CNC VERTICAL LATHE
FEATURES
▶ 1.Duplex location design, improve work efficiency, small footprint, save workshop space.
▶ 2.Casting material use HT300 high quality alloy cast iron to ensure high quality, high rigidity of the lathe.
▶ 3.10/12 station servo turret is standard which support bidirectional nearby tool selection mode. The operation will be more fast, stable and reliable, saving the processing time and improving the processing efficiency.
▶ 4.2 axis adopt roller linear guide rail to improve precision.
▶ 5.It can be equipped with FANUC, SIEMENS, KND and GSK CNC systems according to the customers need.
▶ 6.The electrical control system of machine tool adopts PLC modular design, which is convenient for customers to add functional parts at any time.
PARAMETER
ITEM | UNIT | RD-VL4050S |
Max. swing diameter | mm | 500 |
Max. turning diameter | mm | 400 |
Max. turning height | mm | 650 |
Spindle nose | A2-6 | |
Taper of tailstock sleeve | MT#4 | |
Spindle speed | r/min | 50～2500 |
Chuck diameter | in | 10 |
Max. spindle torque | N.m | 330 |
Max. loading capacity | kg | 500 |
Spindle motor power | kw | 22 |
CNC system | FANUC/SIEMENS/KND/GSK | |
2 axis guide rail | 35 roller guide | |
2 axis lead screw | 3210 | |
Tailstock guide rail | 25 roller guide | |
Tailstock lead screw | 2510 | |
X/Z axis motor power | kw | 2.9/4.0/2.4 |
X/Z axis fast move speed | m/min | 26/26/15 |
X axis travel | mm | -30～+430 |
Z axis travel | mm | 600 |
X/Z axis positioning accuracy | mm | ±0.006 |
X/Z axis repeated positioning accuracy | mm | ±0.004 |
Turret tool number | 10/12 | |
Tool size O.D tool/Boring tool | mm | 25x25/40 |
Hydraulic control range | MPa | 0.1-6 |
Machining precision | IT6～IT7 | |
Surface roughness | Ra1.6 | |
Stampings pump head/flow | 34m/4m³/h | |
Cooling pump head/flow | 28m/4m³/h | |
Chip conveyor | Chain chip removal | |
Working voltage | Hz | 380V±10% 50Hz |
Machine electrical capacity | kVA | 35kVA*2 |
Dimension | mm | 3200x2480x2800 |
Machine tool protection | Full protection | |
Weight | kg | 10000 |

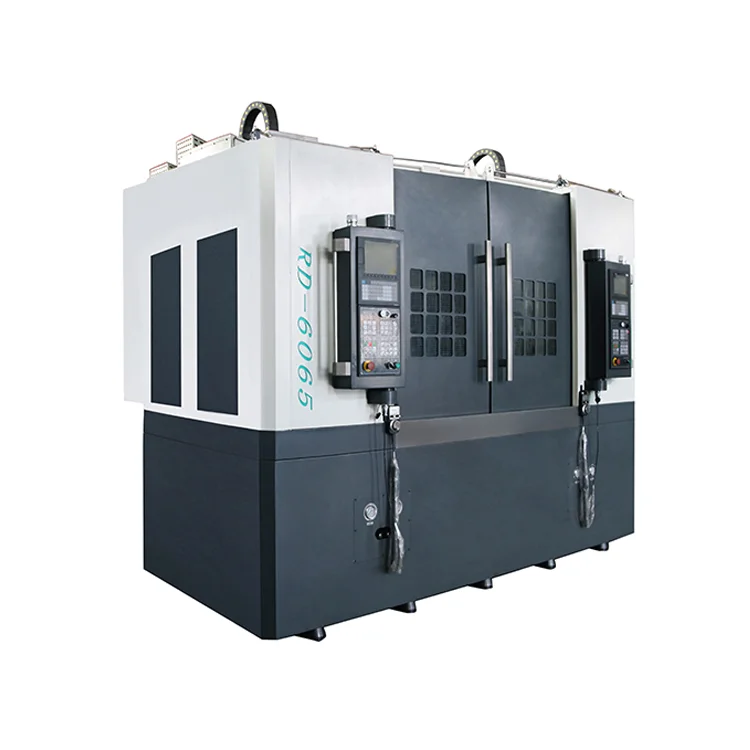

ITEM | UNIT | RD-VL6065S SINGLE SPINDLE | RD-VL6065S DOUBLE SPINDLE |
Max. swing diameter | mm | 650 | 650 |
Max. turning diameter | mm | 600 | 600 |
Max. turning height | mm | 600 | 600 |
Spindle nose | A2-8 | A2-8 | |
Spindle speed | r/min | 50～2000 | 50～2000 |
Chuck diameter | in | 12 | 12 |
Max. spindle torque | N.m | 600 | 600 |
Max. loading capacity | kg | 800 | 800 |
Spindle motor power | kw | 22 | 22 |
CNC system | FANUC/SIEMENS/KND/GSK | FANUC/SIEMENS/KND/GSK | |
2 axis guide rail | 45 roller guide | 45 roller guide | |
2 axis lead screw | 4210 | 4210 | |
X/Z axis motor power | kw | 2.8/3.6 | 2.8/3.6 |
X/Z axis fast move speed | m/min | 20 | 20 |
X axis travel | mm | -30～+650 | -30～+650 |
Z axis travel | mm | 600 | 600 |
X/Z axis positioning accuracy | mm | ±0.005 | ±0.005 |
X/Z axis repeated positioning accuracy | mm | ±0.003 | ±0.003 |
Turret tool number | 10/12 | 10/12 | |
Tool size O.D tool/Boring tool | mm | 25x25/40 | 25x25/40 |
Hydraulic control range | MPa | 0.1-6 | 0.1-6 |
Machining precision | IT6～IT7 | IT6～IT7 | |
Surface roughness | Ra1.6 | Ra1.6 | |
Stampings pump head/flow | 34m/4m³/h | 34m/4m³/h | |
Cooling pump head/flow | 28m/4m³/h | 28m/4m³/h | |
Chip conveyor | Chain chip removal | Chain chip removal | |
Working voltage | Hz | 380V±10% 50Hz | 380V±10% 50Hz |
Machine electrical capacity | kVA | 35kVA*2 | 35kVA*2 |
Dimension | mm | 3300x2800x3000 | 3300x2800x3000 |
Machine tool protection | Full protection | Full protection | |
Weight | kg | 12000 | 12000 |
▶ STANDARD ACCESSORIES:
1 | Automatic tool exchange device | 6 | Three color signal light | 11 | Standard accessory |
2 | Workpiece cooling system | 7 | Chain plate chip removal device | 12 | Tools and toolboxes |
3 | Automatic lubricating system | 8 | MPG | 13 | Anchor screws and pads |
4 | Fully enclosed shield | 9 | Air conditioner | 14 | Technical data |
5 | Working light | 10 | TCP/TP,USB,RS232 interface |
▶ MAIN ACCESSORIES:
Mechanical Parts | |||
NUM. | ITEM | SPECIFICATION | BRAND |
1 | Casting | Alloy cast iron HT300 | CHINA |
2 | Spindle | A2-X | KOREAN |
3 | X/Z axis ball screw | DIK Series | THK,JAPAN |
4 | Screw bearing | NACHI,JAPAN | |
5 | Coupling | TAIWAN,CHINA | |
6 | X/Z axis linear guide rail | SRG Series | THK,JAPAN |
7 | Chuck | Hydraulic chuck | CHINA |
8 | Pneumatic element | AirTAC | TAIWAN,CHINA |
9 | Turret | Horizontal/Vertical | TAIWAN,CHINA |
10 | Driving belt | SPB type triangular belt | GATES,US |
11 | Processing cooling mode | Coolant in turret | TAIWAN,CHINA |
12 | Self-lubrication system | 3L | BAOTN |
13 | Cooling water pump | CD04-30T | LINGXIAO,CHINA |
14 | Stampings pump | CD04-40T | LINGXIAO,CHINA |
15 | Hydraulic station | Capacity:60L/Flow:40L | MENGFU,CHINA |
16 | Working light/3 color signal light | LED-400/ORT2-101B | OTENNLUX,CHINA |
17 | Internal/external protection | SHUOHUI,CHINA | |
18 | Chip conveyor | Chain chip removal | SHUOHUI,CHINA |
Electrical Parts | |||
NUM. | ITEM | SPECIFICATION | BRAND |
1 | CNC system | FANUC/SIEMENS/ | |
2 | Feed servo motor and driving device | ||
3 | Transformer | ||
4 | Machine tool operating panel | ||
5 | Spindle servo motor and driving device | MK (FANUC/SIEMENS is optional) | |
6 | Contactor | AC220V | SIEMENS/SCHNEIDER |
7 | Relay | DC24V | SIEMENS/SCHNEIDER |
8 | Automatic switch/circuit breaker | SIEMENS/SCHNEIDER | |
9 | Air conditioner | CHINA | |
