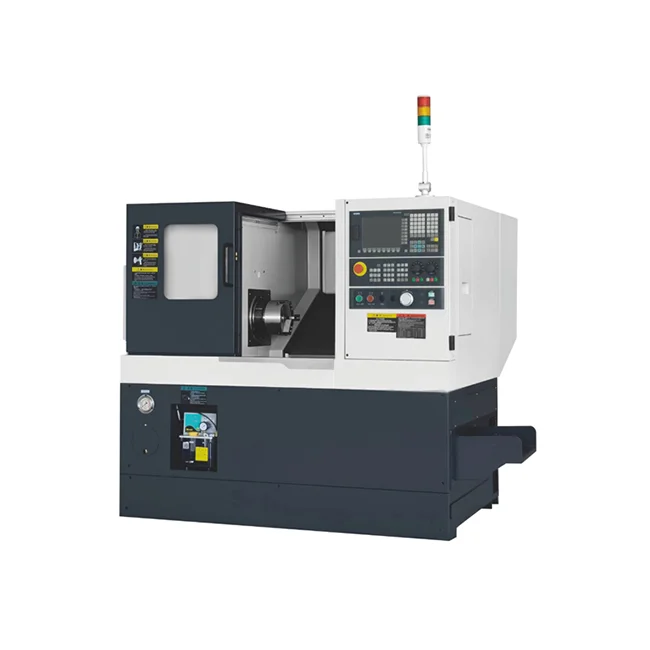

CNC GANG TOOL LATHE S PRECISE SERIES S36
6" chuck

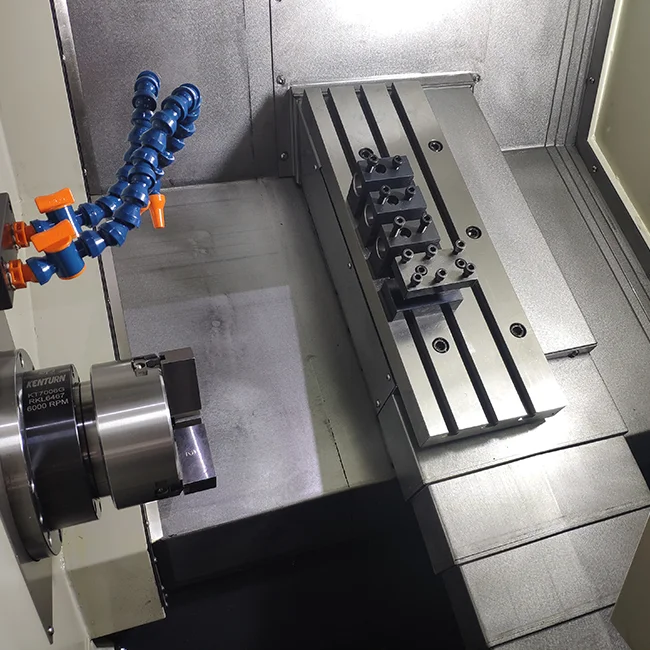

Gang tool
Without tailstock
Linear guideway
A2-5 spindle
FEATURE:
▶ 1.Mount gang tool device
▶ 2.Super compact structure, big inside space, modern appearance
▶ 3.Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
▶ 4.Bed adopt flat bed, slide board adopt 30° slant design(structure similar as JAPAN TSUGAMI M06/08), high rigidity, good machining flexibility, easy for chip conveying
▶ 5.Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, robot etc
▶ 6.Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability
▶ 7.Frame adopt oil-coolant separation design, adopt independent coolant tank
▶ 8.Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed, wide adjustment range
▶ 9.Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkage, no gap,high transmission rigidity, can realize μ class precise turning
▶ 10.Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for precise machining
▶ 11.Can mount right-setting or back-setting chip conveyor

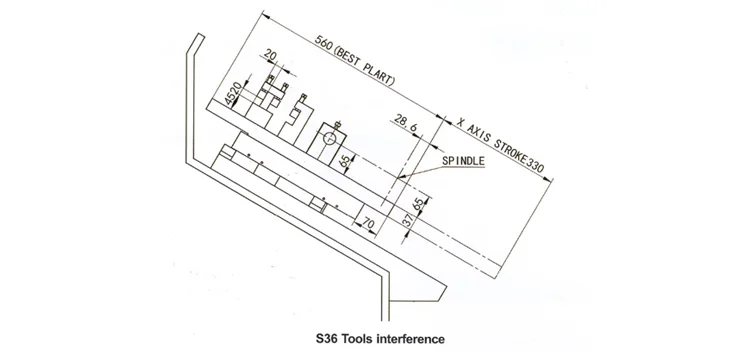

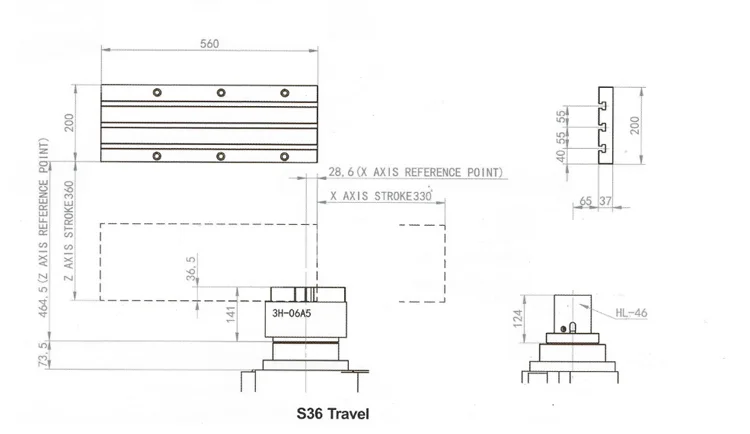

DIMENSION
Standard configuration:
Hydraulic chuck
Gang tool
Optional configuration:
Automatic chip conveyor
CL42 collet chuck
PARAMETER
| Item | Specification | Unit | S36 |
| Capacity | Chuck size | / | 6" |
| Max. swing dia. over bed | mm | Φ460 | |
| Max. swing dia. over slide | mm | Φ130 | |
| Max. turning length | mm | 330 | |
| Max. turning dia. | Φ125 | ||
| Spindle | Spindle bore | mm | Φ56 |
| Spindle end type | / | A2-5 | |
| Spindle speed | rpm | 5000 | |
| Max. bar through dia. | mm | Φ44 | |
| Spindle motor power | kw | 5.5 | |
| X/Z axes | X axes travel | mm | 330 |
| Z axes travel | mm | 360 | |
| X/Z axes rapid moving speed | m/min | 28 | |
| X/Z axes ball screw dia./pitch | mm | 32/12 | |
| X/Z axes linear guideway width | mm | 30/35 | |
| Tool turret | Tool turret type | / | Gang tool |
| Tool qty | / | 5 | |
| Toolshank size | mm | 20×20, Φ25 | |
| Tailstock | Tailstock | / | N/A |
| Accuracy | Ex-circle finish turning accuracy | / | IT6 |
| Finish turning roughness | mm | Ra0.4~1.6 | |
| Finish turning roundness | mm | ≤0.003 | |
| Positioning accuracy(X/Z) | mm | 0.005/0.008 | |
| Repeat positioning accuracy(X/Z) | mm | 0.002/0.004 | |
| Others | Coolant pump power | w | 180 |
| Coolant flow | m³/h | 3 | |
| Overall size | mm | 1560×1500×1500/2360×1500×1500 (exclude/include chip conveyor) | |
| N.W. | kg | 2300 |
MAIN PARTS LIST
| Item | Brand |
| CNC controller | GERMANY-SIEMENS/JAPAN-FANUC |
| X,Z axes driver & motor | GERMANY-SIEMENS/JAPAN-FANUC |
| Spindle driver & motor | GERMANY-SIEMENS/JAPAN-FANUC |
| Spindle unit | TAIWAN-VOLIS/KENTURN/OWN-MADE |
| Ball screw | TAIWAN-PMI/HIWIN |
| Ball screw bearing | JAPAN-NSK/NTN |
| Linear guideway | TAIWAN PMI/HIWIN |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder & chuck | TAIWAN-AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Coolant pump | JOINT-VENTURE |
| MPG | USA-HEDSS |
| Item | Brand |
| Tri-color indication lamp | KOREA-QLIGHT |
| Breaker | FRANCE-SCHNEIDER |
| AC contactor | FRANCE-SCHNEIDER |
| Relay | JAPAN-OMRON |
| DC switch power supply | TAIWAN-MEANWELL |
| Terminal block | GERMANY-WEIDMULLER |
| Synchronous belt | USA-GATES |
| Synchronous belt wheel | TAIWAN-PTP |
| Nuts | TAIWAN-YINSH |
| Shaft coupling | GERMANY-KTR/R+W |
| Chip conveyor & chip bucket | TAIWAN-WANHE |
| Coolant pipe | TAIWAN-WEIDING |

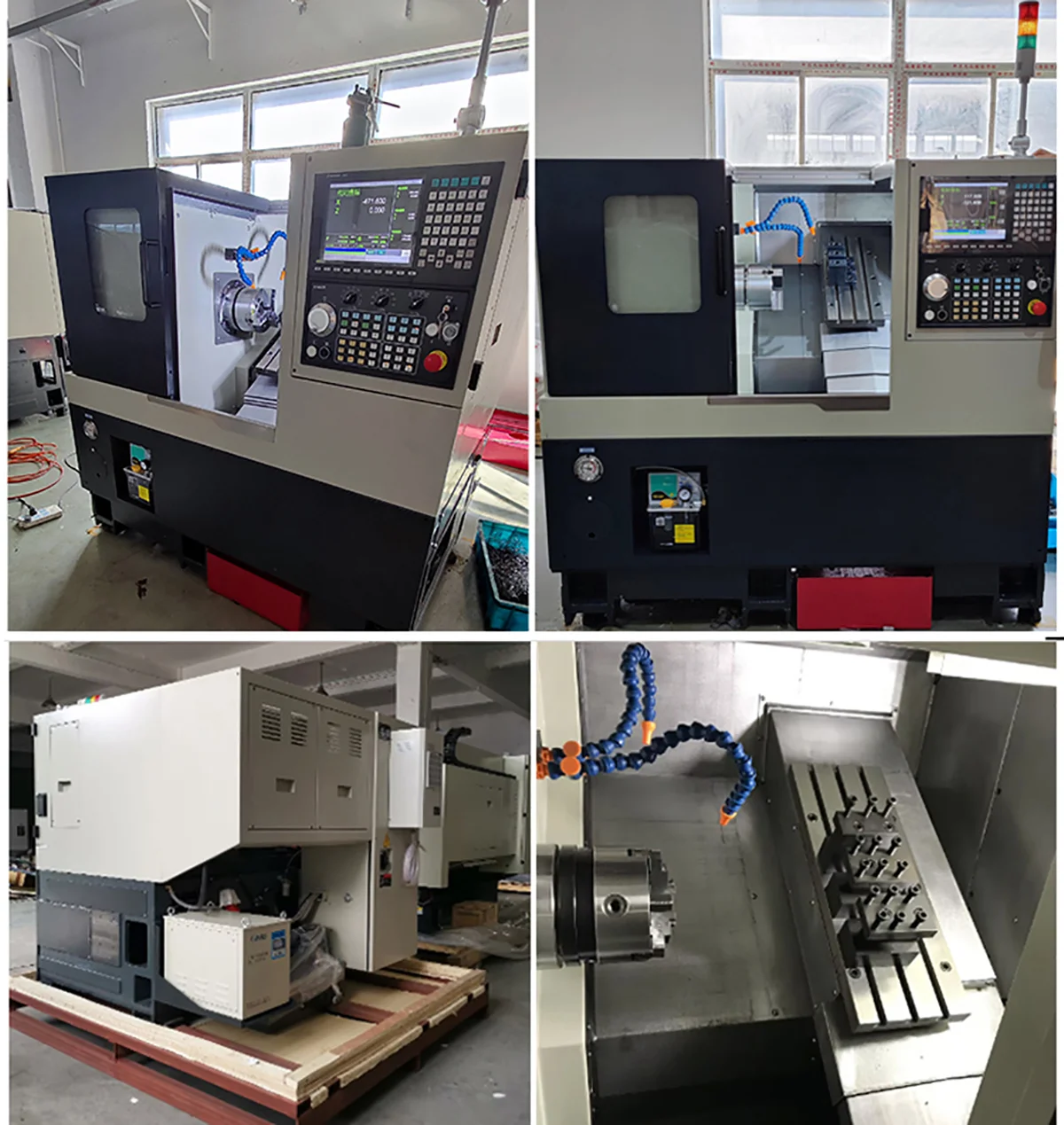

PRODUCT DETAILS
