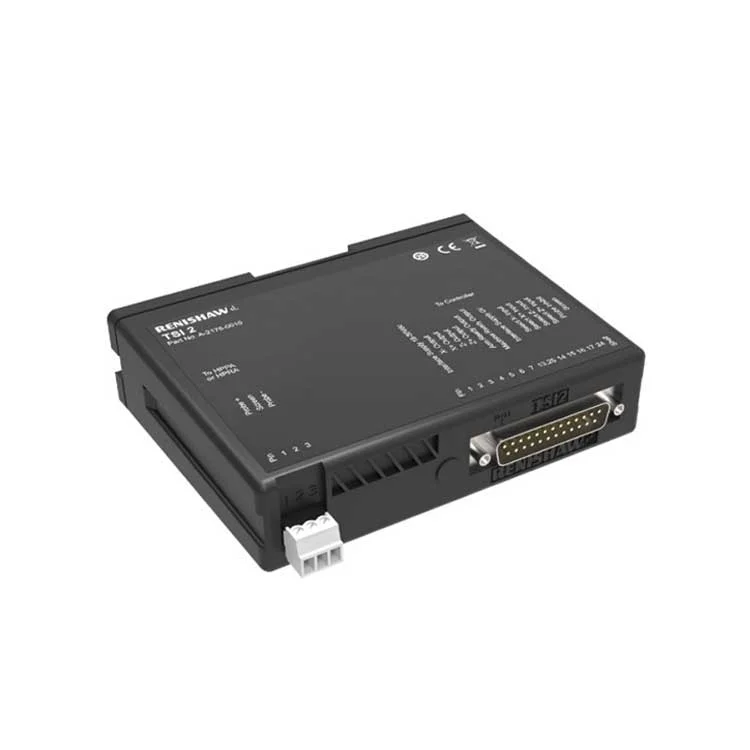

TSI 2 AND TSI 2-C INTERFACES
The TSI 2 and TSI 2-C interfaces process signals between the HPRA and HPPA tool setting arms and the machine tool controller .
The TSI 2 interface is designed to be used with all standard +24 Vdc operated controllers; for example, Fanuc, Siemens .
For controllers that do not operate from standard +24 Vdc power supplies (for example Okuma and HAAS) the TSI 2-C should be used instead . This features configurable solid-state relay (SSR) outputs that are easily integrated into all non +24 V controllers.
The TSI 2 interface is designed to be used with all standard +24 Vdc operated controllers; for example, Fanuc, Siemens .
For controllers that do not operate from standard +24 Vdc power supplies (for example Okuma and HAAS) the TSI 2-C should be used instead . This features configurable solid-state relay (SSR) outputs that are easily integrated into all non +24 V controllers.
Product details
KEY FEATURES AND BENEFITS
DIN rail mounted within the machine tool controller cabinet
‘Easy fit’ location mechanism
SSR output for easy user configuration (TSI 2-C only)
Probe vibration filter reduces false triggers caused by machine vibration

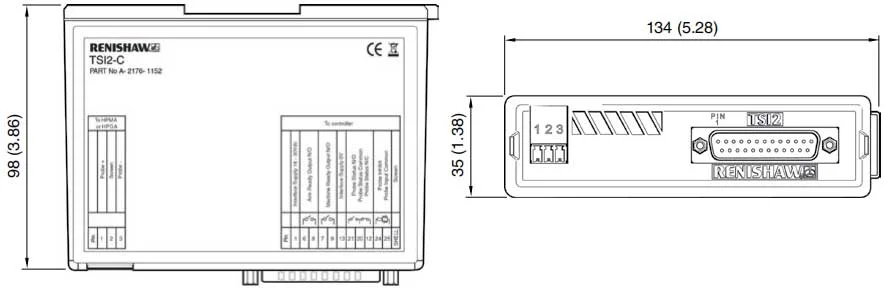

TSI 2 AND TSI 2-C DIMENSIONS
Dimensions given in mm (in)
TSI 2 AND TSI 2-C SPECIFICATION
| Variant | TSI 2 | TSI 2-C |
| Principal application | The TSI 2 and TSI 2-C interfaces process signals between the HPRA and HPPA tool setting arms and the machine tool controller. | |
| Transmission type | Hard-wired | |
| Probes per system | One | |
| Compatible probes | HPRA and HPPA | |
| Screen | Connect free end of cable screen to machine ground star point. | |
| Supply voltage | 18 Vdc to 30 Vdc | |
| Supply current | Imax=50 mA(not including output loading) | Imax=120 mA |
| Output signals | Probe status, Machine Ready, Arm Ready Unipolar active-high (non-configurable). Not TTL compatible. | Probe status:Voltage-free solid-state relay (SSR) output, configurable normally open or normally closed, compatible with TTL inputs. Machine Ready, Arm Ready:Voltage-free solid-state relay (SSR) output, compatible with TTL inputs. |
| Input/output protection | Supply protected by fuse. | Supply protected by resettable fuse. Outputs protected by fuses. |
| Input signal | Inhibit Probe select inputs Internally pulled down (2k4) ACTIVE HIGH | Inhibit Internally pulled down (2k4) ACTIVE HIGH |
| Standard outputs | Probe status (no complement) Position confirm signals (Machine Ready and Arm Ready) | |
| Probe vibration filter | A trigger delay circuit (6.5 ms) can be activated by reversing the brown and white wire connections to the TSI 2 (PL2-1 and PL2-3) | |
| Mounting | DIN rail mounting. | |
| Operating temperature | +5 °C to +60 °C (+41 °F to +140 °F) | |
For further information and the best possible application and performance support,please contact us.
