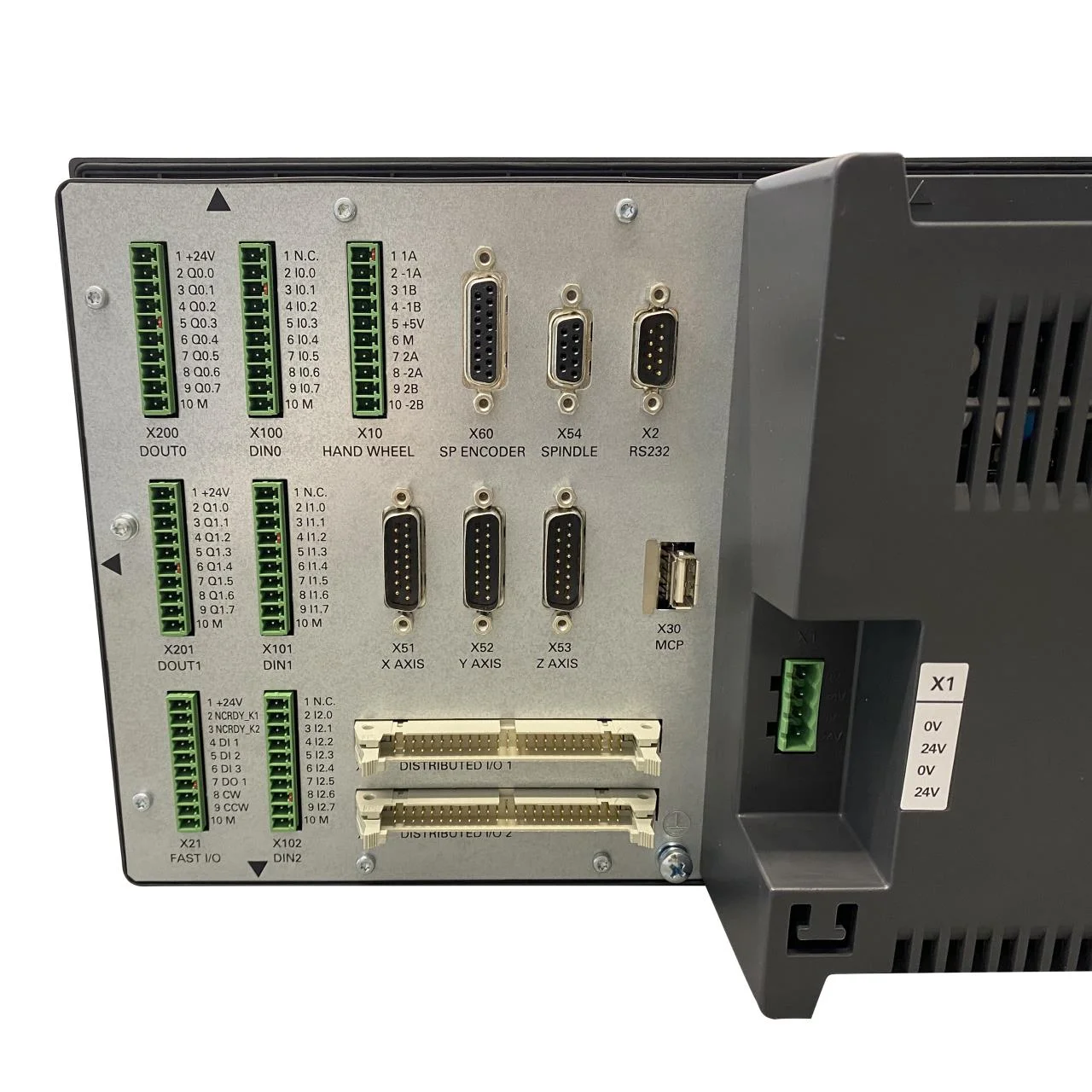

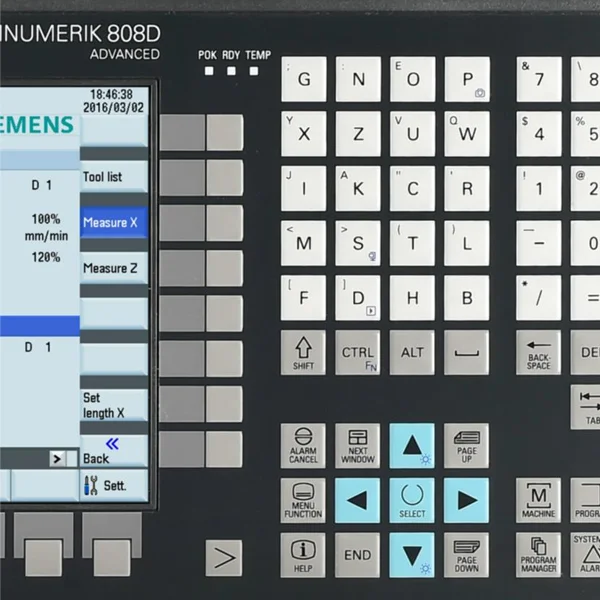

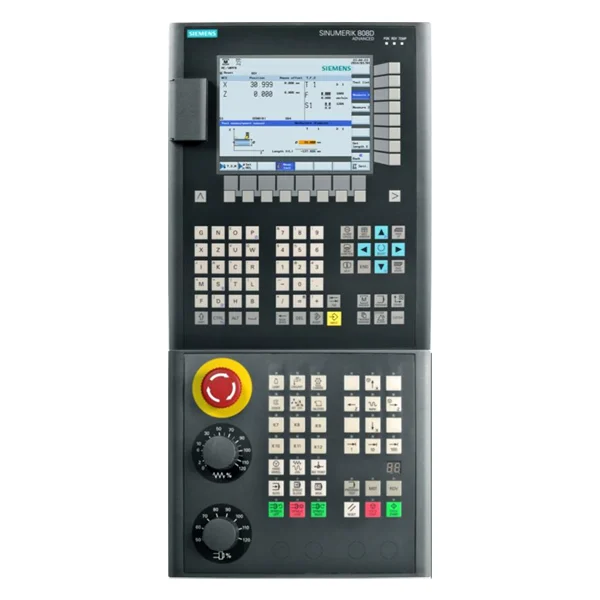

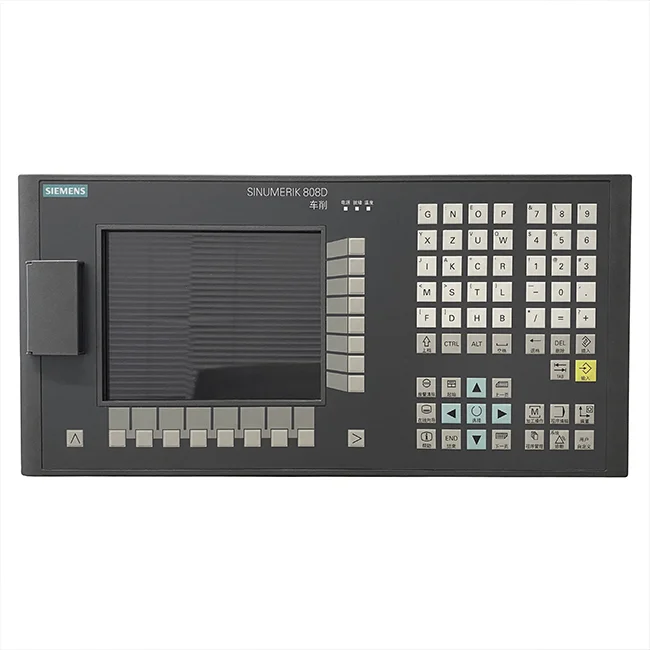

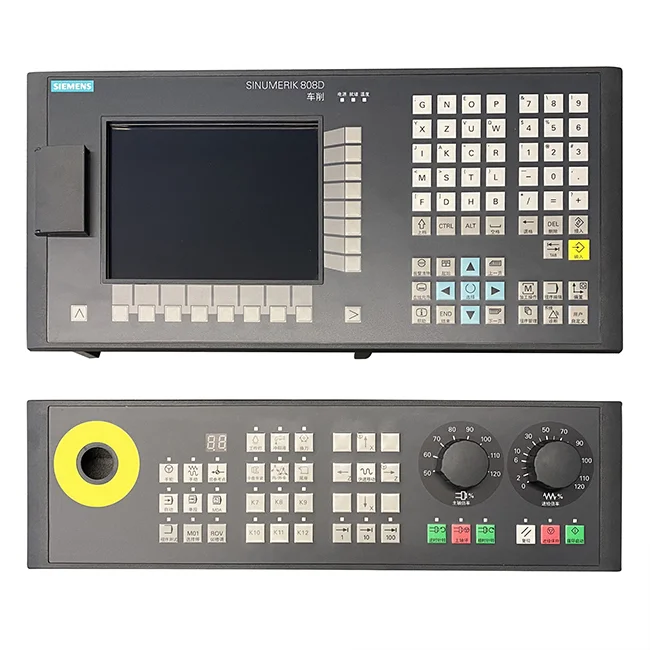

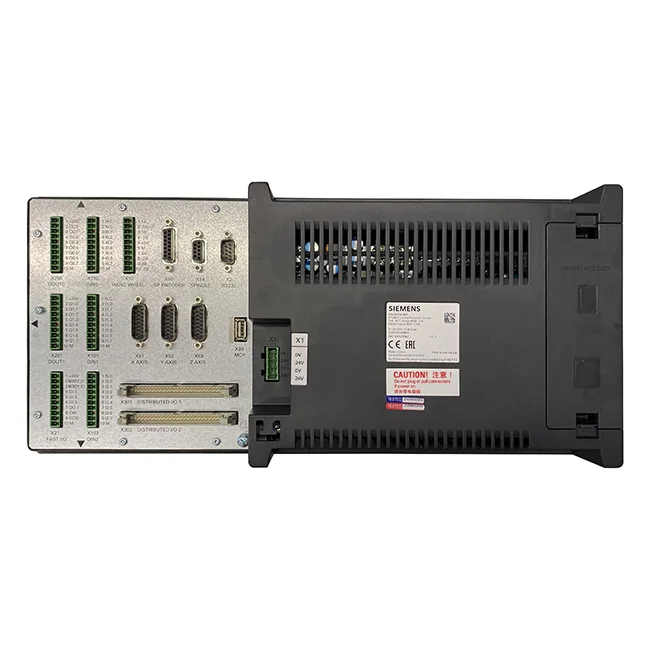

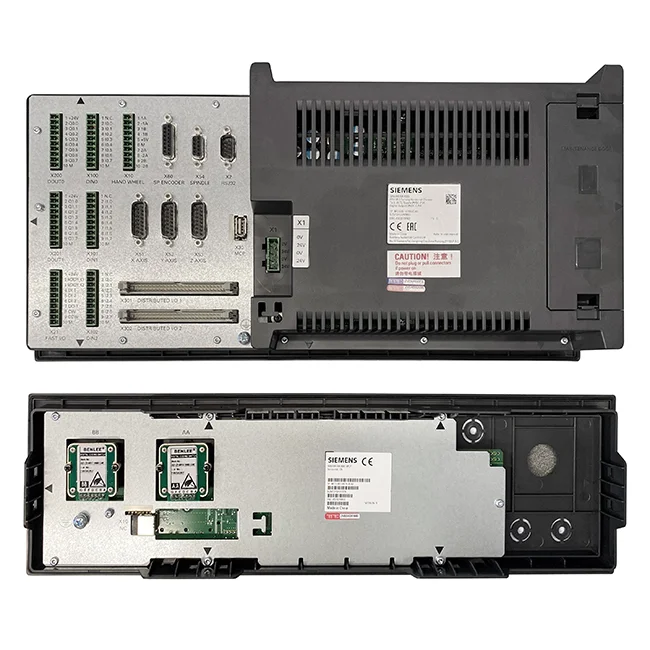

SIEMENS SINUMERIK 808D
6FC5370-2AT03-0AA0
6FC5370-2AM03-0AA0
6FC5370-3AT03-0AA0
6FC5370-3AM03-0AA0 and so on
The SINUMERIK 808D ADVANCED is a compact and robust CNC system specifically designed to enhance the performance of basic turning and milling machines. Engineered by a global leader in CNC technology, it integrates advanced motion control capabilities with a streamlined and highly intuitive operating interface. This system provides precise, reliable, and efficient machining processes, making it an optimal solution for manufacturers seeking a powerful entry-level CNC platform to achieve consistent, high-quality results in production environments.
SINUMERIK 808D ADVANCED
▶ Application:SINUMERIK 808D advanced is suitable for basic milling and turning machines.Due to the optimized supported axes number and options, turning center without Y axis and gantry machine can be controlled as well.
PRODUCT FEATURES
▶ Better Performance
○ High performance drive bus system
○ Proven CNC-features
○ Green design
○ World-wide service
▶ Easy To Use
○ Communicative:
○ USB interface on panel front as standard
○ Front flap with IP65 protection
▶ Easy To Operate
Perfect layout:
○ Keyboard optimized for ISO-code input
○ Technology specific keyboard layout
Maximum operator convenience:
○ Chinese and English layout
○ Mechanical keys, up to 1,000,000 times
○ IP65 protection mode for front panel
▶ Easy To Communicate
High performance bus communication:
○ Easily plugged drive bus interface
○ Easy to mount without screw drive
Variant communication method:
○ High speed ethernet interface
The SINUMERIK 808D ADVANCED is a panel-based CNC system specifically designed for the basic performance class. Optimized for entry-level turning and milling applications, it combines a compact architecture with a user-centric design. Key technical advantages include simplified operation, streamlined commissioning processes, and reduced maintenance requirements. Its cost-efficient configuration makes it an ideal choice for equipping CNC machines in the basic performance range, ensuring reliability and functionality in diverse production environments.
PARAMETER
Turning | Milling | |
Basic scope of axes/spindles | 3 | 4 |
Maximum number of axes/spindles | 5 | 5 |
Maximum number of interpolating axes | 3 | 4 |
Basic type gantry axes | ○ | ○ |
Additional axis | ○ | ○ |
Transmit & Tracyl without Y axis | ○ | ○ |
Bidirectional lead screw error compensation | ○ | ○ |
Contour Hand wheel | ○ | ○ |
Number of compensation point | 125 | 125 |
Support of Probe interface | — | ● |
CNC program memory (buffered) | 1.25 MB*) | 1.25 MB*) |
Number of NC programs | 255 | 255 |
Number of Look Ahead blocks | 1 | 50 |
Maximum number of tools / cutting edges | 64/128 | 64/128 |
Number of the PLC ladder steps | 6000 | 6000 |
○ -- SW option , ● -- basic version ,- -- not available *) 1.25 MB is used to store and edit the NC program. There are another 500 MB of available space on mass storage. | ||
