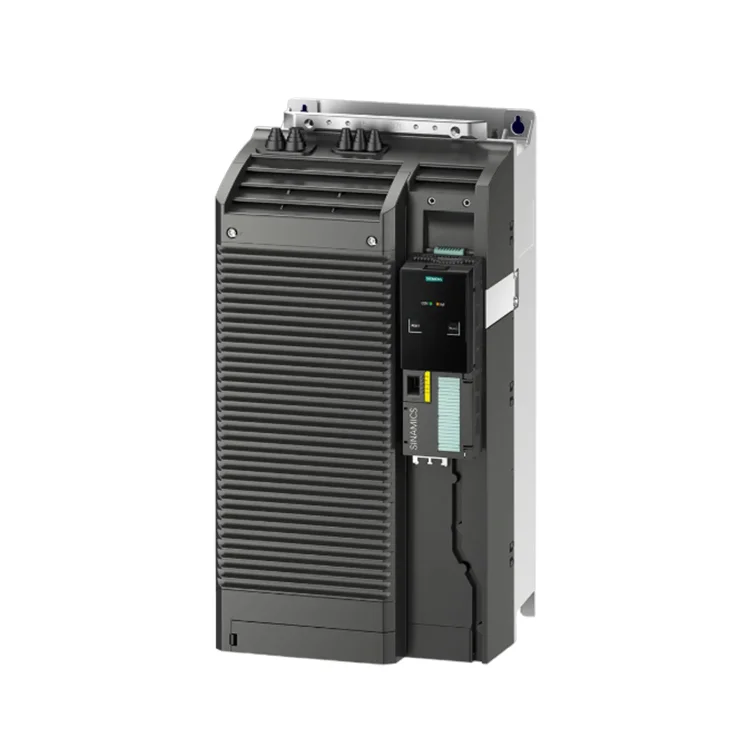

SINAMICS G120 STANDARD PERFORMANCE CONVERTERS

PRODUCT FEATURES

Versatile

• Wide Power Range: 0.55 kW to 250 kW.

• Multifunctional System: Suitable for a wide variety of applications.

• Available in Low, Medium, and High Voltage Models.

Flexible Configuration

• Numerous Configuration Options: Includes power modules, control units, and operator panels.

• Seamless Integration: Easily connects to SIMATIC controllers and integrates into automation environments as part of TIA (Totally Integrated Automation).

• Standardized Configuration: All frequency converters follow a standard configuration approach.

Safety

• Standardized Safety Solutions: Integrated safety functions.

• Safety Functions: STO, SS1, SBC, SLS, SDI, SSM.

• Compliance: Safety functions are seamlessly implemented in accordance with SIL 2 (EN 61508) and PL d (EN ISO 13849-1).

The modular SINAMICS G120 frequency converter system consists of a power module, control unit, and optional operator panel. The control unit offers various selectable closed-loop control types for regulating and monitoring the power module and connected motors. It can communicate with local or central controllers and monitoring devices. The power module supplies power to motors ranging from 0.37 kW to 250 kW and uses advanced pulse-width modulation (PWM) IGBT technology, ensuring highly reliable and flexible motor operation. Comprehensive protection features provide a high level of protection for both the power module and the motor.
