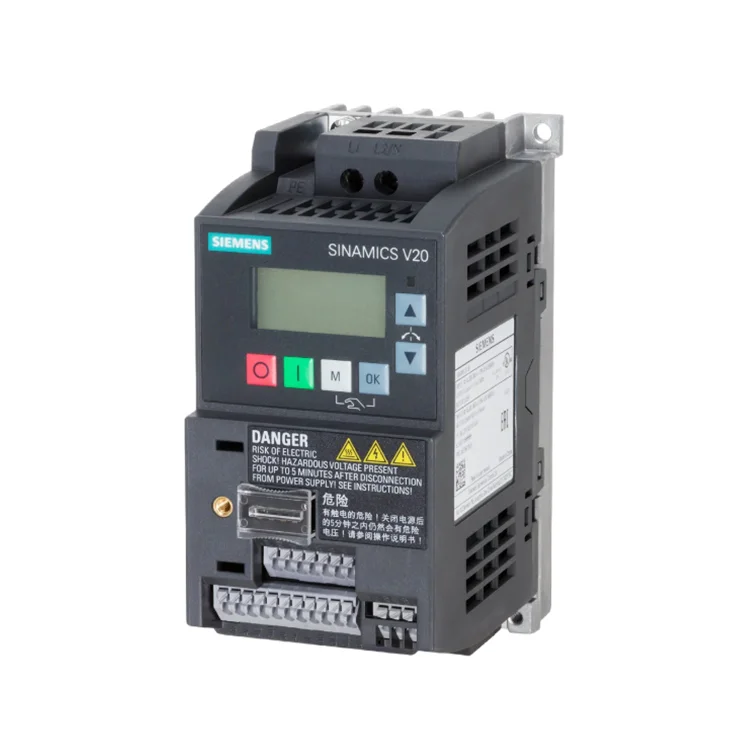

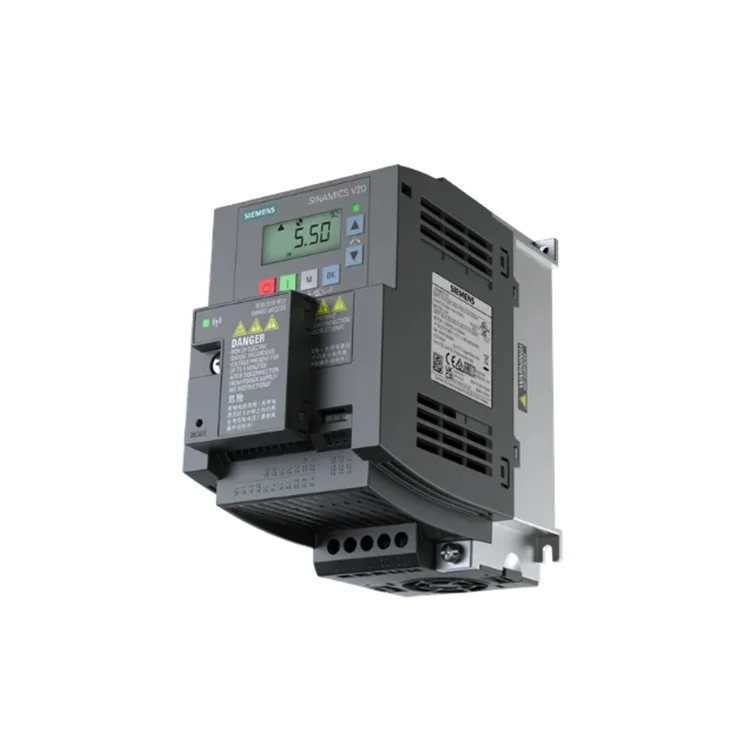

SINAMICS V20 STANDARD PERFORMANCE INVERTER
The compact SINAMICS V20 is a frequency converter suitable for simple speed control. It is characterized by short commissioning time, ease of operation, and energy-saving functions. With 9 different models, it covers a power range from 0.12 kW to 30 kW.
PRODUCT FEATURES
Simple to Use
Easy Installation: Available in two versions—wall-mounted and through-wall installation. Both can be installed side-by-side.
Simple Commissioning and Diagnostics: Equipped with a movable and built-in operation panel and a variety of optional accessories for easy setup, diagnostics, and servicing.
Ease of Handling: Parameters can be read and copied without requiring power.
Durable and Reliable
Wide Voltage Range and Advanced Cooling: The larger voltage range, advanced cooling system, and coated circuit boards enhance reliability in harsh environmental conditions.
Stable Operation in Poor Grid Conditions: It ensures stable performance even with poor power supply conditions.
Operating Temperature Range: -10°C to 60°C.
Energy Efficient
ECO Mode with U/f and U2/f settings: Energy-saving operation modes.
Sleep Mode: Activates during idle periods to reduce energy consumption.
Integrated Energy and Flow Monitoring: Helps monitor energy consumption.
High Overload Mode (HO) and Low Overload Mode (LO): Available in FSE sizes.
APPLICATIONS
Pumping/Ventilation/Compression: The SINAMICS frequency converter is suitable for applications in water pumps, fans, and compressors.
Material Handling: Ideal for simple and high-dynamic conveyors and stacker cranes.
Processing: Suitable for continuous process control that requires high speed and torque precision.
PRODUCT PARAMETERS
| Format | Built-in unit (compact) |
| Drive concept | AC/AC |
| Degree of protection | IP20/UL open type |
| Supply voltage/power kW (hp) 1AC 200 ... 240 V 3AC 380 ... 480 V | 0.12 ... 3 kW (0.16 ... 4 hp) 0.37 ... 30 kW (0.5 ... 40 hp) |
| Energy recovery | No |
| Control modes | V/f (linear, square law, FCC, ECO) |
| Ambient temperature | −10 ℃ to 40℃ without derating/to 60 ℃with derating |
| Line filter | With integrated line filter for environments according to IEC 61800-3 Category C3/C2/C1 Without integrated line filter for environments according to IEC 61800-3 Category C4 |
| Braking chopper | External braking chopper, except for frame size FSD/FSE 3AC with integrated braking chopper |
| Safety functions | No |
| Communication | USS/Modbus RTU |
| TIA Portal connected | No |
| Commissioning tools | BOP-2, V20 Smart Access Module |
| Controller | SIMATIC S7-1200 |
| Recommended motors | SIMOTICS GP/SD (standard induction motors, aluminum/cast iron) |
