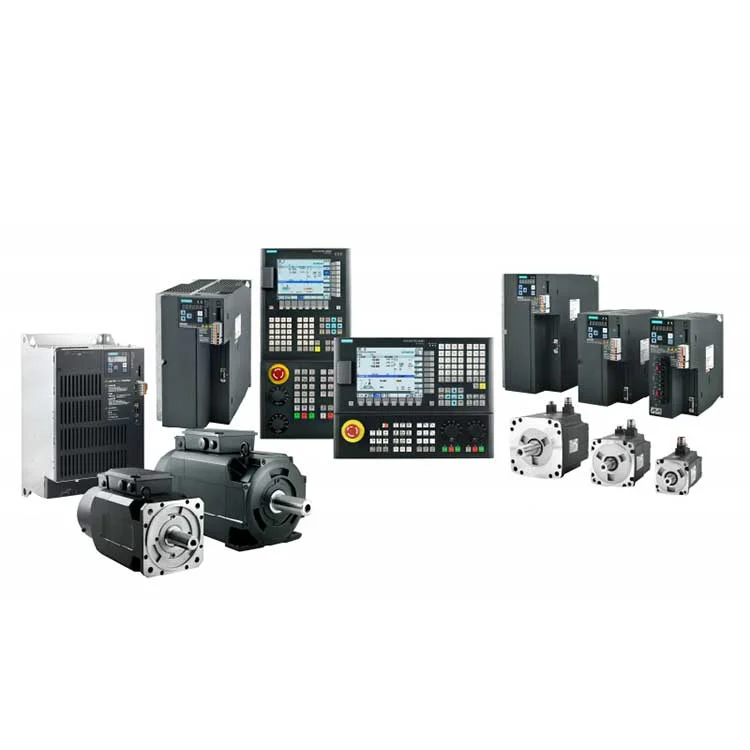

SINUMERIK MACHINE CONTROL PANEL 808D MCP HORIZONTAL 6FC5303-0AF35-0AA0
The SINUMERIK 808D MCP machine control panel features a mechanical key design with well-defined functional zones, ensuring intuitive and efficient operation. It is specifically designed for the control of milling and turning machines.
Custom keys can be individually labeled with slide-in strips for easy identification.
This control panel is compatible with various machine designs.
Installation is simple, as it can be mounted from the rear using special clamps, eliminating the need for drilling holes in the cabinet.
Design
Operator Control Components:
Mode and Function Keys:
Equipped with 39 keys, 30 of which feature LED indicators.Arrow Keys:
Used for machine operation, supporting rapid feed rate functions.
(The machine control panel comes pre-installed with a turning strip, while the milling strip is provided in the accessory package.)Predefined Keys:
Includes commonly used functions such as handwheel selection, tool change, coolant control, and program testing.Spindle Control:
Achieved via the spindle speed function (15-position rotary switch).Feed Control:
Managed through feed/rapid feed rate functions (18-position rotary switch).7-Segment Display:
Used to display tool numbers.
Interface to the CNC: USB
| Mechanical data | |
| Net weight | 0.860 kg (1.90 lb) |
| Width | 420.0 mm (16.54 in) |
| Height | 120.0 mm (4.72 in) |
| Depth | 58.0 mm (2.28 in) |
| Mounting surface | |
| Cutout width | 406.0 mm (15.98 in) |
| Cutout height | 106.0 mm (4.17 in) |
| Degree of protection | |
| Rear side | IP00 |
| Front side | IP65 |
| Certificate of suitability | CE / EAC |
