TB-LP2016/TB-QLP3016(LIGHT) GANTRY VERTICAL MACHINING CENTER
High rigidity base, integrated door bridge, artificial aesthetic, accuracy lasting
PRODUCT FEATURES
▶ 1. Column and base adopt integrated casting. It has enough strength, rigidity and stability. The super wide base is designed with water tank, and the leak proof effect is better.
▶ 2. The gantry column and beam adopt integrated casting with higher rigidity, more stable structure and longer accuracy retention.
▶ 3. The worktable adopts the dense reinforcement plate to arrange the box structure, eliminate the force with perfect means to ensure that the whole machine has enough strength, rigidity and stability
▶ 4. X and Y axis ball track, low friction, no backgap, high rigidity and high precision
▶ 5. Z-axis high damping hard rail design, absorb cutting vibration, improve tool life and workpiece surface accuracy
▶ 6. Suitable mainly applicable to aerospace, aviation, automotive, military industry, energy, information, mold and other industries parts processing.Mainly process black and non-ferrous metal complex parts as the object.
PRODUCT PARAMETERS
|
ITEM |
TB-LP2016 |
TB-QLP3016(LIGHT) |
|
|
WORKTABLE SIZE(L×W)(MM) |
1300×2000 |
1300×3000 |
|
|
MAX. X AXIS TRAVEL(MM) |
2000 |
3000 |
|
|
MAX. Y AXIS TRAVEL(MM) |
1650 (TOOL CHANGE 1850) |
1650 (TOOL CHANGE 1850) |
|
|
MAX. Z AXIS TRAVEL(MM) |
800 |
800 |
|
|
GANTRY WIDTH(MM) |
1660 |
1660 |
|
|
GANTRY HEIGHT(MM) |
1100 |
1100 |
|
|
RANGE OF SPINDLE NOSE TO WORKTABLE(MM) |
250～1050 |
250～1050 |
|
|
WORKTABLE SPACINGOF T-SLOTS(NUMBER-WIDTH×DISTANCE) |
7-22×170 |
7-22×170 |
|
|
SPINDLE(MODEL /DIAMETER) |
BT50/∅190 |
BT50/∅190 |
|
|
SPINDLE DRIVEN |
BELT |
ROTATE SPEED 6000R/MIN |
ROTATE SPEED 6000R/MIN |
|
DRIVE RATIO 1.5∶1 (1∶1 OPTION) |
DRIVE RATIO 1.5∶1 (1∶1 OPTION) |
||
|
ZF REDUCER+BELT,OPTION |
6000R/MIN |
6000R/MIN |
|
|
4∶1 |
4∶1 |
||
|
X.Y.Z Axis Rapid Speed (mm/min)) |
12000/15000/12000 |
12000/15000/12000 |
|
|
X.Y.Z Axis Speed (mm/min) |
1-10000/1-10000/1-8000 |
1-10000/1-10000/1-8000 |
|
|
X/Y/Z AXIS BALL SCREW |
X:6310,Y:5010,Z:5010 |
X:6312(8020 is optional),Y:5010,Z:5010 |
|
|
X/Y/Z AXIS LINEAR SPECIFICATION/SLIDER NUMBER |
X:ROLLER GUIDE 55/6 |
X:ROLLER GUIDE 55/10 |
|
|
X/Y/Z AXIS MOTOR CONNECT WAY |
DIRECT |
X AXIS PLANETARY GEAR 4∶1 |
|
|
RECOMMNED SPINDLE MOTOR POWER(KW) |
22KW |
22KW |
|
|
RECOMMEND X/Y/Z AXIS MOTOR(NM) |
36,36,36 (BRAKE) |
38,30,30 (BRAKE) |
|
|
FRAME DIMENSION(MM) |
5590×3630×3830 |
7790×3630×3830 |
|
|
MAX. LOADING OF WORKTABLE(KG) |
4000 |
6000 |
|
|
FRAME WEIGHT(KG) |
16000 |
20000 |
|

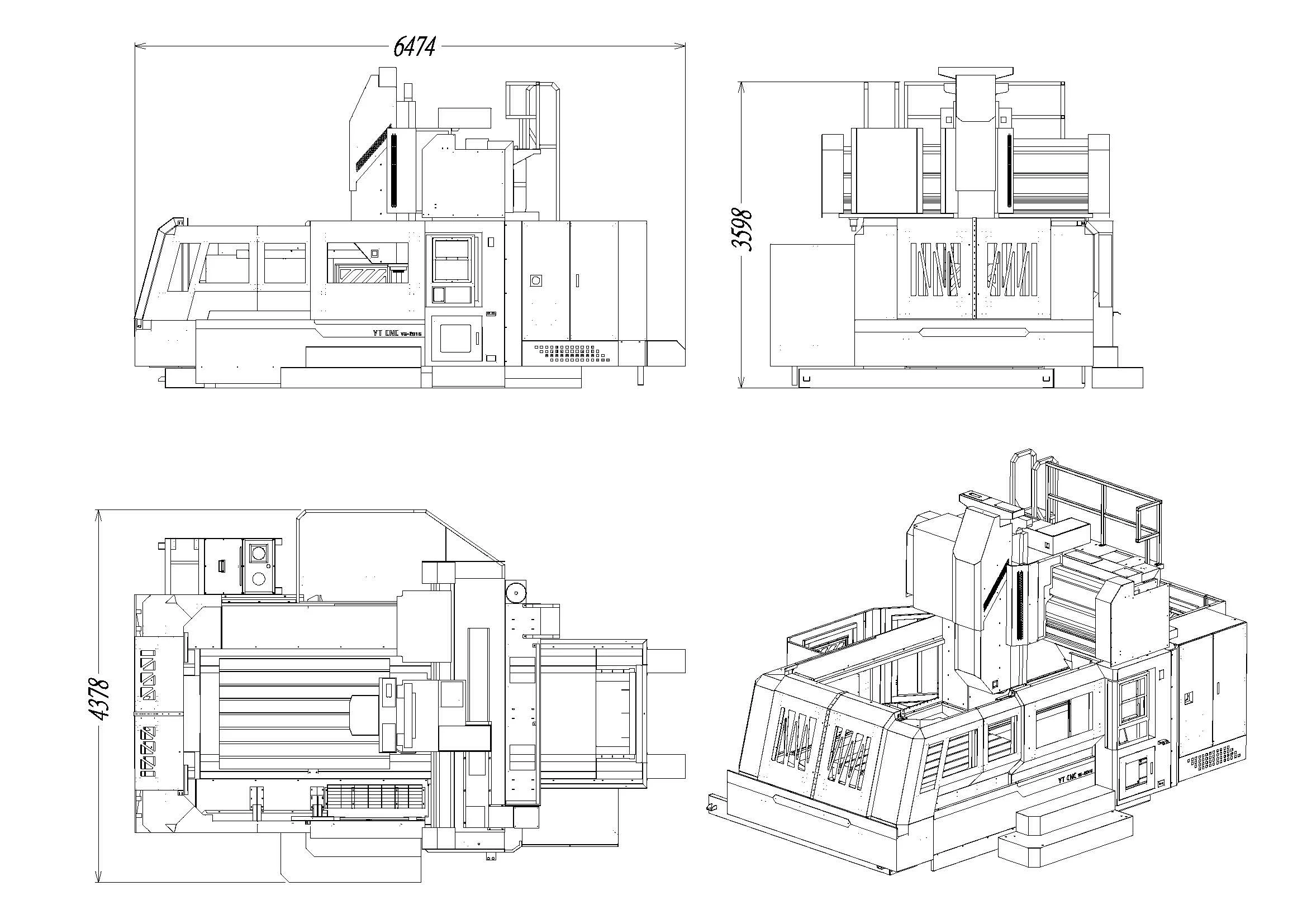

OVERALL DIMENSION DRAWING

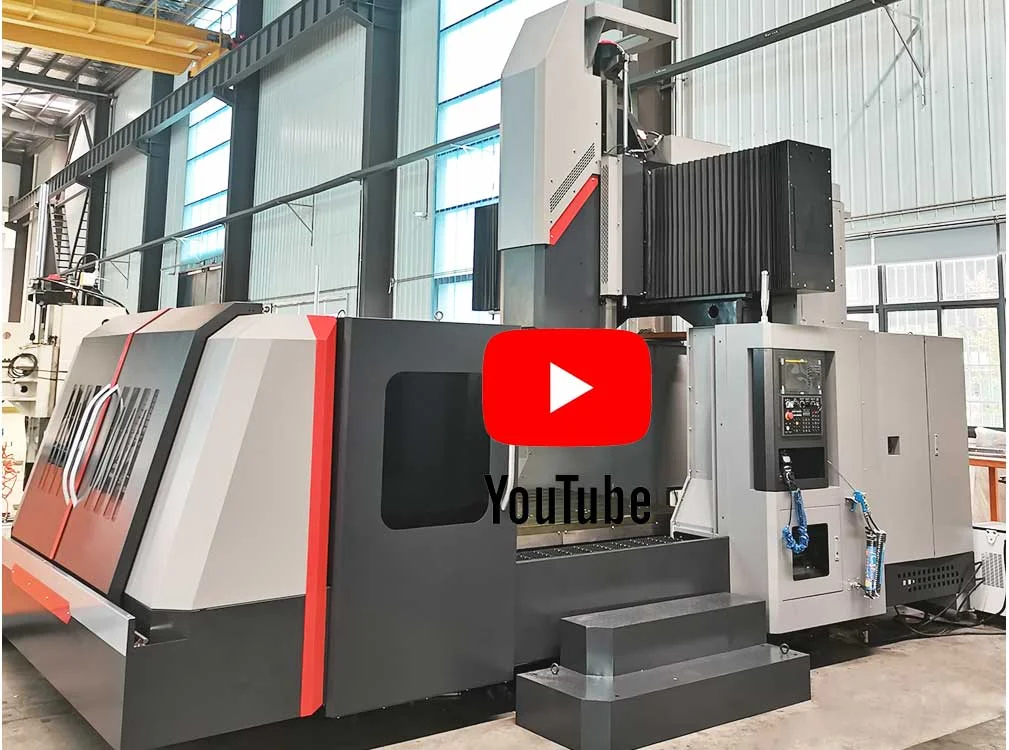

FACTORY SHOW
