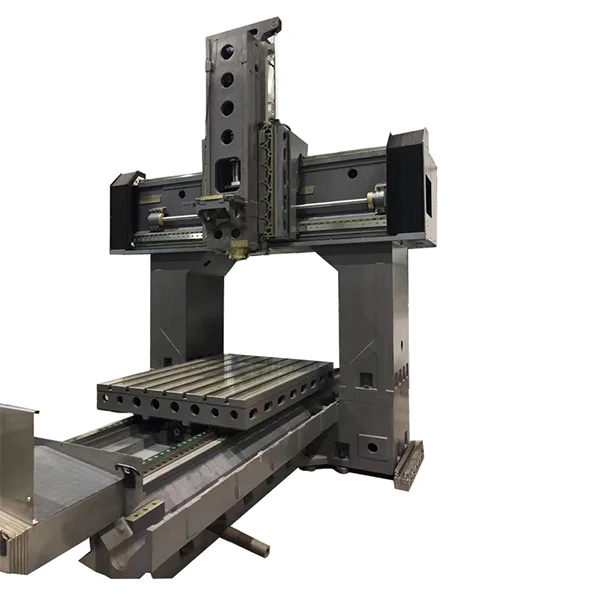

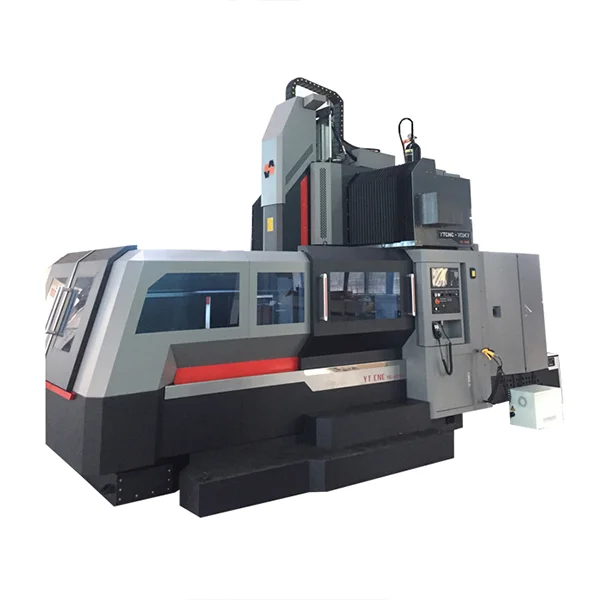

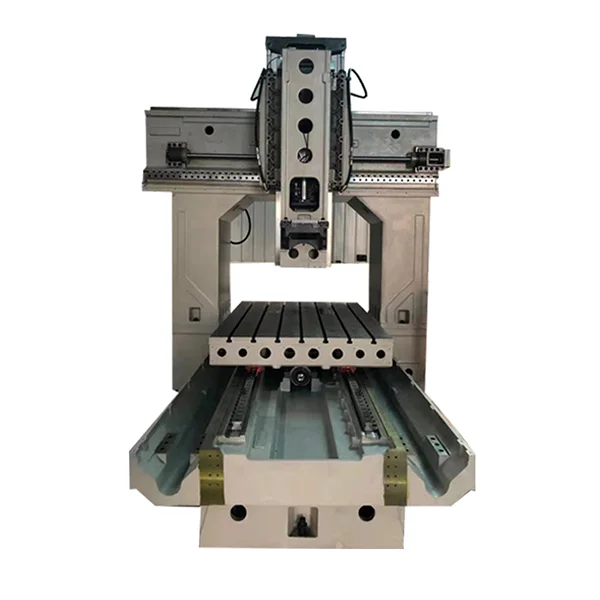

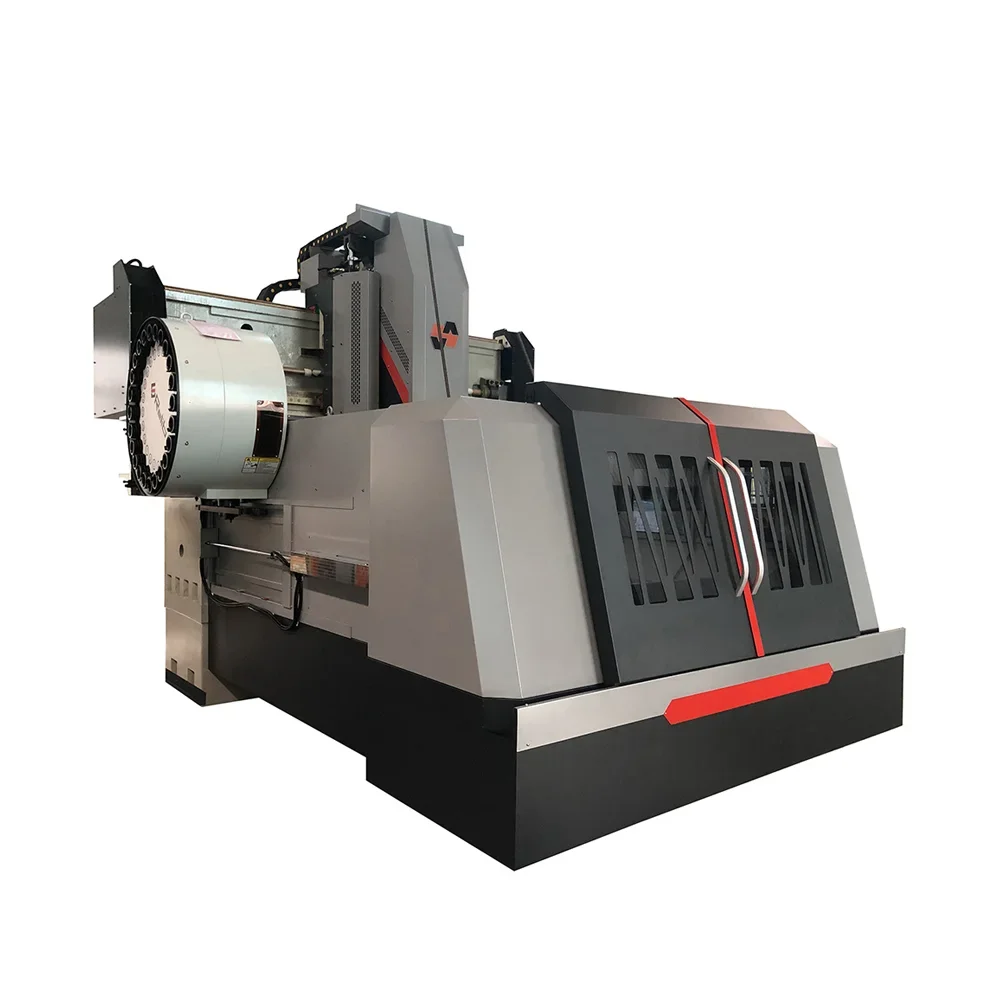

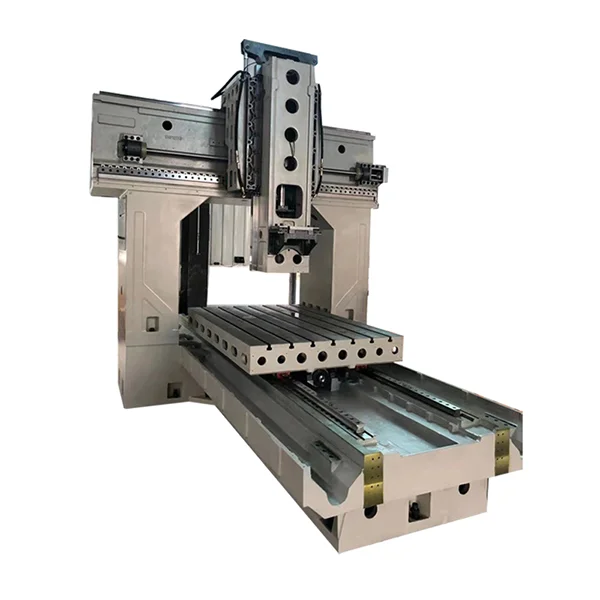

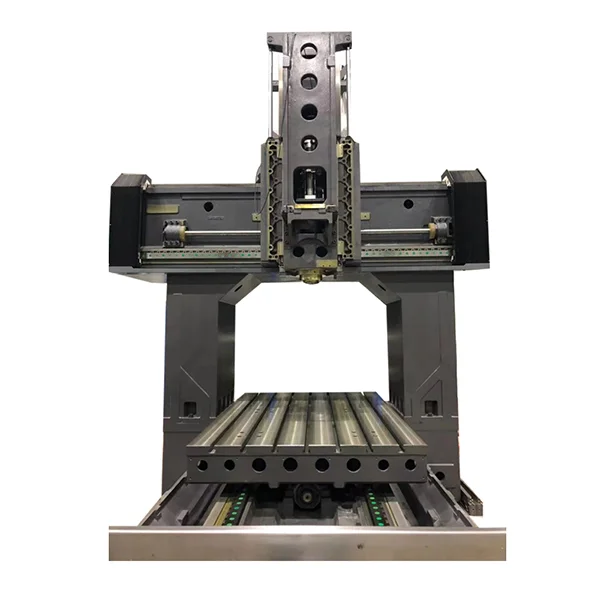

GANTRY MACHINING CENTER (TB-LP1612/TB-VP1612)
The Gantry machine center featured with box structural and worktable,columns one-piece design provides stable, speedy feeding performance that meets precision mold and aluminum cutting requirements.
GS CNC gantry type machining center performs efficient productivity with powerful spindle and best structural configuration that gives you smooth and fine surface within the available time.
FEATURE
▶ 1.Massive structure combined with agility allows flexible use
▶ 2.Simple Design makes an easy positioning, set up and clamping of the workpiece possible
▶ 3.Box-in-box structure for high precision
▶ 4.Utmost flexible use: from aerospace to general engineering
▶ 5. Several options and a wide range of systems available
▶ 6. For the efficient machining of bulky and heavy workpieces
▶ 7.Two linear and one hard rail or three linear rail can choose
▶ 8.High rigidity HT300 machine frame material and Taiwan made high quality parts
PARAMETER
ITEM | TB-LP1612 | |
WORKTABLE SIZE(L×W)(MM) | 1000X1600 | |
MAX. X AXIS TRAVEL(MM) | 1600 | |
MAX. Y AXIS TRAVEL(MM) | 1300 (TOOL CHANGE 1450) | |
MAX. Z AXIS TRAVEL(MM) | 800 | |
GANTRY WIDTH(MM) | 1300 | |
GANTRY HEIGHT(MM) | 1060 | |
RANGE OF SPINDLE NOSE TO WORKTABLE(MM) | 190~990 | |
WORKTABLE SPACINGOF T-SLOTS(NUMBER-WIDTH×DISTANCE) | 7-22X140 | |
SPINDLE(MODEL /DIAMETER) | BT50/∅190 | |
SPINDLE DRIVEN | BELT | ROTATE SPEED 6000R/MIN |
DRIVE RATIO 1.5∶1 (1∶1 OPTION) | ||
ZF REDUCER+BELT,OPTION | 6000R/MIN | |
4∶1 | ||
X.Y.Z Axis Rapid Speed (mm/min) | 15000/15000/15000 | |
X.Y.Z Axis Speed (mm/min) | 1-10000/1-10000/1-10000 | |
X/Y/Z AXIS BALL SCREW | X:5010,Y:5010,Z:5010 | |
X/Y/Z AXIS LINEAR SPECIFICATION/SLIDER NUMBER | X:ROLLER GUIDE 45/6 Y:ROLLER GUIDE 45/6 Z:RECTANGULAR ROLLER | |
X/Y/Z AXIS MOTOR CONNECT WAY | DIRECT | |
RECOMMNED SPINDLE MOTOR POWER(KW) | 18.5/22KW | |
RECOMMEND X/Y/Z AXIS MOTOR(NM) | ≥36,36,36 (BRAKE) | |
FRAME DIMENSION(MM) | 4600X2720X3320 | |
MAX. LOADING OF WORKTABLE(KG) | 2000 | |
FRAME WEIGHT(KG) | 10600 | |
ITEM | TB-VP1612 | |
WORKTABLE SIZE(L×W)(MM) | 1000X1600 | |
MAX. X AXIS TRAVEL(MM) | 1600 | |
MAX. Y AXIS TRAVEL(MM) | 1300 (TOOL CHANGE 1450) | |
MAX. Z AXIS TRAVEL(MM) | 800 | |
GANTRY WIDTH(MM) | 1300 | |
GANTRY HEIGHT(MM) | 1060 | |
RANGE OF SPINDLE NOSE TO WORKTABLE(MM) | DIRECT | 150~950(BT40-150） |
BELT(OPTION) | 115~915(BT50-155) | |
WORKTABLE SPACINGOF T-SLOTS(NUMBER-WIDTH×DISTANCE) | 7-22X140 | |
SPINDLE(MODEL /DIAMETER) | DIRECT | BT40/∅150 |
BELT(OPTION) | BT50/∅155 | |
SPINDLE DRIVEN | DIRECT | 12000r/min |
BELT(OPTION) | 8000r/min | |
X.Y.Z Axis Rapid Speed (mm/min) | 15000/15000/15000 | |
X.Y.Z Axis Speed (mm/min) | 1-10000/1-10000/1-10000 | |
X/Y/Z AXIS BALL SCREW | X:5010,Y:5010,Z:5010 | |
X/Y/Z AXIS LINEAR SPECIFICATION/SLIDER NUMBER | X:ROLLER GUIDE 45/6 Y:ROLLER GUIDE 45/4 Z:ROLLER GUIDE 45/6 | |
X/Y/Z AXIS MOTOR CONNECT WAY | DIRECT | |
RECOMMNED SPINDLE MOTOR POWER(KW) | DIRECT | 11KW |
BELT(OPTION) | 15~18.5KW | |
RECOMMEND X/Y/Z AXIS MOTOR(NM) | ≥36,30,30 (BRAKE) | |
X AXIS GUIDE RAIL COVER BRACKET LENGTH(MM) | 470 | |
FRAME DIMENSION(MM) | 4600X2720X3320 | |
MAX. LOADING OF WORKTABLE(KG) | 2000 | |
FRAME WEIGHT(KG) | 10600 | |

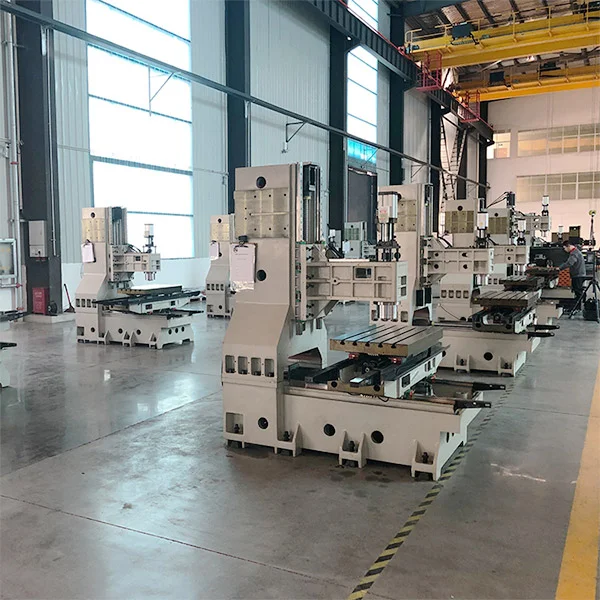

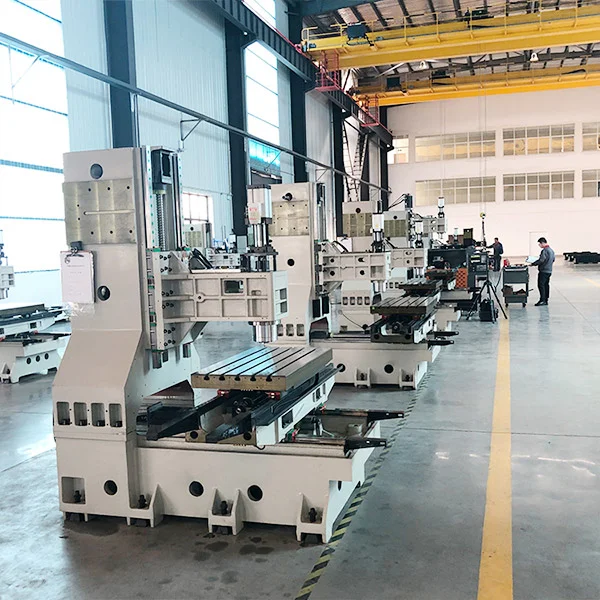

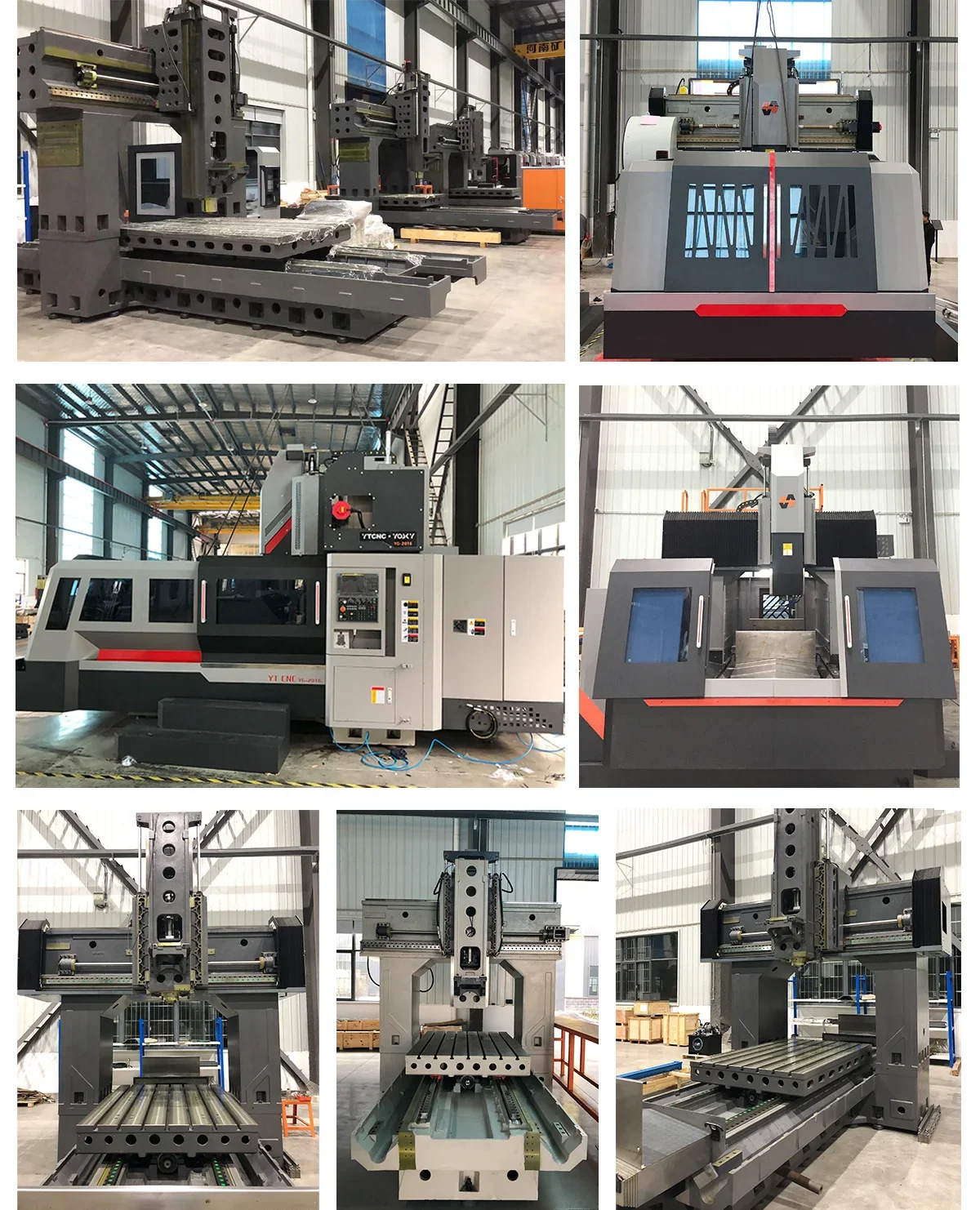

FACTORY SHOW
