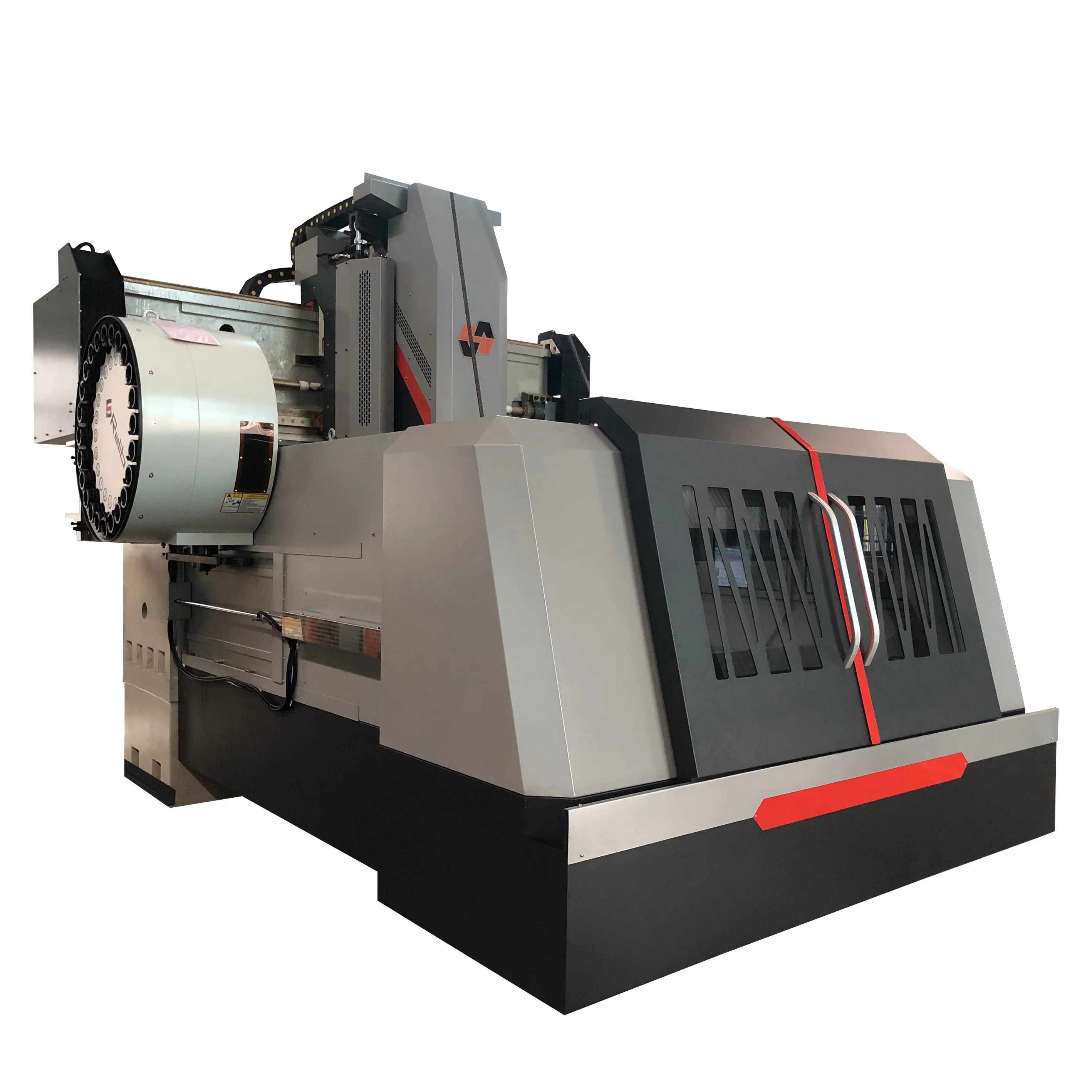

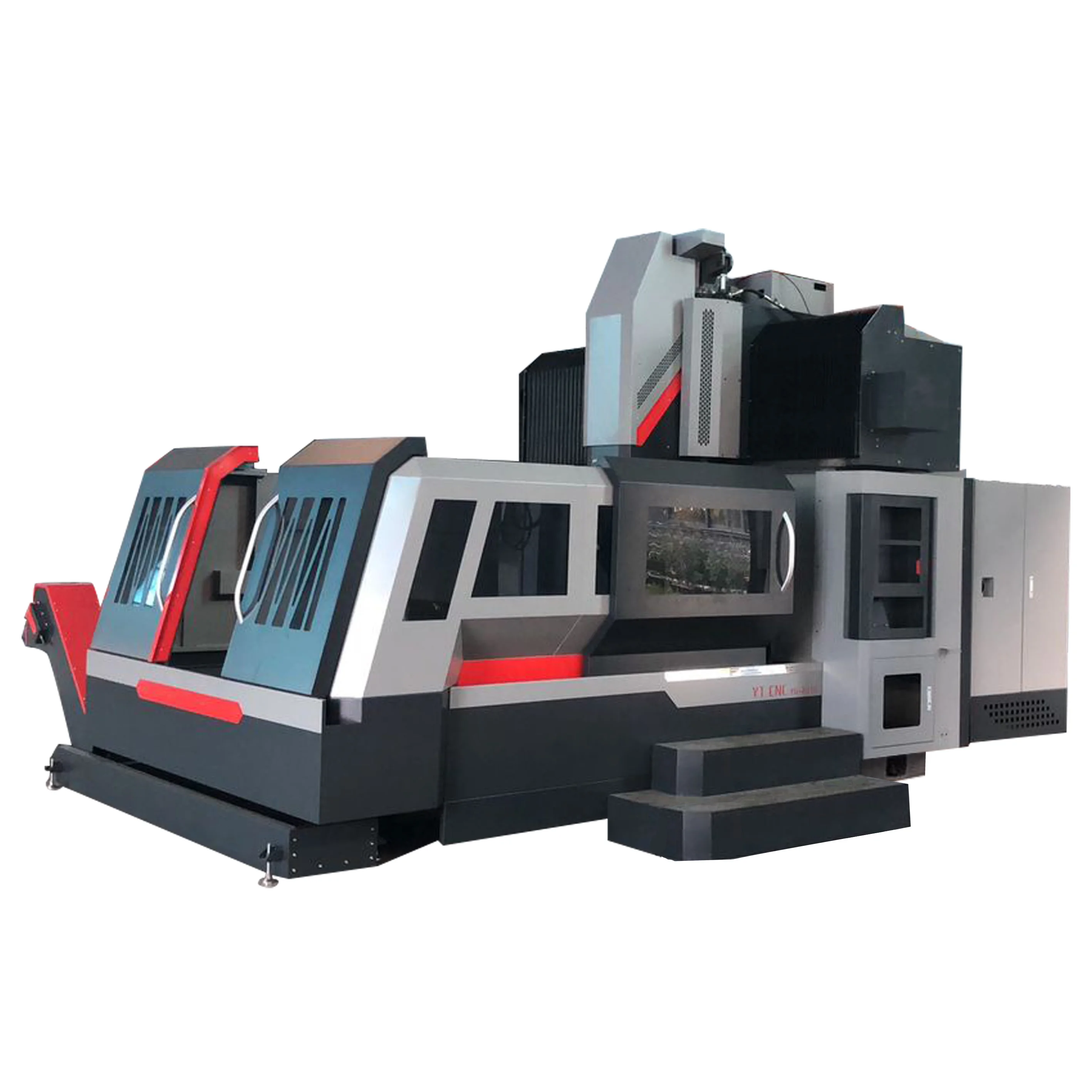

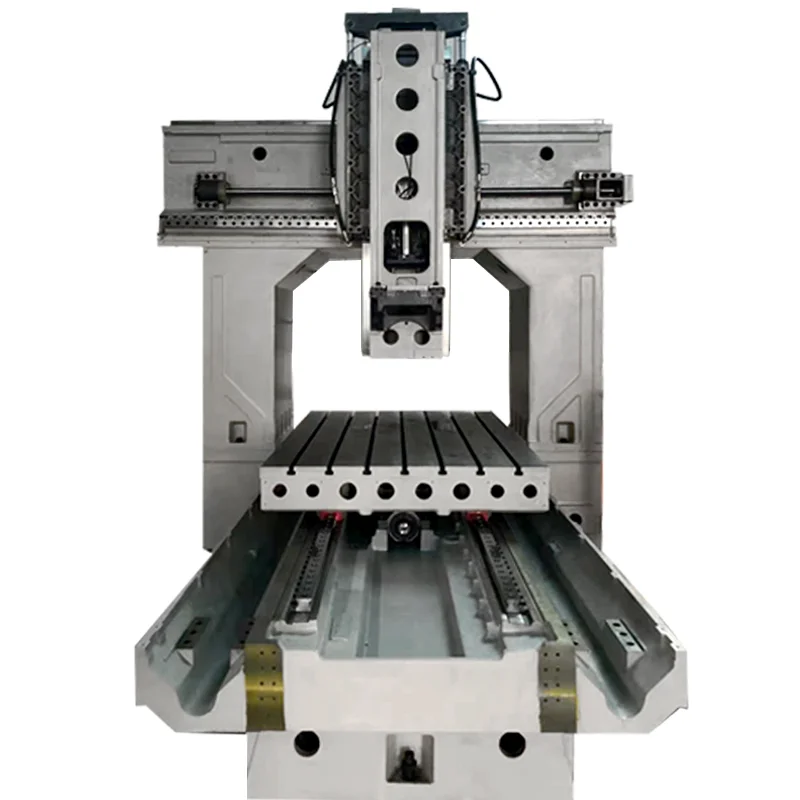

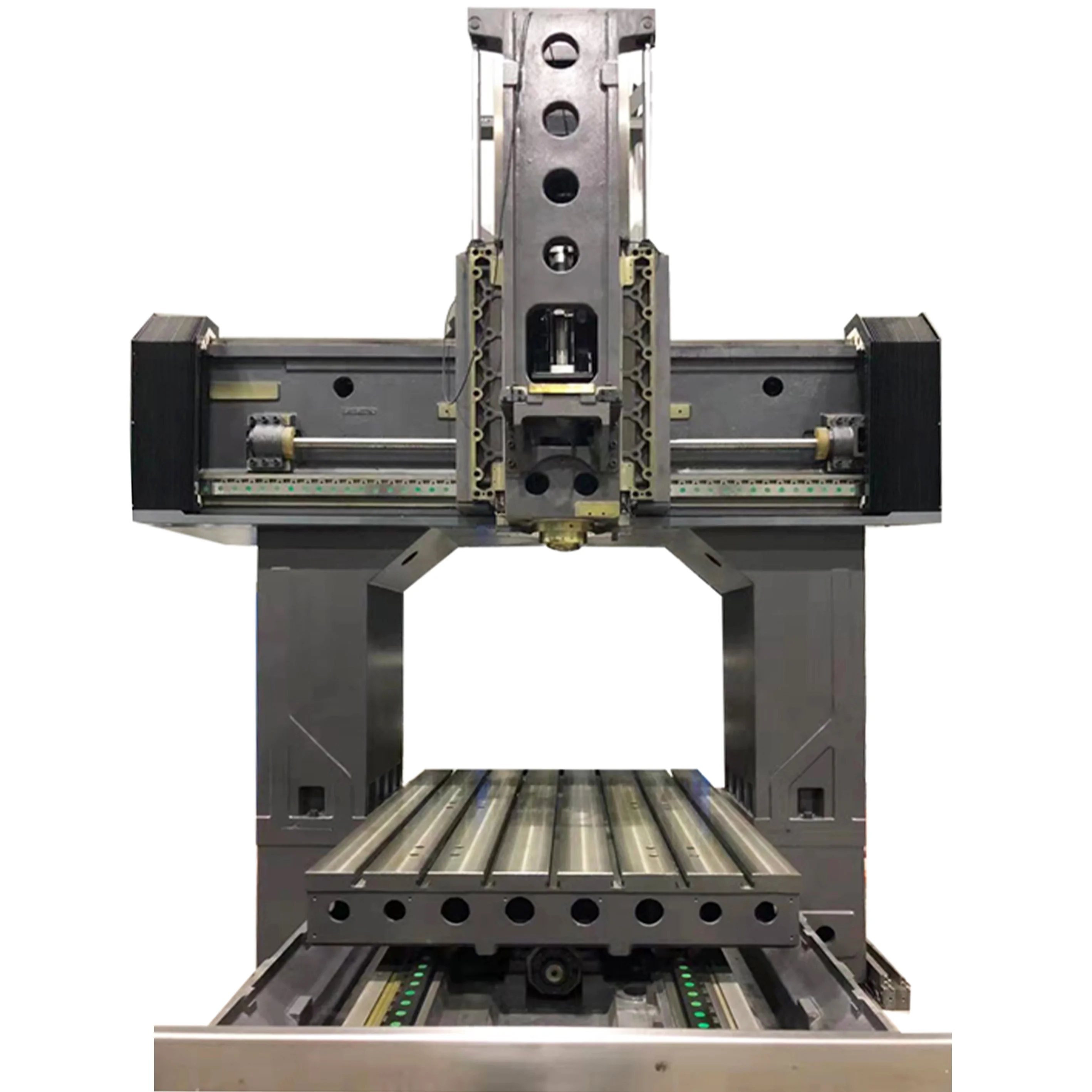

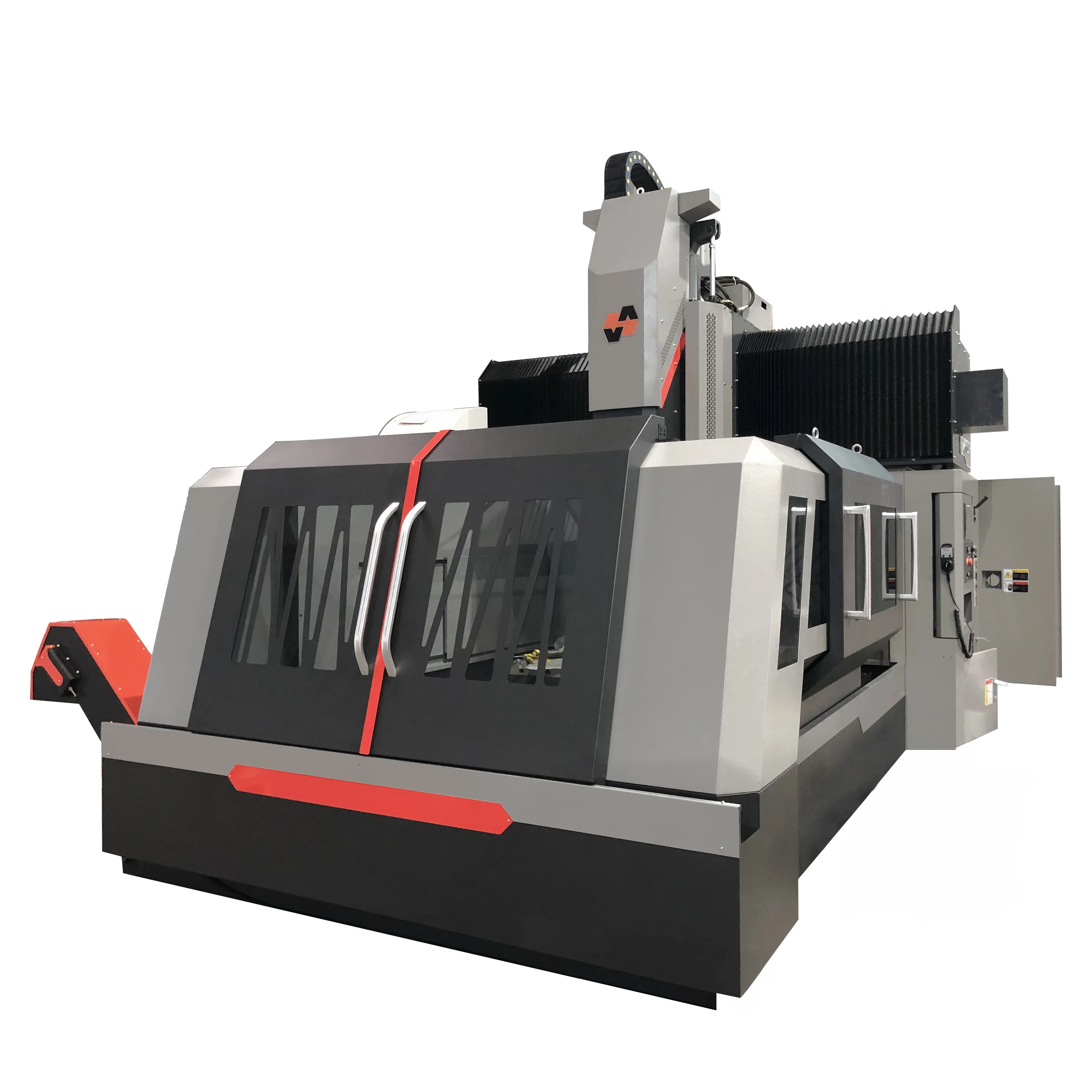

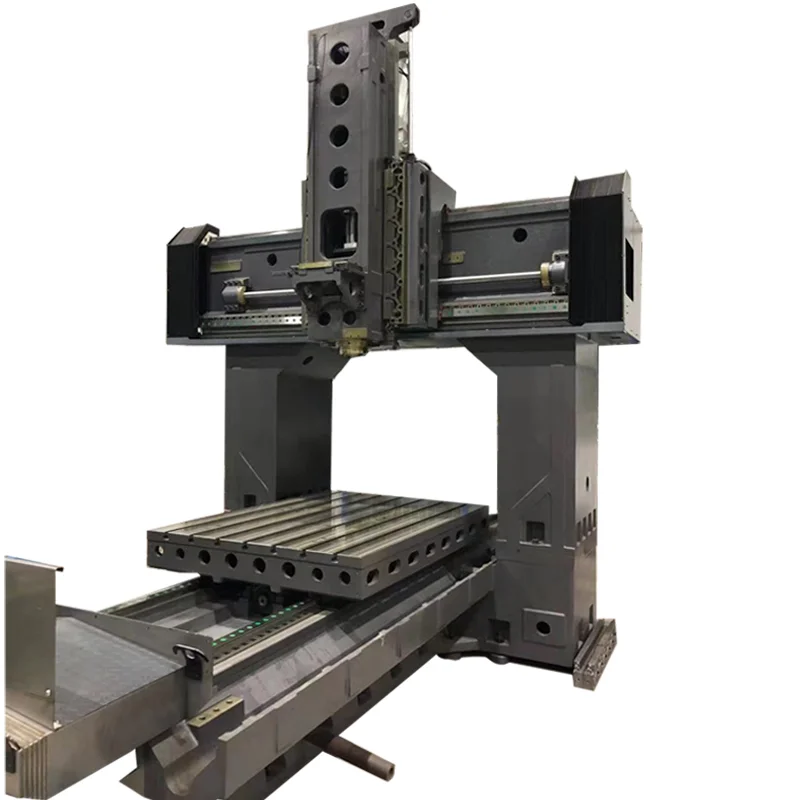

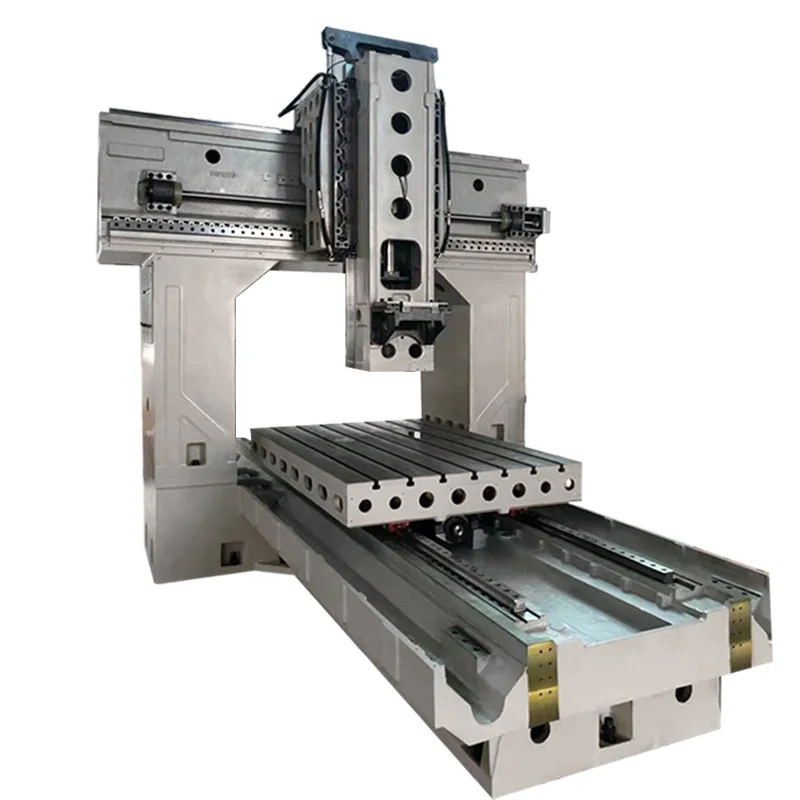

TB-LP2518/TB-QLP2518(LIGHT) GANTRY VERTICAL MACHINING CENTER
PRODUCT FEATURES
▶ 1. Bridge and base adopt integrated casting
▶ 2. Both sides of the base are equipped with an integral casting spiral chip discharging groove
▶ 3. XY axis using ultra-high rigidity and heavy load capacity of roller rail
▶ 4. With modular design, product can manufacture according to the market demand for product serialization and customization.
▶ 5. The worktable adopts double layer reinforced middle control vibration suppression structure to enhance the firmness of processing
▶ 6. The lubrication points of the sliding rail are evenly distributed and the volume type oil distributor is adopted to ensure the lubrication of the sliding surface is uniform
▶ 7. Optimal symmetrical design of three-axis structure, more solid in moving process, maximum three-axis span and cross-sectional load, with good rigidity performance
▶ 8. Z-axis adopts double counterweight, oil and gas separation type accumulative counterweight device, which eliminates the phenomenon of traditional mechanical oil pressure commutation delay
▶ 9. Slide pillow adopts hard rail, high rigidity, reduce the head cutting suspension swing and vibration problems.
PRODUCT PARAMETERS
|
ITEM |
TB-LP2518 |
TB-QLP2518(LIGHT) |
|
|
WORKTABLE SIZE(L×W)(MM) |
1600×2500 |
1600×2500 |
|
|
MAX. X AXIS TRAVEL(MM) |
2500 |
2500 |
|
|
MAX. Y AXIS TRAVEL(MM) |
1800 (TOOL CHANGE 2000) |
1800 (TOOL CHANGE 2000) |
|
|
MAX. Z AXIS TRAVEL(MM) |
1000 |
800 |
|
|
GANTRY WIDTH(MM) |
1800 |
1900 |
|
|
GANTRY HEIGHT(MM) |
1300 |
1080 |
|
|
RANGE OF SPINDLE NOSE TO WORKTABLE(MM) |
150～1150 |
200～1000 |
|
|
WORKTABLE SPACINGOF T-SLOTS(NUMBER-WIDTH×DISTANCE) |
9-22×180 |
9-22×180 |
|
|
SPINDLE(MODEL /DIAMETER) |
BT50/∅190 |
BT50/∅190 |
|
|
SPINDLE DRIVEN |
BELT |
ROTATE SPEED 6000R/MIN |
ROTATE SPEED 6000R/MIN |
|
DRIVE RATIO 1.5∶1 (1∶1 OPTION) |
DRIVE RATIO 1.5∶1 (1∶1 OPTION) |
||
|
ZF REDUCER+BELT,OPTION |
6000R/MIN |
6000R/MIN |
|
|
4∶1 |
4∶1 |
||
|
X.Y.Z Axis Rapid Speed (mm/min)) |
12000/15000/12000 |
12000/15000/12000 |
|
|
X.Y.Z Axis Speed (mm/min) |
1-10000/1-10000/1-8000 |
1-10000/1-10000/1-8000 |
|
|
X/Y/Z AXIS BALL SCREW |
X:6312,Y:5010,Z:5010 |
X:6312,Y:5010,Z:5010 |
|
|
X/Y/Z AXIS LINEAR SPECIFICATION/SLIDER NUMBER |
X:ROLLER GUIDE 55/8 Y:ROLLER GUIDE 55/4 Z:RECTANGULAR ROLLER |
X:ROLLER GUIDE 55/8 Y:ROLLER GUIDE 55/4 Z:RECTANGULAR ROLLER |
|
|
X/Y/Z AXIS MOTOR CONNECT WAY |
DIRECT |
DIRECT |
|
|
RECOMMNED SPINDLE MOTOR POWER(KW) |
22KW |
22KW |
|
|
RECOMMEND X/Y/Z AXIS MOTOR(NM) |
36,36,36 (BRAKE) |
36,36,36(BRAKE) |
|
|
FRAME DIMENSION(MM) |
6700×4030×3900 |
6840×3600×3295 |
|
|
MAX. LOADING OF WORKTABLE(KG) |
7000 |
5500 |
|
|
FRAME WEIGHT(KG) |
21000 |
16000 |
|

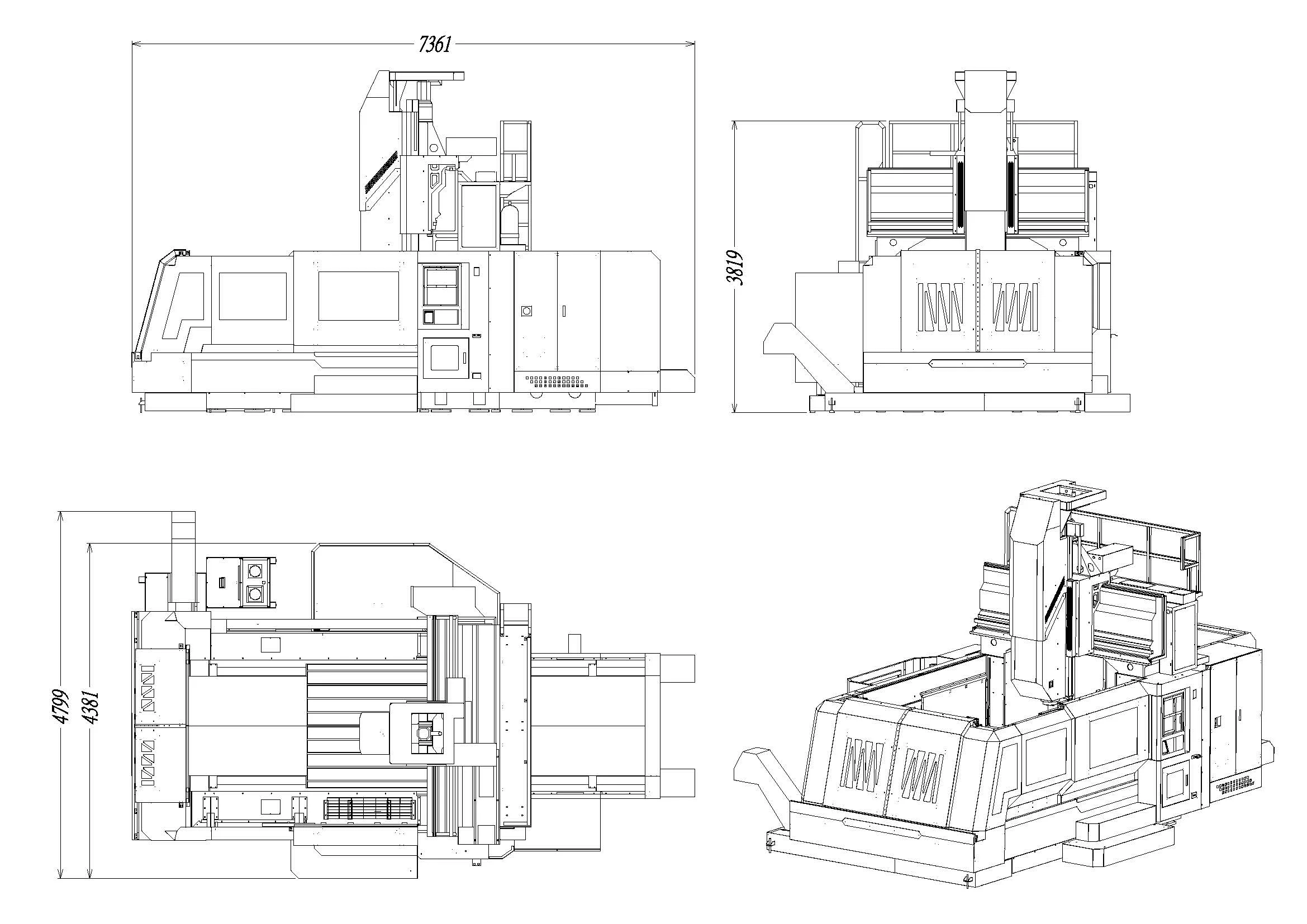

OVERALL DIMENSION DRAWING
FACTORY SHOW
