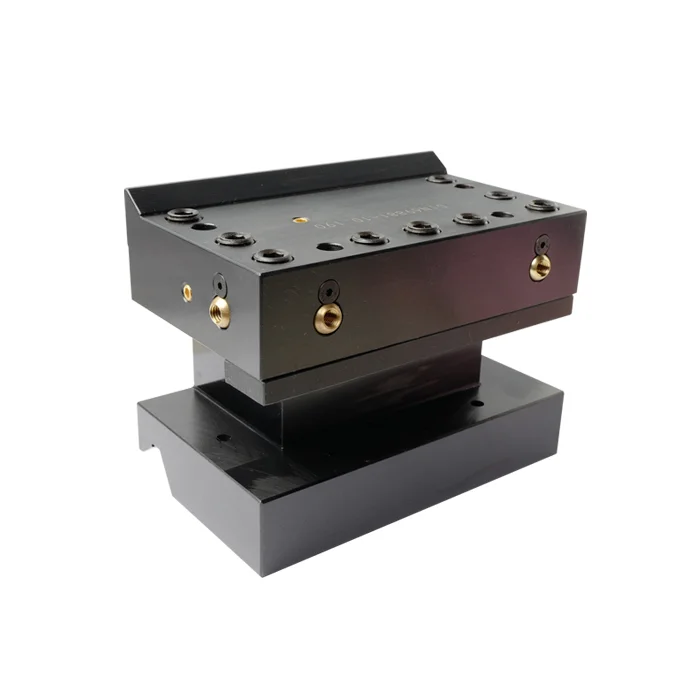

VDI QUICK-CHANG TOOL HOLDER (DIN69881)

Product Features

1. Tool post & holder with precision profile-ground gearing.

2. Plenty of working positions for more tool holders.

3. Adjust height of cutting edge easily and accurately.

4. Change tools in seconds.

5. It features heavy duty cutting and auto drilling.

6. It features external tool-mounting,tool-machining.

7. Accurate repeatability is 0.01mm.

8. Fully interchangeable with other brand German and Swiss types.

9. For manual and NC-lathe.

Technical Parameter

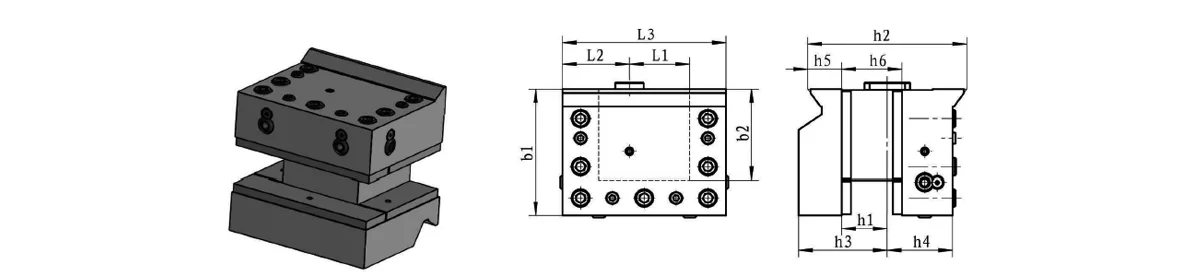

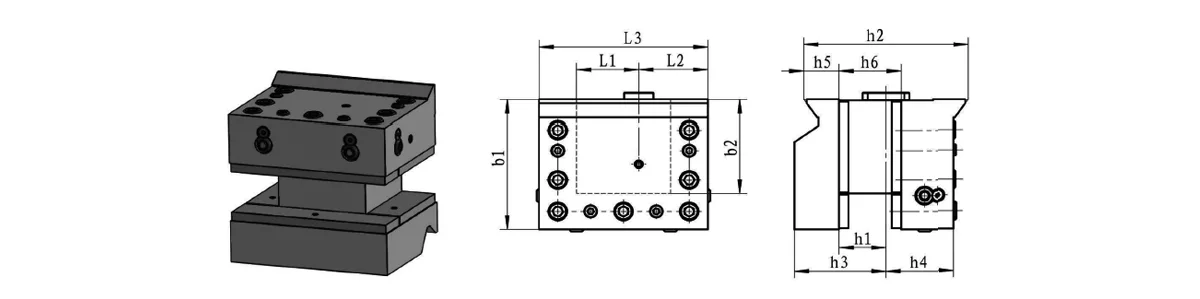

• C1 radial&axial toolholder,right



  Item No.	H2	H1	B1	B2 +0.5	H3	H4	H5 ±0.05	H6 Max	L1	L2	L3	Order No.
  C1-56×16	56	16	60	46	40	19	12	22	39	31	84	300.200
  C1-72×20	72	20	81	59	43	27	16	29	37	39	98	300.210
  C1-90×25	90	25	88	62	50	35.5	20	34	43	39	108	300.220
  C1-115×32	115	32	94	68	60	40	25.5	41	43	49	118	300.230
  C1-140×40	140	40	115	83	78	57.5	30	53	53	59	144	300.240

• C2 radial&axial toolholder,left




  Item No.	H2	H1	B1	B2 +0.5	H3	H4	H5 ±0.05	H6 Max	L1	L2	L3	Order No.
  C2-56×16	56	16	60	46	40	19	12	22	39	31	84	300.201
  C2-72×20	72	20	81	59	43	27	16	29	37	39	98	300.211
  C2-90×25	90	25	88	62	50	35.5	20	34	43	39	108	300.221
  C2-115×32	115	32	94	68	60	40	25.5	41	43	49	118	300.231
  C2-140×40	140	40	115	83	78	57.5	30	53	53	59	144	300.241

  Note:Special dimensions on requirement

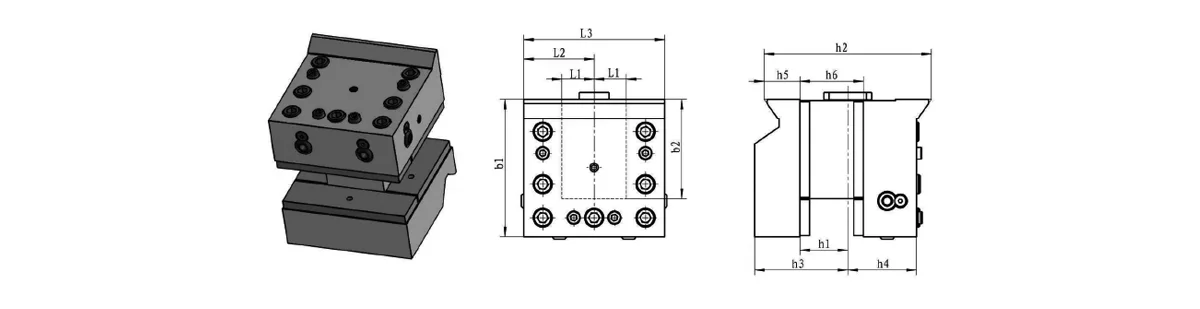

• C3 double-axial square toolholder




  Item No.	H2	H1	B1	B2 +0.5	H3	H4	H5 ±0.05	H6 Max	L1	L2	L3	Order No.
  C3-56×16	56	16	60	46	40	19	12	22	17	31	62	300.250
  C3-72×20	72	20	81	59	43	27	16	29	17	39	78	300.260
  C3-90×25	90	25	88	62	50	35.5	20	34	23	49	98	300.270
  C3-115×32	115	32	94	68	60	40	25.5	41	23	49	98	300.280
  C3-140×40	140	40	115	83	78	57.5	30	53	27	59	118	300.290

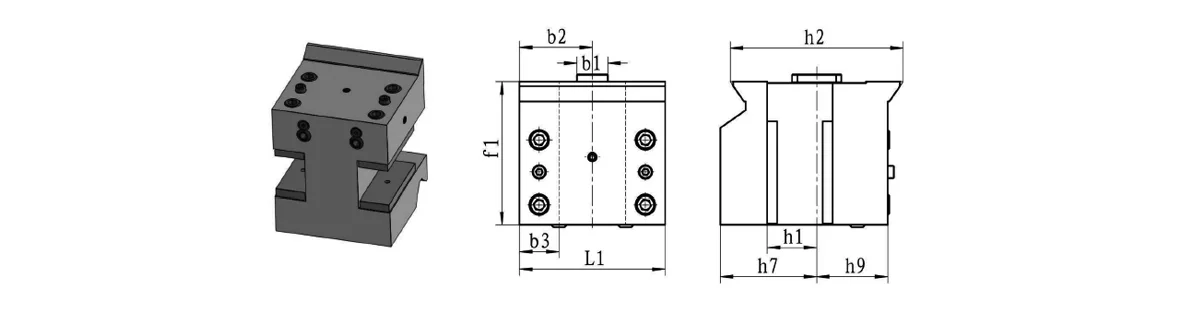

• C4 double-axial square toolholder




  Item No.	H2	H1	B1	B2	B3	H7	H9	F1	L1	Order No.
  C4-56×16	56	16	16	34	16	40	19	60	68	300.300
  C4-72×20	72	20	20	39	22	43	27	81	78	300.310
  C4-90×25	90	25	25	39	25	50	35.5	88	78	300.320
  C4-115×32	115	32	25	49	26	60	40	94	98	300.330
  C4-140×40	140	40	25	59	32	78	57.5	115	118	300.340
