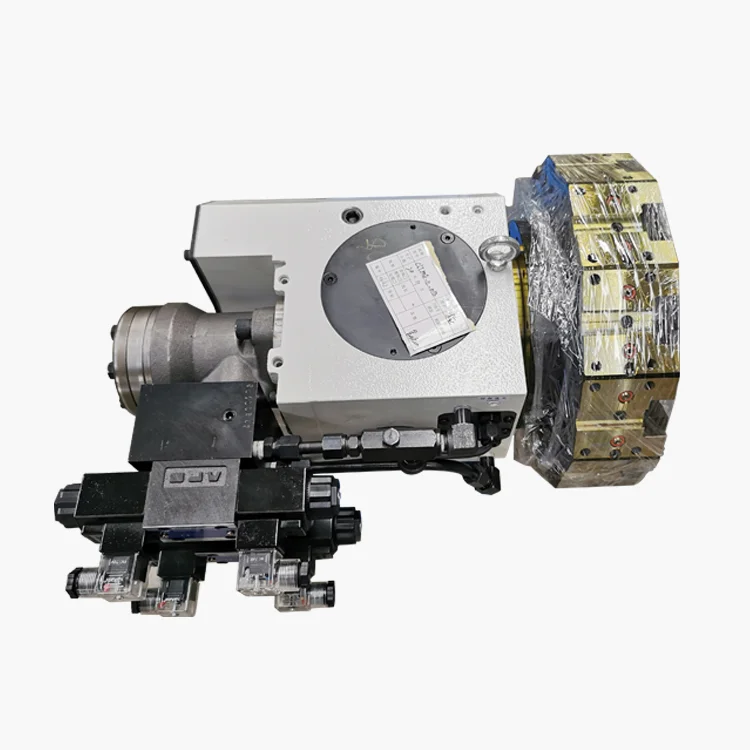

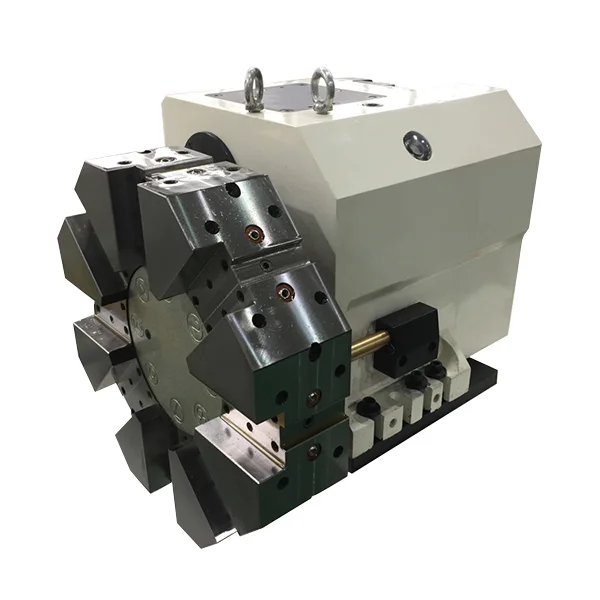

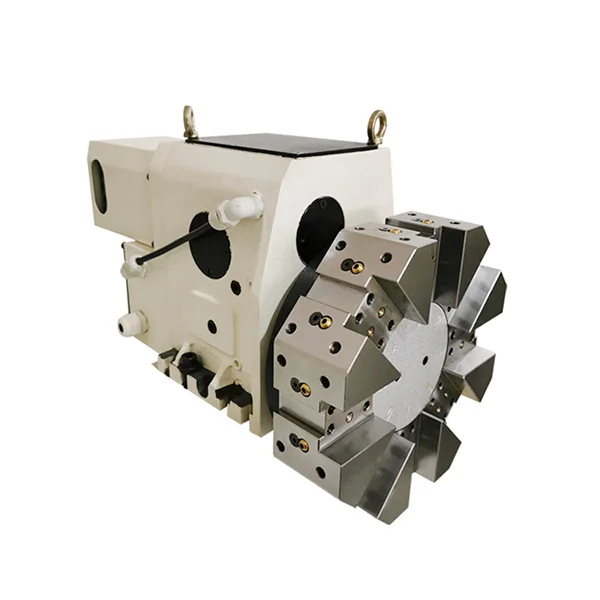

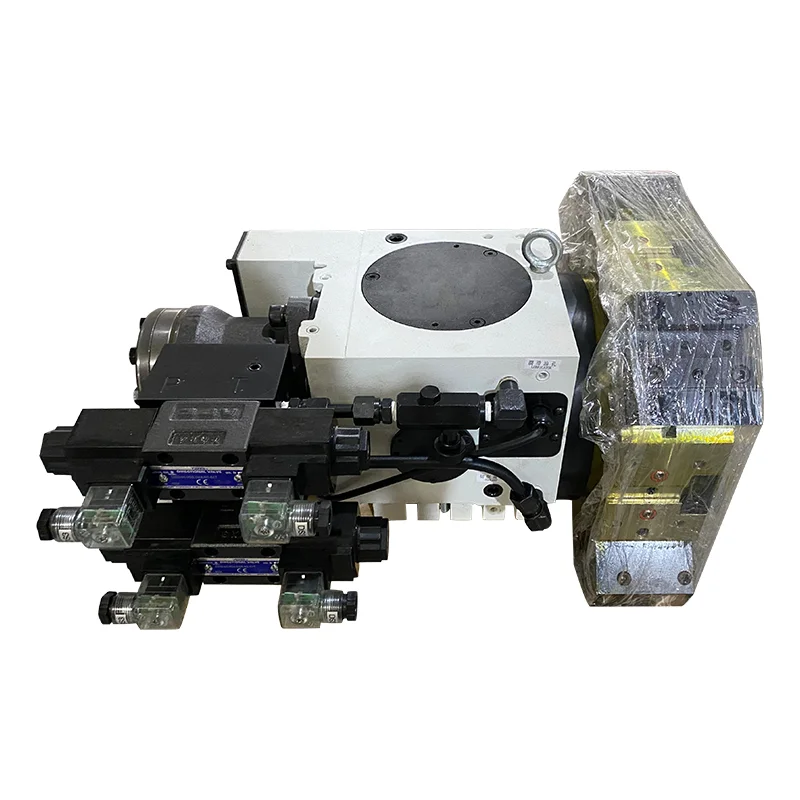

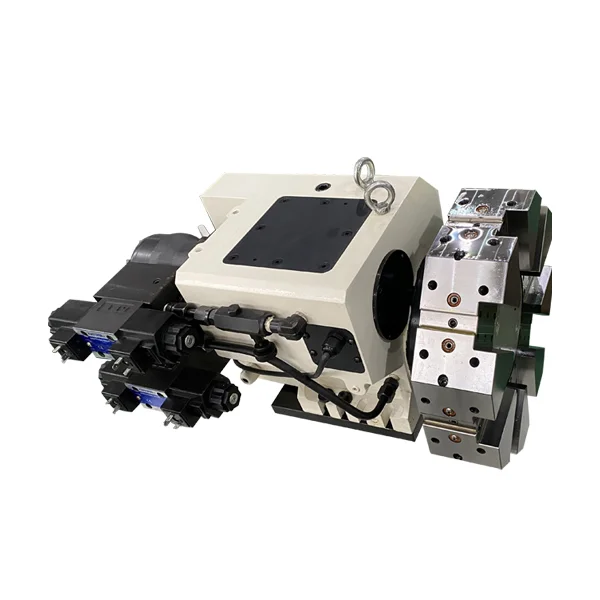

CLT SERIES CAM HYDRAULIC TURRET

The CNC lathe turret finds its application across various industries, including aerospace, automotive, medical, and general manufacturing. It's used for tasks like turning, drilling, boring, threading, and more. Its ability to hold multiple tools and perform complex operations with high precision makes it indispensable for producing intricate and accurate parts efficiently.

info@wxfagor.com

Message

BWD SERIES

SLT SERIES SERVO TURRET

Product details

FEATURE

▶ 1. lnside mechanism employs cam, high indexing accuracyand fast tool change.

▶ 2.Driven by hydraulic moror,high torque output and toolschange stability.

▶ 3.Turret clamping/unclamping employs hydraulic unit,reliable motion and permitting for heavy duty machining.

▶ 4.Controlled by proximity-detector and PLC programming,smart selection of nearby tools.

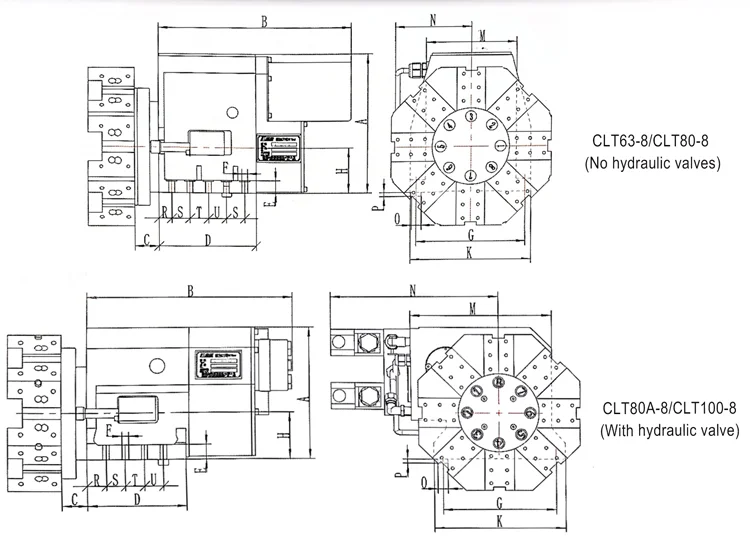

DIMENSIONS

PARAMETER

Item	Unit	Model
Item	Unit	CLT63	CLT80	CLT80A	CLT100A
Center height	mm	63	80	80	100
Allowed number of tools	N	8;12	8;12	8;12	8;12
Time for 45° ratation	sec.	0.35	0.35	0.4	0.65
Time for 45° clamping	sec.	0.45	0.45	0.5	0.8
Time for 180° ratation	sec.	1.5	1.5	1.7	1.8
Time for 180° clamping	sec.	1.6	1.6	1.8	1.95
Repeatability accuracy	mm	±1.6"	±1.6"	±1.6"	±1.6"
Indexing accuracy		±4"	±4"	±4"	±4"
Working pressure	MPa	3.5	3.5	3.5	3.5
Working flow rate	L/min	18	22	25	30
Max unbalance moment of torque	Nm	15	20	25	50
Max tangential moment of torque	Nm	1500	2000	2500	3500
Max axial moment of torque	Nm	1500	2000	2500	3500
Net weight (Without tool disc)	Kg	35	43	65	100

Model		CLT63	CLT80	CLT80A	CLT100
Opposites side	8T	228	280	270 300 330	330 370
Opposites side	12T		340	340	380
Boring Tool		φ20 φ25 φ32	φ32 φ40	φ32 φ40 φ50	φ40 φ50
O.D Tool		20	20 25	20 25	25
Facing Tool		20	20 25	20 25	25

Model	Dimension
	H	A	B	C	D	E	F	G	K
CLT63-8	63	228	326	36	155	18	9-φ11	165	185
CLT80-8	80	245	339	42	170	22	10-φ11	190	210
CLT80A-8	80	227	349	43	166	25	8-φ11	190	220
CLT100-8	100	293	370	43	175	30	8-φ13	220	250
	M	N	O	P	R	S	T	U
CLT63-8	146	99	φ15	8	19.5	30	30	30
CLT80-8	158	106	φ17	7.5	22	32	32	32
CLT80A-8	235	286	φ17	7.5	32	32	32	32
CLT100-8	272	307	φ20	9	34	40	30	30

FACTORY SHOW

Wuxi Fagor technology Co., Ltd. is a professional supplier which is specialized in production, testing and sales of high quality and high precision CNC machines, including CNC gantry milling machine, CNC milling machine, CNC lathe, machine tool accessories, etc.,
