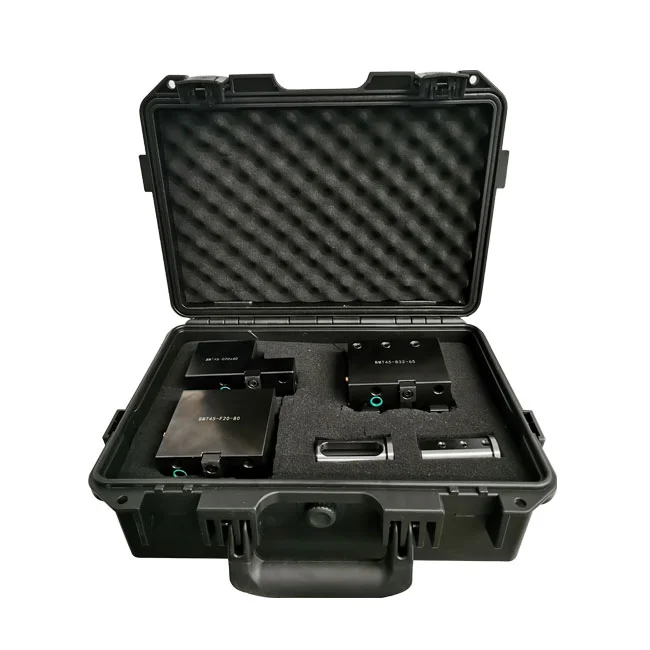

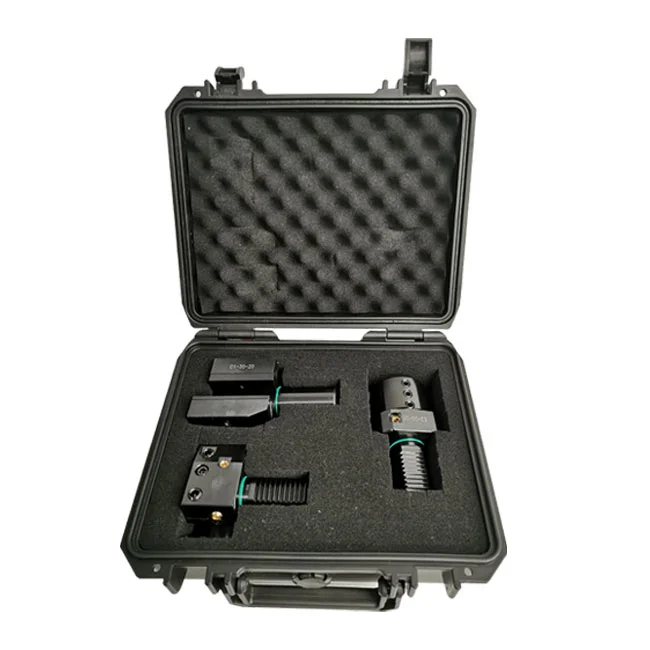

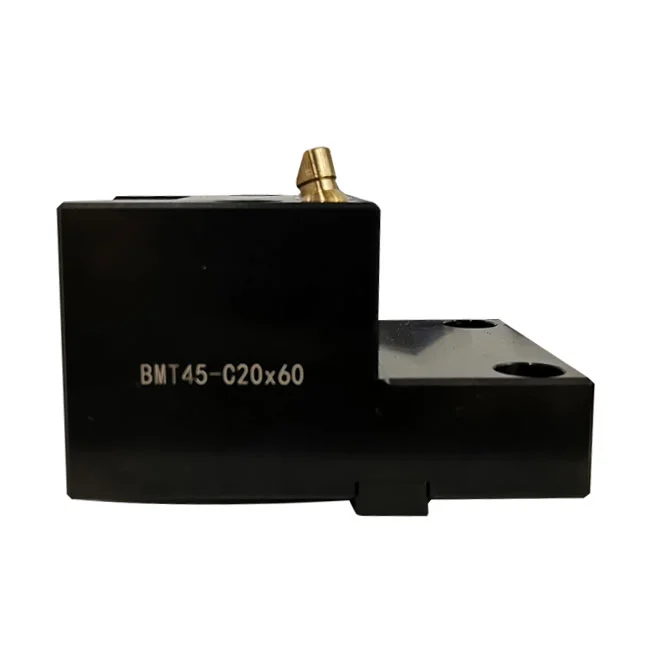

VDI QUICK-CHANG TOOL HOLDER (DIN69880)

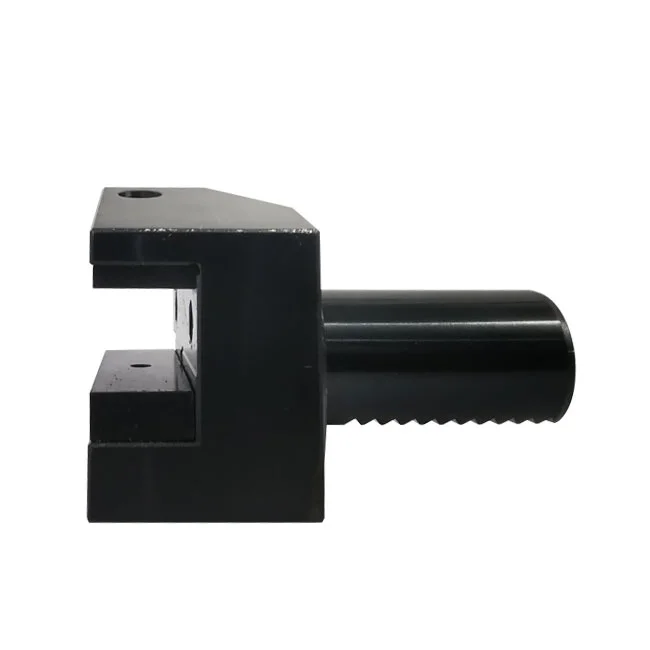

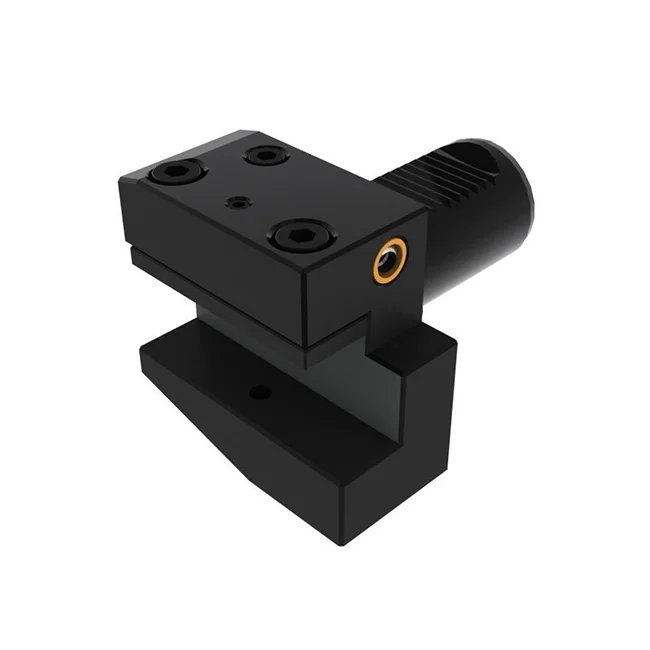

Tool holders form B1 with square crossholding fixture right、shot

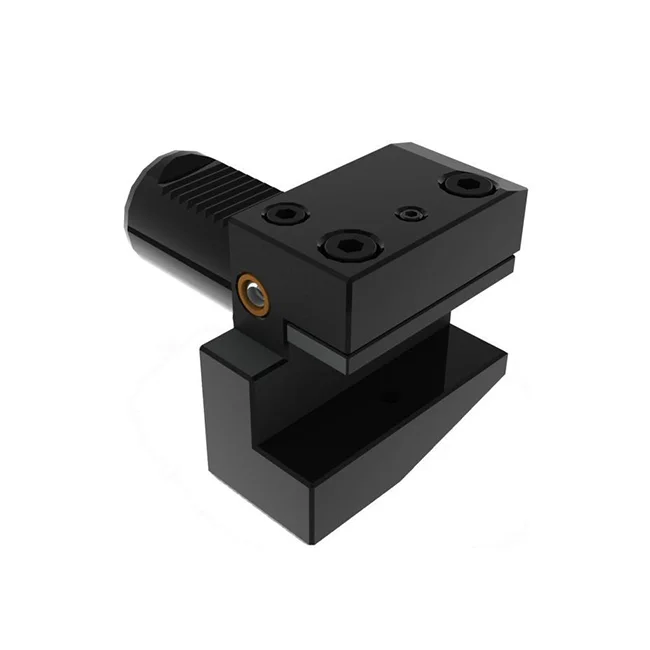

Tool holders form B2 with square crossholding fixture left、shot
Product Features
Quick Tool Change: Allows for rapid tool changes, reducing downtime.
Precision and Stability: Ensures accurate tool positioning for consistent results.
Versatility: Compatible with various cutting tools and machine tools.
Robust Construction: Made from durable materials for long-lasting performance.
Standardization: Adheres to industry standards for global compatibility.
High Clamping Force: Securely holds tools in place during operations.
Ease of Maintenance: Designed for easy maintenance and servicing.
Technical Paramter
Tool holders form B1 with square crossholding fixture right、shot
| Item No. | D | H | h | B | L1 | L2 | N.W.kg | Order No. |
| B1-16×12×24 B1-16×12×34 | 16 | 42 | 12 | 42 | 24 | 13 | 0.42 | 201.012 |
| 34 | 23 | 0.45 | 201.013 | |||||
| B1-20×16×30 B1-20×16×40 | 20 | 55 | 16 | 55 | 30 | 16 | 0.55 | 201.116 |
| 40 | 26 | 0.75 | 201.117 | |||||
| B1-25×16×30 B1-25×16×40 | 25 | 55 | 16 | 55 | 30 | 16 | 0.68 | 201.600 |
| 40 | 26 | 0.92 | 201.601 | |||||
| B1-30×20×40 | 30 | 66 | 20 | 70 | 40 | 22 | 1.29 | 201.118 |
| B1-40×25×44 | 40 | 80.5 | 25 | 85 | 44 | 22 | 2.28 | 201.119 |
| B1-50×32×55 | 50 | 95 | 32 | 100 | 55 | 30 | 3.90 | 201.120 |
| B1-60×32×60 | 60 | 105 | 32 | 125 | 60 | 30 | 6.41 | 201.121 |
| B1-80×40×75 | 80 | 135 | 40 | 160 | 75 | 40 | 13.50 | 201.122 |
Tool holders form B2 with square crossholding fixture left、shot
| Item No. | D | H | h | B | L1 | L2 | N.W.kg | Order No. |
| B2-16×12×24 B2-16×12×34 | 16 | 42 | 12 | 42 | 24 | 13 | 0.42 | 201.014 |
| 34 | 23 | 0.45 | 201.015 | |||||
| B2-20×16×30 B2-20×16×40 | 20 | 55 | 16 | 55 | 30 | 16 | 0.55 | 201.123 |
| 40 | 26 | 0.75 | 201.124 | |||||
| B2-25×16×30 B2-25×16×40 | 25 | 55 | 16 | 55 | 30 | 16 | 0.68 | 201.602 |
| 40 | 26 | 0.92 | 201.603 | |||||
| B2-30×20×40 | 30 | 66 | 20 | 70 | 40 | 22 | 1.29 | 201.125 |
| B2-40×25×44 | 40 | 80.5 | 25 | 85 | 44 | 22 | 2.28 | 201.126 |
| B2-50×32×55 | 50 | 95 | 32 | 100 | 55 | 30 | 3.90 | 201.127 |
| B2-60×32×60 | 60 | 105 | 32 | 125 | 60 | 30 | 6.41 | 201.128 |
| B2-80×40×75 | 80 | 135 | 40 | 160 | 75 | 40 | 13.50 | 201.129 |
Tool holders form A1 for special constructions
| Item No. | D | L | B | H | N.W.kg | Order No. |
| A1-16×44 | 16 | 44 | 78 | 44 | 1.24 | 201.712 |
| A1-20×65 | 20 | 65 | 100 | 60 | 3.11 | 201.100 |
| A1-25×75 | 25 | 75 | 100 | 60 | 3.8 | 201.669 |
| A1-30×85 | 30 | 85 | 130 | 76 | 6.8 | 201.101 |
| A1-40×100 | 40 | 100 | 151 | 96 | 12 | 201.102 |
| A1-50×125 | 50 | 125 | 160 | 120 | 20 | 201.103 |
| A1-60×160 | 60 | 160 | 165 | 125 | 30 | 201.104 |
| A1-80×200 | 80 | 200 | 220 | 160 | 60 | 201.105 |
