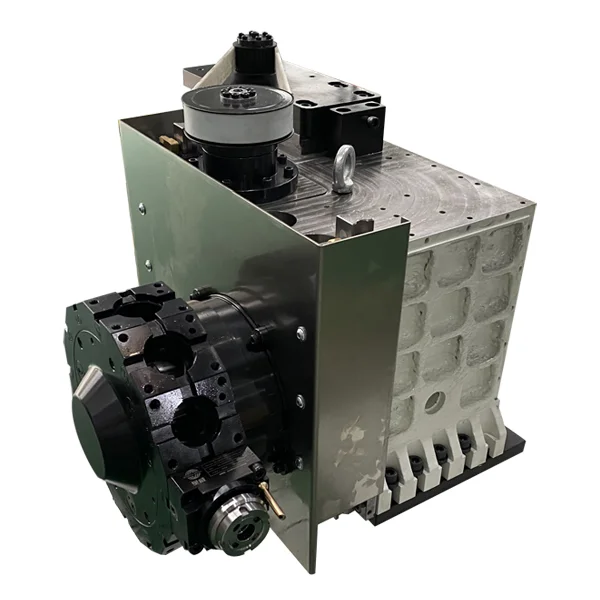

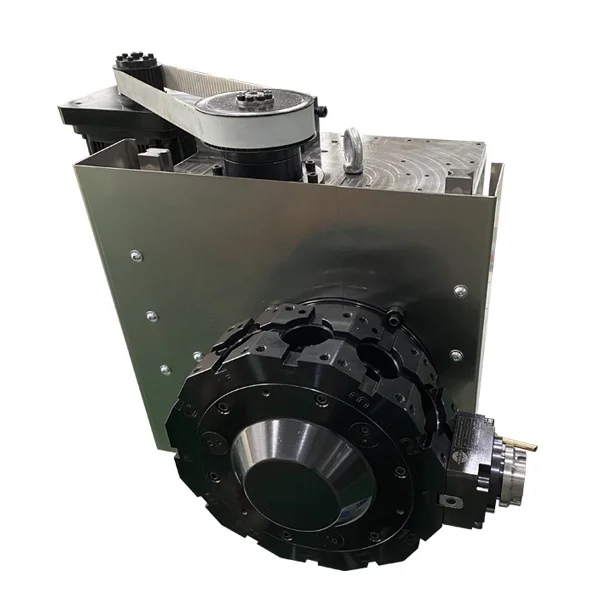

Y-AXIS-POWER TURRET
PRODUCT ADVANTAGE
▶ 1. The rotating and dividing of Powercutter- head adopts the servo motor.
▶ 2. Suitable for use on turning machings for forward and reveres machining.
▶ 3. Fast tool change without change error.High effciency.
▶ 4. Triple plate clutch structure assures accurate position.
▶ 5. High rigidity, and good reliability.

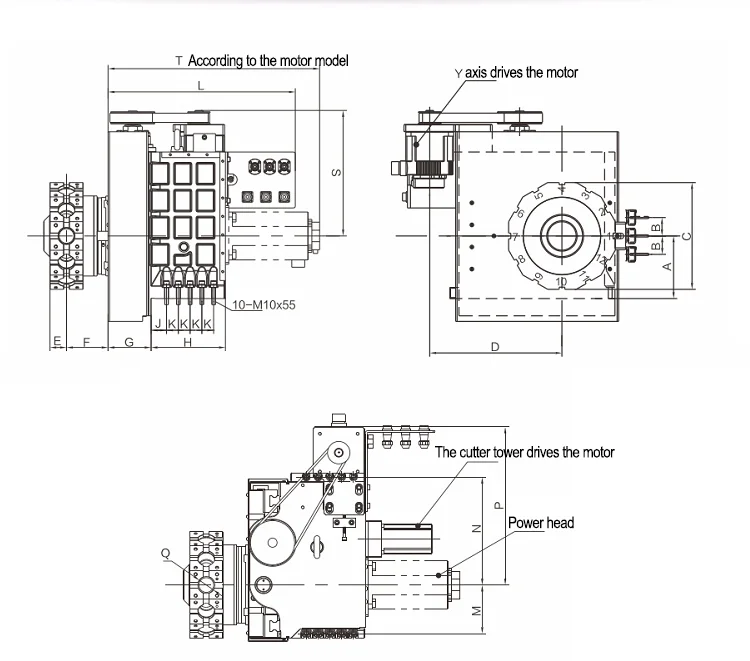

DIMENSIONS
PARAMETER
Item | Unit | Model | |
SHDY12 | SHDY16 | ||
Workstation | 12 | 12 | |
Perm. Tangential Load | KNm | 0.75 | 1.7 |
Indexing accuracy | ±4" | ±4" | |
Accuracy of repeatability | ±2" | ±2" | |
Time for 30° ratation and clamping | sec. | 0.1 | 0.12 |
Without accelerating and branking | sec. | 0.06 | 0.07 |
Turret unlocked or locked | sec. | 0.11 | 0.12 |
Perm. Indexing frequency | L/min | 25 | 20 |
Max unbanlanced load torque | Nm | 16 | 32 |
Gear speed radio for ratating | 30 | 36 | |
Hydraulic operating pressure | Mpa | 5 | 5 |
Operating pressure for | Mpa | 2.5 | 2.5 |
Power-drive | |||
Gear speed ratio for power tool | 1:1 | 1:1 | |
Tool shank type | BMT40 | BMT45 | |
Perm. Speed on tool drive | rpm | 6000 | 6000 |
Y axis function | |||
The gear ratio of Y axis | 2 | 2 | |
Max allowable feeding speed | m/min | 10 | 10 |
Allowable speeding distance | mm | ±30 | ±50 |
Positioning accuracy | um | 10 | 10 |
Weight (without tool) | kg | 150 | 300 |
Item | Unit | Model | |
Y12-240 | Y16-290 | ||
Workstation | 12 | 12 | |
Perm. Tangential Load | KNm | 0.75 | 1.7 |
Indexing accuracy | ±4" | ±4" | |
Accuracy of repeatability | ±1.6" | ±1.6" | |
Time for 30° ratation and clamping | sec. | 0.1 | 0.12 |
Without accelerating and branking | sec. | 0.06 | 0.07 |
Turret unlocked or locked | sec. | 0.11 | 0.12 |
Perm. Indexing frequency | L/min | 25 | 20 |
Max unbanlanced load torque | Nm | 16 | 32 |
Gear speed radio for ratating | 30 | 36 | |
Hydraulic operating pressure | Mpa | 5 | 5 |
Operating pressure for | Mpa | 2.5 | 2.5 |
Gear speed ratio for power tool | 1:1 | 1:1 | |
Toolholder type | BMT40 | BMT45 | |
Perm. Speed on tool drive | rpm | 6000 | 6000 |
The gear ratio of Y axis | 2 | 2 | |
The mare allowable feeding speed | m/min | 10 | 10 |
Allowable speeding distance | mm | ±30 | ±50 |
Positioning accuracy | um | 10 | 10 |
Weight (without tool) | kg | 150 | 250 |
Model | Dimension | ||||||||||||
A | B | C | D | E | F | G | H | J | K | L | M | N | |
SHDY12 | 125 | 30 | 240 | 290 | 37.5 | 97 | 8 | 170 | 106 | 35 | 450 | 111 | 234 |
SHDY16 | 170 | 50 | 290 | 360 | 45 | 113 | 117 | 202 | 42 | 32 | 510 | 132 | 293 |
P | Q | S | |||||||||||
SHDY12 | 351 | φ40 | 270 | ||||||||||
SHDY16 | 430 | φ45 | 350 | ||||||||||
Model | Dimension | |||||||||||||
H | BMT | A | B | C | D | E | F | G | K | L | M | N | O | |
Y12-240 | 125 | 40 | 205 | 133 | 98 | 277 | 75 | 173.5 | 298 | 4-35 | 325.0 | / | 25 | 240 |
Y16-290 | 170 | 45 | 247 | 289 | 113 | 319 | 90 | 227.5 | 445 | 4-32 | 462 | 47 | 25 | 290 |
P | R | S | U | V1 | V2 | W | ||||||||
Y12-240 | 376 | 45 | 268 | 10-12 | 111 | 234 | 370 | |||||||
Y16-290 | 435 | 42.5 | 349.5 | 10-12 | 132 | 293 | 449 | |||||||
