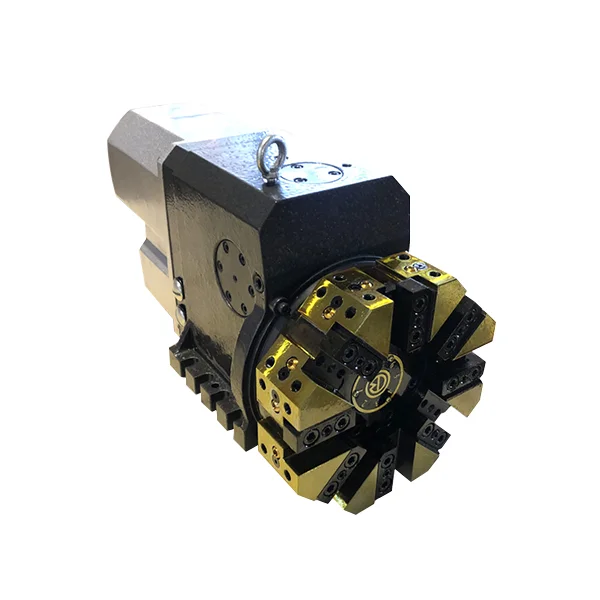

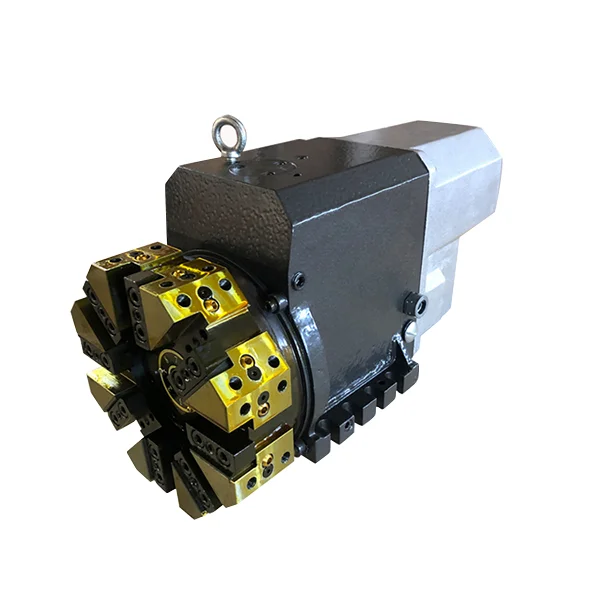

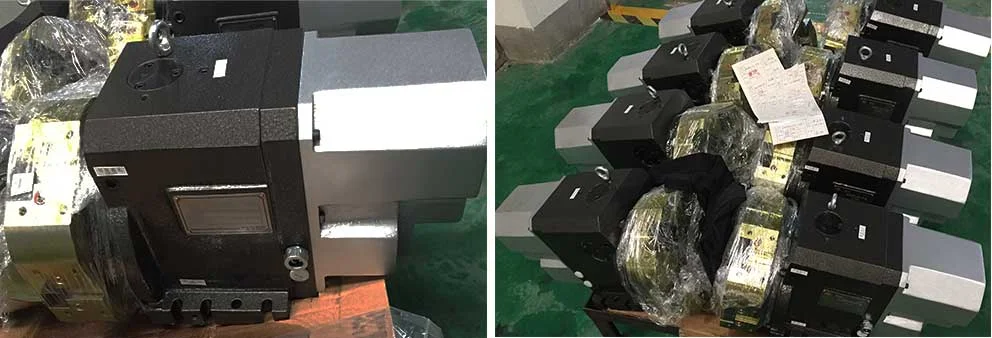

Nc Turret Feature
▶ BWSII is our company's new turret catering for the demand of customer. The central height meet International standards utilizing cycloid reduction, camlock-type, three gear- teeth location and change tool without lifting the disc. It owns the compact structure, good appearance.
Applications
▶The BWD Series Electric Turret is widely used in CNC lathes, automated machining centers, and smart manufacturing systems. It is suitable for precision machining in industries such as automotive parts, aerospace, mold making, and medical equipment.

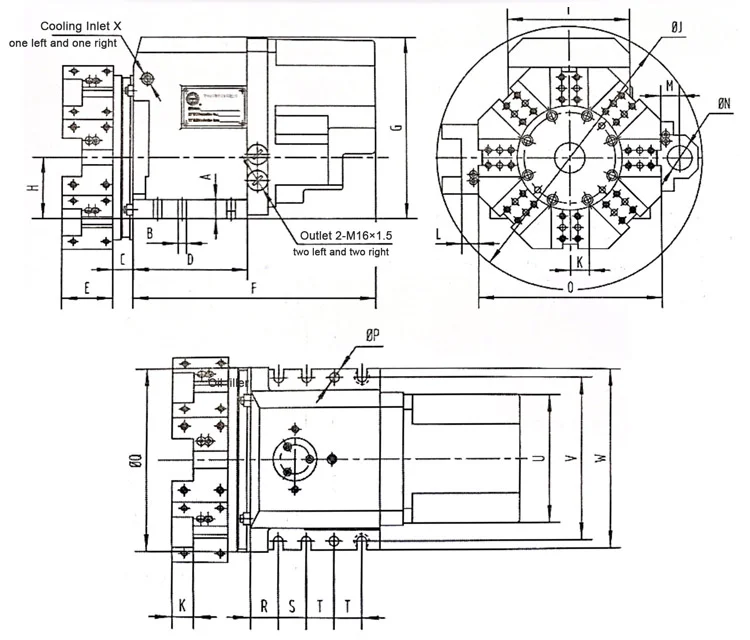

DIMENSION
PARAMETER
Item | Unit | Model | ||
BWD63 | BWD80 | BWD100 | ||
Center height | mm | 63 | 80 | 100 |
Allowed number of tools | N | 6;8 | 6;8 | 6;8 |
Time for 45°ratation and clamping | sec. | 1.8 | 1.8 | 2.1 |
Time for 180°ratation and clamping | sec. | 2.9 | 2.9 | 3.2 |
Max tangential torque | KNm | 0.7 | 1.5 | 3 |
Max axial torque | KNm | 0.8 | 1.6 | 3.5 |
The max bias torque | Nm | 10 | 12 | 25 |
Repeatability accuracy | mm | ≤0.005 | ≤0.005 | ≤0.005 |
Indexing accuracy | ±7" | ±7" | ±7" | |
Motor power | W | 90 | 140 | 140 |
Motor speed | r/min | 900 | 1400 | 1400 |
Net weight (Without tool disc) | Kg | 35 | 50 | 80 |
Model | Dimension | |||||||||||
H | A | B | C | D | E | F | G | I | J | K | L | |
BWD63-8 | 63 | 20 | 8-φ11 | 26 | 145 | 55 | 323 | 205 | 140 | 272 | 20 | 17 |
BWD80-8 | 80 | 25 | 6-φ11 | 26 | 149 | 65 | 314 | 238 | 160 | 376 | 25 | 22 |
BWD100-8 | 100 | 32 | 8-φ13 | 32 | 172 | 80 | 350 | 280 | 205 | 456 | 25 | 22 |
M | N | O | P | Q | R | S | T | U | V | W | X | |
BWD63-8 | 20 | 20 | 190 | / | 175 | 24 | 30 | 30 | 134 | 165 | 185 | G1/4" |
BWD80-8 | 25 | 32 | 270 | 11 | 215 | 32 | 32 | 32 | 149 | 190 | 210 | G3/8" |
BWD100-8 | 30 | 40 | 330 | / | 252 | 34 | 40 | 30 | 188 | 220 | 250 | G3/8" |
